Markdown Fence
vscode 扩展 Markdown Fence 支持多列语法
The vscode extension "Markdown Fence" supports multi-column syntax
功能 Features
下面三种语法是等效的。根据需要选用其中一种即可。
The following three syntax are equivalent. Choose one of the options according to your needs.
标准语法 Standard syntax
在不支持的解析器会解析为注释，渲染输出时隐藏
Unsupported parsers resolve as annotations and are hidden when the output is rendered
使用下面标记进行分隔
Use markers to split into multi-column styles
<!-- fence:start --><!-- fence --><!-- fence:end -->
快速语法 Short syntax
在不支持的解析器会解析为注释，渲染输出时隐藏
Unsupported parsers resolve as annotations and are hidden when the output is rendered
使用下面标记进行分隔
Use markers to split into multi-column styles
<!-- >>> --><!-- --- --><!-- <<< -->
简写语法 Short syntax
不支持的解析器会解析为普通文本原样显示，可以在后面追加任意数量的相同符号，起到分隔线的效果
Unsupported parsers will parse the plain text as is, and any number of identical symbols can be appended to the end to play the role of a divider
使用下面标记进行分隔，后续字符三个以上至任意数量都可以
Use the following tags to separate, and any number of subsequent characters from three or more can be used.
分栏标题 Column headings
在分栏第一行使用加粗的文本，并且在后续保持一个空行。这行就会解析为分栏标题。
Use bold text on the first line of the column and keep a blank line for the follow-up. This line resolves to a section header.
**标题 title**
<空行 empty row>
命令 Command
支持导出 html,pdf 两种格式
Support export of HTML and PDF formats
Markdown Fence: Export to HTMLMarkdown Fence: Export to PDF
可在 vscode 参数中设置页眉和页脚和其他相关参数
You can set the header and footer and other related parameters in the vscode parameter
markdown
markdown 内容如下
markdown content:
<!-- fence:start -->
## 这是左边开始的内容
1. 第一行
2. 第二行
<!-- fence -->
## 右边标题
横向分隔
<!-- fence:end -->

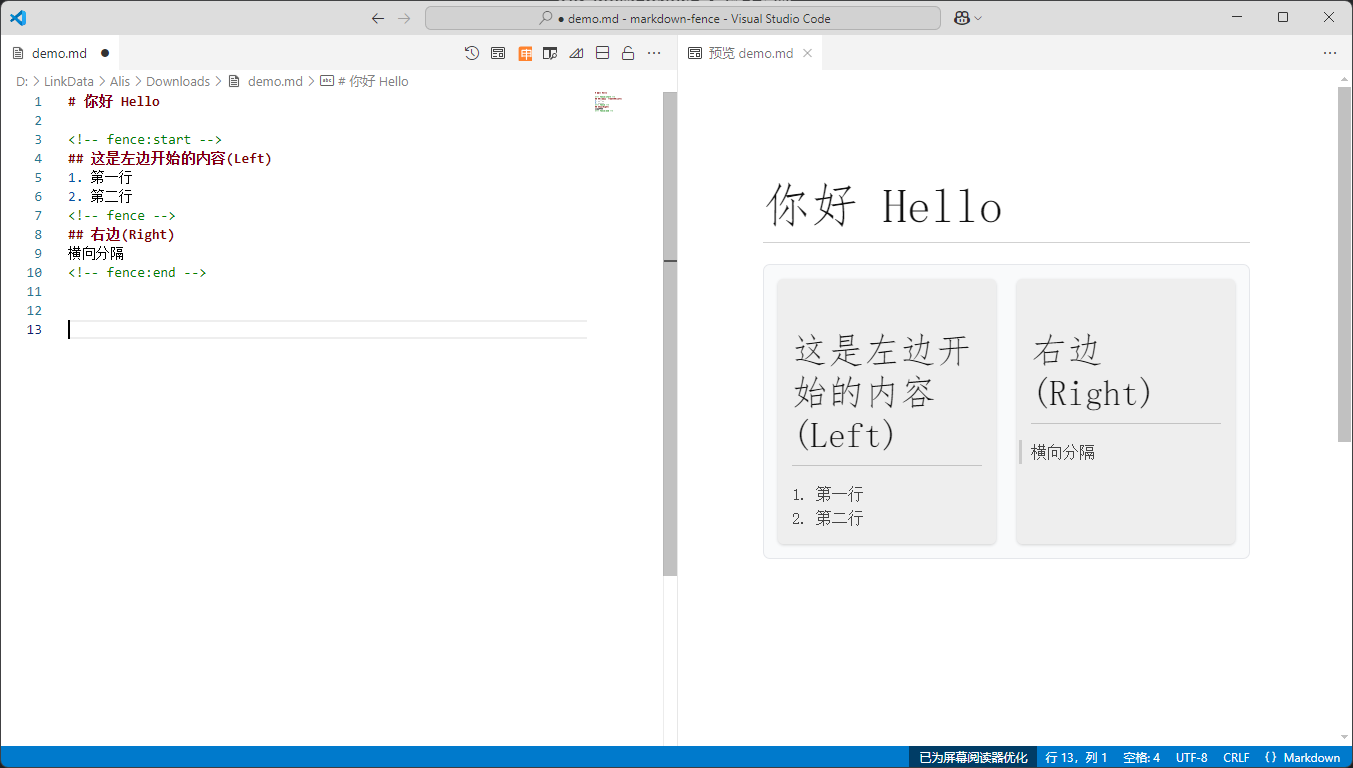

预览
预览
after render:
<div class="fence-block">
<div class="fence-item">
<h2 data-line="0" class="code-line" dir="auto"
id="1">这是左边开始的内容</h2>
<ol data-line="1" class="code-line" dir="auto">
<li data-line="1" class="code-line" dir="auto">第一行</li>
<li data-line="2" class="code-line code-active-line" dir="auto">第二行</li>
</ol>
</div>
<div class="fence-item">
<h2 data-line="0" class="code-line" dir="auto" id="2">右边标题</h2>
<p data-line="1" class="code-line" dir="auto">横向分隔</p>
</div>
</div>
快捷键 Shortcut
在行内第一个字符键入: \ 。
配置参数 Configuration Parameters
| Name |
Description |
Default |
Example |
header |
Header to be added to the exported HTML/PDF
keywords:{title},{pageNumber},{totalPages} |
|
<div style="color:#666666;width:100%;">{title}</div> |
footer |
Footer to be added to the exported HTML/PDF
keywords:{title},{pageNumber},{totalPages} |
|
<div></div><div style="color:#666666;">{pageNumber} / {totalPages}</div> |
size |
Page size of the exported PDF |
A4 |
A3, Letter, Legal |
margin.top |
Top margin of the exported PDF |
20mm |
|
margin.right |
Right margin of the exported PDF |
5mm |
|
margin.bottom |
Bottom margin of the exported PDF |
10mm |
|
margin.left |
Left margin of the exported PDF |
5mm |
|
样式 style
可以根据自己的需要编写样式覆盖
You can write style overrides according to your needs
.fence-block,fence-short-block {
}
.fence-item,fence-short-item {
}
docsify plugin 插件支持
Markdown Fence 也提供了docsify支持。按下面添加插件即可使用
Markdown Fence also provides docsify support. Click below to add a plug-in to use
<!DOCTYPE html>
<html lang="zh-cn">
<head>
<meta charset="UTF-8">
<title>Markdown Fence</title>
<meta keyword="" />
<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1" />
<meta name="description" content="Markdown Fence" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<link rel="stylesheet" href="//cdn.jsdelivr.net/npm/docsify@4/themes/vue.css" />
+ <link rel="stylesheet" href="https://alislin.github.io/markdown-fence/css/fence.css" />
</head>
<body>
<div id="app"></div>
+ <script src="https://alislin.github.io/markdown-fence/out/docsify/fence.js"></script>
<script>
var num = 0;
window.$docsify = {
name: 'Markdown Fence',
repo: '',
+ plugins:[fence]
}
</script>
<script src="//cdn.jsdelivr.net/npm/docsify@4"></script>
</body>
</html>
