Claude Code Usage Monitor

A VS Code extension that shows your real-time Claude Code quota usage directly in the status bar — powered by the official Anthropic OAuth usage API.

How It Works

The extension authenticates using the OAuth token that Claude Code already stores locally at ~/.claude/.credentials.json. It polls GET https://api.anthropic.com/api/oauth/usage every 2 minutes by default (only when the window is focused) and displays the results without any additional login or configuration.

When the API answers HTTP 429 it also says how long to wait, and the extension waits exactly that long. The block is stored in the cache all windows share, so one window being told to back off stops the others too, and the last reading stays on screen meanwhile.

Claude Code saves its own last reading of the same endpoint in its config file ($CLAUDE_CONFIG_DIR/.claude.json, otherwise ~/.claude.json, on every platform). Before each poll the extension reads that file; whichever reading is newer is shown, and if Claude Code's is fresher than one interval the extension skips its own request. It never writes to the file, and a reading saved under a different account is ignored. The panel says via Claude Code's saved reading when that's what you're seeing.

The interval is configurable with claude-usage-monitor.refreshInterval (seconds, minimum 60). All windows share one cache, so the interval applies per machine. If the status bar shows HTTP 429 — Rate limited, raise it: the usage endpoint has a small hourly budget per account, and every open VS Code window, Claude Code session and other usage tool on the machine draws from the same budget.

Features

• Status bar — shows your 5-hour window utilization % and time until reset, with a warning/error indicator you can render as a background, tinted text, or an emoji
• Usage panel — click the status bar to open a full panel with progress bars for every active quota window
• Extra usage — displays pay-as-you-go credit spend if enabled on your account
• Zero config — reads your existing Claude Code credentials automatically

Status Bar

☁ 69% · 2h 14m

• 69% — percentage of your 5-hour quota used
• 2h 14m — time until the 5-hour window resets
• Hover for a tooltip with all active quota windows

Levels, with the default thresholds:

• Normal — below 60%
• Warning — 60–80%
• Error — above 80%

How the level is shown is up to you — background, tinted text, an emoji, or nothing at all. See Choosing the indicator.

Customising the text

The status bar is driven by a format template, claude-usage-monitor.statusBarFormat. Windows are addressed as {5h.…}, {7d.…}, {extra.…} (pay-as-you-go), {max.…} (whichever window is highest right now) or {model:<display name>.…} — the last one resolves against whatever models your account reports, so a new tier is addressable without a new release.

Fields are .pct, .reset, .resetTime (clock time, e.g. 13:27), .resetAt, .name and .bar, plus .spent and .limit on the pay-as-you-go window. {icon} inserts the Claude mark, {dot} the threshold glyph, and {{/}} escape literal braces.

Set claude-usage-monitor.resetDisplay to clock or both to show .reset as the local reset time (13:27) instead of a countdown.

A token naming a window your account doesn't report renders empty, and the separator it stranded is removed rather than left dangling — so {extra.spent} / {extra.limit} shows just $7.00 when no monthly cap is set, and pay-as-you-go tokens disappear entirely when credits are off.

The usage panel's Settings tab has presets, a live preview, and a checkbox per window for claude-usage-monitor.statusBarColorFrom, which drives the indicator from the highest of the windows you check (default: the 5-hour and 7-day windows).

Choosing the indicator

claude-usage-monitor.statusBarIndicator decides how a crossed threshold shows up:

VS Code allows an extension only two backgrounds, statusBarItem.warningBackground and .errorBackground, and picks the matching text colour itself. On a theme that sets a bright warning background against a pale warning foreground, the percentage is hard to read and no extension setting can override it. Dropping the background is what hands the colour back — which is what text and emoji do.

statusBarColors takes, per level, either a theme colour id — editorWarning.foreground, charts.red, terminal.ansiYellow, which follow light and dark themes — or a literal CSS colour such as #e5c100. statusBarEmoji takes any text per level; normal is empty by default, because a permanent green dot in the bar is noise rather than information. Both are editable in the panel's Settings tab, with a live preview.

The {dot} format token places the glyph yourself and works in every mode, so {icon} {dot} {5h.pct} pairs a glyph with a background if you want both.

background mode paints with VS Code's own tokens rather than colours of ours, so restyling it means editing those tokens. The panel's Settings tab shows four fields for them — warning/error background and text — with a colour picker each; clearing a field restores the theme's own colour. They are written to workbench.colorCustomizations, which repaints every extension's status bar item, not only this one. VS Code resolves these itself and offers no way to scope them to a single item, which is exactly why text and emoji exist. By hand it looks like this:

"workbench.colorCustomizations": {
  "[Default Dark Modern]": {
    "statusBarItem.warningBackground": "#7A6400",
    "statusBarItem.warningForeground": "#FFFFFF"
  }
}

When a window runs out

When the 5-hour or weekly window hits 100%, the format is set aside — the only thing that matters then is when you can resume — and the status bar reads blocked · 47m or 7d blocked · Sun 4:29 AM. If both are exhausted the 5-hour one wins. A maxed-out model such as Fable doesn't take over, since the other models still work; it shows as Exhausted — resets in … in the tooltip and panel like any exhausted window.

claude-usage-monitor.statusBarBlockedBy picks which windows take over, in priority order: default ["5h", "7d"], add "model:Fable" to include a model, ["*"] for any window (soonest reset first), or [] to always keep your format. The bar colour still follows statusBarColorFrom. The panel's Settings tab has the same choice as checkboxes.

Burn rate — beta, off by default

Beta. Trend lines and run-out estimates are new. They are deliberately conservative, but treat the projections as a rough guide rather than a promise.

Turn on Track usage history in the panel's Settings tab, or set claude-usage-monitor.burnRate to true, and each bar gains a trend line plus a reading like 13 %/hr · out ~11:47 PM — or resets first when the window resets before you can exhaust it. If something really is projected to run out first, a banner names it above the bars.

It stays quiet until it can be accurate: measuring… until there is enough movement to fit a line, and idle when a window genuinely is not moving.

This is the only feature that records anything. The history is kept locally in VS Code's extension storage, capped at 64 KB (typically ~5 KB), thrown away per window whenever that window resets, and deleted outright when you switch it off.

Notifications

A red status bar is easy to miss mid-file, so claude-usage-monitor.notifications announces threshold crossings:

• error (default) — at the error threshold, and again when a window is exhausted
• all — also at the warning threshold
• off — never

Each window notifies at most once per reset cycle, escalating only if it gets worse (warning → error → exhausted), so it never repeats on every poll.

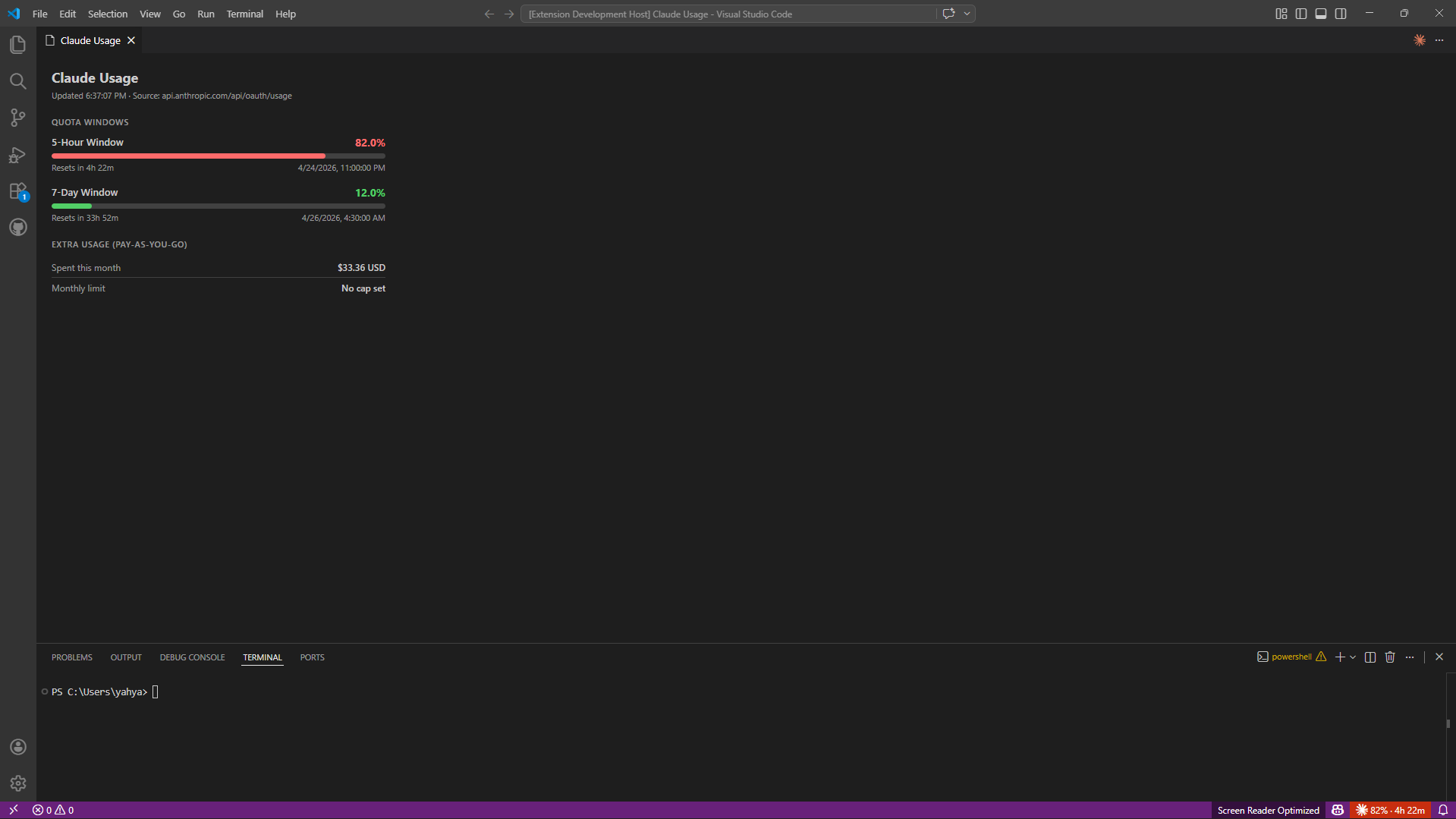

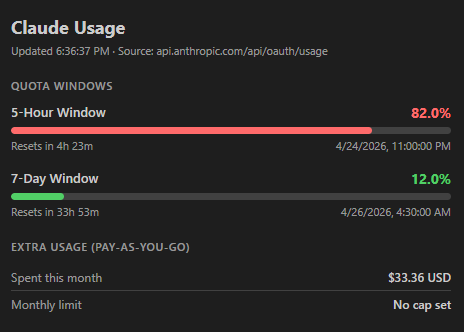

Usage Panel

Click the status bar item (or run Claude: Show Usage from the Command Palette) to open a panel showing:

• 5-Hour Window — your primary rolling quota with a progress bar and reset time
• 7-Day All Models — weekly quota utilization
• Per-model weekly windows — one bar per model limit the API reports (e.g. 7-Day Fable), parsed generically so new model tiers show up automatically
• Extra Usage — pay-as-you-go credits spent this month (when enabled)

Commands

Requirements

• VS Code 1.104.0 or higher
• Claude Code installed and logged in (so ~/.claude/.credentials.json exists)
• Internet connection (to reach api.anthropic.com)

Data Source

All data comes from the Anthropic API — the same source Claude Code itself uses for its internal quota display. No local JSONL parsing or file watching is involved.

The credentials file path follows Claude Code's own resolution logic:

1. $CLAUDE_CONFIG_DIR/.credentials.json if the env var is set
2. ~/.claude/.credentials.json otherwise

Privacy

• No data is collected or sent anywhere other than api.anthropic.com
• The OAuth token is read from disk and used only for the usage API call
• No telemetry

License

MIT
