Verilog Design Flow (VeriFlow)

简体中文

Verilog Design Flow brings the complete Verilog/SystemVerilog workflow into VS Code: module scanning, quick simulation, waveform viewing, and graphical HDL design.

Requirements

• VS Code 1.82.0+
• No external simulator required: uses the built-in Icarus Verilog WASM simulator by default.
• No external waveform tool required: uses the built-in VCD waveform viewer by default.
• Local tools can be invoked through configurable commands.

Quick Start

1. Open a .v / .sv file.
2. Right-click inside the file → VeriFlow → insert a template / instantiate a module / format the document / run a simulation.
3. Open VeriFlow from the Activity Bar.
4. The sidebar provides module browsing → graphical top-level design → graphical Testbench design.

Features

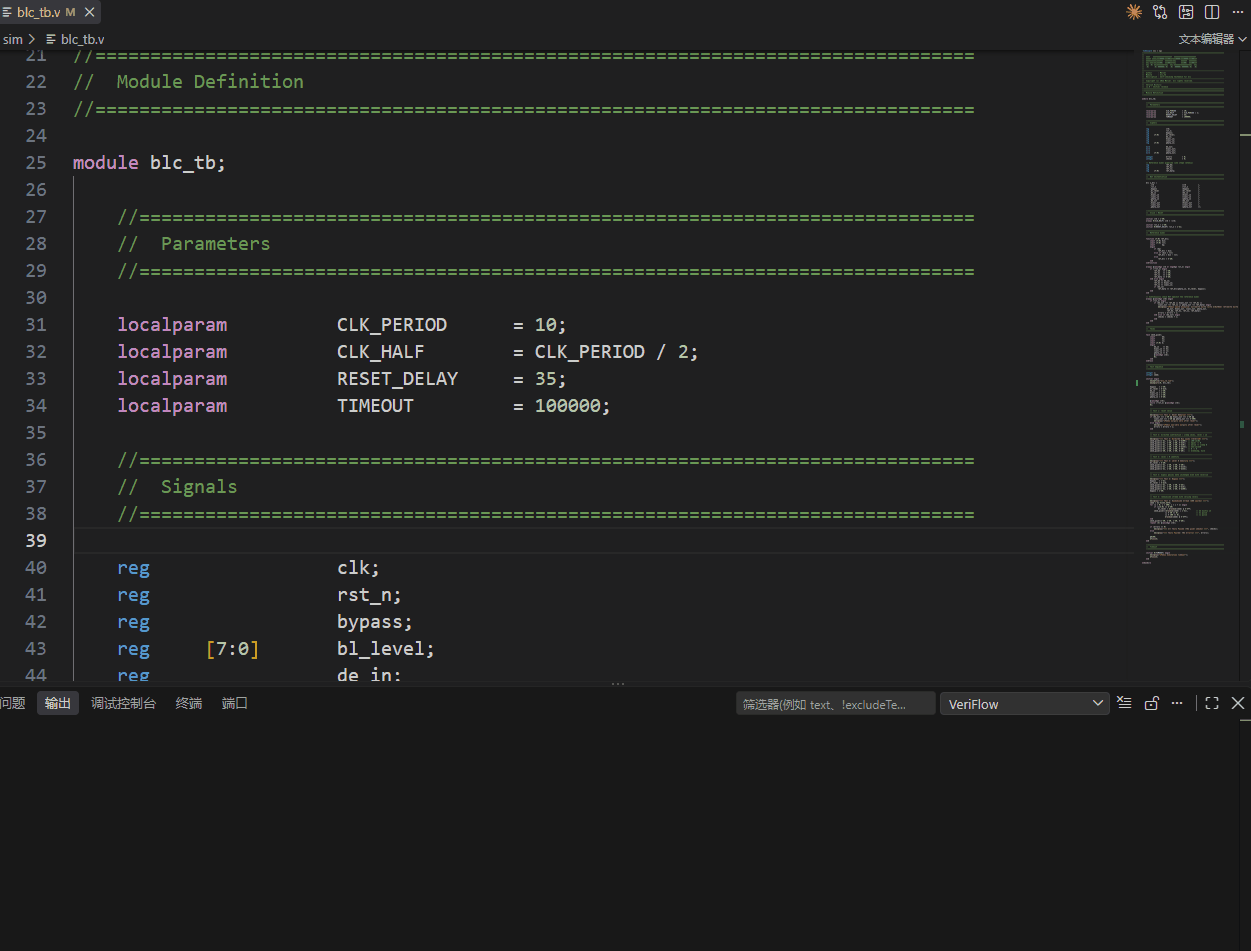

1. One-Click Simulation

Right-click inside a Testbench file → VeriFlow → Run Current Testbench. VeriFlow automatically uses the current file as the top level and runs dependency analysis → compilation → simulation → waveform viewing.

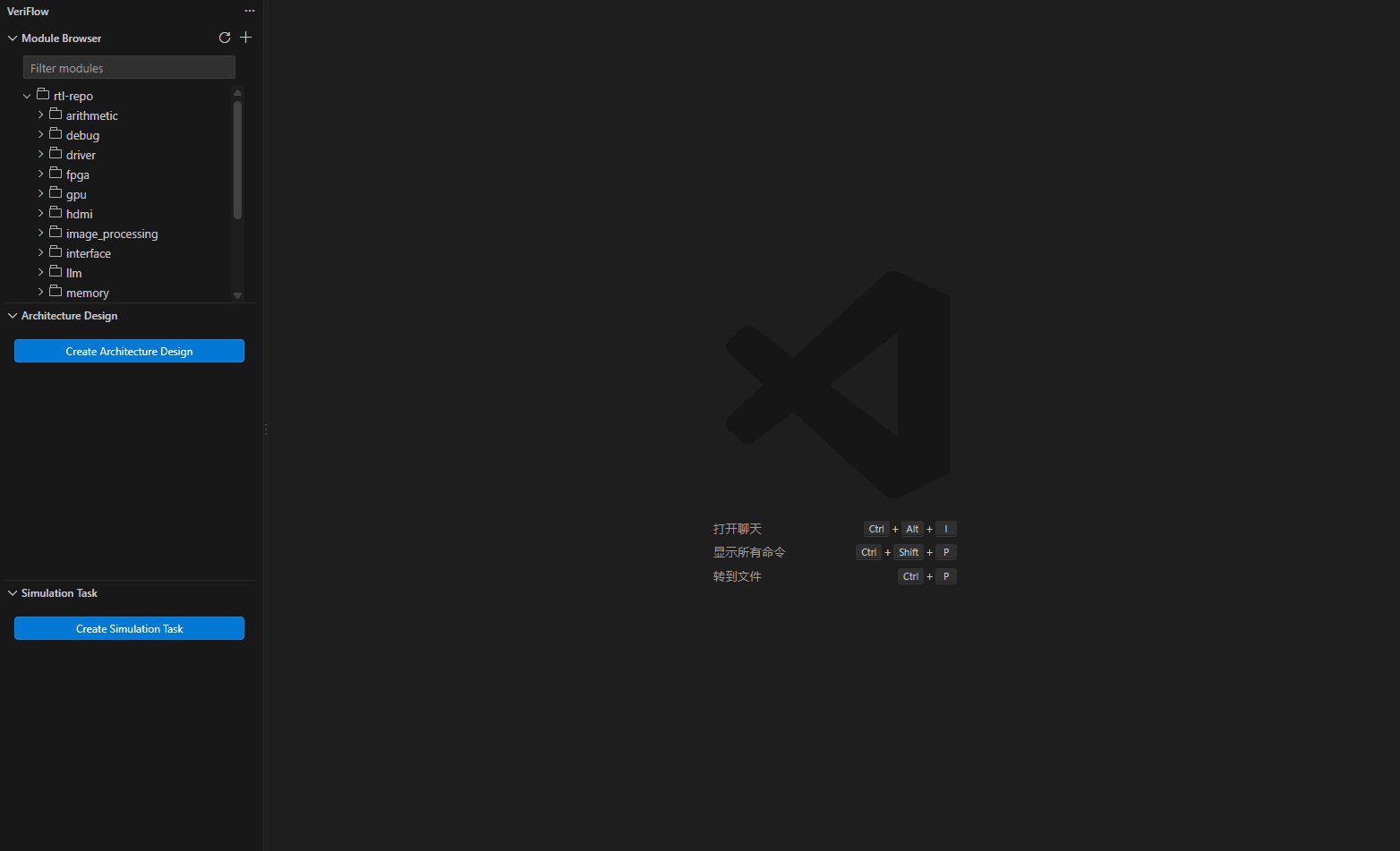

2. Architecture Design

Select Create Architecture Design under Architecture Design in the sidebar to create an architecture design canvas. Add Verilog / SystemVerilog modules and connect them to quickly design your project's top level.

• Automatically recognizes APB, AHB, and AXI bus interfaces for quick master/slave connections.
• Built-in Logic Utility components provide common combinational logic for more flexible connections.

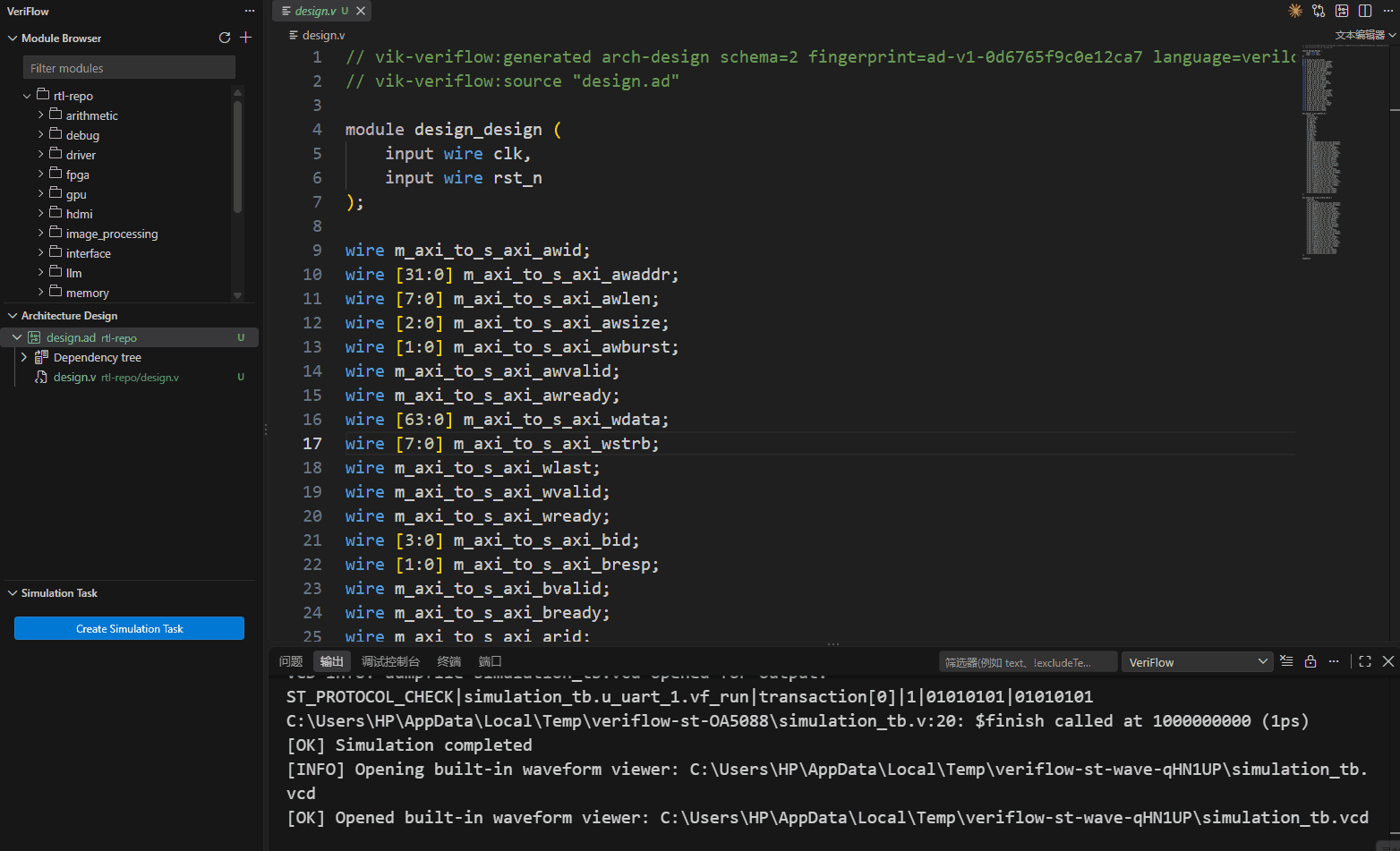

3. Simulation Task

Select Create Simulation Task under Simulation Task in the sidebar to create a simulation task canvas. Add Verilog / SystemVerilog modules and connect them to quickly design a Testbench.

• Built-in stimulus for common interfaces: UART, SPI, I2C, APB, AXI-STREAM, AXI-Lite, AXI-Full, and RGB888.
• Run a simulation and view waveforms directly from Simulation Task.

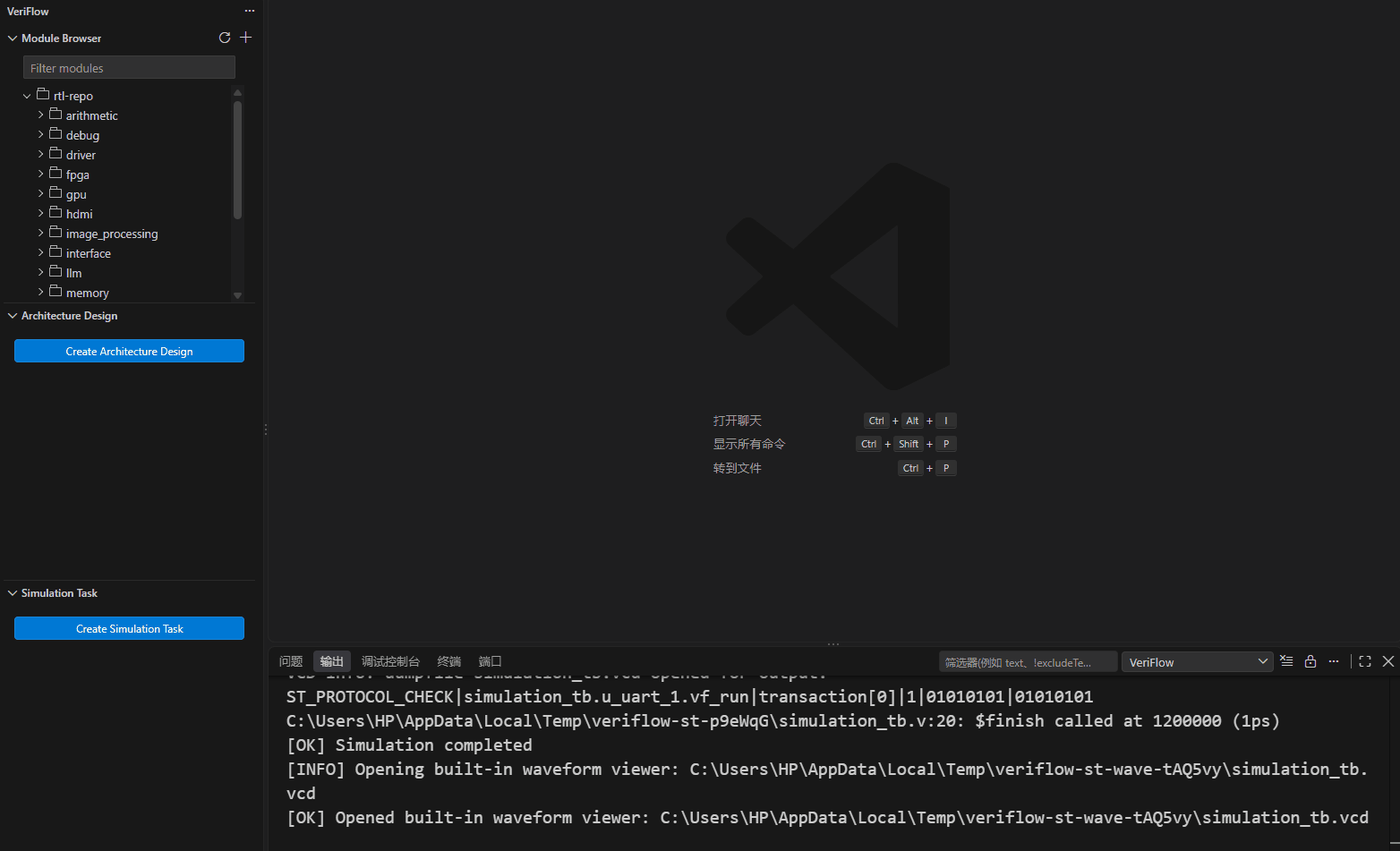

4. Common Tools

Right-click inside a Verilog / SystemVerilog file → VeriFlow →

• Insert HDL Template: insert common HDL templates.
• Instantiate Module: instantiate a module from the list with one click.
• Format Verilog/SystemVerilog: format your code with one click.

Common Settings

HDL Templates and Formatting

Open VeriFlow settings and edit veriflow.hdlTemplates in settings.json. Settings can be scoped to the user, workspace or workspace folder and are read for the active document each time you insert a template. Built-ins remain available by default; a matching ID overrides one, a new ID adds one, and enabled: false hides one. Remove an override to restore its built-in definition.

{
  "veriflow.hdlTemplates": {
    "register": {
      "label": "Register",
      "description": "Named register with a configurable width",
      "languages": ["verilog", "systemverilog"],
      "body": ["reg [{{1:7}}:0] {{2:data}};", "{{0}}"]
    },
    "clock": { "body": ["reg {{1:clk}} = 1'b0;", "always #{{2:5}} {{1}} = ~{{1}};"] },
    "timeout": { "enabled": false }
  },
  "veriflow.formatting.alignment": "columns",
  "veriflow.formatting.columns": [4, 12, 20, 44, 56]
}

body accepts a string or an array of lines. {{1:default}} creates an editable placeholder, {{1}} mirrors it, and {{0}} sets the final cursor. Defaults cannot contain }. Other text, including $display, $finish and backslashes, stays literal; native snippet variables are not evaluated. Invalid entries produce one configuration warning while valid templates remain usable. Each insertion is one undo step and preserves the document's line endings.

Format Document and Format Verilog/SystemVerilog use the same formatting settings. Columns are zero-based space offsets: 4 means four preceding spaces (editor column 5). Supply five increasing integers; the first is also the indent size (1–8), and no column may exceed 240. Language-specific overrides are supported. Use "adaptive" for the previous alignment style. Invalid columns fall back to defaults without changing a valid alignment mode.

For example, localparam [31:0] BAUD_RATE=115200; in a module becomes:

    localparam      [31:0]                  BAUD_RATE   = 115200;

Port and signal names start at offset 44; parameter names also use offset 44 and their = uses offset 56. Long content keeps minimum separating whitespace instead of pushing other lines right. Nested blocks indent by the first offset. Formatting preserves comments, macros, line endings and syntax; unsupported or invalid source is left unchanged. Template insertion, instance insertion/copy and AD/ST export do not automatically apply these settings; format the resulting document explicitly.

Other Settings

Example command templates:

Icarus Verilog: iverilog -g2012 -o "{output}" {files}   ·   vvp "{output}"

VCS:            vcs -full64 -o "{output}" {files}       ·   ./"{output}"

XSim:           xvlog {files} && xelab {top_module} -snapshot "{output}"   ·   xsim "{output}" --runall

Surfer:         surfer "{wave_file}"

GTKWave:        gtkwave "{wave_file}"

License

The extension's main code is licensed under MIT. The bundled Icarus Verilog WASM runtime is licensed under GPL-2.0-or-later; see the Icarus Verilog WASM notes for licensing details and access to the corresponding source.
