CP Visualizer

The Ultimate C/C++ and Java Competitive Programming Execution Visualizer for VS Code

CP Visualizer is a focused VS Code extension designed specifically for competitive programmers. It seamlessly integrates a compact local runner and an advanced execution visualizer directly into your workflow, eliminating the need to constantly switch between your IDE and external online visualization tools.

💡 No Compiler Required! Are you tired of struggling to install GCC/MinGW or Java SDKs? CP Visualizer works out-of-the-box on any machine. If you don't have a local compiler installed, the extension seamlessly falls back to a free, cloud-based execution backend to run and visualize your code instantly.

🚀 Features

• Multi-Language Support: Fully supports C, C++, and Java!
• Fast Native Run Visualization: Compiles and runs your code natively to capture a high-speed execution trace, completely bypassing slow traditional debugger latency.

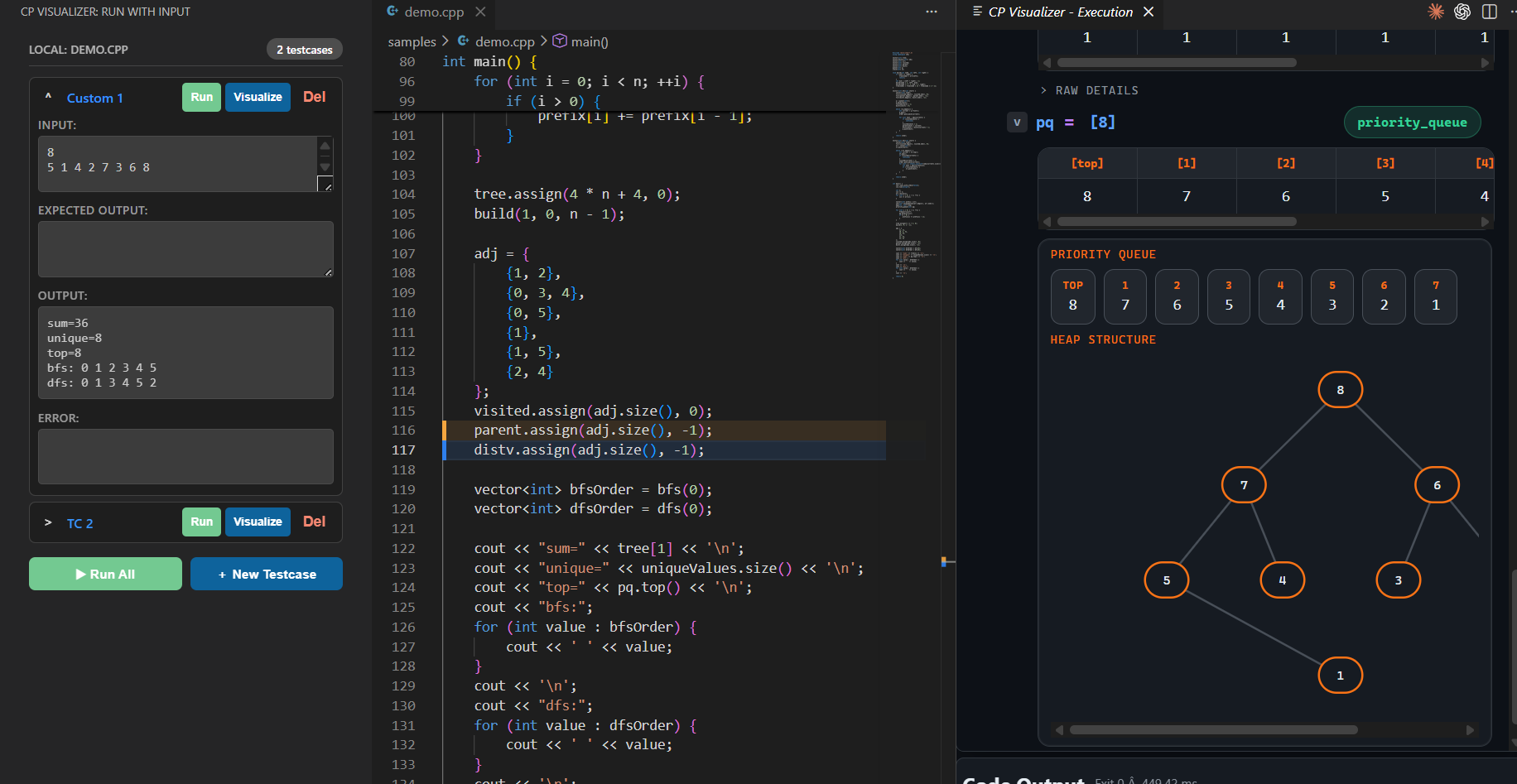

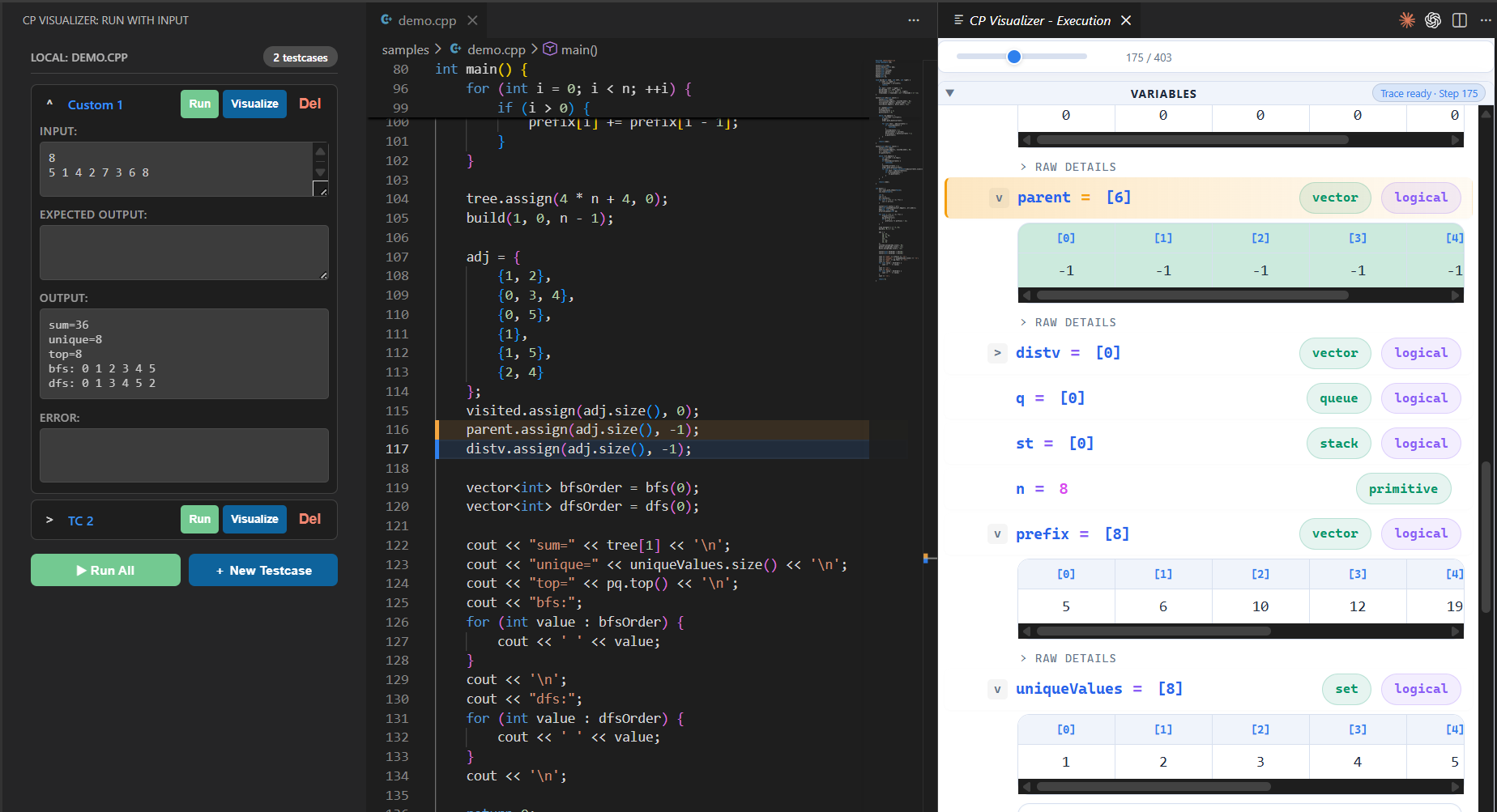

• Interactive Visualizer Panel: Step backward and forward through your code execution in real-time. Observe local variables, loops, and condition evaluations with precise editor line highlighting.
• Advanced Data Structure Rendering: Automatically detects and visually renders complex STL and Collections containers including:
  • vector, set, map, deque
  • stack, queue, priority_queue
  • 1D Arrays and 2D Matrices (vector<vector<T>>, int[][], int[n][n])
  • Trees, Graphs, and Segment Trees (auto-detected via heuristic variable names like adj, tree, etc.)
• Cloud Execution Fallback: No local compiler? No problem! The extension automatically falls back to a free, cloud-based Judge0 execution environment so anyone can visualize their code instantly.
• Pristine Workspaces: All temporary binaries and instrumented code files are quietly routed to your operating system's temp directory, keeping your project folder perfectly clean.

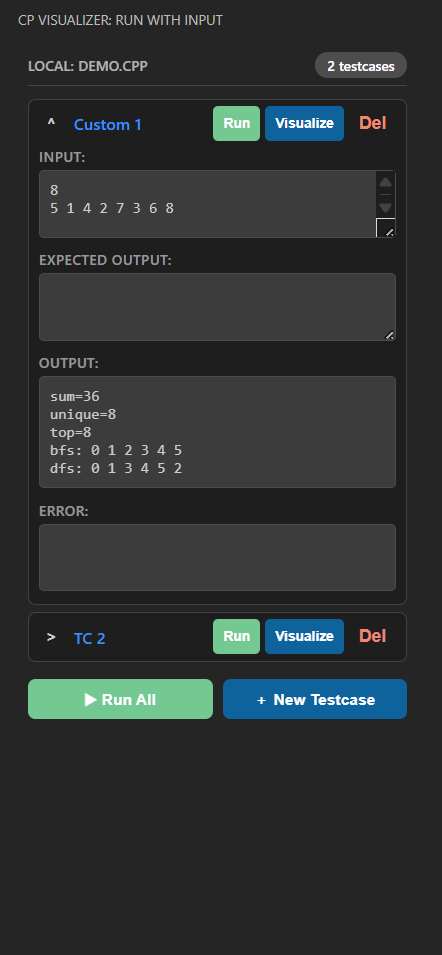

• Compact Custom Input Runner: Write, paste, and execute your code against custom inputs inside a sleek side-panel.

• Input Presets Management: Save, label, and manage multiple input test cases specific to each source file you work on.
• Competitive Companion Integration: Click the Competitive Companion extension icon in your browser to automatically download problems, extract test cases, and create ready-to-run .cpp files directly in your workspace!
• 1-Click CPH Submit: Finished coding? Click the "Submit" button to instantly queue your solution and auto-submit it via the CPH Submit browser extension (supports Codeforces and CSES).
• Run All Testcases: Automatically loop through and run all of your saved testcases at once with a single click or keyboard shortcut.
• Context-Aware UI: A beautiful, premium visualizer panel that auto-expands only when data structures are traced, preventing screen clutter.
• Smart Auto-Focus: The visualizer automatically scrolls down and highlights any variables that just changed at the current execution step, ensuring you never miss an update!
• Dynamic Structural Rendering: Graphs and trees intelligently scale their layouts to prevent clipping—even for massive priority queues!
• Persistent Preferences: Your layout and theme preferences (like Dark Mode) are preserved permanently across all visualization sessions.

💡 Uses

• Debugging Complex Algorithms: Ever wondered how your BFS queue, DFS traversal, or dynamic programming state matrix evolves at each step? CP Visualizer paints a real-time picture of your data structures as they change.
• Rapid Prototyping & Testing: Quickly swap between different custom inputs to test edge cases without polluting your workspace with temporary text files.
• Learning & Teaching: An excellent tool for understanding exactly how standard library containers and graph algorithms operate under the hood during execution.

⭐ Advantages of Using This Extension

• Zero Friction Workflow: No need to copy-paste code into online visualizers. Everything happens instantly within your local VS Code environment (or seamlessly via the cloud if you don't have a compiler!).
• Extreme Performance: Because it uses a Fast Native Run strategy (source instrumentation rather than a slow DAP debugger step-through), it collects execution snapshots magnitudes faster than traditional debuggers.
• Scalable Views: Includes built-in virtualization to handle rendering thousands of array elements without lagging your editor.
• No Terminal Clutter: Executions and visualizer runs happen quietly in the background without constantly popping open the VS Code integrated terminal or Output panels—unless there is a compilation error you need to see.

⚙️ How to Use

1. Open a .c, .cpp, or .java file containing your competitive programming solution.
2. Click the CP Visualizer icon in the left Activity Bar (or run CP Visualizer: Run With Input from the Command Palette).
3. Enter or load your custom input in the sidebar panel.
4. Click Run to quickly see the standard output.
5. Click Visualize Code to launch the interactive visualizer and step through your algorithm!

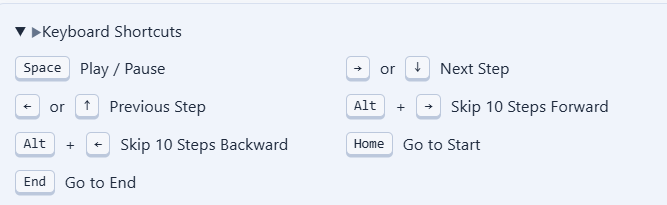

⌨️ Keyboard Shortcuts

Visualizer Playback (While the visualization panel is focused):

• Space: Play / Pause
• Right Arrow / Down Arrow: Next Step
• Left Arrow / Up Arrow: Previous Step
• Alt + Right Arrow: Skip 10 Steps Forward
• Alt + Left Arrow: Skip 10 Steps Backward
• Home: Go to Start
• End: Go to End

Extension Commands:

• Ctrl+Alt+R (Windows/Linux) or Cmd+Alt+R (Mac): Run All Testcases for the currently active file.

🔧 Settings

Customize the visualizer to your workflow via VS Code Settings:

• cpVisualizer.useCloudExecution: Control the cloud fallback behavior ("auto", "always", or "never"). Defaults to "auto" (only uses cloud if no local compiler is found).
• cpVisualizer.compilerPath: Specify your local C++ compiler if you prefer local execution (default: g++).
• cpVisualizer.javacPath / cpVisualizer.javaPath: Specify your local Java compiler and runtime paths (default: javac / java).
• cpVisualizer.compilerArgs: Add specific compiler flags like -std=c++20.
• cpVisualizer.segmentTreeHints / cpVisualizer.graphHints: Tweak the variable names the visualizer looks for to automatically draw trees and graphs!
