🛡️ Sentinel Flow

Advanced Codebase Intelligence and Visualization for VS Code

Sentinel Flow transforms your codebase into an interactive, AI-powered knowledge graph. Get deep architectural insights, real-time dependency tracking, and intelligent code analysis — all without leaving VS Code.

Getting Started · Features · Architecture · AI Integration · Configuration · Contributing

---

📋 Table of Contents

• Overview
• Features
• Architecture
• Design Decisions & Trade-Offs
• Getting Started
• Usage Guide
  • Commands
  • View Modes
  • CodeLens Annotations
  • Inspector Panel
  • Search & Filtering
• AI Integration
• Configuration
• Performance
• Development
• Contributing
• License
• Support

🧭 Overview

Modern codebases grow faster than human comprehension. Sentinel Flow bridges that gap by continuously parsing, indexing, and visualizing your code as a living knowledge graph — enriched by AI that understands both structure and semantics.

Whether you're onboarding to an unfamiliar project, hunting down a hidden dependency, or planning a large-scale refactor, Sentinel Flow gives you the context you need instantly.

✨ Features

🔍 Intelligent Code Indexing

Sentinel Flow parses your codebase at the AST level using Tree-sitter, providing symbol-accurate analysis rather than simple text scanning.

• Multi-language AST parsing — TypeScript, Python, and C supported out of the box
• Incremental indexing with content-hash-based change detection (only re-parses what changed)
• Worker-thread architecture keeps the VS Code UI fully responsive during indexing
• SQLite-backed graph database with O(1) symbol lookups

🗺️ Interactive Graph Visualization

Three purpose-built view modes let you zoom from 30,000 feet to individual function calls.

All views support real-time filtering, search, and progressive disclosure. Layout is powered by ELK.js for clean, automatic graph rendering.

🤖 AI-Powered Analysis

A dual-path AI architecture routes every query to the right model for the job — balancing speed against analytical depth.

User Query → Intent Router → Reflex Path (<300ms) or Strategic Path (2–5s)

• Reflex Path (Groq / Llama 3.1 70B): Near-instant answers for quick lookups and tooltip explanations
• Strategic Path (Google Gemini / AWS Bedrock): Deep architectural analysis, refactoring plans, and security audits
• Context-aware prompts include the dependency graph and code metrics for every query
• Response caching prevents redundant API calls and reduces costs

🔬 Inspector Panel

Click any node in the graph to open a rich details panel:

• Real-time metrics: cyclomatic complexity, coupling, and fragility scores
• Dependency map: all incoming and outgoing relationships at a glance
• Risk assessment with AI-generated plain-English explanations
• Health score for domains, files, and individual symbols

🧹 Technical Debt Detection

• Automated identification of code smells and anti-patterns
• Complexity and coupling metrics with trend tracking
• Blast radius analysis — see exactly which symbols would be affected by a change
• AI-generated, actionable refactoring suggestions

📊 CodeLens in the Editor

Sentinel Flow surfaces graph intelligence directly inside your source files — no need to switch to the graph view. Every function gets an inline annotation showing its heat score and a one-click trace shortcut.

• Complexity (heat) score displayed above every function
• ⚠️ warning indicator when complexity exceeds 15
• 🔴 critical indicator when fan-in exceeds 20
• ⚡ Trace action that instantly opens the call-trace graph for that function

🏗️ Architecture

Sentinel Flow is built across three clearly separated layers — the VS Code Extension Host, a background Worker Process, and the React Webview — with a dedicated AI orchestration layer sitting across all of them.

The diagram below shows the full system end-to-end: how source files are parsed and stored, how the graph reaches the UI, and how every user query flows through the AI routing and context assembly pipeline.

Master System Diagram

flowchart TD

%% ── SOURCE INPUT ──────────────────────────────────────────
subgraph SRC["📁 Workspace"]
    TS["TypeScript Files"]
    PY["Python Files"]
    C["C Files"]
end

%% ── INDEXING PIPELINE ────────────────────────────────────
subgraph WRK["⚙️ Worker Thread (Background)"]
    direction TB
    Parser["🌳 Tree-sitter WASM | AST Parser"]
    Extractor["🔬 Symbol Extractor | AST Traversal"]
    Index["📦 Composite Index | Cross-file Resolution"]
    DB[("🗄️ SQLite Database | Graph Store")]

    Parser --> Extractor --> Index --> DB
end

%% ── VS CODE EXTENSION HOST ───────────────────────────────
subgraph HOST["🖥️ VS Code Extension Host"]
    Controller["🎮 Extension Controller"]
    Manager["🔀 Worker Manager"]
    Sidebar["📌 Sidebar Provider"]
end

%% ── VISUALIZATION PIPELINE ───────────────────────────────
subgraph VIZ["🌐 React Webview"]
    GraphData["📊 Graph Data"]
    Filter["🔍 View Mode Filter | Architecture / Codebase / Trace"]
    ELK["📐 ELK Layout Engine | Hierarchical Positioning"]
    ReactFlow["🗺️ React Flow | Interactive Canvas"]
    Inspector["🔎 Inspector Panel | Metrics & AI Actions"]
end

%% ── AI PIPELINE ──────────────────────────────────────────
subgraph AI["🧠 AI Orchestration Layer"]
    direction TB
    Router{"⚡ Intent Router | Query Classification"}
    cAST["📋 cAST | Context Assembly | code + graph + metrics"]

    subgraph REFLEX["Reflex Path  •  < 300ms"]
        Groq["Groq | Llama 3.1 70B"]
    end

    subgraph STRATEGIC["Strategic Path  •  2–5s"]
        Gemini["Google | Gemini 3.0 Flash Preview"]
        Bedrock["AWS | Bedrock"]
    end

    Cache[("💾 Response Cache")]

    Router -->|"Quick / Explain"| cAST
    Router -->|"Deep / Refactor"| cAST
    cAST --> Groq
    cAST --> Gemini
    cAST --> Bedrock
    Groq --> Cache
    Gemini --> Cache
    Bedrock --> Cache
end

%% ── CONNECTIONS ──────────────────────────────────────────
SRC -->|"File Watch / On Save"| Manager
Manager -->|IPC| WRK
DB -->|"Graph Export"| Controller
Controller <-->|"Commands & Events"| Sidebar
Controller <-->|"postMessage"| VIZ

DB --> GraphData
GraphData --> Filter --> ELK --> ReactFlow
ReactFlow --> Inspector

Inspector -->|"User Query"| Router
Cache -->|"AI Response"| Inspector

%% ── STYLES ───────────────────────────────────────────────
classDef srcStyle fill:#1e3a5f,stroke:#4a90d9,color:#cce5ff
classDef wrkStyle fill:#1a2e1a,stroke:#4CAF50,color:#c8f5c8
classDef hostStyle fill:#1c2b3a,stroke:#007ACC,color:#b3d9f5
classDef vizStyle fill:#2a1a3e,stroke:#9b59b6,color:#e8d5f5
classDef aiStyle fill:#2e1a1a,stroke:#e74c3c,color:#f5d5d5
classDef reflexStyle fill:#78350f,stroke:#fbbf24,color:#fef3c7
classDef strategicStyle fill:#1e1b4b,stroke:#818cf8,color:#e0e7ff
classDef cacheStyle fill:#374151,stroke:#9ca3af,color:#f3f4f6

class TS,PY,C srcStyle
class Parser,Extractor,Index,DB wrkStyle
class Controller,Manager,Sidebar hostStyle
class GraphData,Filter,ELK,ReactFlow,Inspector vizStyle
class Router,cAST aiStyle
class Groq reflexStyle
class Gemini,Bedrock strategicStyle
class Cache cacheStyle

Reading the diagram: Follow the two main flows independently.

• Left → Right (Indexing): Source files enter the Worker Thread, get parsed by Tree-sitter, extracted into symbols, resolved into a Composite Index, and persisted to SQLite.
• Bottom loop (AI): A user clicks a node in the graph → Inspector fires a query → Intent Router classifies it → cAST assembles rich context → the right AI model responds → result is cached and rendered back in the Inspector Panel.

Individual Pipeline Breakdowns

Source Files → Tree-sitter Parser → Symbol Extractor → Composite Index → SQLite Database → Graph Export

Database → Graph Data → View Mode Filter → ELK Layout → React Flow → Webview

User Query → Intent Router → Context Assembly (cAST) → AI Client → Response Cache → Inspector UI

⚖️ Design Decisions & Trade-Offs

To achieve enterprise-grade performance entirely within the local VS Code environment, we had to make specific architectural choices over standard alternatives:

🚀 Getting Started

Prerequisites

Note: API keys are optional but strongly recommended for AI features. See AI Integration for provider details.

Installation

Option A — VS Code Marketplace (coming soon)

Search for Sentinel Flow in the VS Code Extensions panel.

Option B — Build from Source

git clone https://github.com/Aman-art1/SentinelFlow
cd sentinel-flow-extension
npm install
npm run build

Configure AI Providers

1. Open the Command Palette: Ctrl+Shift+P (Windows/Linux) or Cmd+Shift+P (macOS)
2. Run: Sentinel Flow: Configure AI Keys
3. Enter your API credentials for your chosen provider(s)

First Use

1. Open a workspace/project in VS Code
2. Click the Sentinel Flow icon in the Activity Bar
3. Click "Update Workspace Index" to begin indexing
4. Once complete, click "Open Architecture Graph"

📖 Usage Guide

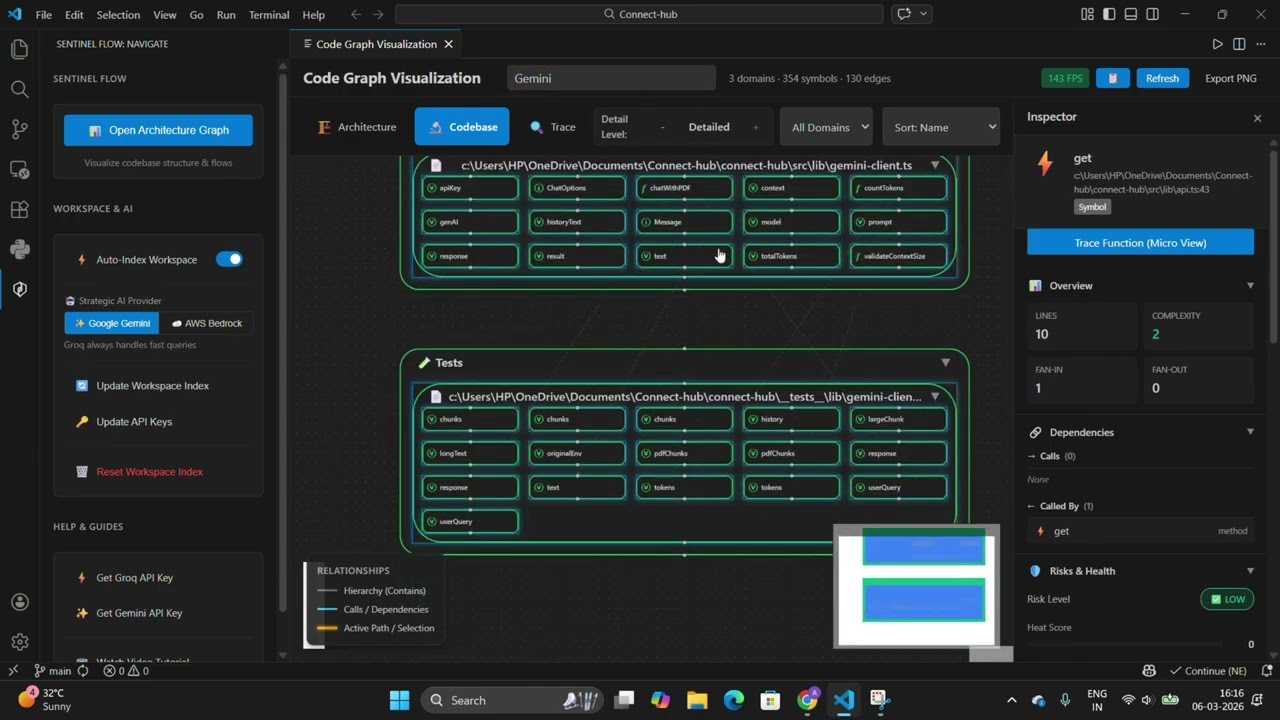

🎬 Full Video Walkthrough

For a complete overview of Sentinel Flow, including architecture planning, AI routing, and the Inspector Panel, watch our deep-dive tutorial.

Commands

View Modes

Architecture Mode

Renders your project as a high-level domain map. Folders become architectural domains; edges represent cross-domain dependencies. Use this when you need to orient yourself in an unfamiliar codebase or plan a cross-cutting change.

Codebase Mode

Displays the full symbol graph at three depth levels — Domain → File → Symbol — with edges showing imports and function calls. Use this for detailed code navigation and tracing exact dependency chains.

Trace Mode

Isolates a function's call chain and visualizes its blast radius: every symbol that would be affected by a change. Use this for debugging, impact analysis, and planning safe refactors.

Inspector Panel

Click any node to open the Inspector Panel on the right:

• Overview — basic metrics and file metadata
• Dependencies — incoming and outgoing relationship list
• Risks & Health — complexity, coupling, and fragility scores with color-coded indicators
• AI Actions — generate explanations, suggest refactors, or run a security audit on the selected symbol

CodeLens Annotations

Open any .ts, .py, or .c file — Sentinel Flow injects live CodeLens annotations above every function without any extra steps:

// [Heat: 7]  [⚡ Trace]
async function processPayment(order: Order): Promise<Receipt> {

Tip: CodeLens scores update automatically after each incremental index. You don't need to reopen the file.

Search & Filtering

• Search Bar — filter by symbol name or AI-generated tags (minimum 3 characters)
• Domain Filter — scope the graph to a specific architectural domain
• Sort Options — sort by name, complexity, fragility, or blast radius
• Depth Control — toggle between Domain, File, and Symbol level views

🧠 AI Integration

Supported Providers

⚡ Groq — Reflex Path

🔭 Google Gemini — Strategic Path

☁️ AWS Bedrock — Strategic Path

Intent Routing

Sentinel Flow automatically classifies each query and selects the right model — no manual selection required.

Context Assembly (cAST)

Every AI prompt is enriched with structured context pulled directly from the graph:

• Target symbol's source code
• Dependency subgraph (incoming and outgoing edges)
• Architectural pattern hints
• Complexity, coupling, and fragility metrics

⚙️ Configuration

Access settings via Settings → Extensions → Sentinel Flow.

Auto-Indexing

Toggle auto-indexing in the Sentinel Flow Sidebar:

• Enabled — automatically re-indexes whenever workspace files change
• Disabled — manual indexing only via the Command Palette

📈 Performance

Optimization Techniques

Sentinel Flow is engineered to stay fast on codebases of any size through several layered strategies:

• Incremental Indexing — only re-parses files whose content hash has changed
• Worker Thread Isolation — CPU-intensive parsing never blocks the VS Code UI thread
• Binary String Registry — O(1) symbol lookups via pre-interned string identifiers
• Composite Index — fast cross-file edge resolution without full table scans
• Response Caching — AI responses are cached in SQLite to avoid redundant API calls
• Progressive Disclosure — the graph renderer only processes nodes currently in the viewport
• Edge Deduplication — repeated relationships are collapsed to reduce visual clutter

Benchmarks

🛠️ Development

Build from Source

# Install all dependencies
npm install
cd webview && npm install && cd ..

# Production build
npm run build

# Development watch mode
npm run watch

# Run test suite
npm test

Project Structure

sentinel-flow-extension/
├── src/
│   ├── extension.ts              # Extension entry point
│   ├── ai/                       # AI orchestration layer
│   │   ├── orchestrator.ts       # Main AI controller
│   │   ├── intent-router.ts      # Query classification
│   │   ├── groq-client.ts        # Groq integration
│   │   ├── gemini-client.ts      # Gemini integration
│   │   └── bedrock-client.ts     # Bedrock integration
│   ├── worker/                   # Background processing
│   │   ├── worker.ts             # Worker thread entry point
│   │   ├── parser.ts             # Tree-sitter wrapper
│   │   ├── symbol-extractor.ts   # AST traversal logic
│   │   ├── composite-index.ts    # Cross-file symbol resolution
│   │   └── inspector-service.ts  # Per-node analysis
│   ├── db/                       # Database layer
│   │   ├── database.ts           # SQLite operations
│   │   └── schema.ts             # Data models and types
│   └── domain/                   # Business logic
│       ├── classifier.ts         # Domain classification
│       └── health.ts             # Health metric calculations
└── webview/                      # React visualization app
    ├── src/
    │   ├── App.tsx               # Root component
    │   ├── components/           # UI components
    │   ├── stores/               # Zustand state management
    │   └── utils/                # Layout and filtering helpers
    └── package.json

🤝 Contributing

Contributions are very welcome. Please read CONTRIBUTING.md before opening a pull request. For major changes, open an issue first to discuss what you'd like to change.

🙏 Acknowledgments

This project would not be possible without the following open-source projects and services:

• Tree-sitter — multi-language AST parsing
• React Flow — interactive graph visualization
• ELK.js — automatic graph layout
• Groq, Google Gemini, and AWS Bedrock — AI capabilities
• The VS Code team for the extension API

📄 License

This project is licensed under the MIT License — see LICENSE for full details.

💬 Support
