DeviceTree Config Audit
status = "ok" is not one of the five values in the Devicetree Specification v0.4
(okay, disabled, reserved, fail, fail-sss). dtc compiles it anyway - status is just a
string. Zephyr marks a node present only for the exact value okay, so the sensor quietly leaves the
build and you debug the driver instead of the line.
23 rules. 50 snippets. Line numbers, and a sentence saying what the correct spelling is and why.

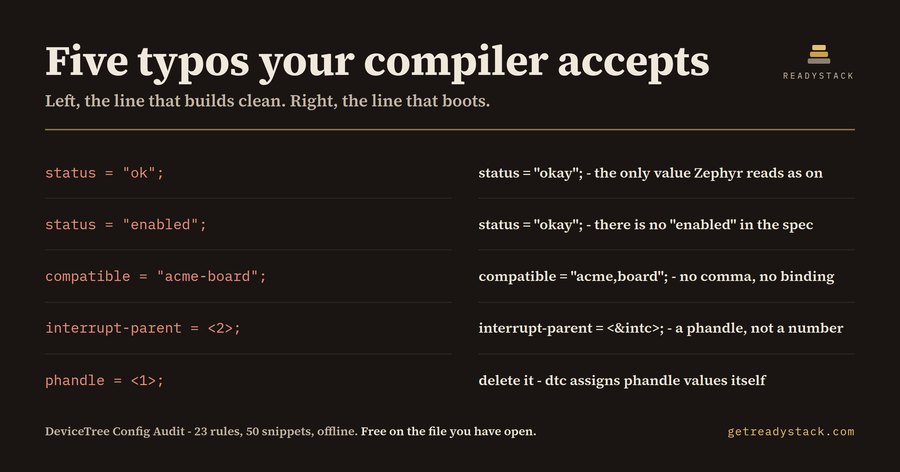

| The line that builds clean |
The line that boots |
status = "ok"; |
status = "okay"; - the only value Zephyr reads as on |
status = "enabled"; |
status = "okay"; - there is no "enabled" in the spec |
compatible = "acme-board"; |
compatible = "acme,board"; - no comma, no binding |
interrupt-parent = <2>; |
interrupt-parent = <&intc>; - a phandle, not a number |
phandle = <1>; |
delete it - dtc assigns phandle values itself |
Free, on the file you have open
- Audit the open file - all 23 rules, with line numbers in the output panel
- Insert a snippet - all 50, at the cursor, with tab stops
- Show everything in this pack - the full rule and snippet list
No licence key, no account, no network call and no build context. Nothing is watermarked and nothing
expires. It works on a bare .overlay pasted out of a vendor forum.
Ten of the 23 rules are devicetree. The other 13: TOML (3), MicroProfile .properties (3),
AutoHotkey v2 (3), Ren'Py (2), Swift (1), Inkling (1). The 50 snippets ship in 13 sets and also reach
Python, YAML/west, JSON and .editorconfig.
With a licence - scale, a handover file, repetition
The licence never removes a rule. Both sides run the same 23.
- Audit every file in the workspace - one pass, same rules, paths and line numbers in one list.
Honours
max_files and exclude_glob.
- Write the findings to a file - CSV, JSON or HTML into the workspace folder. Uses the
report_format setting when it is set, and asks only when it is not.
- Re-check on every save - a toggle; after it is on, every save re-runs the check.
- Apply the suggested replacement - collects the lines that carry a documented correct value and
reports how many need a hand edit. It does not rewrite your file: the destructive rewrite path was
removed after it damaged source lines, and no rule in this build ships a machine-checked
replacement, so this command currently reports and never edits.
Get the licence - $29 · one-time.
A freelance embedded software engineer bills about $103/hour (contractrates.fyi, 2026); a staff
embedded firmware engineer's hour averages $58.66 (ZipRecruiter, June 2026). One sensor missing from
a build costs an afternoon at the bench.
Try it first, without installing
index.html in this folder runs the same 23 rules on text you paste, in your browser. Nothing is
uploaded.
Install
ext install devicetree-config-language-pack
Settings
| Setting |
Default |
What it does |
report_format |
csv |
Export format: csv, json or html |
max_files |
800 |
Maximum workspace files scanned in one pass |
exclude_glob |
**/{build,.west,node_modules,zephyr/samples}/** |
Paths skipped during a workspace scan |
show_on_start |
false |
Audit the open file once when the editor opens |
extraRules |
[] |
Your own rules, checked alongside the 23 that ship inside |
What this is not
The free devicetree extensions highlight, complete and - inside a configured Zephyr or nRF context -
resolve bindings, and they do that better than this pack does. This is a spelling audit that needs no
context and no toolchain, and it covers the six other config languages in the same repository.
