Robot Developer Extensions for URDF

This extension provides developer tooling for Unified Robot Description Format (URDF) and Xacro Editing and Preview.

Features

Core URDF/Xacro Editing

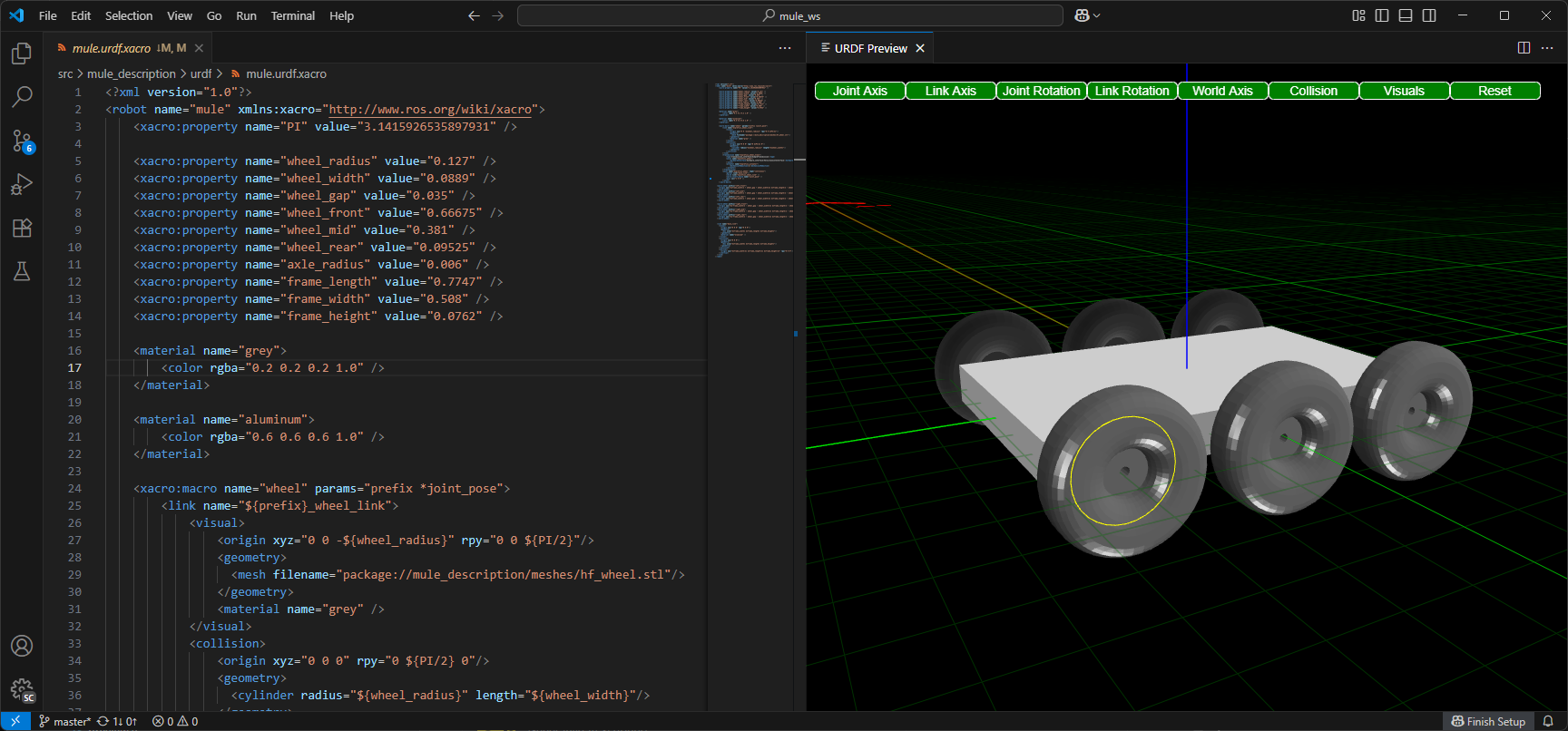

• 3D Preview: Real-time rendering with BabylonJS engine
• Link & Joint Visualization: Visual representation of robot structure
• Interactive Controls: Camera controls, rotation gizmos, and axis visualization
• Collision Visualization: Toggle collision geometry display
• Schema Validation: XML schema validation for URDF and Xacro files
• Syntax Highlighting: Full syntax support for URDF, Xacro, and OpenSCAD

IntelliSense & Navigation

• Go to Definition (F12):
  • Jump to URDF links, joints, xacro macros, and properties
  • Navigate to OpenSCAD modules and functions across files
  • Resolve package paths and file references
  • Cross-file symbol resolution via includes
• Enhanced Hover Documentation:
  • URDF/Xacro elements with full XML signatures and inline attributes
  • OpenSCAD modules/functions with parameters from comments
  • Built-in element documentation with types and defaults
  • Source file location for imported definitions
• Code Completion:
  • URDF/Xacro element snippets with placeholders
  • OpenSCAD built-in functions and transformations
  • Xacro property reference completion (${})
  • Contextual suggestions based on cursor position

OpenSCAD Support

• Integrated Editing: Full OpenSCAD language support with syntax highlighting
• Live Preview: Automatic STL conversion and 3D rendering
• Library Management: Automatic discovery of libraries from workspace and system paths
• Performance Optimizations: Fast preview mode with configurable timeouts
• Documentation Generation: Extract module/function docs from comments
• Snippets: Common OpenSCAD patterns for quick coding

Visual Customization

• Color Settings: Background, grid, and mirror customization
• Camera Configuration: Distance, angles, and view presets
• Grid Properties: Line color, spacing, opacity controls
• Mirror Effects: Reflective ground plane with configurable reflectivity
• Debug UI: Optional BabylonJS inspector for advanced debugging

AI-Assisted Development

• GitHub Copilot Integration: Custom prompts for URDF/Xacro/OpenSCAD
• Model Context Protocol (MCP) Server: AI visual verification tools
  • Screenshot capture of 3D previews
  • OpenSCAD library documentation access
  • Visual feedback loop for code generation
• Vibe Coding: AI can see rendered output and suggest improvements

Virtual Reality

• WebXR Preview: Immersive VR viewing of robot models
• Interactive Exploration: Navigate and inspect models in VR
• Learn more about WebXR

Coming Soon

• Physics Emulation
• Kinematics Visualization
• External URDF / Xacro References

Quick Start

1. Open a URDF, .xacro, or OpenSCAD file
2. Right-click and select "Preview" or press Ctrl+Shift+P → "URDF: Preview"
3. Use F12 (Go to Definition) on any link, joint, or module name to navigate
4. Hover over elements to see inline documentation with parameters

Navigation Tips

• F12 on link/joint names → Jump to definition
• F12 on xacro macro calls → Jump to macro definition
• F12 on OpenSCAD module calls → Jump to module (even in libraries)
• F12 on file paths → Open the referenced file
• Hover on elements → See full signature with parameters and types

For detailed configuration options, see the Configuration Guide.

OpenSCAD Library Configuration

The extension automatically loads OpenSCAD libraries from:

• SCAD file directory: The directory containing the SCAD file being previewed (highest priority)
• Workspace root: The current workspace folder
• Windows: %USERPROFILE%\Documents\OpenSCAD\libraries
• Linux: $HOME/.local/share/OpenSCAD/libraries
• macOS: $HOME/Documents/OpenSCAD/libraries

This means SCAD files in the same directory or subdirectories can reference each other without any configuration.

To add additional custom library paths:

1. Open VS Code settings (Ctrl+,)
2. Search for "urdf-editor.OpenSCADLibraryPaths"
3. Add additional library directories (supports ${workspaceFolder} variable)

Example settings.json:

{
  "urdf-editor.OpenSCADLibraryPaths": [
    "${workspaceFolder}/scad_libs",
    "C:\\MyLibraries\\OpenSCAD",
    "/usr/local/share/openscad/libraries"
  ]
}

Package Search Paths Configuration

The extension automatically discovers ROS packages from:

1. Workspace folders: Current VS Code workspace directories
2. ROS distro directory: System-installed ROS packages (configured via ROS2.distro and ROS2.pixiRoot)
3. User-specified search paths: Additional directories you configure

How it works: The extension scans for package.xml files and extracts package names from the <name> element to build a package-to-path mapping.

To add custom package search paths:

1. Open VS Code settings (Ctrl+,)
2. Search for "urdf-editor.PackageSearchPaths"
3. Add additional directories to search for ROS packages

Example settings.json:

{
  "urdf-editor.PackageSearchPaths": [
    "${workspaceFolder}/../other_ws/src",
    "/opt/ros/custom_distro/share",
    "/home/user/ros_packages"
  ]
}

Variable Substitution:

• ${workspaceFolder} is replaced with your workspace root directory

Package Precedence:

• Workspace packages take precedence over ROS distro packages
• This allows you to override system packages with local development versions

ROS Distro Configuration: The extension also supports ROS2 extension settings for automatic ROS distro discovery:

{
  "ROS2.distro": "kilted",
  "ROS2.pixiRoot": "/path/to/pixi/ros/installation"
}

If pixiRoot is set, the extension uses ${pixiRoot}/share for ROS packages. Otherwise, it defaults to /opt/ros/${distro}/share.

OpenSCAD Documentation Generation

The extension can automatically generate documentation for your OpenSCAD libraries:

1. Open the command palette (Ctrl+Shift+P)
2. Run "URDF: Generate OpenSCAD Libraries Documentation"
3. Choose where to save the markdown file
4. The extension will scan all library paths and extract:
   • Header comments from library files
   • Module and function signatures
   • Parameter documentation
   • Usage examples

This documentation is also available to AI assistants via the Model Context Protocol (MCP) for intelligent code completion and suggestions.

Model Context Protocol (MCP) Server

The extension includes an MCP server that provides AI assistants with powerful capabilities:

• Screenshot Tools: AI can capture and verify visual output of URDF/Xacro/OpenSCAD files
  • take_screenshot: Screenshot of currently active preview
  • take_screenshot_by_filename: Screenshot any file by path (opens preview if needed)
• Library Documentation: AI can access comprehensive OpenSCAD library information
  • get_openscad_libraries: Returns markdown documentation of all available libraries

The MCP server starts automatically when you open a preview and is accessible via HTTP on port 3005 (configurable).

Support

If you encounter any issues with this extension, the following resources are provided:

Github Issues

Bugs and feature requests are handled through Github Issues in the Repository. If you find that you are hitting the same issue as someone else, please give a :+1: or comment on an existing issue. Please provide as much details as possible, including an isolated reproduction of the issue or a pointer to an online repository.

Discussions

Github Discussions are provided for community driven general guidance, walkthroughs, or support.

Sponsor

If you find this extension useful, please consider sponsoring Ranch Hand Robotics to help support the development of this extension and other open source projects.
