LinuxCNC for VS Code

Smart editing and live error-checking for LinuxCNC .hal, .ini, and .ngc (G-code) files. Autocomplete, hover docs, go-to-definition, and validation that catches config mistakes as you type, instead of as a cryptic failure when the machine starts.

Works fully offline, with no LinuxCNC install required, on Windows, macOS, or Linux. (Why offline?)

Cross-file checks catch bad references as you type, before the machine refuses to start.

Quick start

1. Install this extension.
2. Open the folder that holds your machine config, meaning the .ini and its .hal files together (File → Open Folder). Cross-file checks need the whole config, not a single open file.
3. Edit. Mistakes appear as red/yellow squiggles; hover anything for docs; Ctrl/Cmd-click a signal, pin, or [SECTION]KEY to jump to its definition.

There's nothing to configure for a single-machine workspace. (Got one .hal shared by several machines? See Multiple machines.)

Features

HAL (.hal)

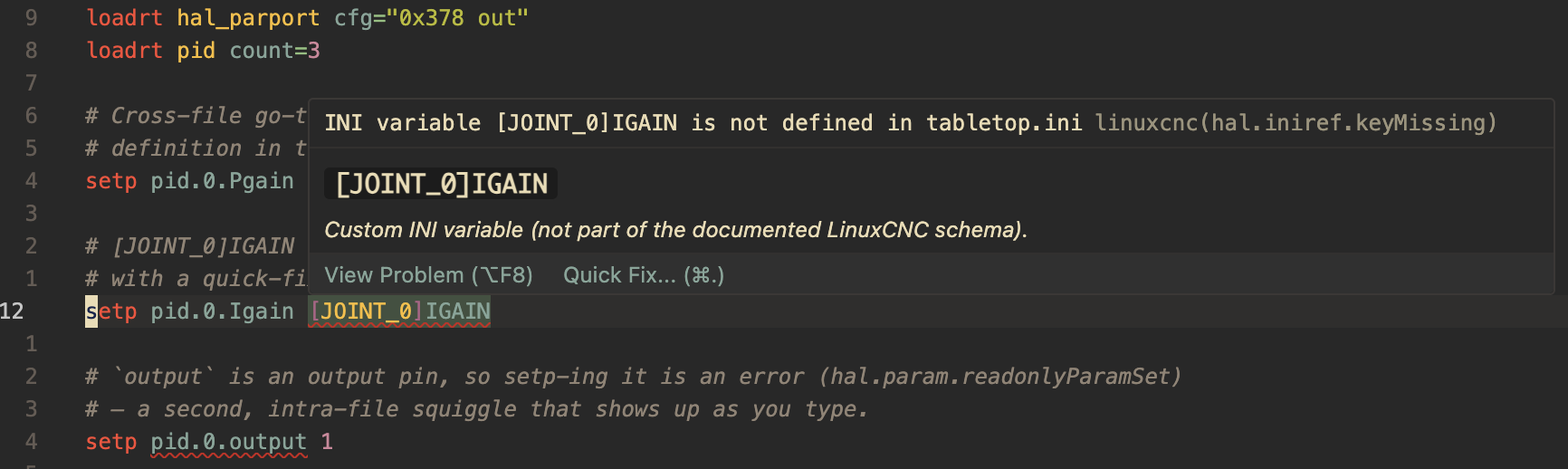

• Validation as you type: unknown components, setp on a read-only (output) pin, type conflicts (e.g. a bit pin linked to a float signal), and signals with no writer, no reader, or two writers fighting over one signal.
• [SECTION]KEY cross-checks: a HAL reference to an INI constant is verified against the actual INI, and flagged (with a quick-fix) when the key is missing.
• Navigate: go-to-definition, find-references, rename, and document outline for signals, named component instances, and INI references, across every HAL file of the machine.
• Autocomplete: halcmd commands, loadrt component names and module parameters, addf functions/threads, signal names, and component pins (incl. joint.N.* / axis.x.* motion pins and Mesa hostmot2 config= attributes).
• Quick-fixes for common mistakes (e.g. "add the missing INI key").

INI (.ini)

• Syntax + semantic highlighting, duplicate/conflicting-key detection, and value checks (warns when a value doesn't match its documented type or enum).

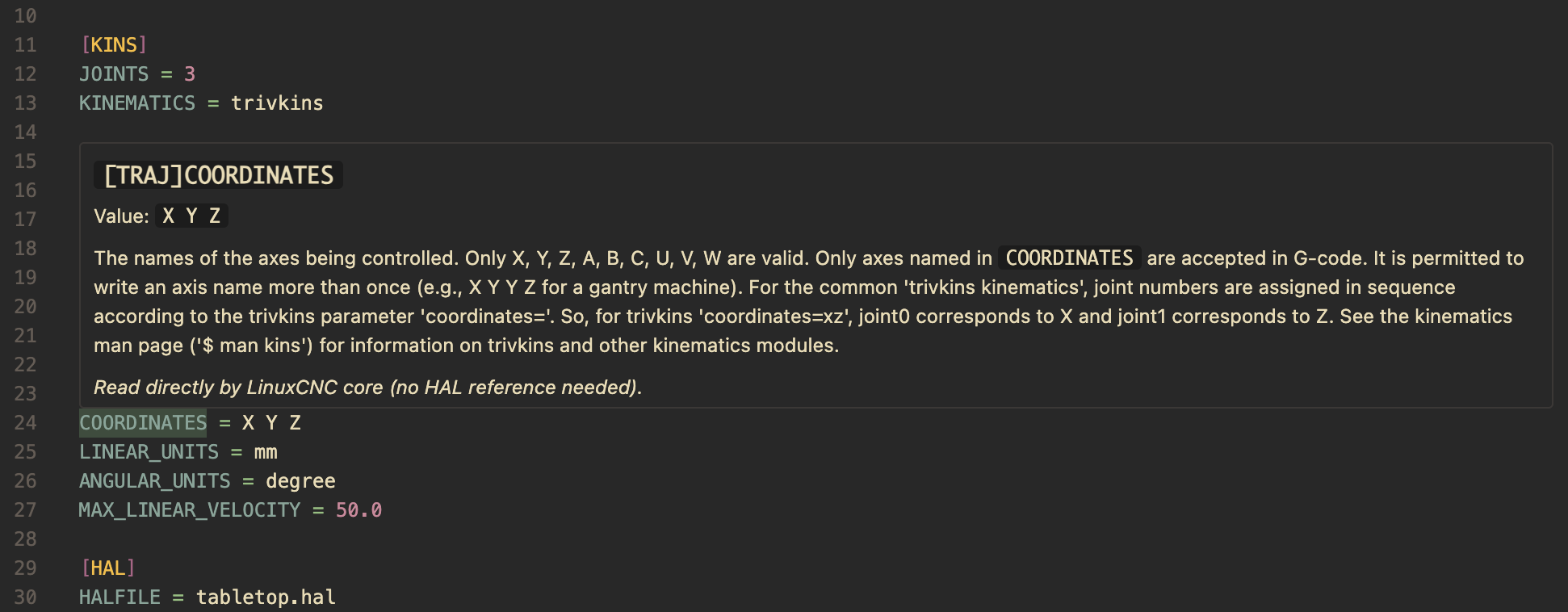

• Hover any key for docs; homing keys link straight to the LinuxCNC manual.
• Hover an INI key to see whether any HAL file references it.

Hover any component, pin, INI key, or G/M-code for docs pulled straight from the LinuxCNC source.

.ini files are recognized by content, not just by extension, so the extension never touches your unrelated .ini files. See Privacy and offline.

G-code (.ngc, .nc, .gcode, .tap)

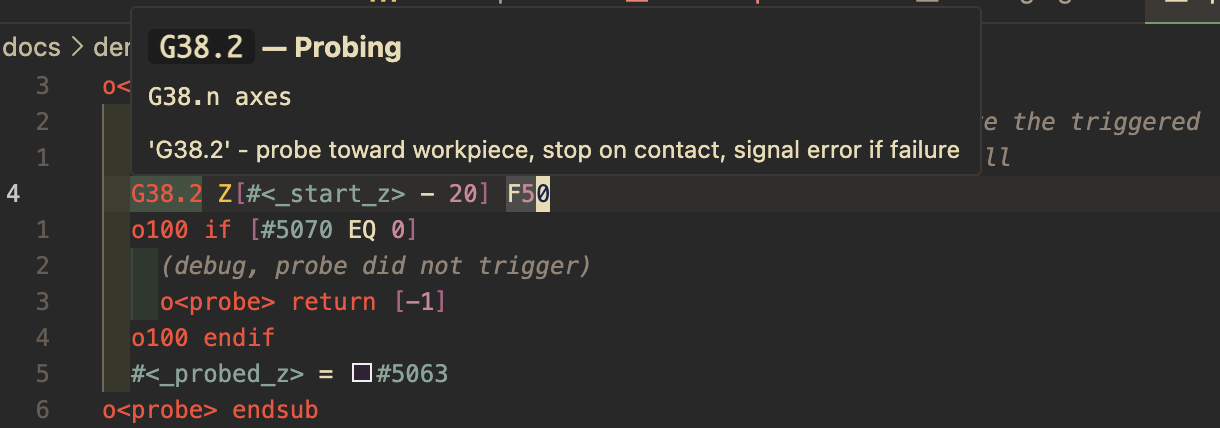

• Hover docs for ~229 G/M/F/S/T words and parameter explanations (numbered, named, and global #<_…> params); completion of G/M codes and O-word keywords.
• O-word subroutines: go-to-definition and find-references, including cross-file .ngc subroutines resolved via the INI subroutine search path ([RS274NGC]SUBROUTINES, [DISPLAY]PROGRAM_PREFIX).
• Document outline and folding for subroutine / control-flow blocks.
• A formatter that indents sub/if/while/do/repeat blocks by nesting depth (Format Document). It only rewrites leading indentation; your trailing spaces and blank lines are left exactly as they are, so formatting an already-indented file changes nothing and never dirties your git history. Want trailing whitespace cleaned up too? Enable VS Code's built-in files.trimTrailingWhitespace (set "files.trimTrailingWhitespace": true in settings.json, globally or under a "[gcode]" block).
• Structural diagnostics: unmatched / unclosed / mismatched O-words, duplicate or nested subroutines, and misplaced return/break/continue.

O-word subroutines with full control-flow structure, plus hover docs for every G/M-code, with go-to-definition, folding, formatting, and structural checks on top.

The G-code dialect is LinuxCNC RS274NGC. The hover docs and the O-word checks assume that dialect; if you mainly write Grbl, Fanuc, or Marlin G-code, a generic G-code extension may fit better (the highlighting still works, but the LinuxCNC-specific O-word diagnostics won't apply to those dialects).

Is this for you?

Settings

Limitations

This is static analysis: it reads your files, it does not run LinuxCNC. So:

• It can't see runtime-loaded code. Pins/signals created by Tcl or userspace components are invisible to the model, which can produce advisory "signal has no writer" hints. When a workspace contains Tcl/LIB: files, the signal-graph checks are deliberately relaxed to avoid false errors. Set linuxcnc.libDir to resolve LIB: HALFILE references.
• Metadata is pinned to one LinuxCNC version (currently 2.10.0~pre1; see metadata-source.json). Components/pins/docs reflect that version. On a very different version, regenerate the DB and point linuxcnc.metadata.path at it.
• No 3D backplot or toolpath preview and no machine-limit checks (such as feed rate vs. axis max velocity). Use Axis/CAMotics for visualization.
• G-code is LinuxCNC RS274NGC only (see the G-code note above).
• G-code expressions aren't evaluated. #10 = [#1 + [#2](https://github.com/PeterStolz/linuxcnc-lsp/issues/2)] is parsed for structure, not checked for undefined parameters or math errors.
• A .hal shared by multiple machines uses the first machine found unless you pin one (see the next section).

Found a false positive or a miss? Please open an issue with the snippet; that's exactly what improves it.

Privacy and offline

• No LinuxCNC required, any OS. All component/pin/INI/G-code knowledge is extracted at build time from a pinned LinuxCNC source tree into a bundled database, so everything works with no LinuxCNC, no halcmd, and no network.
• No telemetry, no network calls. The extension collects nothing and phones nowhere; documentation is bundled. (Some hovers include a link to the online LinuxCNC manual, which only opens in your browser if you click it.)
• It won't hijack your .ini files. A .ini is treated as a LinuxCNC machine config only when its content has machine sections ([EMC], [HAL], [KINS], …); set linuxcnc.iniDetection to extension or off to change that.
• Open source, GPL-2.0-or-later, on GitHub; also on Open VSX.

Troubleshooting

• My .ini has no highlighting or checks. It's recognized by content; if it lacks machine sections (or they're past the first ~20 KB), it stays plain text. Set linuxcnc.iniDetection to extension, or pick LinuxCNC INI from the language menu (bottom-right of the status bar).
• A [SECTION]KEY is flagged "missing" but it exists. The .hal is probably shared by several machines and the wrong one was picked. See Multiple machines.
• "Unknown component" for something real. It may be newer than the bundled 2.10.0~pre1 DB, or a custom .comp/Tcl component. Workspace .comp files are picked up automatically; otherwise regenerate the DB and set linuxcnc.metadata.path, or silence the rule (below).
• Too noisy? Lower or disable a rule via linuxcnc.diagnostics.rules, or add a comment # linuxcnc-lsp-disable-line <ruleId> (also -next-line, or a file-wide # linuxcnc-lsp-disable <ruleId>).

Diagnostics reference

Every check has a stable rule id you can re-target with linuxcnc.diagnostics.rules (values: error, warning, information, hint, off), e.g. { "hal.signal.noReader": "off", "gcode.call.unknownSub": "warning" }.

• HAL: hal.syntax.*, hal.comp.unknownComponent, hal.param.readonlyParamSet, hal.signal.multipleWriters, hal.signal.noWriter, hal.signal.noReader, hal.signal.typeConflict, hal.iniref.sectionMissing, hal.iniref.keyMissing
• INI: ini.syntax.*, ini.key.unreferenced, ini.value.typeMismatch, ini.value.enumMismatch
• G-code: gcode.oword.unmatchedClose, gcode.oword.unclosed, gcode.oword.labelMismatch, gcode.oword.nestedSub, gcode.oword.duplicateSub, gcode.oword.duplicateElse, gcode.oword.returnOutsideSub, gcode.oword.controlOutsideLoop, gcode.oword.missingKeyword, gcode.call.unknownSub

Multiple machines in one workspace

Cross-file features (the [SECTION]KEY check, hover, go-to-definition, completion) need to know which machine a .hal file belongs to. A machine is one .ini plus all the .hal files it pulls in via [HAL]HALFILE. Usually that mapping is unambiguous: one .ini, its own .hal files, and you can skip this section.

It gets ambiguous when the same .hal is pulled in by two or more .ini files, which is very common in the LinuxCNC sample configs. In configs/sim/axis, for instance, core_sim.hal is shared by axis.ini, axis_mm.ini (metric) and historical_lathe.ini. Open core_sim.hal and the extension has three candidate machines; with no pin it just uses the first one it finds.

How you'll notice

There's no popup; the symptom is wrong cross-file results in a shared .hal:

• a [SECTION]KEY reference flagged as missing even though it exists, because the value lives in the other machine's INI, not the one that was picked;
• hover or go-to-definition on an INI reference jumping to the wrong machine's value (e.g. inch vs. mm).

If a shared .hal looks wrong, that's the cue to pin the machine you actually mean.

Pinning the active machine

Run LinuxCNC: Select Active Machine from the Command Palette (Ctrl/Cmd+Shift+P):

1. it scans the workspace for machine .ini files and lists them;
2. pick the one whose context you want (or None to clear the pin);
3. it writes linuxcnc.activeMachine to your workspace .vscode/settings.json.

The server re-resolves immediately, with no reload needed. You can also write the setting by hand:

// flexicam/.vscode/settings.json
{
  // The folder holds Flexicam.ini and Flexicam_qtdragon.ini, which share the
  // same .hal files. Pin the qtdragon variant as the active machine.
  "linuxcnc.activeMachine": "Flexicam_qtdragon.ini"
}

The value is matched by path suffix, so use the shortest form that's unambiguous in your workspace:

• a bare file name, "Flexicam_qtdragon.ini"
• a workspace-relative path, "configs/sim/Flexicam.ini"
• an absolute path, "/home/cnc/linuxcnc/configs/flexicam/Flexicam.ini"

Leave it empty ("") to go back to "first machine found".

What the pin does (and doesn't) do

• It's one pin per workspace, not per file. Whenever a .hal is shared, the pinned machine wins, as long as that machine actually pulls in this .hal. If the pinned machine doesn't own a given shared file, that file falls back to its first owner, so the pin never makes things worse.
• .hal files owned by exactly one machine are unaffected; pinning only matters for shared files.
• Working across machine families that don't share files? Re-run the command to switch the pin as you move between them.

Heads-up: don't use a ${workspaceFolder}/… value here. VS Code only expands ${workspaceFolder} for a few built-in settings, not third-party ones, so it would be passed through literally and match nothing. Use a plain relative path.
