GLB Viewer for VS Code

A Visual Studio Code extension that provides a built-in viewer for GLB (GL Binary) files. This extension allows you to preview and interact with 3D models directly within VS Code.

Features

• Preview GLB files directly in VS Code
• DRACO support
• Interactive 3D model viewing
• Automatic file association with .glb files
• Hierarchy tree and details panel
• Camera focus on object click
• Copy to properties to clipboard
• Extension settings to customize the viewer

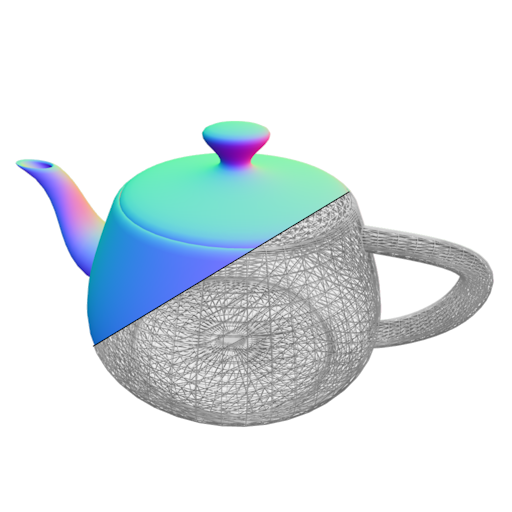

• Look at the normal colors and wireframe
• Visualize normals and tangents vectors

📜 Changelog

See CHANGELOG.md for details about each release.

Requirements

• Visual Studio Code version 1.80.0 or higher

Installation

1. Open VS Code
2. Go to the Extensions view (Ctrl+Shift+X / Cmd+Shift+X)
3. Search for "GLB Viewer"
4. Click Install

Usage

1. Open any .glb file in VS Code
2. The file will automatically open in the GLB Viewer
3. You might need to click on the file to 'open with:' GLB Viewer
4. Interact with the 3D model using your mouse:
   • Left click and drag to rotate
   • Right click and drag to pan
   • Scroll to zoom

Development

Prerequisites

• Node.js
• Yarn package manager

Setup

1. Clone the repository:

   git clone git@github.com:ohzinteractive/vscode-glb-viewer.git


2. Install dependencies:

   yarn install


3. Start development mode: Inside vscode with the folder open, press F5 to start the extension. This will open a new window with the extension running. Under the hood, it will run the yarn start command. That builds and watches for changes in the src/ folder.

Build

To build the extension:

yarn build

Packaging

To package the extension into a VSIX file for distribution:

1. Install the VSCE (Visual Studio Code Extensions) tool globally:

   npm install -g @vscode/vsce


2. Make sure your extension is built:

   yarn build


3. Package the extension:

   vsce package


This will create a .vsix file in your project directory. You can then:

• Install it locally by running code --install-extension ohzi-vscode-glb-viewer-1.0.0.vsix
• Upload it to the VS Code Marketplace for public distribution
• Share it directly with other users for manual installation

Note: If you plan to publish to the VS Code Marketplace, you'll need to:

1. Create a publisher account on the Visual Studio Marketplace
2. Get a Personal Access Token (PAT)
3. Login using vsce login <publisher-name>
4. Publish using vsce publish

Project Structure

• src/ - Source code directory
• dist/ - Built files
• extension.js - Main extension entry point
• vite.config.mjs - Vite configuration for building the webview

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

This project is licensed under the MIT License - see the LICENSE.md file for details.
