MeTTa LSP

A pure-TypeScript language server, VS Code extension, CLI, and MCP server for MeTTa.
_{Hovers  ·  Diagnostics  ·  Run, trace & visualise  ·  Formatting  ·  Debug adapter  ·  Agent tools}



What is MeTTa LSP

MeTTa LSP is one analyzer exposed through several tools. The same code powers the VS Code extension, stdio LSP server, command-line interface, MCP server, debug adapter, generated docs, and browser IDE. A symbol should mean the same thing in hover, diagnostics, trace output, docs, and an agent tool call.

The browser IDE runs the same language server in a Web Worker. It provides a persistent multi-file workspace, live diagnostics, completion, hover, navigation, rename, formatting, document symbols, and guarded evaluation without a backend service.

The runtime is built on @metta-ts/core and @metta-ts/debug, so the server runs on Node without a WASM dependency. Editor analysis does not evaluate user code. Explicit run, trace, why, test, and visualise commands use the configured runtime path and the guarded worker where appropriate.

The extension, CLI, stdio language server, MCP server, and docs tooling are designed for Linux, macOS, and Windows. Editor-specific setup differs, but every client launches the same Node stdio server and reads the same metta.* settings.

Quick Start

Install the VS Code extension from the Marketplace:

code --install-extension MeTTaMesTTo.metta-ts-lsp

You can also install a downloaded GitHub release asset:

code --install-extension metta-ts-lsp-0.15.1.vsix

Build from this checkout when you want the CLI, MCP server, or another editor:

npm install
npm run compile

The build writes these entry points:

dist/server/server.js              stdio language server
dist/cli/cli.js                    metta-lsp CLI
dist/mcp/server.js                 MCP server
dist/debug/mettaDebugAdapter.js    debug adapter

Try the CLI from the checkout:

npm --silent run cli -- check examples/04-diagnostics.metta
npm --silent run cli -- trace examples/13-trace.metta "(sum-to 3)" --max 8

Package the extension locally:

npm run package
code --install-extension metta-ts-lsp-*.vsix

Use any stdio LSP client with:

node /path/to/metta-ts-lsp/dist/server/server.js --stdio

Features

Editor intelligence

The server implements the expected LSP surfaces for .metta files: hover, completion, completion resolve, signature help, diagnostics, document symbols, workspace symbols, definition, references, implementation, type definition, declaration, rename, prepare rename, document highlights, linked editing, document links, folding ranges, selection ranges, semantic tokens, call hierarchy, inlay hints, code lens, code actions, organize imports, full formatting, range formatting, and on-type formatting.

The VS Code extension adds status bar controls, settings quick-pick, run, trace, and why commands, Test Explorer integration for assert forms, and a launch configuration for stepping through reductions with the debug adapter.

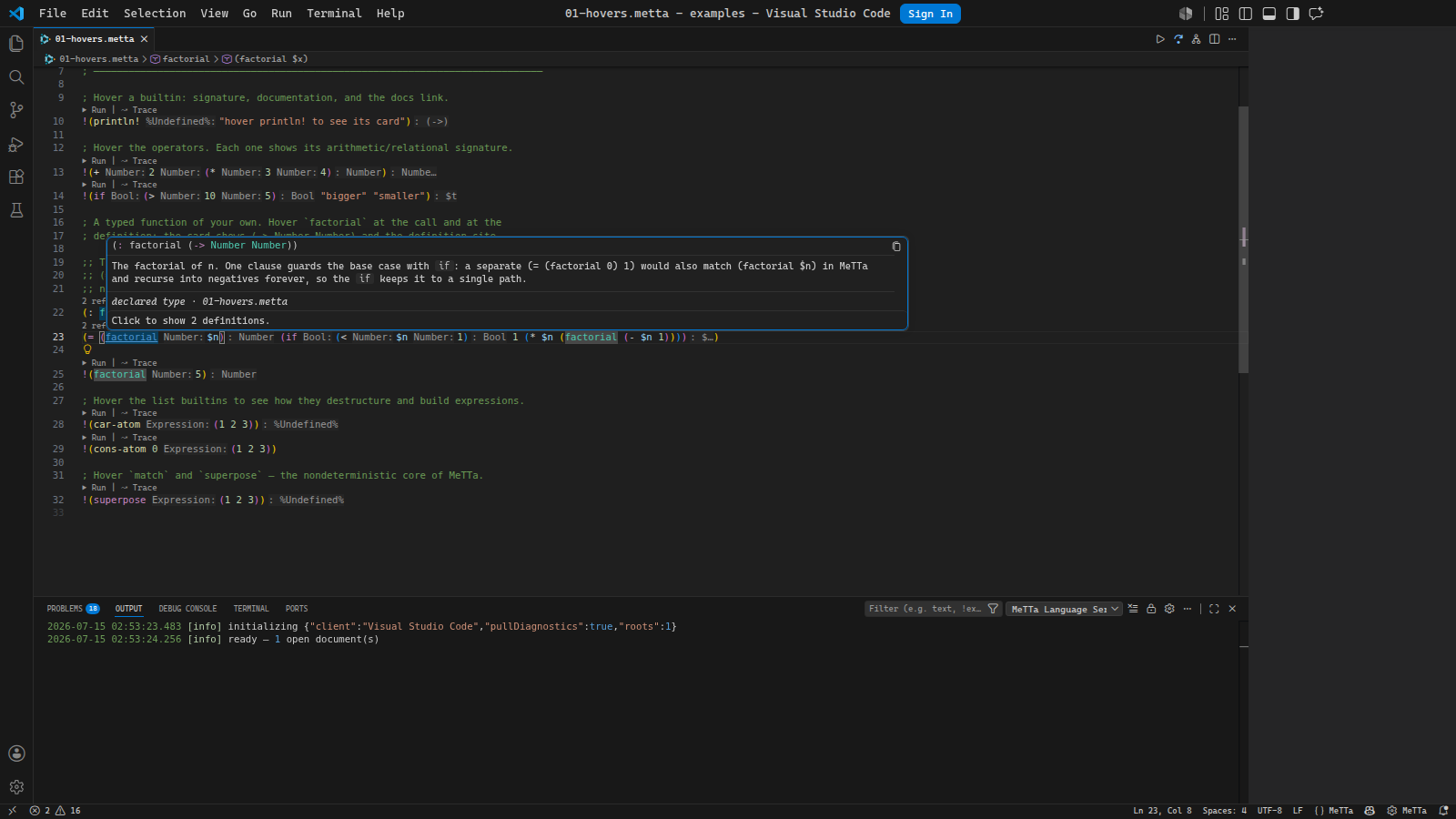

Hover any symbol for a rust-analyzer-style card: the signature, the type, where it is defined, and a link to the definitions.

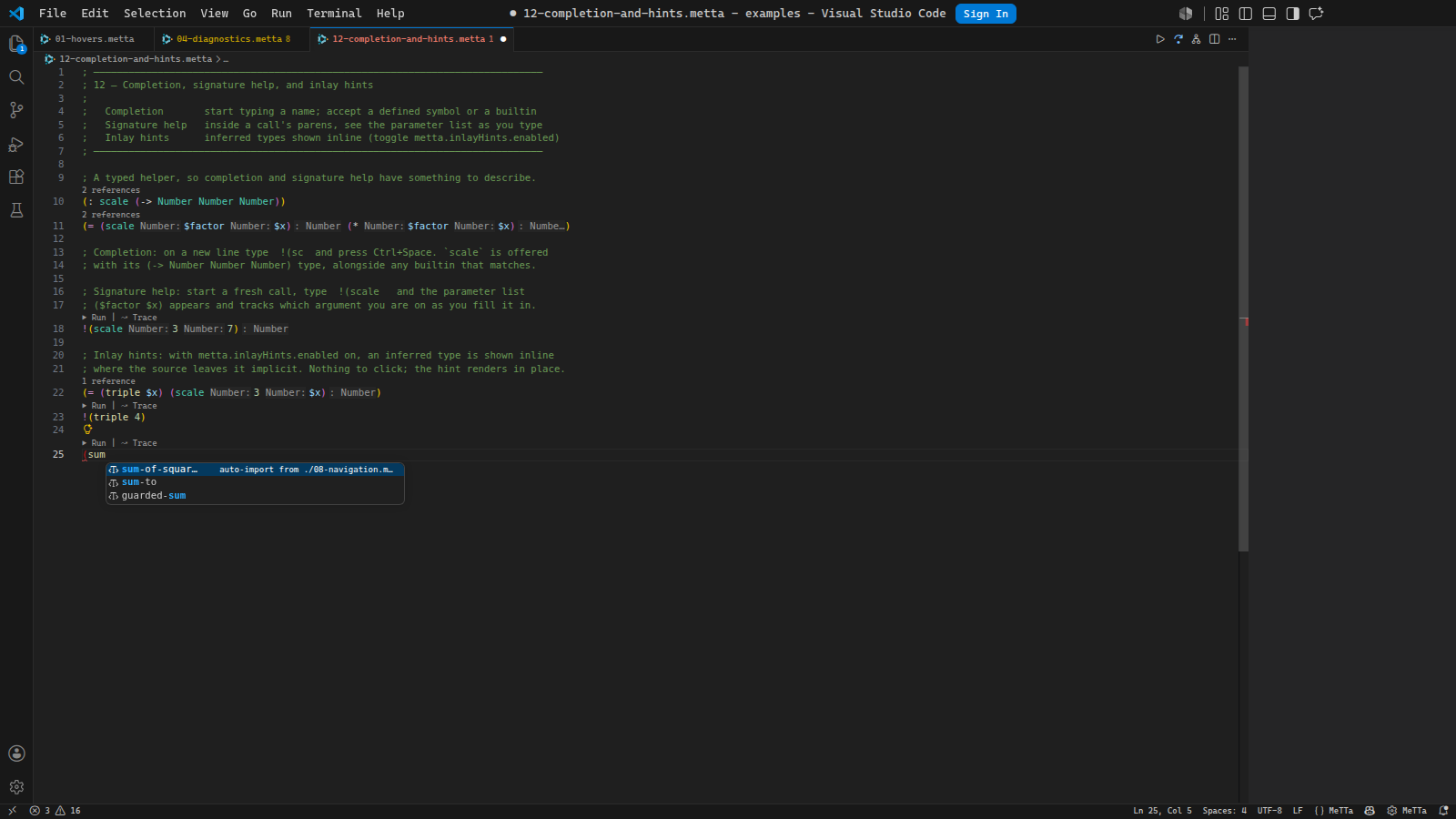

Completion offers workspace symbols and builtins as you type, and auto-imports one from another module when you accept it.

Diagnostics and lint

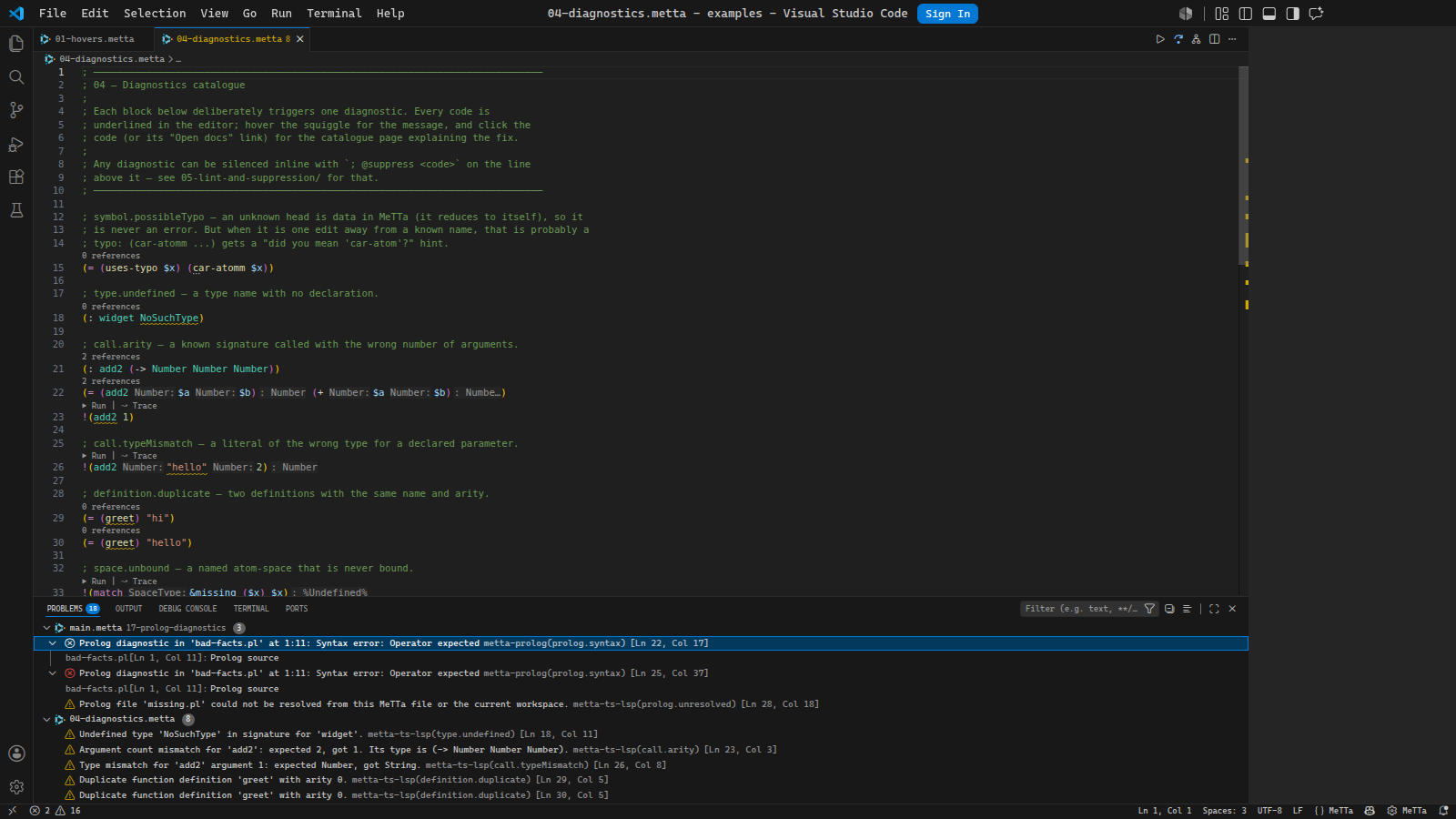

Diagnostics cover syntax errors, duplicate definitions, unresolved symbols, undefined types, unbound spaces, arity mismatches, literal type mismatches, project lint rules, TypeScript host-bridge checks, and read-only Prolog parser diagnostics for referenced .pl bridge files.

Every diagnostic carries its rule code, so you can read the exact rule that fired and suppress it by name.

Suppressions are visible by design. Inline comments such as ; @suppress symbol.possibleTypo hide one diagnostic and get hover text that shows what they suppressed. Project suppressions live in lint.metta as data, using the same structural matcher as lint rules.

Run, test, trace, why, visualise

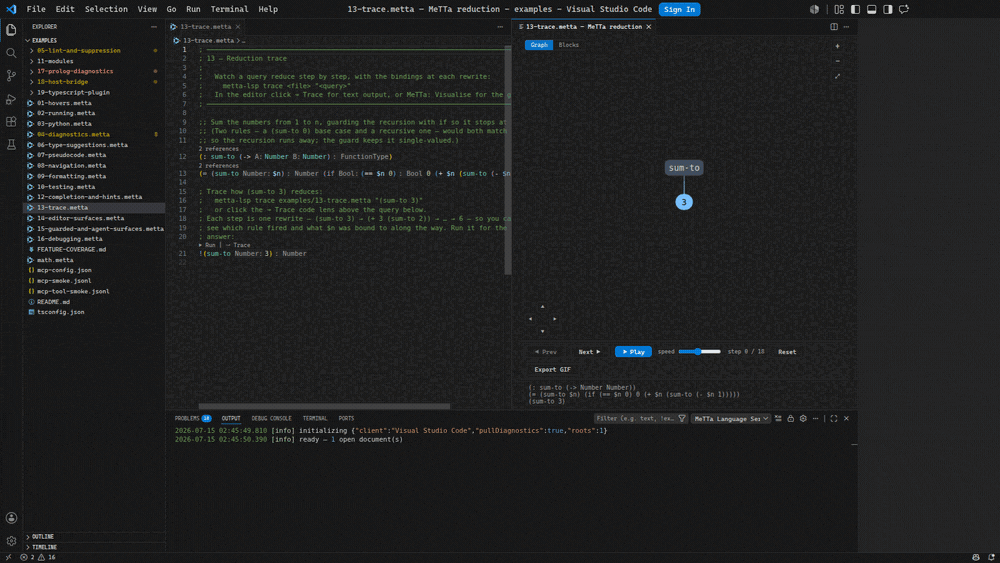

Visualise steps a query through its reduction as an interactive graph. Play it, scrub it, or step one rewrite at a time, and switch between the graph and nested blocks. Each frame is one settled reduction state, so you watch the term grow as it recurses and collapse as it resolves.

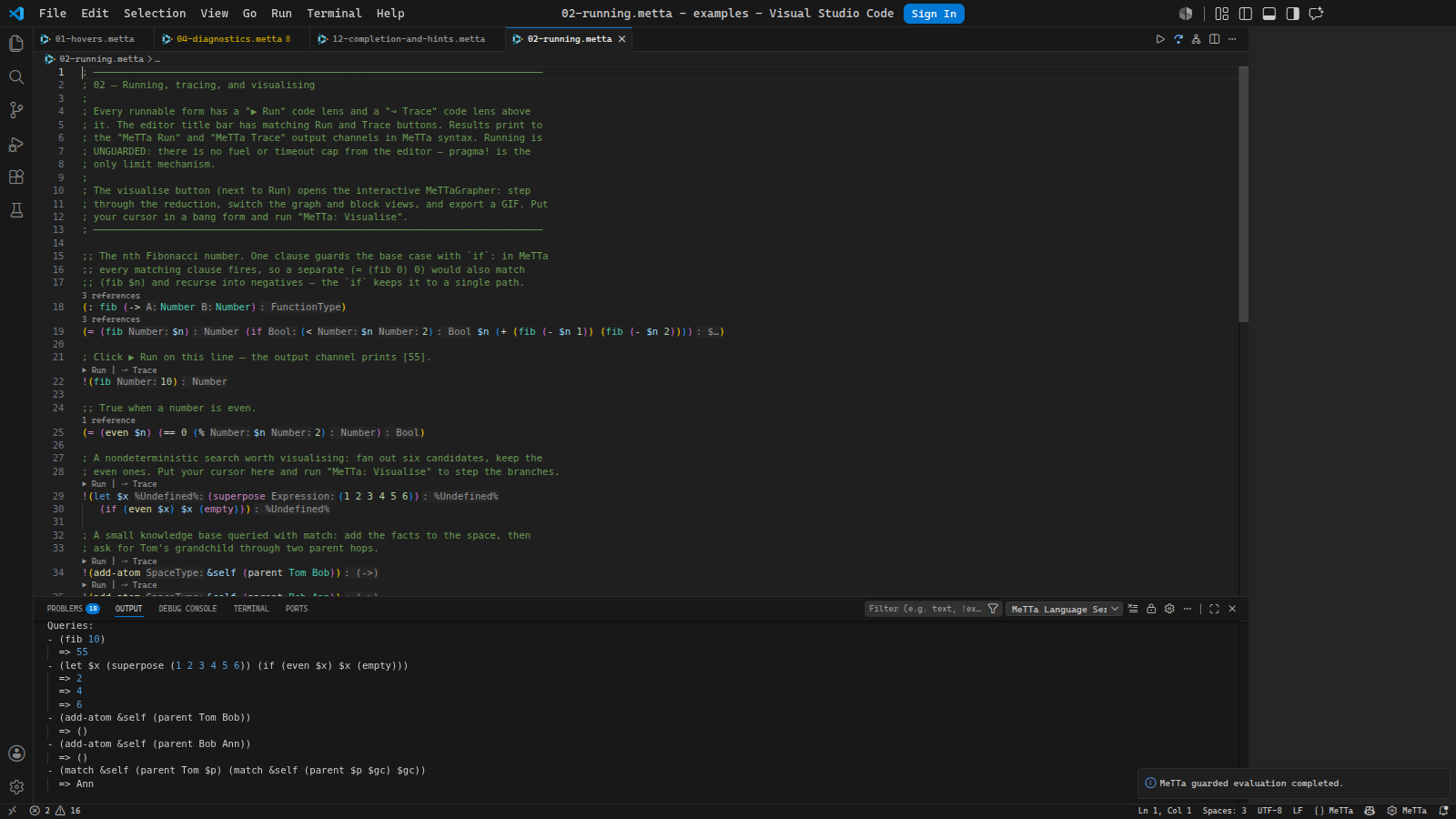

Run commands evaluate top-level bang queries and print MeTTa syntax back to the output channel or CLI.

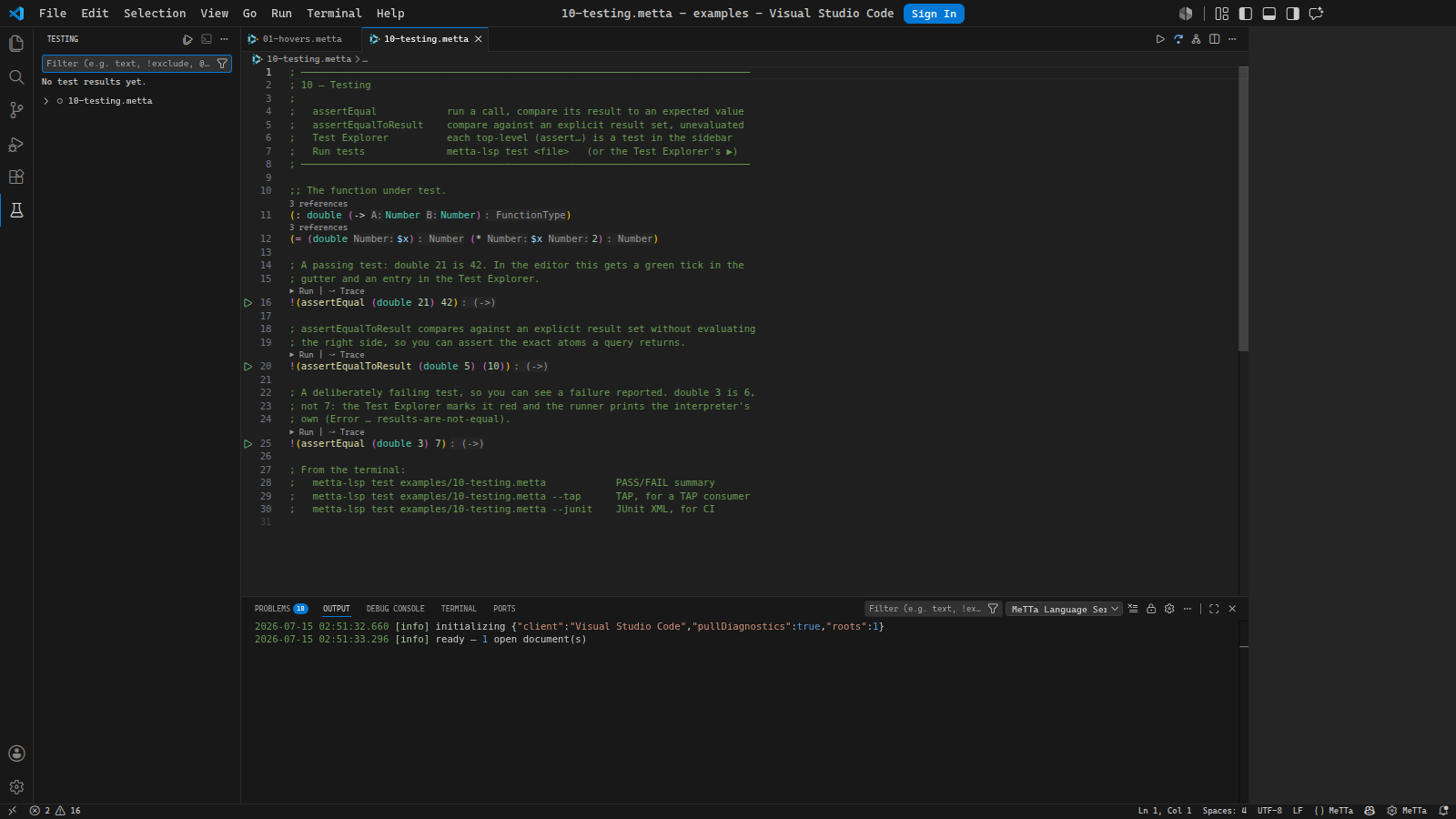

Test discovery turns each top-level assert form into a Test Explorer entry with an inline run button in the gutter. Trace records each reduction step for a query. Why explains the runnable form under the cursor with the @metta-ts/debug engine trace: result atoms, grounded reducer counts, higher-order specialization, overflow cut points, and the reduction count. Visualise writes the interactive MeTTaGrapher view above.

Guarded evaluation runs in a stateless worker with fuel, timeout, output, and stack limits. Unguarded run is available for trusted programs that intentionally use host interop.

Syntax and semantic colours

The TextMate grammar handles comments, strings, escapes, numbers, variables, documentation atoms, parentheses, operators, declarations, and builtins. Semantic tokens add meaning on top of the grammar for control flow, binding, pattern matching, modules, type operators, evaluation, quote control, effects, arithmetic, comparison, logic, math functions, collection functions, predicates, assertions, declarations, definitions, return types, default-library symbols, deprecated symbols, and unresolved symbols.

VS Code themes can style those token types directly. When a theme does not, the extension maps them back to familiar TextMate scopes.

TypeScript, Python, and Prolog surfaces

The TypeScript host bridge reads grounded operations registered from @metta-ts/hyperon or the typed eDSL. Hover and go-to-definition on a grounded atom can show the TypeScript signature, JSDoc, MeTTa type view, and host source. The CLI exposes the same data with host-type.

The TypeScript language-service plugin gives MeTTa hover, completion, signature help, and diagnostics inside MeTTa strings and templates in .ts files. Python interop examples cover py-atom, py-call, and py-eval. Prolog diagnostics parse referenced .pl files without consulting or executing them.

Search, rewrite, and docs

The structural search command treats MeTTa forms as data. $X captures one atom and $$$Rest captures a sequence. Regex constraints can refine captures in lint.metta, and replace can preview or write structural rewrites.

deduplicate finds repeated expression atoms after layout, comments, and consistent logic-variable renaming are removed from the comparison. simplify uses equality saturation and the visible MeTTa rules, then replays the original and extracted result lists before it returns an edit. The same operations are available as LSP requests, editor code actions, analyzer APIs, and MCP tools.

The docs generator builds a MeTTa API reference from workspace modules and host operations. Hovers, CLI output, generated reference pages, and the browser docs site all share the same rendering code for MeTTa docs.

Examples

Open examples/ as the VS Code workspace and walk the files in order. Each file shows one surface and includes comments for the editor action or CLI command to try. The complete checklist lives in examples/FEATURE-COVERAGE.md.

Command Line

The installed command is metta-lsp, which is the normal interface for scripts, CI, agents, and local shells:

metta-lsp check examples/04-diagnostics.metta
metta-lsp trace examples/13-trace.metta "(sum-to 3)" --max 8

From an unlinked checkout, use the npm alias:

npm --silent run cli -- check examples/04-diagnostics.metta

To install the command globally from a checkout, run:

npm run compile
npm link

Most read commands accept --json for scripts and agents.

List and inspect the default library known to MeTTa-LSP, including bundled host bridges and modules supplied by the installed runtime:

metta-lsp list stdlib
metta-lsp inspect '+'
metta-lsp inspect json::json-encode --json

The list separates core globals, MeTTa-LSP extensions, host extensions, and import-gated modules. Qualify an ambiguous name with global:: or <module>::.

Suppression example

; @suppress symbol.possibleTypo
!(cdr-atomm 2)

Project suppression lives in lint.metta:

(suppress (legacy $$$) symbol.possibleTypo)

A custom rule can add a regex constraint:

(lint-rule capitalized-function-name
  (pattern (= ($Func $$$Args) $$$Body))
  (metavariable-regex $Func "^[A-Z]")
  (message "function {$Func} starts with a capital letter")
  (severity warn))

Check a file and include suppressed diagnostics:

metta-lsp check examples/05-lint-and-suppression/demo.metta --show-suppressed

Trace example

(: sum-to (-> Number Number))
(= (sum-to $n) (if (== $n 0) 0 (+ $n (sum-to (- $n 1)))))

metta-lsp trace examples/13-trace.metta "(sum-to 3)" --max 8

0  (sum-to 3)
1  (if (== 3 0) 0 (+ 3 (sum-to (- 3 1))))
2  (if False 0 (+ 3 (sum-to (- 3 1))))
3  (+ 3 (sum-to (- 3 1)))
4  (+ 3 (sum-to 2))
5  (+ 3 (if (== 2 0) 0 (+ 2 (sum-to (- 2 1)))))
6  (+ 3 (if False 0 (+ 2 (sum-to (- 2 1)))))
7  (+ 3 (+ 2 (sum-to (- 2 1))))
8  (+ 3 (+ 2 (sum-to 1)))
... truncated at 8 steps

Agent Setup

Claude Code, Codex, and generic MCP clients use the MCP server:

npm run compile
npm run setup:mcp -- --claude --codex

The setup script registers metta-lsp as a stdio MCP server pointing at dist/mcp/server.js. It also installs the shipped metta-lsp skill for Claude Code and Codex, including its agent metadata. Agents can call tools such as lsp_diagnostics, lsp_hover, lsp_workspace_symbols, and lsp_guarded_evaluate, or the operation-dispatched lsp tool.

Run the setup script with no flags to print snippets:

npm run setup:mcp

Claude Code:

claude mcp add -s user metta-lsp -- node /path/to/metta-ts-lsp/dist/mcp/server.js

Codex, in ~/.codex/config.toml:

[mcp_servers."metta-lsp"]
command = "node"
args = ["/path/to/metta-ts-lsp/dist/mcp/server.js"]
startup_timeout_sec = 120.0

Generic MCP client:

{
  "mcpServers": {
    "metta-lsp": {
      "command": "node",
      "args": ["/path/to/metta-ts-lsp/dist/mcp/server.js"]
    }
  }
}

Agent responses are compact by default. Symbol, location, and call-hierarchy results are grouped by file and use row arrays:

{
  "fields": ["name", "kind", "line", "char"],
  "count": 2,
  "files": [{ "path": "math.metta", "rows": [["inc", "function", 3, 5]] }]
}

Pass "resultFormat": "lsp" when an agent needs raw LSP protocol objects.

OmegaClaw

OmegaClaw uses its Python plugin loader rather than MCP client config:

npm run compile
npm run setup:omegaclaw -- /path/to/OmegaClaw-Core

The installer registers the external omegaclaw/plugin/metta_lsp.py through OmegaClaw's config/plugins.yaml. The plugin loader calls loadOmegaClawPlugin(), and the Python bridge stays in this repository.

OmegaClaw's current plugin API has no skill-registration callback. The installer therefore copies one MeTTa wrapper file and adds reversible managed import and getSkills blocks. It writes a receipt and removes legacy copied bridge files when upgrading an earlier installation.

Remove the overlay with:

npm run setup:omegaclaw -- /path/to/OmegaClaw-Core --uninstall

Editor Setup

VS Code users install the extension. Other editors launch the same stdio server:

node /path/to/metta-ts-lsp/dist/server/server.js --stdio

Use that command in Neovim, Helix, Emacs, Sublime Text, Kate, Zed, or any other LSP client that supports stdio servers. Settings live under the metta section. The server reads settings through workspace/configuration, workspace/didChangeConfiguration, or initializationOptions, depending on the client.

Common settings:

{
  "metta.docs.baseUrl": "https://mestto.github.io/MeTTa-LSP/",
  "metta.inlayHints.enabled": true,
  "metta.pseudocode.enabled": false,
  "metta.diagnostics.semanticLint": false,
  "metta.workspace.maxFiles": 4000,
  "metta.workspace.maxFileBytes": 5242880
}

Automatic workspace scans skip source files larger than 5 MiB. Open documents are still indexed, so you can inspect a large generated file without making every language-server or MCP startup parse it.

The docs site has copyable setup snippets for VS Code, Neovim, Helix, Emacs, and Sublime Text at docs-site/lsp/editors.md.

Documentation

The public docs site is built from docs-site/. It covers the LSP overview, CLI, MCP setup, editor setup, lint rules, suppression, structural search and rewrite, mixfix pseudocode, diagnostics, browser IDE, visual editor, runtime playground, builtins reference, and generated MeTTa API pages.

Generate the reference pages:

npm run docs:builtins
npm run docs:metta

Document portable MeTTa APIs with structured @doc, @desc, @params, and @return atoms beside a type declaration. MeTTa-LSP also uses contiguous ;; comments directly above a declaration or definition as local fallback docs. The CLI documentation contains the exact syntax, generation flags, and official MeTTa reference links.

Use the CLI docs command when you want to generate, build, or serve docs from a workspace root:

metta-lsp doc examples --json
metta-lsp doc examples --build
metta-lsp doc examples --serve --open --port 5173

Development

Useful checks:

npm run typecheck
npm run test
npm run test:emacs
npm run smoke:tool
npm run smoke:all
npm run verify:strict

npm run smoke:tool compiles the MCP server and runs the checked examples/mcp-tool-smoke.jsonl request stream. npm run smoke:all also checks parser behavior, guarded safety, DAP, Python interop, DSL helpers, capability drift, setup scripts, and the MCP smoke streams.

npm run test:emacs and npm run verify:strict require Emacs 29.1 or newer. CI installs the terminal-only emacs-nox package.

Build the release artifact:

npm run package

Publish future Marketplace updates through GitHub Actions:

git tag v0.15.1
git push origin v0.15.1

The VS Code Marketplace workflow builds the VSIX, uploads it to the GitHub release for the tag, and publishes the same package to the Visual Studio Marketplace. Add a repository secret named VSCE_PAT once, using a Marketplace PAT with Manage scope for the MeTTaMesTTo publisher.

Check the Alloy model:

npm run alloy

License

Apache-2.0. See LICENSE.
