RenderDoc for VS Code

Inspect, analyze, and debug GPU captures — without leaving your editor.

A native-backed RenderDoc frontend, reimagined for the modern editor workflow.

Overview

RenderDoc for VS Code brings the full power of the RenderDoc graphics debugger into Visual Studio Code. Open any .rdc capture file and get an instant, first-class inspection experience — hierarchical draw call timelines, live shader source, full pipeline state, texture and buffer inspection, GPU timing profiling, project-source mapping, Mali shader analysis, and a local MCP endpoint for AI-powered analysis via any MCP-capable client.

No context switching. No external viewers. Just your capture, your editor, and your agent.

Highlights

Full Capture Inspector

A dedicated, tabbed inspector panel with Overview, Pipeline, Shaders, Textures, Mesh, and Events — modeled after RenderDoc's native UI, built for the editor.

Hierarchical Event Browser

Draw-call tree with EID-prefixed labels and group ranges (e.g. 11–559 Camera.Render). GPU timings (durationUs) are shown per event after running Fetch GPU Timings.

Live Texture Previews

Click any draw to see only the textures that draw actually samples — render targets, depth buffers, and sampler bindings auto-loaded as thumbnails. ASTC and HDR formats supported natively.

Launch And Capture

Start a local Windows executable or a supported remote device target directly from VS Code, trigger a frame capture, and auto-open the resulting .rdc.

The extension now exposes a dedicated Capture Target sidebar view for switching between Local and connected devices, plus a Launch Application panel for configuring the program/package, arguments, output path, and trigger settings.

Attach And Capture

Inject into a running Windows process or connect to an already running remote RenderDoc target, trigger a capture, and open the resulting frame in the inspector.

Native Replay Bridge

A C++ bridge (renderdoc_bridge.exe) links directly to RenderDoc's replay DLL — delivering real pipeline state, shader disassembly, descriptor enumeration, and mesh data at native speed.

AI-Powered Frame Analysis (MCP)

Connect any MCP-capable AI client to the local RenderDoc For VSCode MCP endpoint. The server exposes 60 schema-validated tools for capture/session control, replay inspection, performance evidence, shader diagnostics, resource tracing, Capture comparison, investigation reports, and bookmarks.

Mali Offline Compiler Integration

Analyze any shader directly from the Inspector's Shaders tab using the Mali Offline Compiler (malioc). Results are shown in a resizable side-by-side panel alongside the shader source; MCP workflows identify the relevant shader/EID evidence and keep offline-compiler validation separate from capture facts.

Screenshots

Click any screenshot to open it at full size.

Capture Overview

Overview — frame thumbnail, API and driver metadata, and capture summary.

Sidebar Views — Draw Calls, Resources, and selection context in the activity bar.

Inspector Views

Pipeline State — inspect bound stages and per-draw graphics state.

Pipeline Graph — render-flow visualization derived from the full event hierarchy.

Pipeline Graph Detail — drill into pass groups, representative commands, and selected-event context.

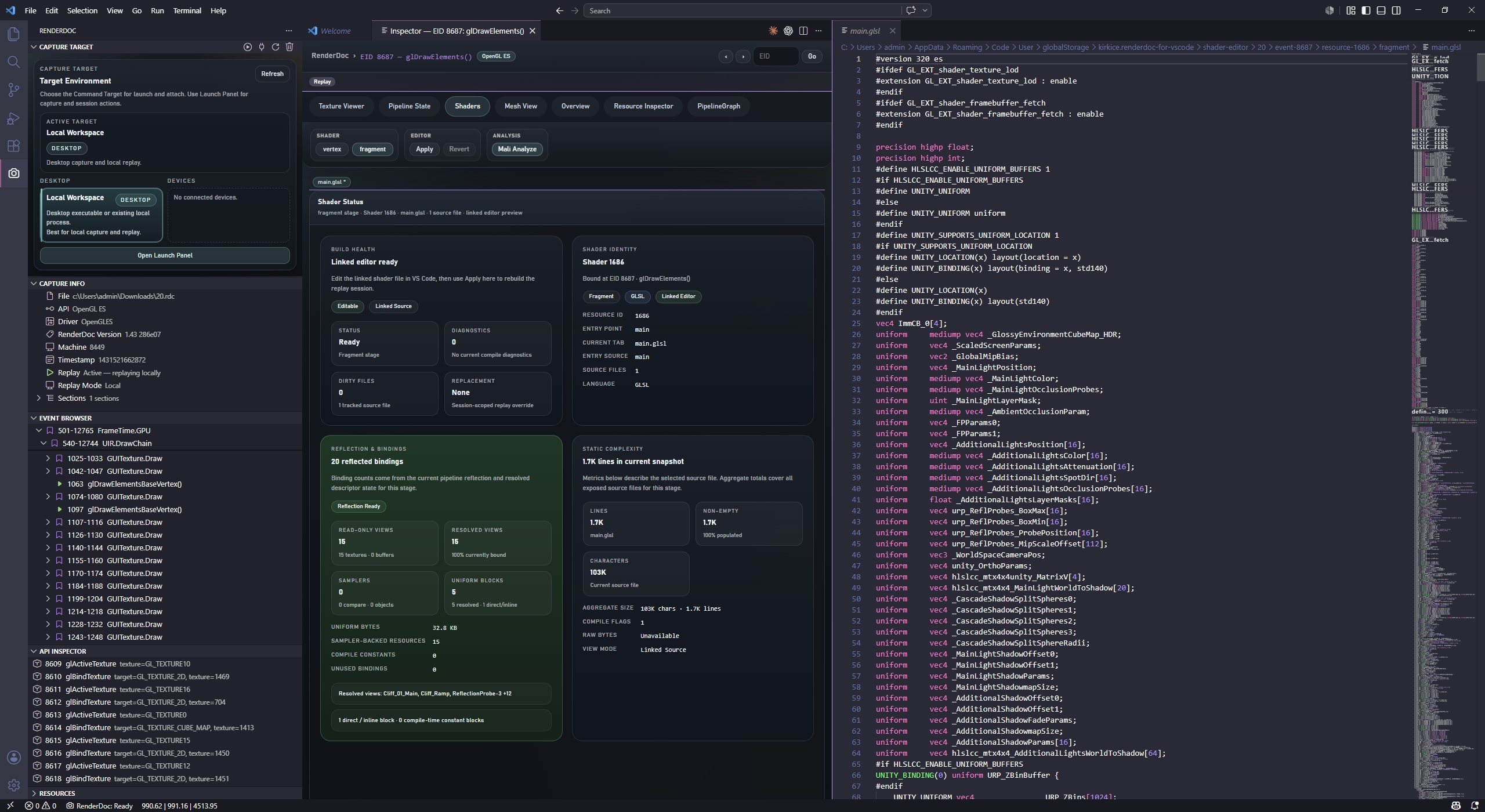

Shaders — source, disassembly, and shader-stage analysis in one place.

Texture View — inspect render targets and sampled textures for the current draw.

Texture Info — zoom into an individual texture with focused metadata.

Mesh View — inspect vertex/index data and geometry layout at a selected event.

Resource Inspector — browse textures, buffers, and shader resources across the capture.

Overview — capture metadata, API and driver details, and frame summary.

Mali Offline Compiler — choose a target Mali GPU profile and inspect static shader analysis output.

Capture Workflow

Launch Panel — configure the target executable, arguments, output path, and capture trigger.

Capture Target View — switch between local and remote targets, attach, and trigger captures.

MCP Workflow

MCP Connection Info — copy the local endpoint and client snippets for MCP-capable AI tools.

Quick Start

1. Install the extension in VS Code 1.95+
2. Run `RenderDoc: Open Launch Panel`, `RenderDoc: Attach On Selected Target`, or open an existing `.rdc`
3. The RenderDoc sidebar appears automatically
4. Click any draw call → Inspector opens beside your editor
5. Run "Fetch GPU Timings" to populate durationUs per draw
6. Connect an MCP-capable AI client (Cline, Roo Code, Claude Code, etc.) to the local MCP endpoint for AI-powered analysis

Requires: Packaged VSIX releases can run directly from the bundled .renderdoc-runtime and native bridge. When working from source, build native/build/Release/renderdoc_bridge.exe and use a local RenderDoc install unless your development package also includes .renderdoc-runtime. If a packaged install is damaged or incomplete, run RenderDoc: Restore Native Bridge… to recover the bundled helper from the latest VSIX.

Usage Guide

1 · Installing the Extension

Option A — from VSIX (recommended):

code --install-extension path/to/renderdoc-for-vscode-<version>.vsix

Or: Extensions panel → ··· menu → Install from VSIX…

GitHub Releases publish a single .vsix package for installation. The packaged native bridge and bundled runtime are already included inside that VSIX.

Option B — from source: see Building from Source.

2 · Installing RenderDoc (runtime dependency)

The extension loads RenderDoc's replay library (renderdoc.dll / librenderdoc.so) at runtime. Packaged VSIX releases already bundle .renderdoc-runtime and renderdoc_bridge.exe, so no separate bridge download is required for the normal installation path.

If you are developing from source, or using a package without the bundled runtime, install RenderDoc locally.

renderdoc.org/builds — any stable version v1.30 or newer.

Platform	Common path
Windows	`C:\Program Files\RenderDoc\`
Linux	`/usr/lib/x86_64-linux-gnu/librenderdoc.so`
macOS	`/Applications/RenderDoc.app/`

If you are developing from source, also build the native helper in native/build/Release/renderdoc_bridge.exe. Packaged VSIX installs auto-discover both the bundled runtime and the bundled bridge from extension-relative paths.

3 · Opening a Capture

File explorer: right-click a .rdc → Open RDC Capture
Command palette: run RenderDoc: Open Launch Panel to configure and launch a local executable or supported remote target, then auto-open the captured frame
Capture Target view: select a process/device, then run RenderDoc: Attach On Selected Target to attach to a running process or remote RenderDoc target
Command palette: RenderDoc: Open RDC Capture
Live sessions: run RenderDoc: Capture Frame From Live Session after connecting to a target
Drag & drop a .rdc onto the VS Code window

The activity bar shows three sidebar views: Capture Info, Draw Calls, and Resources.

4 · Inspector Workflow

Click any draw call in the Draw Calls tree to open the tabbed Inspector panel.

Tab	What you get
Overview	Frame thumbnail, capture metadata, API, GPU driver, file sections
Pipeline	Stage-by-stage flow diagram (IA → VS → RS → FS → OM) with bound shader names
Shaders	Per-stage GLSL/HLSL source with Mali Offline Compiler analysis in a split-pane view
Textures	Bound texture grid (scoped to the current draw) with auto-loaded thumbnails
Mesh	Vertex buffer layout, index buffer, input assembly configuration
Events	Flat EID timeline; GPU `durationUs` shown per row after Fetch GPU Timings

Navigation:

‹ / › buttons — step to previous/next event
EID input → Go — jump directly to any event by number

5 · GPU Timing Profiling

Open the Draw Calls sidebar.
Click the Fetch GPU Timings button (⏱).
Each draw call is annotated with its measured GPU time (durationUs).
Use your MCP-capable AI client to rank draws by cost, summarize hot passes, or drill into a specific hot EID.

6 · Mali Offline Compiler Integration

Install the Mali Offline Compiler from Arm Developer.
Set renderdoc.maliOfflineCompilerPath to the path of malioc.exe in VS Code Settings.
In the Inspector → Shaders tab, click Analyze with Mali Offline Compiler.
The analysis result appears in a resizable pane beside the shader source.
Ask your MCP client for optimization suggestions — it has access to the Mali analysis output.

7 · AI-Powered Analysis via MCP

Connect any MCP-capable AI client (Cline, Roo Code, Zoo Code, Claude Code, Codex/CodeX, etc.) to the local RenderDoc For VSCode MCP endpoint exposed by this extension. The default endpoint is http://127.0.0.1:38967/mcp, but you should prefer the actual URL shown in the sidebar GUI because the configured port can differ. In the Capture Target view, the Local MCP card shows the current status. Click MCP Info to inspect or copy the endpoint, or run RenderDoc: Show RenderDoc For VSCode MCP Info.

What the MCP Server Exposes

The MCP server is the automation and AI-analysis surface of the extension. It exposes 60 tools, all registered from one shared schema registry. Inputs are validated before execution; invalid input returns INVALID_TOOL_INPUT rather than being silently guessed.

Evidence-first analysis: performance conclusions are grounded in EIDs, GPU timing, resources, pipeline state, shader metadata, bindings, constant buffers, and mesh data. Responses distinguish confirmed facts, inferences, and follow-up validation.
Safe large-data access: resources are paginated; timing, mesh, buffer, and texture responses have bounded output. Large texture base64 payloads are summarized instead of dumped into the client context.
Live workflow control: launch a Windows or Android application, wait for a live target/capture, capture a frame, inspect Session state, and close the Session. The high-level workflow tools are preferred; platform-specific tools remain available for diagnosis and explicit target control.
Structured recovery: launch and capture failures expose an error code, recoverability, and next actions. Use renderdoc_diagnoseEnvironment for bridge, replay, MCP, adb, target, and device diagnostics.
Explicit side effects: launch, capture, close-session, shader application, bookmark edits, and report export change state. An agent must confirm returned status, saved output path where applicable, and Session impact before reporting success.

Recommended first prompt:

Open the current RenderDoc capture, summarize the frame's top-level passes, identify timed hotspots when available, and clearly separate confirmed evidence from follow-up checks.

External MCP Client Setup

Use this checklist when helping a teammate connect Roo Code, Zoo Code, Claude Code, Codex/CodeX, or another MCP client:

Install this extension in VS Code and open the target .rdc capture in the same VS Code window.
In the Capture Target view, find the Local MCP card and confirm it shows the running status and actual port number.
Click MCP Info to inspect or copy the endpoint URL, or run RenderDoc: Show RenderDoc For VSCode MCP Info from the command palette.
In the external AI client, add one MCP server named renderdoc-for-vscode that points to the local URL.
After the client connects, have it call renderdoc_openCapture first without filePath if capture state is unknown. That lets the extension resolve the already opened capture from this VS Code window.

VS Code workspace MCP uses .vscode/mcp.json with root servers and type: "http":

{
    "servers": {
        "renderdoc-for-vscode": {
            "type": "http",
            "url": "http://127.0.0.1:38967/mcp"
        }
    }
}

Roo Code, Zoo Code, and most generic MCP clients use a config with root mcpServers and type: "streamable-http":

{
    "mcpServers": {
        "renderdoc-for-vscode": {
            "type": "streamable-http",
            "url": "http://127.0.0.1:38967/mcp"
        }
    }
}

Client notes:

Roo Code / Zoo Code: use MCP Info to get the endpoint URL and add it to your project's .roo/mcp.json or global mcp_settings.json.
Claude Code: add a remote HTTP MCP server named renderdoc-for-vscode. If it asks for a transport, choose streamable-http or the equivalent HTTP streaming option. If it accepts raw JSON config, use the generic mcpServers snippet above.
Codex / CodeX: use the same generic remote MCP server settings as Claude Code. Choose an HTTP or streamable-http transport, not a local stdio server.

Common gotchas:

The MCP endpoint reflects the capture opened in this VS Code window, not a global RenderDoc session from some other app.
If the client connects but sees no useful context, open the capture in VS Code first or ask it to call renderdoc_openCapture with no filePath.
If a client offers both stdio and HTTP transports, use HTTP / streamable-http for this extension.
If you changed renderdoc.mcpServer.port, update the URL in the client config to match.

Typical prompts for your MCP client:

Analyze the fragment shader for EID 495 and suggest optimizations
Find all draw calls rendering to the shadow map
Show pipeline state diff between EID 300 and EID 355
Which textures are bound at the currently selected draw?
这个帧大概有哪些 pass？先给我一个结构概览。
当前选中的这个 Draw 绑定了哪些纹理？
帮我分析 EID 495 的 fragment shader，并看看它在工程里对应哪个 shader/pass 实现。
这个 ResourceId 对应的 buffer 前 256 字节是什么？

The MCP tools can use your active Inspector selection (focused EID, draw call, sidebar resource), so natural references like "this draw" or "the current event" resolve automatically.

MCP Tool Catalog (60 tools)

Capture, Session, and environment workflow

Tool	Description
`renderdoc_openCapture`	Resolve the active or open `.rdc` in this VS Code window, or load a specific capture by `filePath`
`renderdoc_launchApplication`	High-level Windows/Android launch workflow; requires an explicit platform rather than guessing
`renderdoc_captureFrame`	Capture a frame from the active local or remote Session, save it, and load it into the Inspector
`renderdoc_getSessionState`	Read the active Session phase, platform, target, application, latest capture, and recoverable error data
`renderdoc_waitForLiveTarget` / `renderdoc_waitForCapture`	Wait for a live target or a completed capture instead of polling from the client
`renderdoc_closeSession`	Disconnect the active live Session without deleting saved captures
`renderdoc_diagnoseEnvironment`	Report native bridge, replay, MCP, `adb`, Android device, and RenderDoc target readiness; export JSON or Markdown
`renderdoc_checkAndroidLaunchReadiness`	Validate `adb`, device state, package/activity, and RenderDoc target before Android launch
`renderdoc_launchWindowsApplication`	Platform-specific local Windows launch for diagnostics or explicit control
`renderdoc_listCaptureTargets` / `renderdoc_launchRemoteApplication` / `renderdoc_triggerRemoteCapture`	Enumerate remote targets, launch an Android package/activity, and capture from that remote target

Context, events, replay, and timings

Tool	Description
`renderdoc_getSelectionContext`	Current Inspector focus: selected EID, draw call, sidebar resource, replay status, and related context
`renderdoc_getCaptureInfo`	Capture metadata: API, driver, version, file sections, and capture summary
`renderdoc_getFrameSummary`	High-level frame structure: top-level passes/markers, draw counts, and capture stats
`renderdoc_analyzeFrame`	Holistic frame analysis with flagged issues and suggested next inspection steps
`renderdoc_getReplayStatus`	Query replay state and available capabilities before calling replay-dependent tools
`renderdoc_getDrawCalls`	Full draw call tree with marker hierarchy, filtering, and `durationUs` when timings are available
`renderdoc_getActionTimings`	Fetch GPU timings on demand, optionally filtered by event IDs or marker groups
`renderdoc_getEventDetails`	Full details for one EID, including richer pipeline context when replay is active
`renderdoc_getEventChunks`	API-level event chunks (draw calls, state changes) for a specific event ID
`renderdoc_getPipelineState`	Complete pipeline state at a given EID
`renderdoc_buildEventBrowserContext`	Filter and compact event-browser evidence for an AI analysis workflow

Shaders, pipeline bindings, geometry, and resources

Tool	Description
`renderdoc_getShaderSource`	Raw GLSL/HLSL source for the bound shader stages at an EID
`renderdoc_getShaderInfo`	Higher-level shader analysis with bindings, samplers, and decoded constant buffers
`renderdoc_getResources`	Paginated list of textures, buffers, and shaders in the capture
`renderdoc_getResourceDetail`	Detailed information for a specific resource ID
`renderdoc_getBoundResources`	Normalized summary of resources bound at a given event (render targets, textures, buffers, samplers, constant buffers)
`renderdoc_getTextureInfo`	Texture metadata and identity lookup
`renderdoc_getTextureData`	Texture pixel data sampled at a specific event/mip and returned as PNG data
`renderdoc_getBufferContents`	Raw bytes from a GPU buffer with offset/length paging
`renderdoc_getCurrentDrawPreview`	Preview image of the current draw call output at a specific event ID
`renderdoc_getMeshData`	Bounded mesh rows, topology, vertex attributes, and instance data for an EID

Reverse lookups, source mapping, and shader editing

Tool	Description
`renderdoc_findDrawsByShader`	Reverse-search draw calls by shader name or entry point
`renderdoc_findDrawsByTexture`	Reverse-search draw calls by sampled texture name
`renderdoc_findDrawsByResourceId`	Reverse-search draw calls by exact resource ID
`renderdoc_findProjectImplementation`	Search the open workspace for likely shader/pass implementation files related to a capture event
`renderdoc_findShaderVariants`	Find captured shader resources whose names or IDs match a shader query
`renderdoc_compareShaders`	Compare captured shader payload structure at two events without claiming semantic equivalence
`renderdoc_getShaderCompileDiagnostics`	Read captured compiler metadata, entry points, flags, and source availability
`renderdoc_validateShaderEdit` / `renderdoc_applyShaderEdit`	Validate a replacement shader, or apply it to the live replay Session without modifying the RDC file

Performance, memory, comparison, and investigation

Tool	Description
`renderdoc_traceResourceUsage`	Trace how a resource is used across the frame, identifying producers (writes) and consumers (reads)
`renderdoc_diffPipelineState`	Compare pipeline state between two events and identify differences in shaders, render targets, and state
`renderdoc_getPassGraph`	Build a graph of render passes from the draw call hierarchy, including timing, resource usage, and dependency edges
`renderdoc_generatePerformanceReport`	Produce an evidence-based hotspot report with optional JSON/Markdown export
`renderdoc_analyzeHotEvent`	Comprehensive timing, pipeline, resource, shader, and optional mesh evidence for a hot EID
`renderdoc_resourceMemoryAudit`	Rank resources by byte size and summarize capture footprint
`renderdoc_getResourceLifetime` / `renderdoc_findUnusedResources`	Return lifecycle evidence and conservative unused-resource candidates with limitations
`renderdoc_findResourceLeaks` / `renderdoc_compareResourceMemory`	Compare captures for persistent resource candidates and memory-footprint differences
`renderdoc_compareCaptures` / `renderdoc_compareEventTimings`	Compare Capture metadata/resources and existing timing evidence without fabricating replay timings
`renderdoc_addBookmark` / `renderdoc_listBookmarks` / `renderdoc_updateBookmark` / `renderdoc_removeBookmark`	Persist and manage investigation notes, EIDs, conclusions, and screenshot references
`renderdoc_exportInvestigationReport`	Export capture metadata, bookmarks, performance hotspots, and resource footprint as Markdown or JSON

The MCP server includes workflow instructions that guide compatible agents through capture resolution, selection context, frame overview, performance drill-down, shader/texture/buffer inspection, and project-source mapping. Skill files express recommended workflow and recovery constraints; MCP tools execute the deterministic operations.

8 · Exporting Resources

Texture → PNG: right-click a texture in Resources → Export Texture (ASTC, HDR, sRGB handled automatically)
Shader source: Inspector → Shaders tab → Copy button, or Open in Editor for a full VS Code buffer

9 · Troubleshooting

Symptom	Fix
"Native bridge not available" / empty shaders	If you are running from source, build `native/build/Release/renderdoc_bridge.exe`. If you installed from VSIX and the helper is missing, run RenderDoc: Restore Native Bridge…. Replay also needs either a bundled `.renderdoc-runtime` or a local RenderDoc install.
Inspector stays blank after clicking a draw	`Developer: Reload Window` — auto-recreates the panel
Textures tab shows nothing	The draw has no sampled inputs/RTs, or pipeline is still loading
Mali Offline Compiler button missing	Set `renderdoc.maliOfflineCompilerPath` to the path of `malioc.exe`
GPU timings show `N/A`	Click Fetch GPU Timings in the Draw Calls sidebar first
Capture recommends a remote replay host	Connect a compatible target, use RenderDoc: Try Local Replay, or set `renderdoc.alwaysReplayLocally` if you do not want the prompt

Architecture

┌──────────────────────────────────────────────────────────────────────┐
│                        VS Code Extension Host                        │
│  ┌──────────────┐   ┌──────────────────┐   ┌──────────────────────┐  │
│  │   Sidebar    │   │    Inspector     │   │    MCP Server        │  │
│  │   Views      │   │    Webview       │   │  (60 tools, HTTP)    │  │
│  └──────┬───────┘   └────────┬─────────┘   └──────────┬───────────┘  │
│         └────────────────────┼────────────────────────┘              │
│                              ▼                                       │
│                   ┌─────────────────────┐                            │
│                   │   RenderDocBridge   │  ← TypeScript JSON-RPC     │
│                   └──────────┬──────────┘                            │
└──────────────────────────────┼───────────────────────────────────────┘
                               │ stdin / stdout
                               ▼
                   ┌───────────────────────┐
                   │  renderdoc_bridge.exe │  ← C++ native bridge
                   │  (links to RenderDoc) │
                   └───────────┬───────────┘
                               │ IReplayController
                               ▼
                   ┌───────────────────────┐
                   │ renderdoc.dll runtime │
                   └───────────────────────┘

The native bridge maintains a long-lived replay session, caches pipeline state per EID, and streams results as JSON — shader disassembly, descriptor access, GPU timings, and texture readback all execute at native speed.

Project Layout

renderdoc-for-vscode/
├── src/
│   ├── extension.ts              # Activation, command registration
│   ├── renderdocBridge.ts        # Native bridge client (JSON-RPC over stdio)
│   ├── rdcParser.ts              # Pure-TS .rdc header/section parser
│   ├── views/                    # Sidebar tree providers + Inspector webview
│   │   ├── inspectorPanel.ts     # Main Inspector panel (IPC, Mali analysis)
│   │   └── inspector/html.ts     # Inspector HTML template generation
│   └── copilot/
│       ├── tools.ts              # MCP tool implementations
│       └── toolRegistry.ts       # Tool definitions and schemas
├── native/
│   ├── include/                  # RenderDoc public headers (vendored)
│   ├── 3rdparty/                 # ASTC decoder, stb_image_write
│   ├── src/                      # main.cpp, dll_loader.cpp, json.hpp
│   └── CMakeLists.txt
├── .renderdoc-runtime/           # Bundled RenderDoc runtime for packaged VSIX releases
├── media/inspector/              # Webview frontend (JS + CSS)
├── package.json
├── tsconfig.json
└── LICENSE

Building from Source

Prerequisites

Node.js 18+ and npm
CMake 3.20+ with a C++17 compiler (MSVC 2019+ / Clang 12+ / GCC 10+)
RenderDoc installed locally (replay DLL required at runtime)

Build

# TypeScript extension
npm install
npm run compile

# C++ native bridge (Windows / MSVC)
cd native
cmake -B build -A x64
cmake --build build --config Release

The compiled renderdoc_bridge.exe is discovered automatically by the extension at runtime.

Run in Development

Press F5 in VS Code — launches an Extension Development Host with the extension loaded and the debugger attached.

Configuration

Setting	Default	Description
`renderdoc.commandTimeout`	`60000`	Timeout in milliseconds for `renderdoccmd` operations such as thumbnail fallbacks
`renderdoc.alwaysReplayLocally`	`false`	Skip the replay-host prompt and continue locally when a capture suggests remote replay
`renderdoc.maliOfflineCompilerPath`	(empty)	Path to `malioc.exe` for shader analysis
`renderdoc.mcpServer.enabled`	`true`	Expose the optional local RenderDoc For VSCode MCP endpoint for other AI clients
`renderdoc.mcpServer.port`	`38967`	TCP port used by the local RenderDoc For VSCode MCP server

Packaged VSIX installs auto-discover the bundled runtime and native bridge when they are present. Extra setup is typically only needed for source builds or optional Mali analysis.

Supported APIs

API	Capture Load	Pipeline State	Shader Source	Texture Preview	GPU Timings
Vulkan	✅	✅	✅	✅	✅
D3D12	✅	✅	✅	✅	✅
D3D11	✅	✅	✅	✅	✅
OpenGL	✅	✅	✅	✅	✅
OpenGL ES	✅	✅	✅	✅	✅

Contributing

Pull requests are welcome. For significant changes, open an issue first to discuss the design.

Fork the repository
Create a feature branch: git checkout -b feat/my-feature
Write conventional commit messages
Open a PR targeting main

License

Released under the MIT License.

Built for graphics engineers who live in VS Code.

RenderDoc for VS Code

Kirkice

RenderDoc for VS Code

Overview

Highlights

Full Capture Inspector

Hierarchical Event Browser

Live Texture Previews

Launch And Capture

Attach And Capture

Native Replay Bridge

AI-Powered Frame Analysis (MCP)

Mali Offline Compiler Integration

Screenshots

Capture Overview

Inspector Views

Capture Workflow

MCP Workflow

Quick Start

Usage Guide

1 · Installing the Extension

2 · Installing RenderDoc (runtime dependency)

3 · Opening a Capture

4 · Inspector Workflow

5 · GPU Timing Profiling

6 · Mali Offline Compiler Integration

7 · AI-Powered Analysis via MCP

What the MCP Server Exposes

External MCP Client Setup

MCP Tool Catalog (60 tools)

8 · Exporting Resources

9 · Troubleshooting

Architecture

Project Layout

Building from Source

Prerequisites

Build

Run in Development

Configuration

Supported APIs

Contributing

License
