Ko-op YAML

KO_OP Visual Studio Code extension for config .yaml files, which do not natively support cross-file references.

Our config files support:

reusing content blocks with include: ITemplateName or the shorthand $ITemplateName
referencing library elements, such as a Quest, Recipe, or Shop specifying an Item: KeyName that exists in iItems.yaml > Elements > KeyName

This extension adds editing support for these cross-file references:

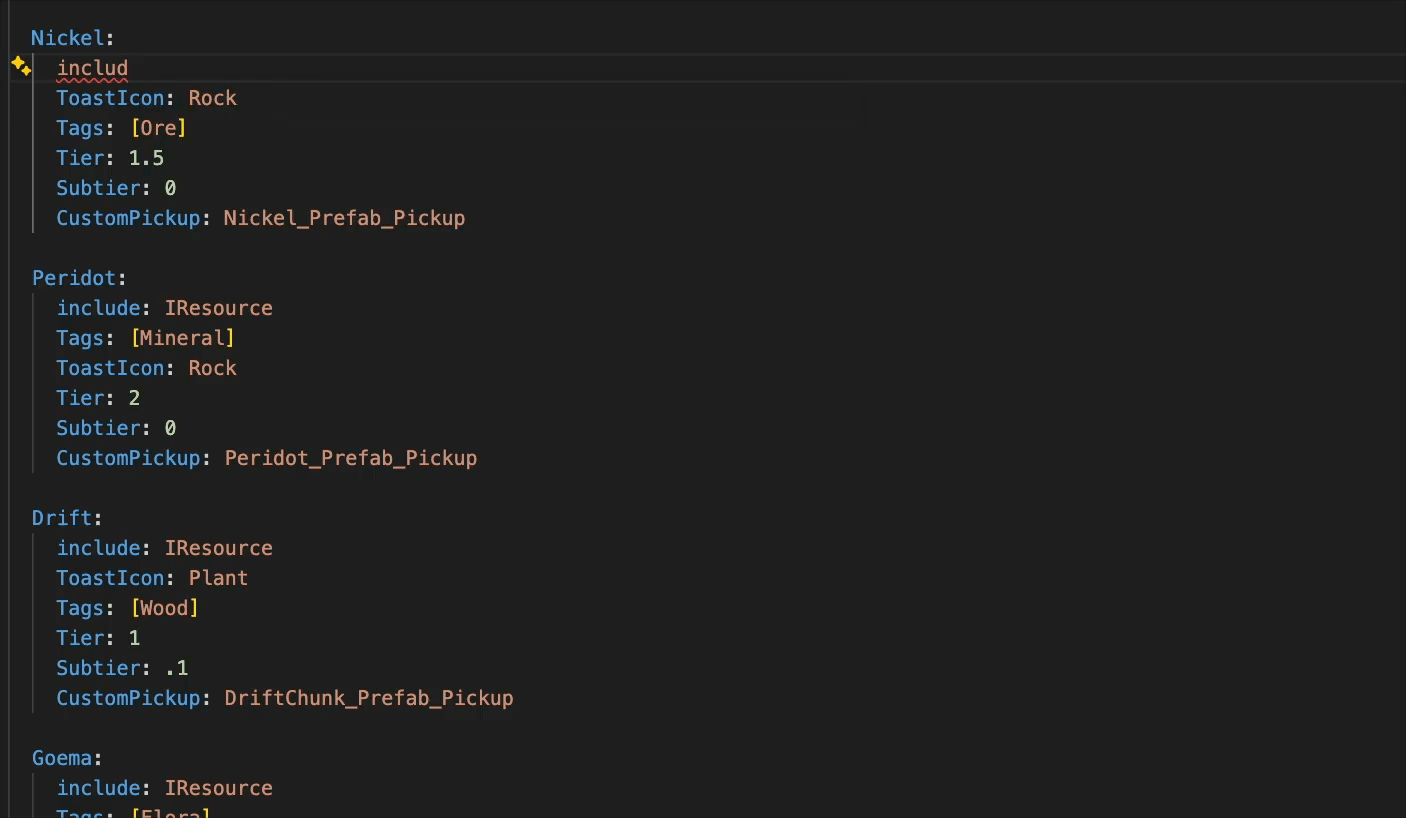

Auto-complete: suggest all valid entries for the key with an inline preview of the content. Use the arrow keys to quickly cycle between them, and enter to select.
Hover: show an inline preview of the include contents when you hover a name
Go-to-definition: jump to file and line where the name is defined (Ctrl/Cmd + Click)

Instructions

Install the plug-in https://marketplace.visualstudio.com/items?itemName=koop.ko-op-yaml
Open a .yaml file in Configs/ (or any sub-directory thereof)
🚨 Important: to get the full use of autocomplete and see content previews, you MUST manually click on the > in the far right of the tooltip at least once.

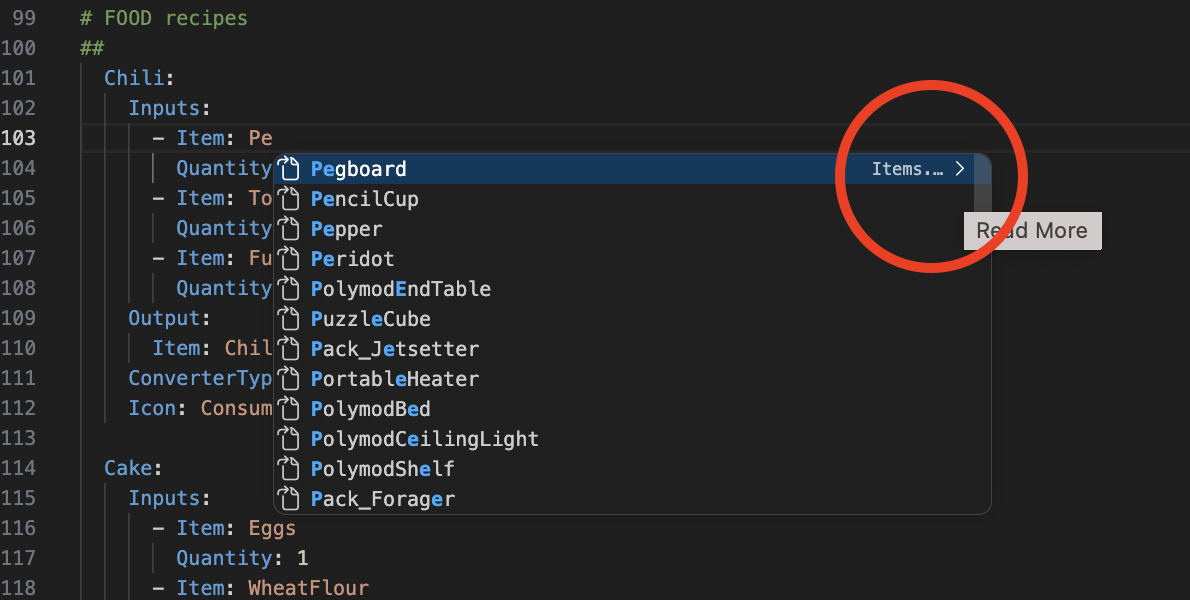

❌ Wrong, click the arrow circled

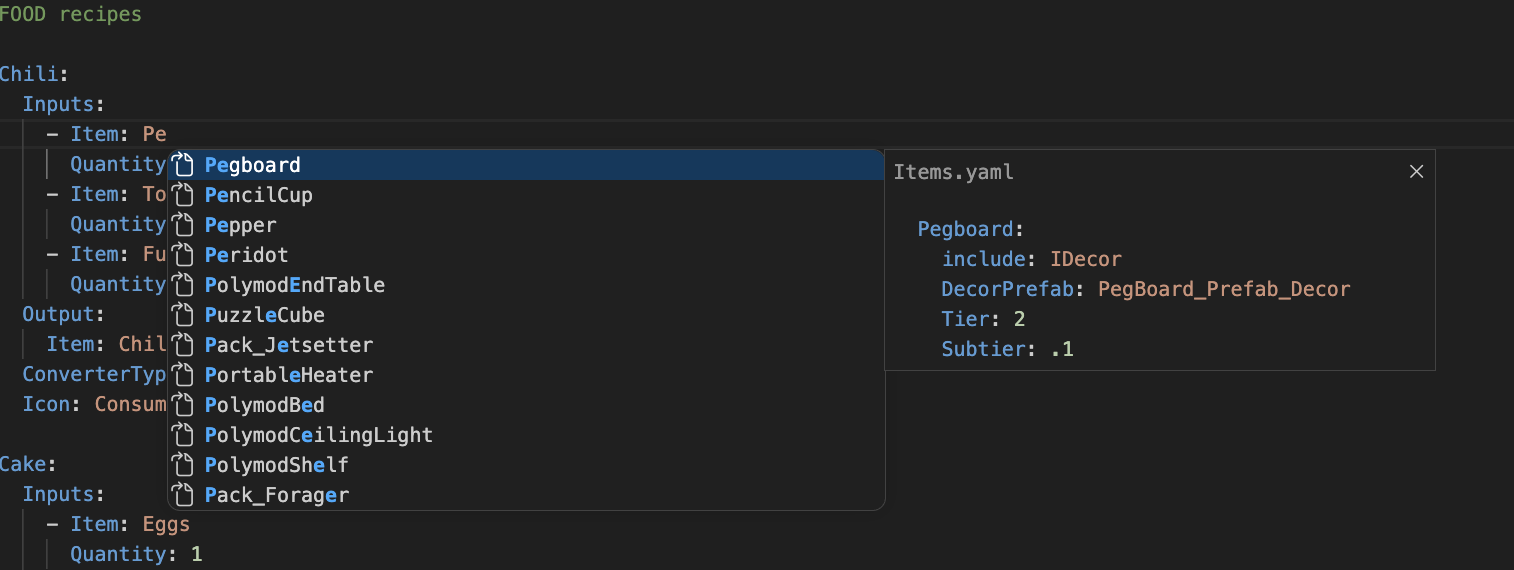

✅ Correct

Requirements

Only activates for .yaml files in a Configs/ directory (or sub-directory thereof)
Expects an optional Configs/Includes directory for include lookups
Expects an optional Configs/Extension/element_mappings.json directory for element mappings (see below)

Features

Include references (`include:`)

Resolves values of the include: key to entries defined in Configs/Include/*.yaml.

include: SiteDefaults # hover or Ctrl+click to jump to definition
include: [$SiteDefaults, CommonItem] # works with lists too

Element references

Resolves values of recognized element keys (e.g. Item:, Reward:, Recipe:) to named entries in the corresponding source YAML file.

Item: EggSandwich            # hover or Ctrl+click → Items.yaml > Elements > EggSandwich
Items: [EggSandwich, Wrench] # works with lists too
Droptable: CommonLoot

Items:                       # mult-line list support
  - EggSandwich
  - Wrench

Adding element mappings

Library element key → file mappings are defined in Configs/Extension/element_mappings.json in our repository, and update in readtime.

Developers can and should freely add to these (and commit them) as they create new config definitions! Some sample mappings:

YAML Key	Source File
`Item(s)`	`Source/Items.yaml`
`Items`	`Source/Items.yaml`
`Droptable`	`Source/Droptables.yaml`
`Locale`	`Source/World/Locales.yaml`
`Tableau`	`Source/World/Tableaus.yaml`
`SpawnTable`	`Source/World/PrefabSpawnTables.yaml`
`Reward`	`Source/Economy/Rewards.yaml`
`ConverterTypes`	`Source/Crafting/RecipeConverters.yaml`
`ShopItem(s)`	`Source/Economy/ShopItems.yaml`
`Recipe`	`Source/Crafting/Recipes.yaml`

Format

A flat JSON object mapping YAML key names to file paths relative to the Configs/ root, using forward slashes:

{
  "Item":      "Source/Items.yaml",
  "Items":     "Source/Items.yaml",
  "Reward":    "Source/Economy/Rewards.yaml",
  "MyNewKey":  "Source/MyNewFile.yaml"
}

It could have been a cheeky .yaml file itself, but this way makes it clear it's not at all a config file.

Supported value forms

YAML form	Example
Single value	`Item: EggSandwich`
Inline list	`Items: [EggSandwich, Wrench]`
Block list	`Items:` followed by `- EggSandwich` lines

Target file format

Element source files must contain a top-level Elements: key with two-space-indented child keys:

Elements:
  EggSandwich:
    DisplayName: Egg Sandwich
    Weight: 0.3
  Wrench:
    DisplayName: Wrench
    Weight: 1.2

FAQ

How does this work / how do I make an extension like this?

It's surprisingly simple!

VS Code exposes a provider API that lets an extension register handlers for editor actions on specific files - in our case, .yaml files in a Configs/ directory.

Each provider is a class with a single method that VS Code calls when the user triggers the action — you return a result or undefined to pass. This extension registers three:

Jump to Definition: registerDefinitionProvider — called on Ctrl/Cmd+Click (or F12). Return a Location pointing at the target file and line.
Hover/Tooltips: registerHoverProvider — called when the cursor lingers over text. Return a Hover containing a MarkdownString to display in the tooltip.
Auto-complete: registerCompletionItemProvider — called as the user types. Return an array of CompletionItems, each with a label, detail, and optional documentation shown in the suggestion widget.

All three providers share the same core logic: parse the current line to identify the key and value under the cursor, resolve which source file that key maps to, then read that file to find the matching Elements: entry.

The VS Code Extension tutorial is a great starting point, along with the API reference:

Why not use the Language Server Protocol?

I don't know how.

Why regex instead of parsing the YAML nodes properly?

We needed to keep editor character positioning and comments for previews; parsing the yaml directly loses all that. Also, this lets us support any syntax that might not be valid YAML.
