VS-Code-for-edk2
VS Code Extension for reading EDK2 Language easily.
See more. Think bigger.
More detail information in https://hackmd.io/@kingphok/SyZZAX3SMg
Specific Features
- No need to build EDK2 code before using the extension
- Built exclusively on standard VS Code APIs with no third-party npm dependencies, external binaries, or LSP servers.
- Provides Go to Definition (F12) [Workspace Required]
- Requires saving and opening the project as a
.code-workspace file to enable this feature.
- Automatically indexs database every time open the workspace.
- Dynamically re-indexes files as they change (including after git checkout)
- Supports custom file associations for EDK2 languages
- Leverages
.gitignore settings to exclude files or paths from the Workspace.
- Provides an outline view for sections and VFR varids
Screenshot

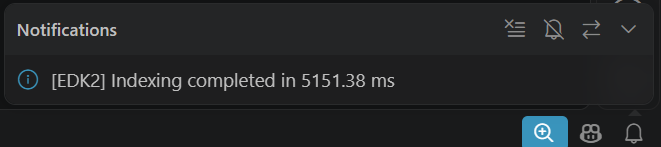

- Notification for indexing completed

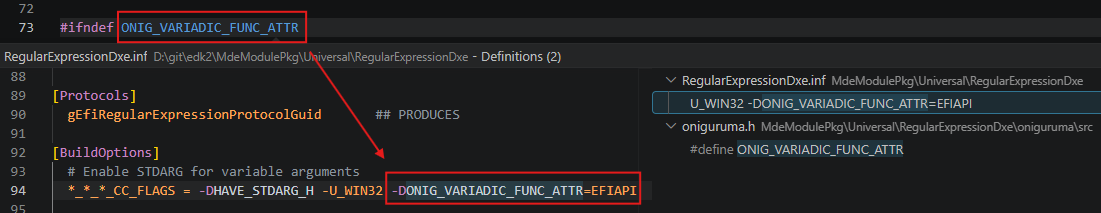

- Go to definition - F12 example for Compiler Flag
- Go to definition - F12 example for EDK2 DEFINE

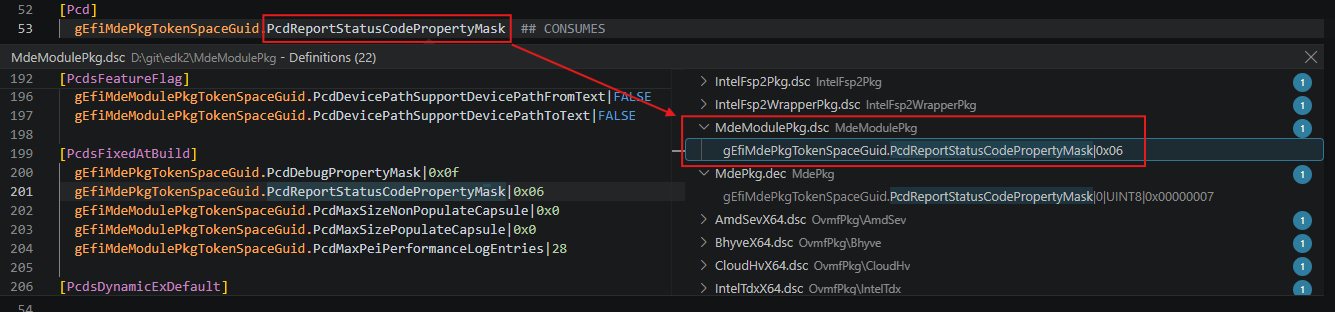

- Go to definition - F12 example for PCD

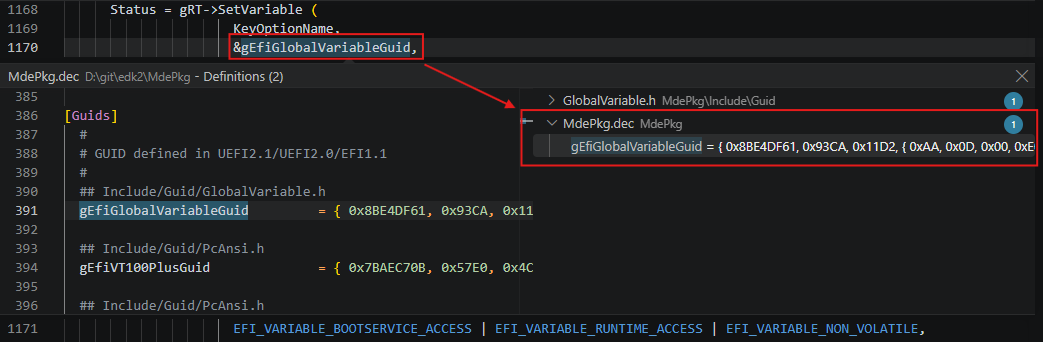

- Go to definition - F12 example for Guid

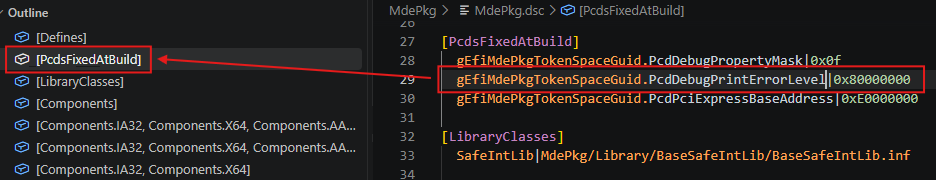

- Outline view example for Section

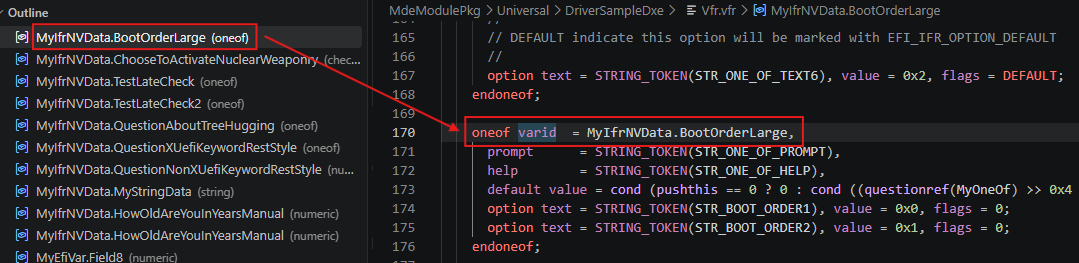

- Outline view example for VFR varid
Go to definition - F12 supported name List
| Name |
Caller Language (For Go to Definition - F12) |
Definition Language (For Indexing) |
| Compiler Flag |
ASL, ASM, C, edk2vfr |
edk2dsc, edk2inf |
| EDK2 DEFINE |
edk2dec, edk2dsc, edk2fdf, edk2inf |
edk2dec, edk2dsc, edk2fdf, edk2inf |
| HII Image Token |
C |
edk2idf |
| HII String Token |
C, edk2vfr |
edk2uni |
| PCD |
ASL, ASM, C, edk2dec, edk2dsc, edk2fdf, edk2inf |
edk2dec, edk2dsc, edk2fdf, edk2inf |
| Protocol Ppi Guid |
C, edk2dec, edk2dsc, edk2fdf, edk2inf, edk2vfr |
edk2dec |
| VFR goto form |
edk2vfr |
edk2vfr |
| VFR key |
C |
edk2vfr |
| VFR Varable default |
C |
edk2vfr |
Outline supported name List
| Name |
Language |
| section |
edk2dec, edk2dsc, edk2fdf, edk2inf |
| varid |
edk2vfr |
Language extension file name List
| Language |
File Extensions |
| edk2dec |
.dec |
| edk2dsc |
.dsc .dsc.inc .template |
| edk2fdf |
.fdf .fdf.inc |
| edk2idf |
.idf |
| edk2inf |
.inf |
| edk2uni |
.uni .UNI |
| edk2vfr |
.vfr .vfi .hfr |
| *ASL |
.asi .asl .aslc |
| *ASM |
.asm .nasm .nasmb .S |
| *C |
.aslc .c .cpp .h |
* Grammars have not been implemented for this language.
| |
