GreenLight - Visual HTML, Astro, and Markdown Editor

GreenLight is a visual builder for local .html, .astro, .md, and .mdx files inside the editor. It combines drag-and-drop page building, CSS editing, class management, variable systems, responsive controls, animation tooling, wireframes, Markdown content editing, and WordPress export in one workflow.

What It Does

GreenLight lets you:

• Open local .html, .astro, .md, and .mdx files in a visual editor inside VS Code or any VS based IDE like Cursor, WindSurf, etc.
• Select, edit, move, reorder, and delete elements directly on the canvas or from tree view.
• Build layouts with flexbox, grid controls, and a visual grid builder.
• Edit typography, colors, spacing, size, borders, effects, transforms, shadows, and positioning.
• Manage CSS classes, subselectors, custom properties, and inline vs class-based styling.
• Switch between desktop, tablet, and mobile editing modes.
• Insert starter blocks like headings, paragraphs, buttons, images, sections, and containers.
• Edit Markdown content visually while keeping the source file in sync.
• Work with Astro component files that contain editable markup content.
• Create and apply reusable animations and keyframes.
• Browse wireframe blocks from a local template server (Cloud is in plans with user storage).
• Save changes back into the source file with auto-save and file sync.
• Export HTML into GreenShift/GreenLight-compatible WordPress block code.
• Connect to WordPress, upload media, export variables, and create or update pages.

Installation

Requirements:

• VS Code ^1.85.0
• A local .html, .astro, .md, or .mdx file to edit

Install the extension, then right-click a supported file and choose Open with GreenLight Visual Editor.

Quick Start

1. Open a local .html, .astro, .md, or .mdx file in VS Code.
2. Run GreenLight: Open with GreenLight Visual Editor, or use the command from the Explorer or editor context menu.
3. Click an element on the canvas to select it.
4. Use the right-side panels to edit structure, styles, classes, attributes, and animations.
5. Add new blocks from the toolbar.
6. Switch between desktop, tablet, and mobile modes to make responsive edits.
7. Let GreenLight auto-save the updated HTML back to disk.

Core Editing Features

Visual file editing

• Opens .html, .astro, .md, and .mdx files in a dedicated visual webview panel inside VS Code.
• Renders the current document live using local markup and assets.
• Keeps the editor in sync when the source file changes outside the webview.
• Uses patch-based saving where possible to reduce unnecessary changes to the file.

Double sync — editor and source stay in sync

GreenLight keeps the visual editor and the source file synchronized in both directions. Changes in the visual editor update the source file, and external changes to the source file are reflected live in the canvas.

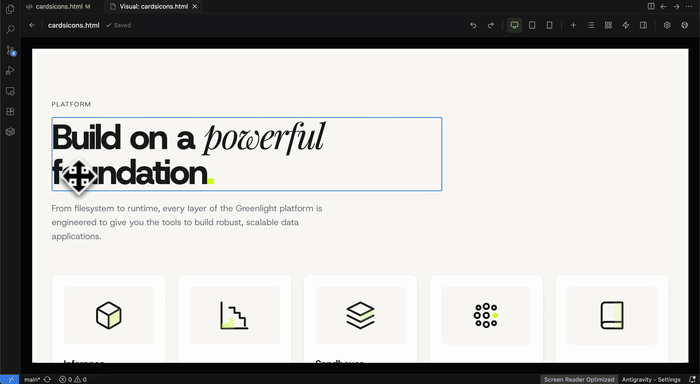

Drag and drop

Drag elements directly on the canvas to reorder, reparent, or move them between containers. Visual drop indicators show exactly where the element will land.

DOM tree view

Use the tree panel to inspect, select, reorder, retag, hover-highlight, or delete nodes. The tree stays in sync with the canvas and provides a structural overview of the document.

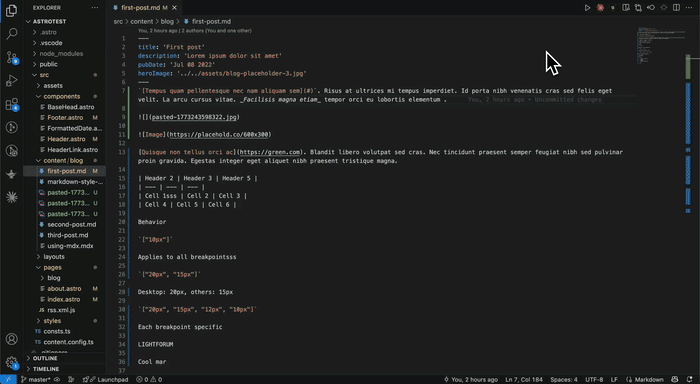

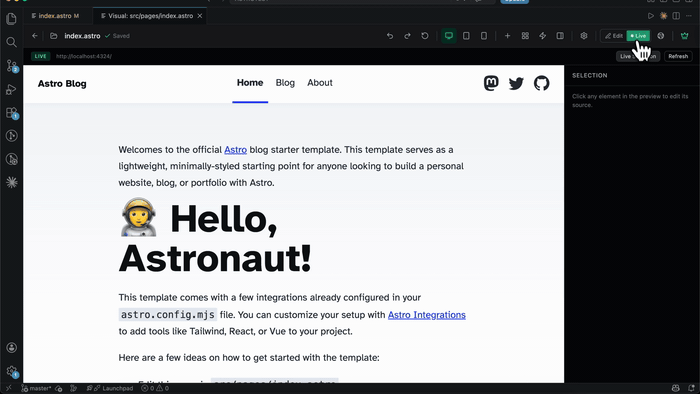

Astro and Markdown support

• Supports Astro component editing for files with editable markup content.
• Supports Markdown and MDX documents in the same visual editor workflow.
• Lets you modify content visually while preserving the underlying source file format.
• Markdown toolbar with formatting actions: bold, italic, strikethrough, headings (H1–H6), ordered/unordered lists, tables, blockquotes, code blocks, links, and images.

Canvas interactions

• Click to select elements.
• Double-click to edit text inline.
• Drag existing elements to reorder them visually.
• Use a DOM tree panel to inspect, select, retag, hover, or delete nodes.
• Exit editing or deselect with Escape.
• Use Cmd/Ctrl+Z and Cmd/Ctrl+Shift+Z for undo and redo.

Design and CSS Tools

GreenLight includes a multi-panel design inspector for editing:

• Typography
• Colors
• Spacing
• Layout
• Position (static, relative, absolute, fixed, sticky, with isolation control)
• Size
• Border
• Shadow
• Transform
• Effects (opacity, filters, transitions, backdrop filters, clip-path, masks)

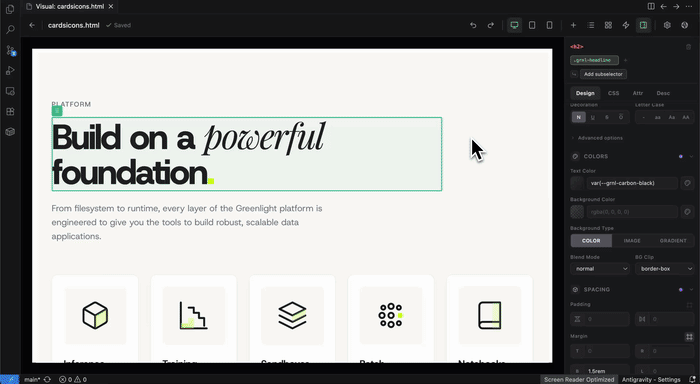

Color picker

A full-featured color picker with HSV color wheel, opacity slider, hex/RGB input, and eyedropper support. Colors can be applied to text, backgrounds, and borders.

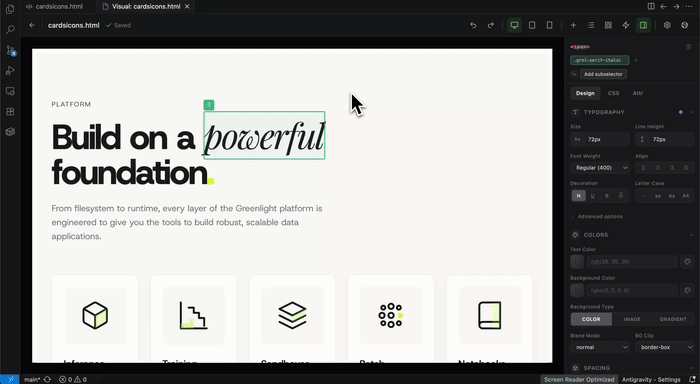

Descendant color editing

Edit text, background, and border colors of all child elements from the parent selection — without needing to select each descendant individually.

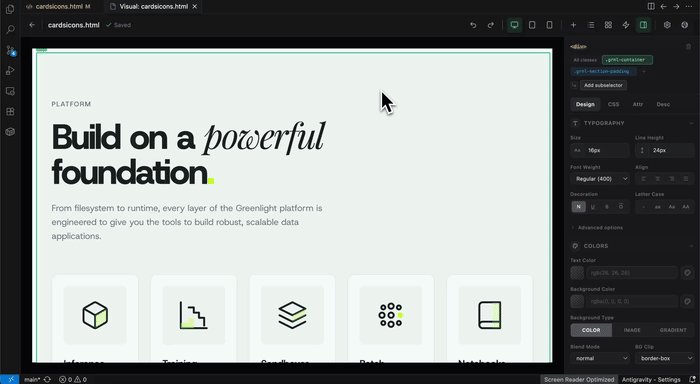

CSS property editing

The CSS panel shows all applied and computed CSS properties in a searchable list. Click any property to edit its value directly. See at a glance whether values come from inline styles, class rules, or ID rules.

Image upload

Upload local images directly from the editor for use in background images and other style properties.

Additional CSS tools

• An attributes panel for adding, editing, and removing arbitrary HTML attributes.

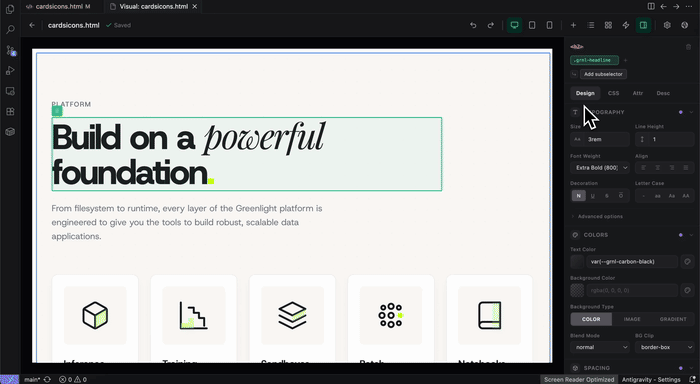

• Class management for adding, creating, renaming, switching, or removing classes.
• Subselector editing for class-based variants such as :hover.
• CSS variable picking and creation for token-style workflows.
• class and inline style application modes.

Responsive and Layout Editing

GreenLight includes responsive editing modes for:

• Desktop
• Tablet
• Mobile

Switch between breakpoints to make responsive edits. Each breakpoint stores its own style overrides.

Layout tooling includes:

• Flexbox controls
• Grid controls
• Child placement controls
• Alignment and gap controls
• A visual Grid Builder for creating responsive grid layouts

Animation Tools

GreenLight includes an animation builder that can:

• Create reusable animation classes
• Start from presets like fade, slide, grow, spin, pulse, and bounce
• Configure triggers such as load, hover, in-view, scroll, or class-based activation
• Edit keyframes visually and as raw CSS
• Configure duration, easing (including spring curves), direction, iteration count, delay, and fill mode
• Preview and inspect generated animation CSS
• Search and manage existing animation classes
• Apply animation classes to any element

Wireframes and Templates

GreenLight can load draggable wireframe/template blocks from a local backend service.

This is useful for:

• Starting pages from predefined sections
• Browsing categories of templates
• Dragging ready-made sections into the canvas

Template loading currently depends on a local server running on port 5050.

WordPress and GreenShift Export

GreenLight supports two export-oriented workflows:

• Generate code from the current HTML
• Export directly to WordPress

The WordPress flow can:

• Save multiple site connections
• Store site metadata in extension state
• Store application passwords securely in VS Code Secret Storage
• Search existing pages
• Create new draft pages
• Upload local media during export
• Export CSS variables as GreenShift global variables
• Convert the edited HTML into GreenShift-compatible block code
• Create or update WordPress pages
• Show progress, retry, cancellation, copy-code, and open-page actions

WordPress setup

To connect a site, you currently need:

• WordPress site URL
• Username
• WordPress Application Password
• GreenShift plugin endpoint available on the site

Commands

• GreenLight: Open with GreenLight Visual Editor

This command is available for .html, .astro, .md, and .mdx files from:

• Explorer context menu
• Editor title actions
• Editor context menu

Settings

greenlight.styleMode

Controls how style changes are applied:

• class: apply changes to CSS classes
• inline: apply changes as inline styles

Keyboard and Mouse Shortcuts

• Click: select element
• Double-click: edit text
• Delete / Backspace: remove selected element
• Escape: stop editing or clear selection
• Cmd/Ctrl+Z: undo
• Cmd/Ctrl+Shift+Z: redo

Current Limitations

• GreenLight currently works with local .html, .astro, .md, and .mdx files, not arbitrary file types.
• The main editor flow is focused on one document at a time.

Who It Is For

GreenLight is useful for:

• Visual HTML, Astro, and Markdown editing inside VS Code
• Rapid landing page and marketing page building
• CSS layout experimentation
• Responsive design tweaking
• Animation prototyping
• Converting HTML into a WordPress/GreenShift workflow
