GoForms Designer

A drag-and-drop form designer for GoForms, a Windows Forms-style GUI framework for Go.

Drag a button onto a form, and the designer writes the Go that puts it there. Drag it somewhere else, and it rewrites those lines. The file it edits is ordinary Go you can read, diff and review — not a resource blob you are never meant to open.

What it does

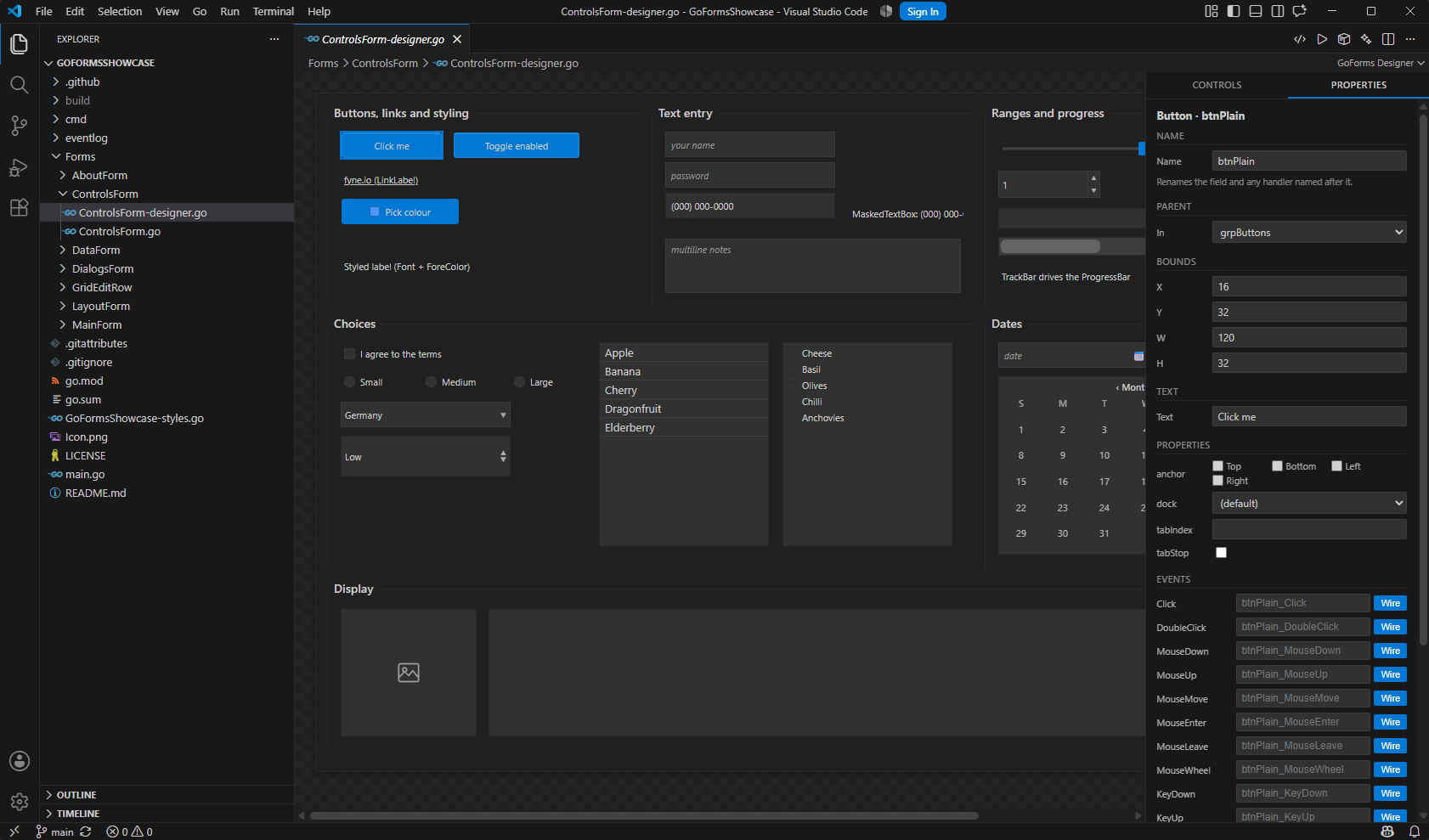

Edits forms visually. Open any *-designer.go file and it becomes a canvas with a toolbox of 34 controls, each drawn to approximate its real on-screen look rather than as a labelled box. Drag to move, drag the edges to resize, Ctrl or Shift click to select several and move them together. Edges snap to their neighbours' left, right and centre with a guide line drawn where they line up.

Keeps your code separate from the generated code. A form is split the way a WinForms form is split into Form1.cs and Form1.Designer.cs: layout in MainForm-designer.go, your handlers in MainForm.go. The designer only ever writes the first, so it cannot eat what you wrote.

Writes event handlers for you. Every control lists its own events first, then the ones inherited from Control — Click, MouseDown, KeyPress, GotFocus and the rest. Wiring one generates a fully typed handler stub in your file and adds the import it needs, respecting the alias if you import the package under one. Re-wiring an event rewrites the line that is already there instead of leaving two handlers running.

Edits properties with the right editor per type. A checkbox for booleans, a spinner for numbers, a dropdown for enums, a row of checkboxes for flag sets like Anchor. Renaming a control renames its field, every reference to it, and any handler still named after it.

Tidies up after itself. Every edit ends with a cleanup pass that removes what the edit made redundant: setters a later call already overrides, stacked wirings of one event, a control added to a container twice, duplicate field declarations. Only the statements it models are touched; anything it does not recognise is left exactly as you wrote it.

Has undo of its own. Ctrl+Z and Ctrl+Y inside the designer, with a snapshot history the extension keeps itself — the file is written directly rather than through the editor's document, so the editor's undo never sees these changes.

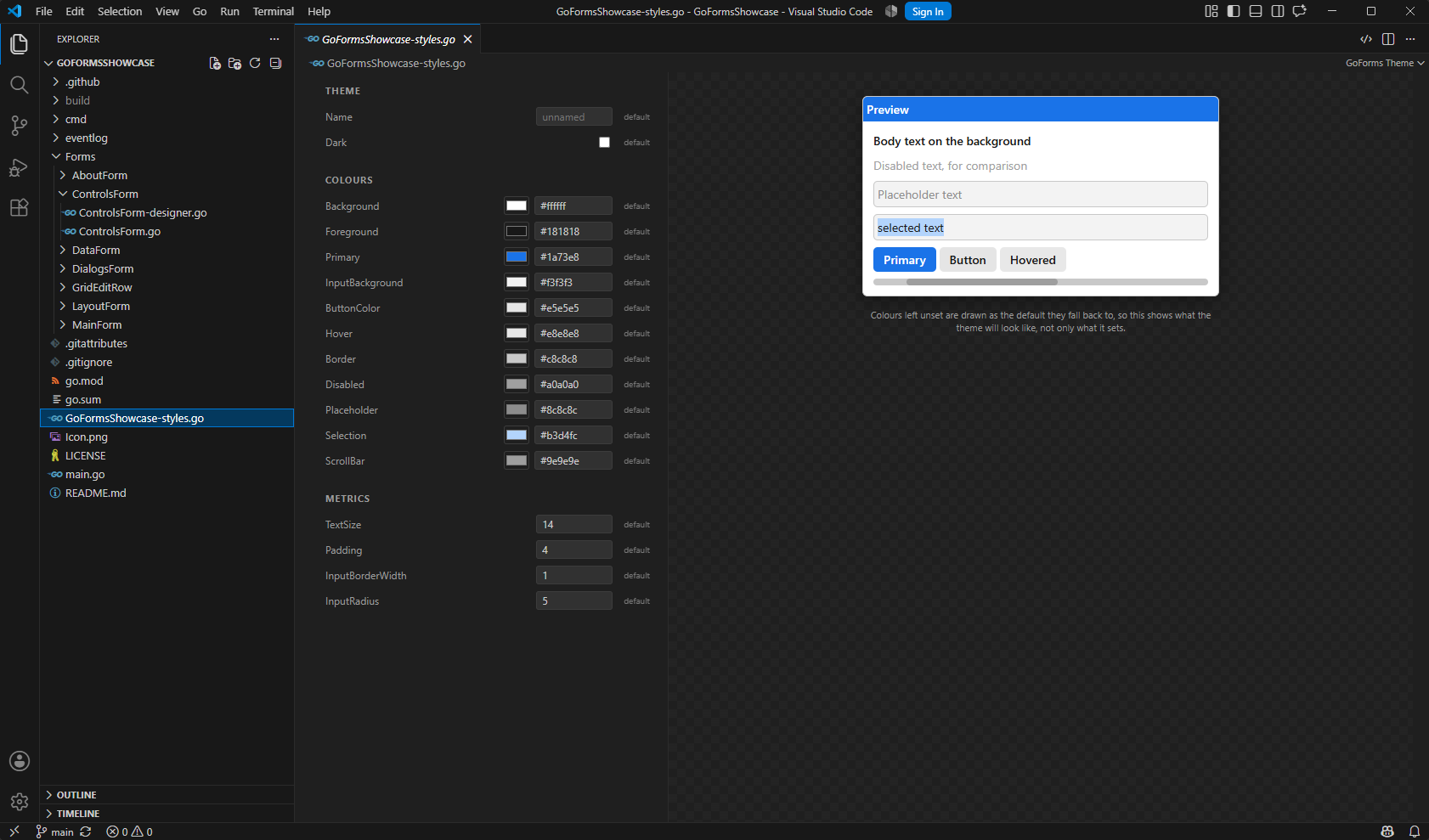

Themes. A project's <name>-styles.go opens as a visual theme editor: a picker and a hex box per colour, numbers for the metrics, and a live preview showing them together. A field left out keeps the framework default, and that unset state is reachable again from every row.

Scaffolds projects and forms. Create a new project — empty, a worked example, one aimed at the browser, or one aimed at Android — and get a correct go.mod, a main.go, a first form, build tasks and a .gitignore. Add a form to any folder from the Explorer's right-click menu.

Builds and runs the project. One command each for the desktop, the browser and Android, plus a local server that opens a WebAssembly build in your browser and a one-click install of an Android APK onto a connected phone. Every step runs as a plain process in a terminal panel, so a failure is the compiler's own message with a clickable file and line.

Nothing needs the network beyond what Go itself downloads once.

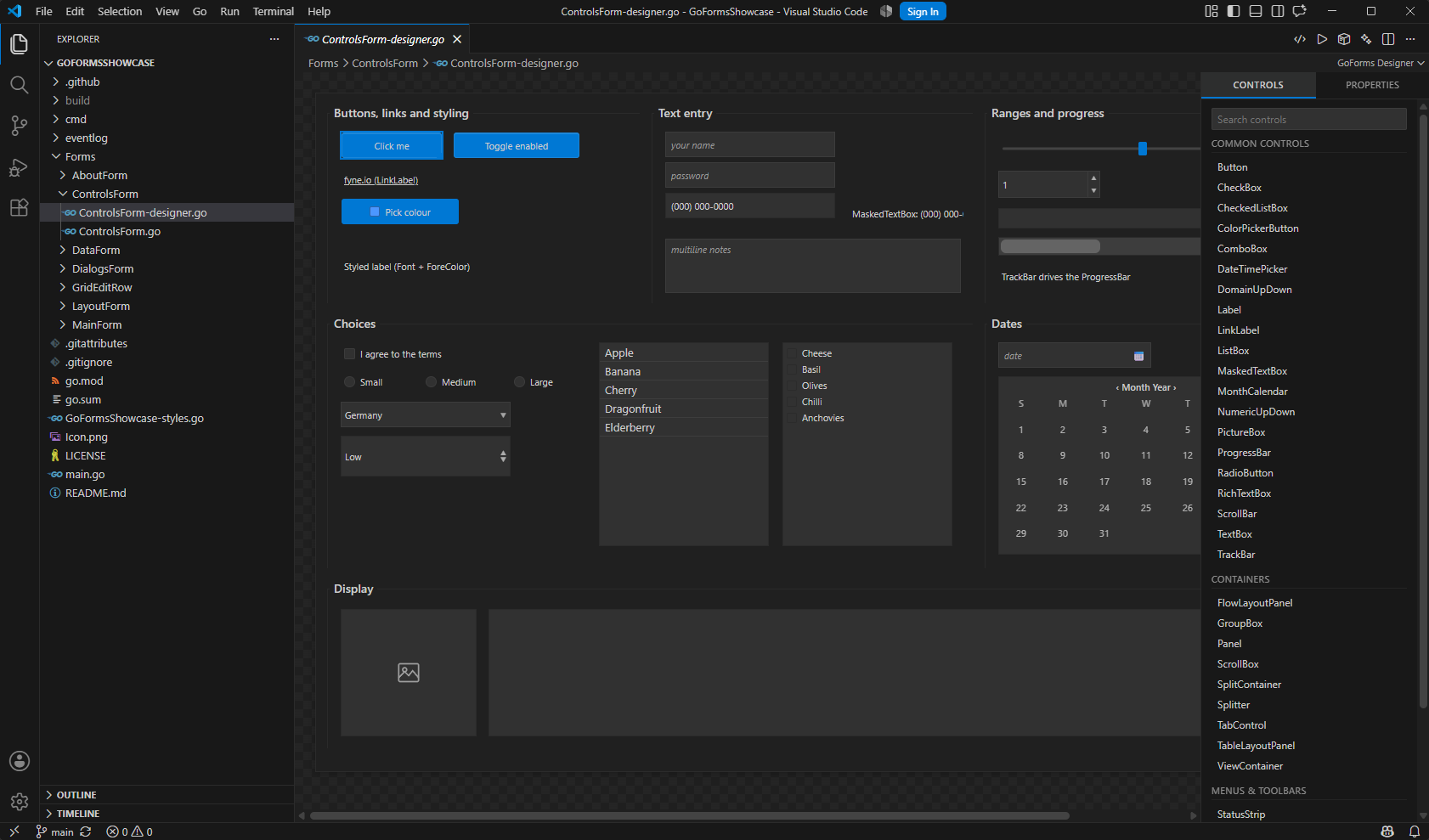

The toolbox holds 34 controls, grouped the way Visual Studio groups them, with a search box. Clicking a type adds it to the form, or into whichever container is selected.

Commands

All of these are in the command palette (Ctrl+Shift+P). Most are also on a menu: the status bar has GoForms on the left, the designer's toolbar has run, run-in-browser and build, *-designer.go files have Open as Text and Tidy in the editor title bar, and a folder's right-click menu in the Explorer has New Form and New Theme.

Making things

Components — a Timer, the four dialogs — are in the toolbox under Components, and land on the tray below the form rather than on it. They have properties and events like anything else; a Timer you cannot see is a Timer you cannot rename, configure or delete without leaving the designer.

Editing

Running and building

Finding things

Snippets

The canvas is for layout. The other half of the work — a handler, a dialog raised in code, a control added to a container at runtime — is typing, so there are snippets for it. Type gf in any Go file to see all 35.

Each control snippet writes all three lines a control needs — construct, place, add — because a control that is constructed and never added is the mistake that produces an empty form.

Things worth knowing

• Escape selects the form. A form covered edge to edge by a docked control has no background left to click, so Escape is the way back to its own properties — title, width, height.
• Three modes sit above the canvas. Zoom draws the form at 50–200%, or fits it to the window; it changes nothing about the form. Lock still lets you select and inspect but refuses every drag and resize. Tab order numbers the controls where they sit and lets you click through the form in the order you want Tab to visit them, instead of setting tabIndex one spin box at a time.
• Renaming a control renames everything. The struct field, every reference to it, and any handler still named after it.
• Ctrl or Shift click extends the selection. Dragging any member then moves the whole group, and edges snap to their neighbours with a guide line drawn where they line up. With more than one selected, the panel offers the WinForms Format commands — align, centre, same size — all measured against the last control you clicked.
• Undo is the designer's own. Ctrl+Z and Ctrl+Y inside the canvas. The file is written directly rather than through the editor's document, so the editor's undo never sees these edits and the extension keeps its own history.
• Docked controls are drawn where they will really be, not at their stored coordinates, and marked with a dashed outline — dragging one has no effect, which is what the outline is telling you.
• A control the catalogue does not model is left alone. The cleanup pass only touches statements it understands, so hand-written setup inside initializeComponent survives.
• F7 and Shift+F7 move between the two halves of a form — the layout the designer writes and the handlers you write — the same keys Visual Studio binds them to. F7 on a form with no code file yet writes it.
• F5 debugs. A new project ships with the launch configurations; an existing one gets them from GoForms: Add Debug Configuration. It needs the Go extension, which supplies the debugger.
• The interface is available in Russian, and follows VS Code's display language — no setting of its own. The setup guides have been bilingual since 0.10.0.
• The first run needs Go and takes a moment: the helper that parses and rewrites your files is compiled then, into the extension's storage.
• Nothing here needs the network. The designer, the theme editor, the snippets, the setup guides and the WebAssembly loader page all ship inside the extension, and the webviews are served under default-src 'none', so there is no font or script to fail to arrive. The two things that do need a connection are Go fetching your project's modules the first time, and downloading the Android NDK — both are yours to do, once. Turn on goforms.build.offline to have builds run with GOPROXY=off, so a module missing from the cache fails by name instead of hanging.

Requirements

• VS Code 1.85 or newer, on Windows, Linux or macOS.
• A Go toolchain. It is needed the first time the designer runs, to build the small helper that parses and rewrites designer files.
• Nothing else for editing, scaffolding, or a desktop or WebAssembly build.

An Android build additionally needs the fyne command-line tool and the Android NDK. Neither is downloaded for you, both are looked for everywhere they are normally installed, and the guide explaining where to put them ships inside the extension — run GoForms: Open Setup Guide. GoForms: Check Setup reports what this machine has.

Getting started

Run GoForms: Create New Project… from the command palette — or press the Create GoForms Project button on the Explorer's welcome screen — and answer three questions: where the project goes, which template, and how it should look. Open the MainForm-designer.go it created — the designer opens with it — and drag a control onto the canvas. Wire its Click event from the Events panel, and the handler stub appears in MainForm.go for you to fill in. Press the run button on the designer's toolbar to see it.

There is also a walkthrough: Help → Get Started → Get Started with GoForms.

An existing GoForms project needs none of that: open any designer file.

If it cannot find Go

A GUI editor does not run a login shell, so it inherits the desktop session's PATH rather than the one your shell profile builds. That is why Go can work in your terminal and still be invisible to the editor.

The extension looks in its own setting first, then the Go extension's setting, then GOROOT, then PATH, then the usual install locations on each platform, verifying each candidate by running it. If yours is somewhere else, point the goforms.goPath setting at it once. GoForms: Check Setup lists everywhere it looked.

Links

• GoForms framework — the library this designs for.
• Documentation and guide
• Showcase application — every control and layout, running.
• Report a problem

MIT licensed.
