Dart Clean Architecture - Arq. Hex.

Stop writing Flutter boilerplate by hand.
Generate production-ready Clean Architecture in seconds — from the Command Palette or directly with Copilot & AI agents.
Built for scalable Flutter teams and Melos monorepos.

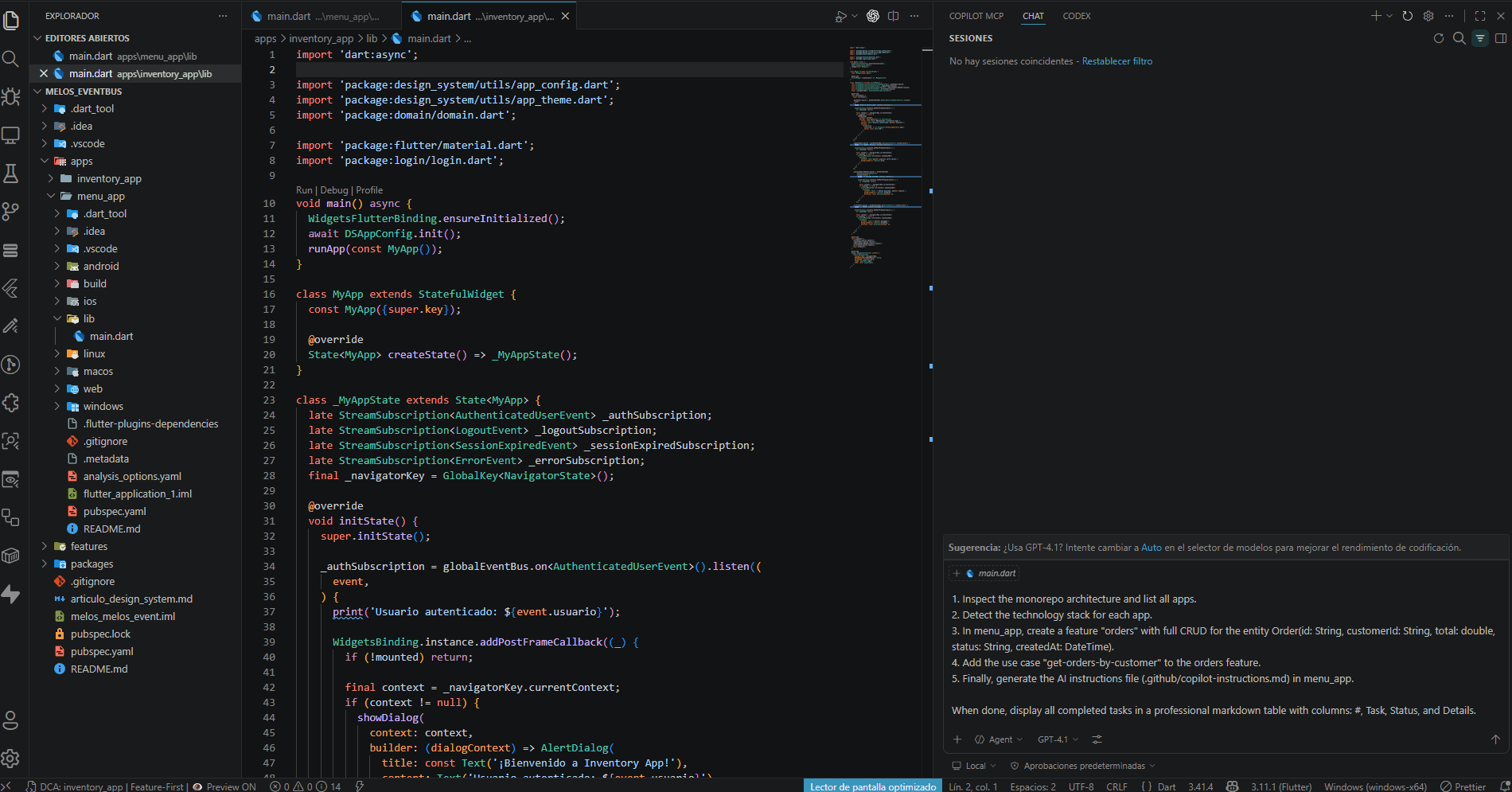

🎬 Demo

Generate a full Clean Architecture feature directly from VS Code — via the Command Palette or using GitHub Copilot Chat with AI-assisted scaffolding.

🚀 Why use this extension

Setting up Clean Architecture in Flutter means creating the same folders, files, and wiring every single time:

entities · repositories · use cases · datasources · models · index exports · UI structure…

That's repetitive, error-prone, and inconsistent across teams.

This extension solves that.

Works for single Flutter projects and large Melos monorepos.
Works from the Command Palette and from GitHub Copilot Chat.

🤖 AI & Copilot Chat Integration

The extension registers 6 Language Model Tools that GitHub Copilot (and compatible AI agents) can call automatically.
No manual steps. Just describe what you want.

Example — paste this in Copilot Chat

1. Inspect the monorepo architecture and list all apps.
2. Detect the technology stack for each app.
3. In menu_app, create a feature "orders" with full CRUD for the entity
   Order(id: String, customerId: String, total: double, status: String, createdAt: DateTime).
4. Add the use case "get-orders-by-customer" to the orders feature.
5. Finally, generate the AI instructions file (.github/copilot-instructions.md) in menu_app.

When done, display all completed tasks in a professional markdown table with columns: #, Task, Status, and Details.

Copilot executes all 5 steps autonomously — architecture inspected, CRUD feature scaffolded, use case added, and AI instructions generated. No manual input needed.

✨ Key Features

🏗️ Complete Architecture Generation

Generate the full layer structure in one command.

• Domain layer — entities, repositories (abstract), use cases
• Data layer — repository implementation, models, datasources
• UI layer — bloc structure, screens, widgets
• Automatic index.dart barrel exports for every layer

🧩 Typed CRUD Scaffolding

Define your entity once. Get the full CRUD wired up automatically.

• Typed entity class with copyWith, equality, and toString
• Abstract repository contract with typed CRUD signatures
• 4 use cases: create, read, update, delete
• Repository implementation skeleton ready to fill in

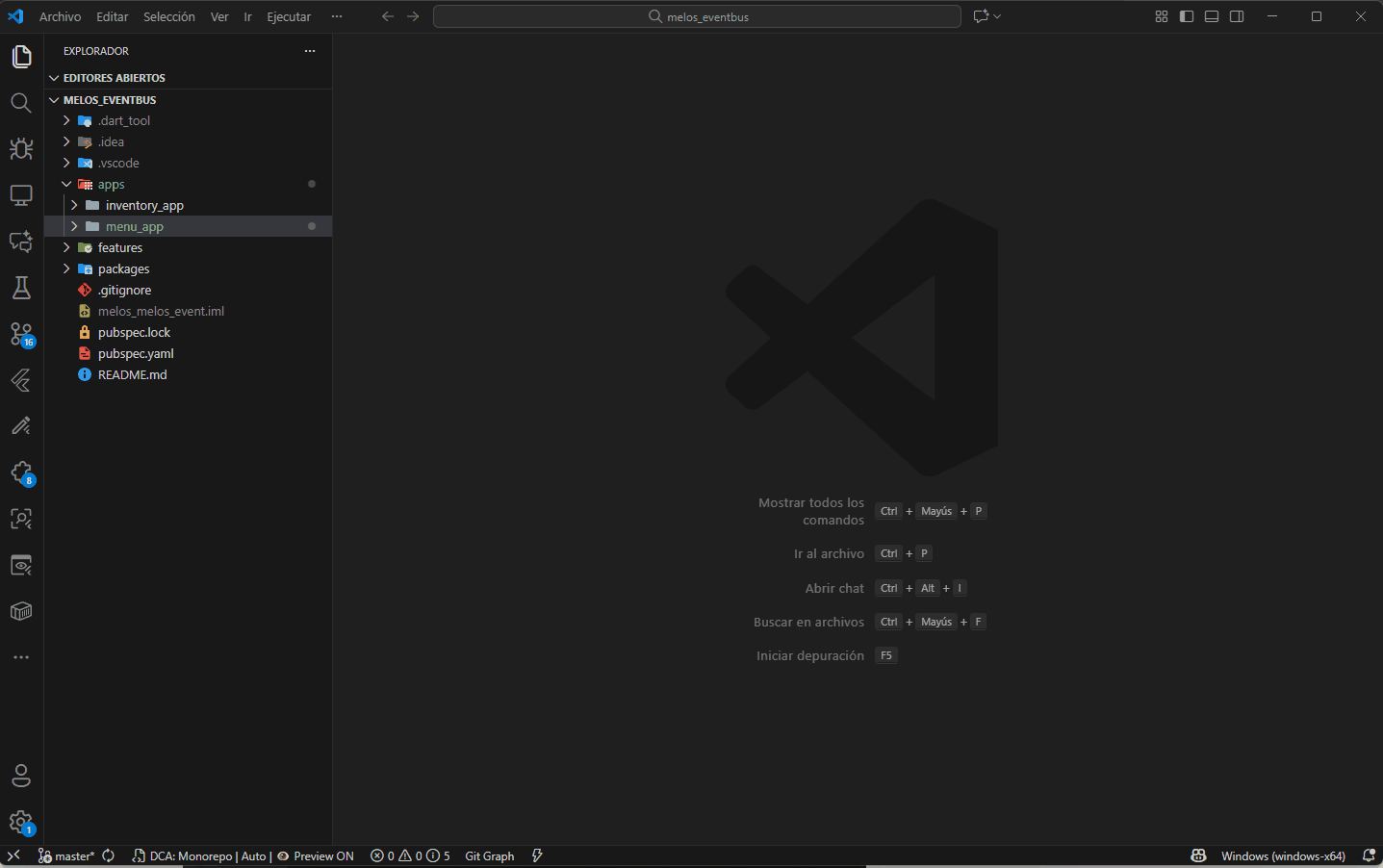

🔍 Generation Preview

See exactly what will be created before confirming.

• Dedicated WebviewPanel — fixed header, scrollable body, fixed footer
• Buttons always visible even with 500+ items in the list
• Summary: command, app, feature, structure mode and detection source
• "Confirm & Disable Preview" — skip future previews in one click
• Configurable item limit (dartCleanArch.preview.maxItems, default: 200)

→ Preview Feature Guide

📊 Intelligent Status Bar

Real-time context at the bottom of VS Code.

$(file-code) DCA: menu_app | Feature-First | 👁️ Preview ON

• Single project: shows structure mode and preview state
• Monorepo: auto-detects the active app from your open file
• Click → Quick Pick menu with all configuration options
• Updates automatically when you switch files or change settings

🧠 Architecture Inspection & Stack Detection

Understand any project instantly — no external tools needed.

• Lists all features and their use cases as a formatted tree
• Detects structure mode with source (auto-detect / override / default)
• Identifies your technology stack across 8 categories:

📝 AI Instructions Generator

Generate a .github/copilot-instructions.md file tailored to your project.

• Stack-aware: guidance specific to your detected packages
• Documents your Clean Architecture rules and naming conventions
• Per-app support inside Melos monorepos
• Keeps every AI assistant aligned with your architecture from day one

🚀 Melos Monorepo Support

Full support for Flutter monorepos using Melos.

• Automatic detection of Melos projects (v6 and v7+)
• Intelligent app selector — filters only valid Flutter apps
• Each app maintains its own structure mode independently
• Status bar reflects the active app based on your open file

→ Melos Guide

🎯 Use Cases

• Bootstrap a new Flutter project with the right architecture from the first feature
• Standardize architecture across teams — everyone generates the same structure
• Accelerate feature development — remove the scaffolding bottleneck
• Scale Melos monorepos — manage multiple apps with independent structure modes
• Let AI scaffold your architecture — Copilot creates real files, not just suggestions
• Onboard AI assistants — generate accurate instructions so Copilot knows your stack and conventions

📦 Installation

1. Open Visual Studio Code
2. Go to Extensions (Ctrl + Shift + X)
3. Search for: Dart Clean Architecture - Arq. Hex
4. Click Install

→ Open in VS Code Marketplace

📖 Quick Usage

Open the command palette with Ctrl + Shift + P and run any of these commands:

🏗️ Structure Modes

Feature-First (default)

All layers for a feature live together.

lib/
└── features/
    └── orders/
        ├── domain/
        │   ├── entities/
        │   ├── repositories/
        │   └── usecases/
        ├── data/
        │   ├── datasources/
        │   ├── models/
        │   └── repositories/
        └── ui/
            ├── blocs/
            ├── screens/
            └── widgets/

Best for: small to medium projects, easy feature removal, high cohesion per feature.

Layer-First

All features grouped by architectural layer.

lib/
├── domain/
│   └── orders/
├── data/
│   └── orders/
└── ui/
    └── orders/

Best for: large projects with 20+ features, cross-feature code reuse, larger teams.

Automatic Detection

The extension detects which mode your project uses:

1. lib/features/ exists → Feature-First
2. lib/domain/, lib/data/ or lib/ui/ exist → Layer-First
3. Neither found → defaults to Feature-First
4. Both detected → prompts you to choose

You can also override the mode manually at any time.

→ Structure Modes Guide

🧠 Workflows

Via Command Palette

1. Press Ctrl + Shift + P
2. Run: Clean Architecture: Create Feature with CRUD
3. Enter the feature name and entity details
4. Review the preview — inspect every file before anything is written
5. Click Confirm

Via Copilot Chat

1. Open Copilot Chat in Agent mode
2. Paste the prompt from the AI Integration section
3. Copilot calls the tools, creates the files, and reports back

🎥 More Examples

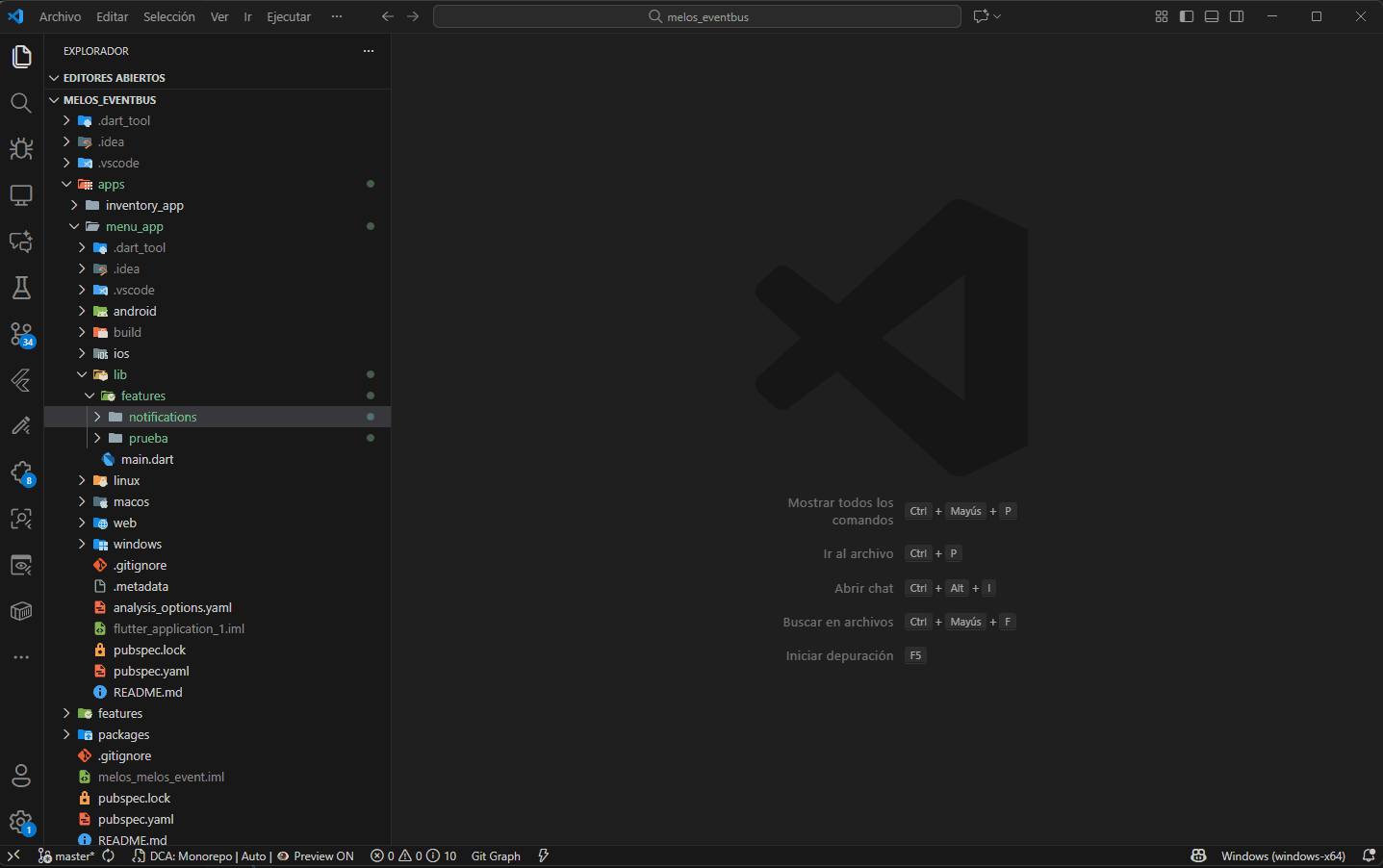

Create Feature

Create Use Case

🤝 Contributing

Contributions are welcome — issues, suggestions, and pull requests.

→ GitHub Repository

⭐ Support the project

If this extension helps your team, consider:

• Leaving a review on the VS Code Marketplace
• Giving the repository a star on GitHub
• Sharing it with your team or community

Your feedback directly shapes the roadmap.

📄 License

MIT — opensource.org/licenses/MIT
