CALM VS Code Extension

Status: Experimental - APIs, behavior, and visuals may change. Use at your own risk.

Live-visualize CALM architecture models while you edit them. Features an interactive preview, tree navigation, intelligent validation, and documentation generation - all working offline with a clean MVVM architecture.

Features

🎯 Interactive Preview Panel

• Live Graph Visualization: Powered by Cytoscape with configurable layouts (dagre, fcose, cose)
• Smart Containment Rendering: "deployed-in" and "composed-of" relationships render as nested compound containers
• Smooth Updates: Incremental updates preserve pan/zoom and node positions between edits
• Rich Interactions: Click to inspect, double-click to jump to source, drag nodes to reposition
• Theme Integration: Styling automatically matches your VS Code theme

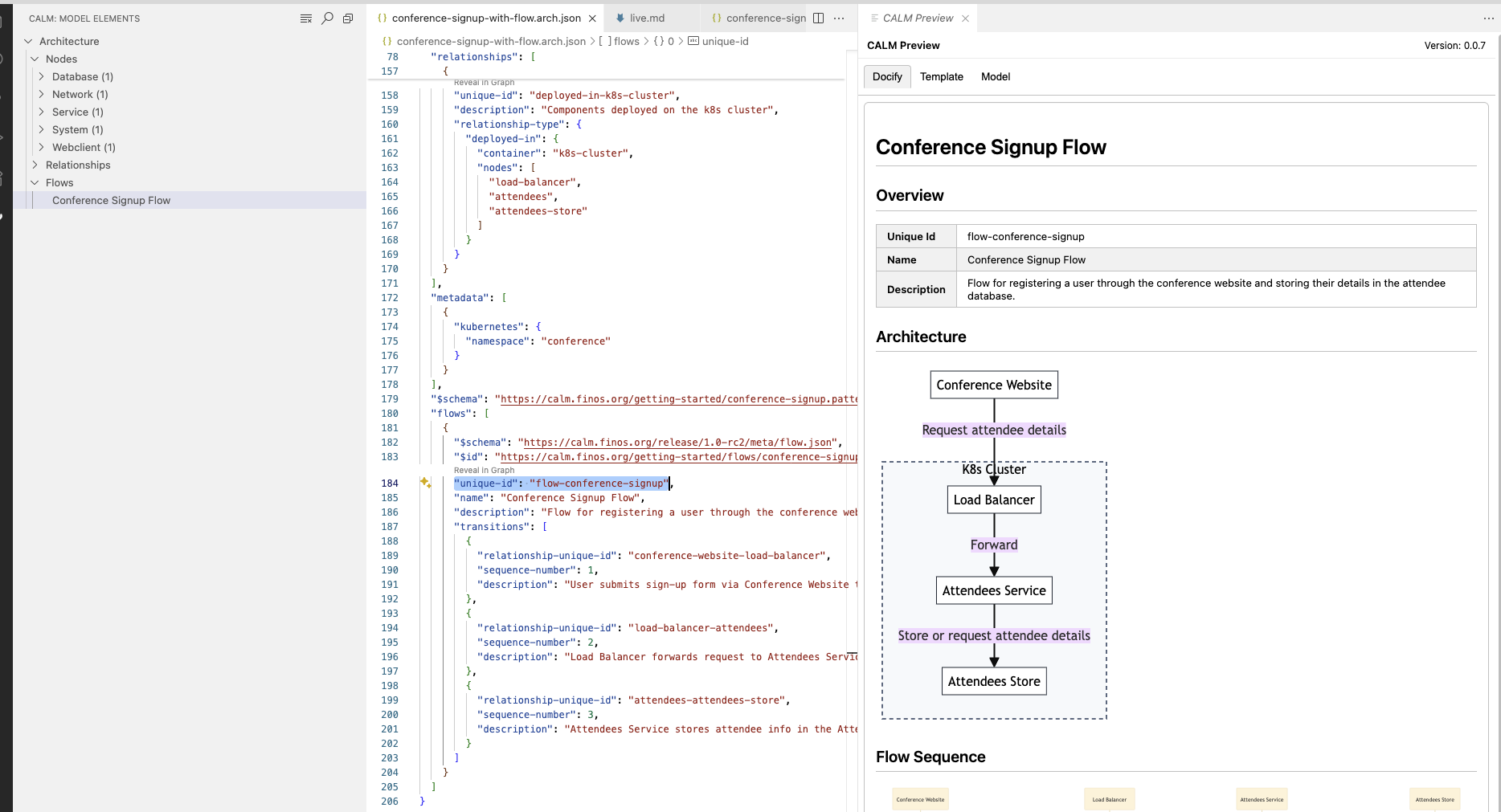

Interactive preview with tree navigation, editor integration, and live graph visualization

🌳 Tree View Navigation

• Structured Overview: Hierarchical view of Nodes, Relationships, and Flows
• Quick Navigation: Click to reveal elements in both editor and preview
• Search & Filter: Find specific elements across large models
• Context Actions: Right-click for additional operations

Tree view navigation shown in the main extension screenshot above

✨ Smart Editor Features

• Hover Information: Rich tooltips for model elements
• CodeLens Actions: Quick navigation links embedded in your code
• Auto-Refresh: File watching with automatic preview updates on save
• Diagnostics Integration: Problems panel shows validation errors

📋 Template & Documentation Mode

• Template Processing: Generate documentation from CALM models using Handlebars templates
• Live Mode: Auto-refresh documentation as you edit
• Multiple Formats: Support for HTML and Markdown output
• Custom Templates: Use your own templates or built-in defaults

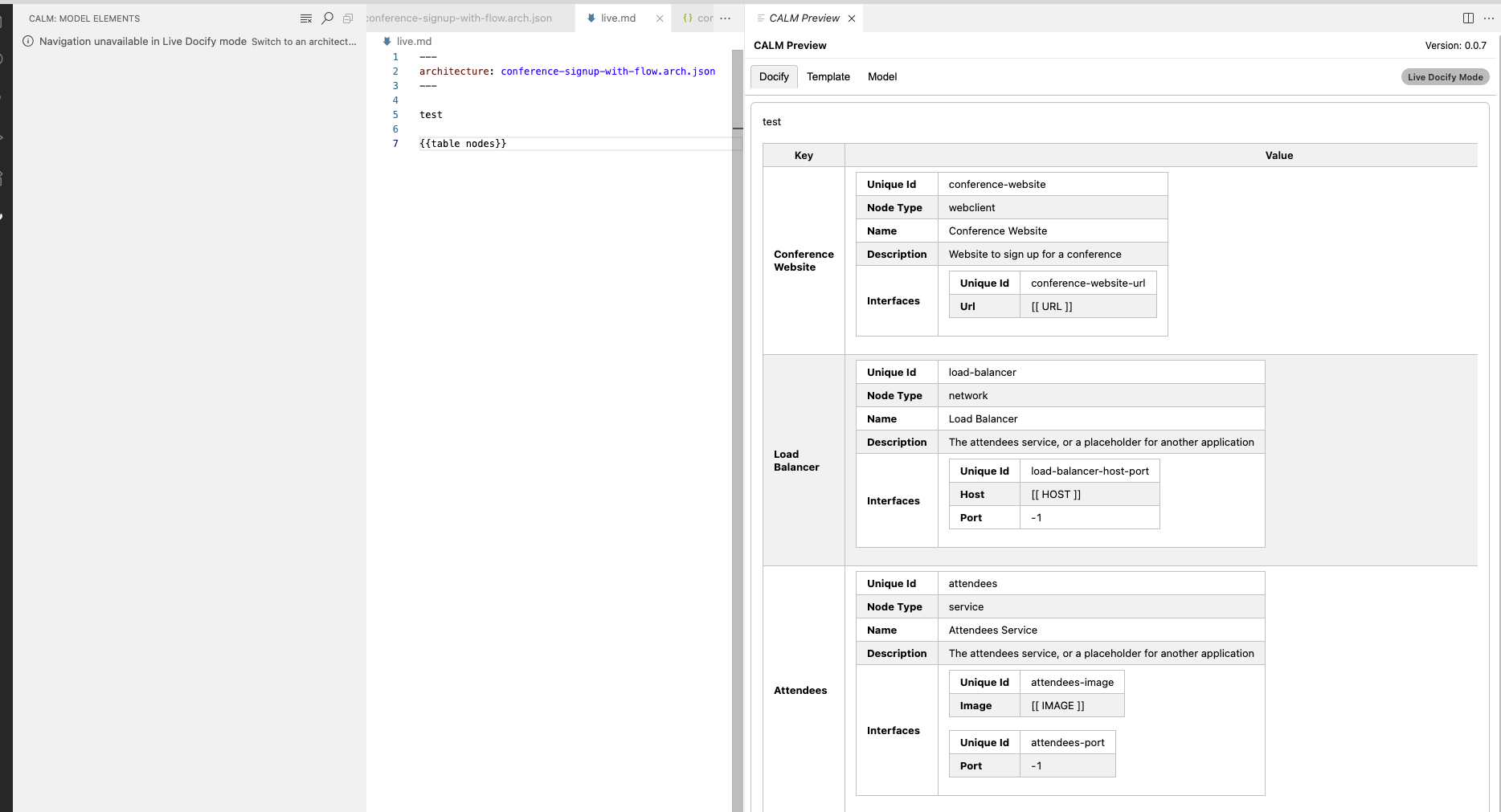

Live templating mode with real-time documentation generation

Architecture

The extension follows a Redux Pattern + MVVM + Hexagonal Architecture approach with clear separation of concerns:

🏗️ Core Architecture Principles

graph TB
    UI[VS Code UI<br/>TreeView, Webview, Commands]
    VM[View Models<br/>Presentation Logic]
    M[Mediators<br/>Cross-cutting Concerns]
    Store[Application Store<br/>Global State]

    UI <--> VM
    VM --> Store
    M --> Store
    M --> VM

    subgraph "Framework-Free Zone"
        VM
        Store
    end

    subgraph "VS Code Integration"
        UI
        M
    end

    style Store fill:#e1f5fe
    style VM fill:#f3e5f5
    style M fill:#fff3e0
    style UI fill:#e8f5e8

MVVM (Model-View-ViewModel)

• Models: application-store.ts - Zustand-based global state management
• ViewModels: Framework-free presentation logic (no vscode imports)
  • TreeViewModel - Tree structure and navigation
  • EditorViewModel - Editor interactions and positioning
  • DocifyViewModel - Documentation generation state
  • CalmModelViewModel - Model data display
  • TemplateViewModel - Template processing and live mode
• Views: VS Code specific UI implementations (TreeDataProvider, WebviewPanel, etc.)
• Controller: calm-extension-controller.ts handles dependency wiring and VS Code lifecycle

Hexagonal Architecture (Ports & Adapters)

src/core/
├── ports/           # Interfaces (dependency inversion)
├── services/        # Core business logic
├── mediators/       # Cross-cutting concerns coordination
└── application-store.ts  # Central state management

Mediator Pattern

Mediators handle cross-cutting concerns without tight coupling:

• RefreshService: Coordinates model updates and UI refreshes
• SelectionService: Syncs selection across tree, editor, and preview
• WatchService: File system monitoring and change detection
• StoreReactionMediator: Reactive state management orchestration

📁 Project Structure

src/
├── application-store.ts         # Zustand store (global state)
├── calm-extension-controller.ts # Main orchestration controller
├── extension.ts                 # VS Code entry point
├──
├── core/                        # Hexagonal architecture core
│   ├── ports/                   # Dependency inversion interfaces
│   ├── services/                # Business logic services
│   ├── mediators/               # Cross-cutting concern coordinators
│   └── emitter.ts              # Framework-free event system
│
├── features/                    # Feature-based organization
│   ├── editor/                  # Editor integration (hover, CodeLens)
│   ├── preview/                 # Webview preview panel
│   │   ├── docify-tab/         # Documentation generation
│   │   ├── model-tab/          # Model data display
│   │   └── template-tab/       # Template processing
│   └── tree-view/              # Sidebar tree navigation
│       └── view-model/         # MVVM presentation logic
│
├── commands/                    # VS Code command implementations
├── models/                      # Model parsing and indexing
└── cli/                        # CLI integration (to be replaced)

Installation & Development

Prerequisites

• VS Code 1.88+
• Node.js 18+

Development Setup

1. Install dependencies:

   cd calm-plugins/vscode
   npm install


2. Start development server:

   npm run watch


3. Launch Extension Development Host:

   • Press F5 in VS Code
   • Or use "Run CALM Extension" from the debug panel

Building for Production

At the root project level

npm run package:vscode

This will ensure dependent projects are compiled first

Testing

npm test                    # Run all tests
npm test -- --watch       # Run tests in watch mode
npm test -- tree-view     # Run specific test suite

Test Coverage: 109 tests across all ViewModels with comprehensive:

• State management validation
• Event emission testing
• Resource cleanup verification
• Edge case handling

Configuration

Settings can be configured in VS Code Settings UI by searching for "CALM", or programmatically in your workspace settings.

Publishing

GitHub Actions Publishing

The extension can be published via GitHub Actions using manual workflow dispatch:

1. Navigate to Actions tab in your GitHub repository
2. Select "Build VS Code Extension" from the workflow list
3. Click "Run workflow" button
4. Choose your options:
   • ☐ Leave unchecked: Build, test, and package only
   • ☑️ Check "Publish to VS Code Marketplace": Build, test, package, AND publish

What it does:

• Always runs: Lint → Test → Package
• Conditionally runs: Publish (only when checkbox is selected)

Prerequisites:

• Ensure VSCE_PAT secret is configured in repository settings
• Secret is only needed if you plan to publish

Testing: You can run the workflow without publishing to test builds and verify everything works before publishing.

Manual Publishing

To publish manually:

1. Package the extension:

   npm run package:vscode


2. Publish to VS Code Marketplace:

   cd calm-plugins/vscode
   npx vsce publish --packagePath *.vsix


   Requires VSCE_PAT environment variable with your Personal Access Token

Setting up Personal Access Token

• VS Code Marketplace: Create a PAT at Azure DevOps with Marketplace > Manage scope

Usage

Basic Workflow

1. Open a CALM model (JSON or YAML)
2. Run "CALM: Open Preview" to launch the interactive graph
3. Use the CALM activity bar for tree navigation
4. Edit your model - preview updates automatically on save

Advanced Features

• Template Mode: Generate docs using Handlebars templates
• Search & Filter: Find elements across large models
• Position Persistence: Node positions saved per document
• Multi-format Support: JSON and YAML with automatic normalization

Developer Guide

🎯 Current Implementation Status

✅ Completed

• MVVM Architecture: Clean separation with framework-free ViewModels
• Comprehensive Testing: 109 tests covering all ViewModels
• State Management: Zustand-based reactive store
• Interactive Preview: Cytoscape-powered graph with rich interactions
• Tree Navigation: Full CRUD operations with search/filter
• Editor Integration: Hover, CodeLens, and automatic refresh
• Template System: Handlebars processing with live mode

📋 In Progress/Planned

• Hexagonal Architecture Refinement: Completing ports/adapters pattern
• Mediator Coordination: Fine-tuning cross-cutting concerns
• CLI Integration Replacement: --scaffold mode from docify CLI will replace most of the code in src/cli/ folder (See https://github.com/finos/architecture-as-code/issues/1563)
• Model Updates: Original POC models in src/models/ and settings need updating to potentially use models from @finos/calm-models and reduce use of any
• Enhanced Validation: Richer diagnostics and error reporting

🎯 Contribution Guidelines

ViewModels Should

• ✅ Be framework-free (no vscode imports)
• ✅ React to store state changes only
• ✅ Provide presentation-ready data
• ✅ Emit events for user intents
• ❌ NOT know about mediators directly

Mediators Should

• ✅ Coordinate between different parts of the system
• ✅ Handle cross-cutting concerns (selection, refresh, etc.)
• ✅ Subscribe to store changes and ViewModel events
• ❌ NOT contain business logic

Contributing: Issues and PRs welcome! Please follow the architectural patterns established and include tests for new functionality.
