Skena - Visual Research Canvas for VS Code

A VS Code extension that renders JSON Canvas (.canvas) files as interactive node graphs with rich content previews, connected to a markdown knowledge vault. Your research, code, and ideas - on one stage.

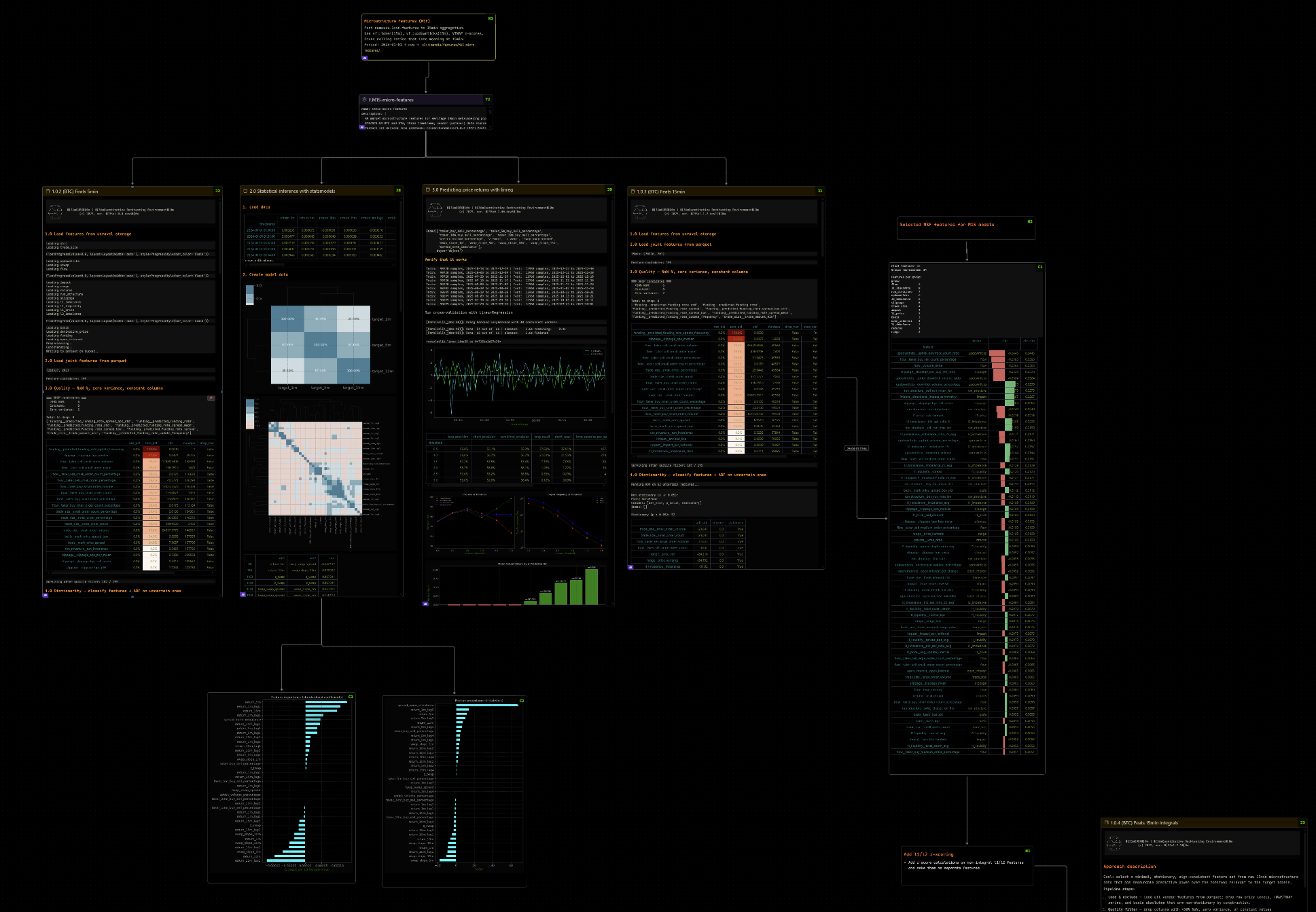

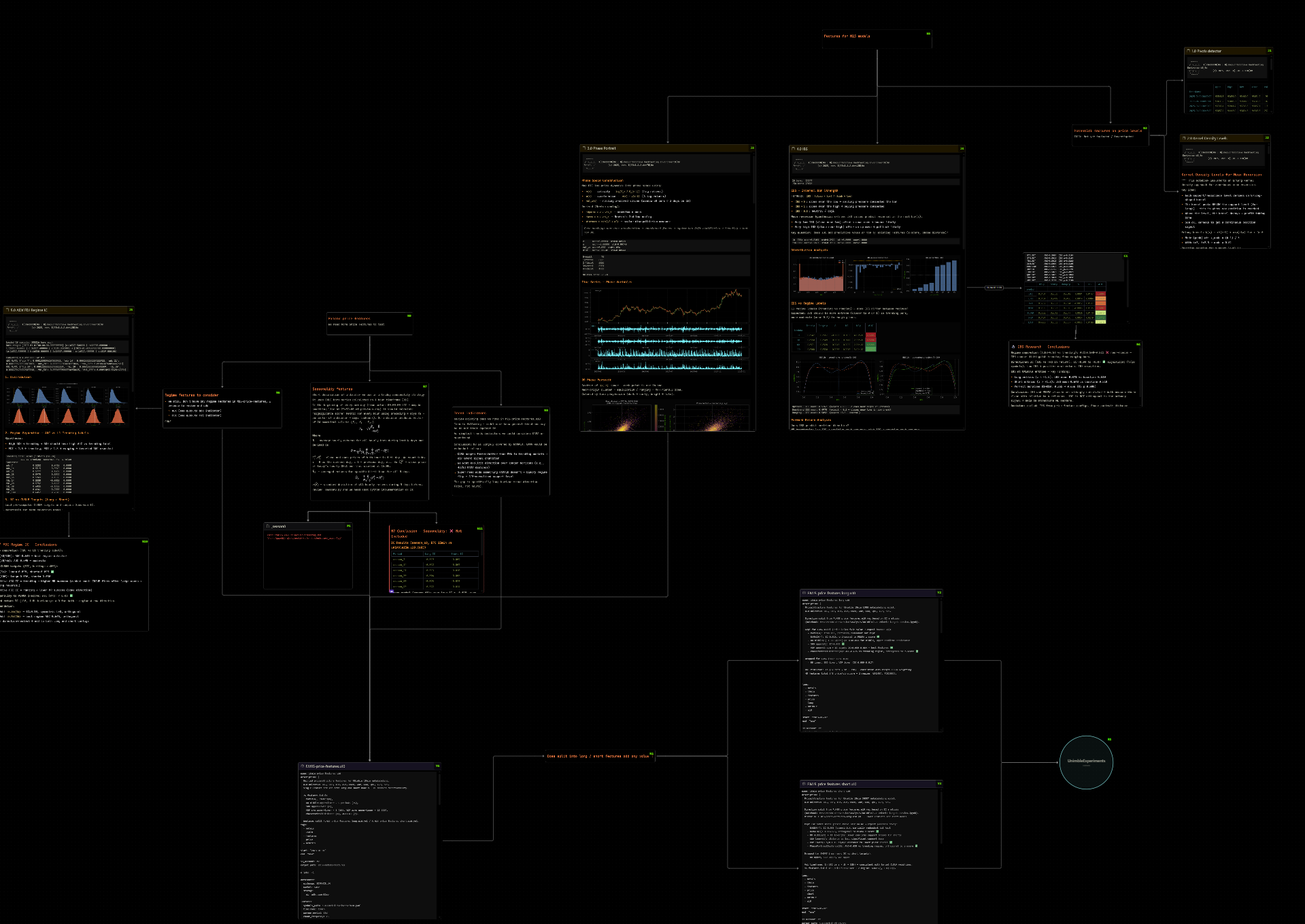

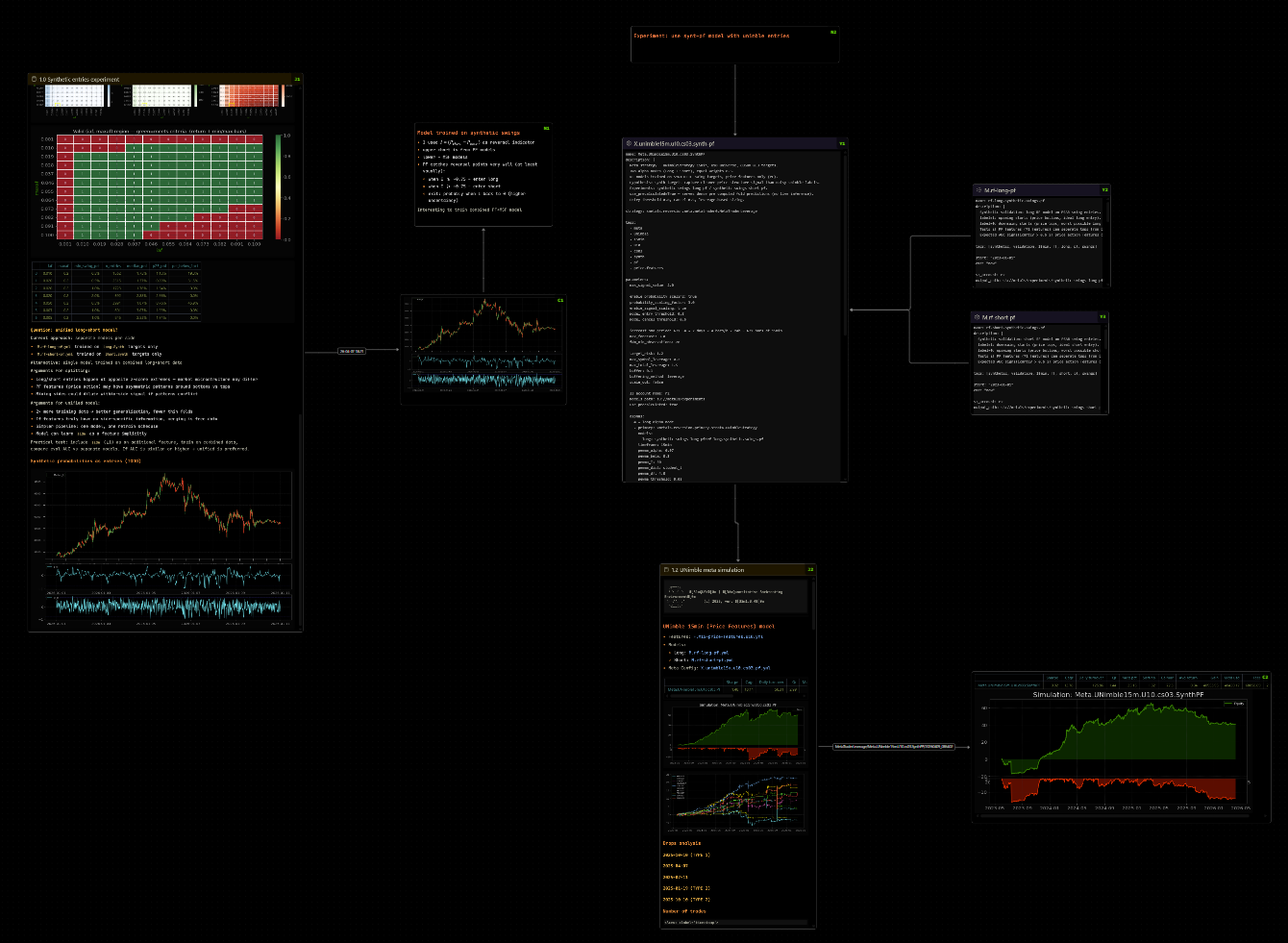

Problem

Quantitative research generates a web of interconnected artifacts - strategies, indicators, backtest results, notebooks, code modules. Existing tools force you to choose between:

• Notion/databases — structured but slow, disconnected from code, hard to visualize relationships
• Obsidian — great visual canvas, but requires a desktop app (unusable on headless remote servers where actual research happens)
• Plain markdown files — fast, git-friendly, Claude-accessible, but no visual overview

Skena brings the spatial canvas experience into VS Code, reading the same .canvas format Obsidian uses, backed by a vault of .md files with YAML frontmatter.

Implementation Status

Architecture

~/vault/                              ← Shared Obsidian vault (git-synced)
  alpha/                              ← Strategy entries
    storm.md
    gemini.md
  knowledge/                          ← Features / indicators / concepts
    kalman-atr.md
    squeeze-momentum.md
    supertrend-fdi.md
  logs/                               ← Research results / reports
    storm/
      2025-09-21-v0-backtest.md
      2025-12-15-paper-trading.md
  inbox/                              ← Clipped items to review

~/projects/xforge/                    ← Research project
  src/xcap/models/storm/m0.py
  research/storm/
    trading/
      1.0 Storm experiments.ipynb
    storm-research.canvas             ← Canvas lives WITH the code
  configs/storm/storm.v0.yaml

Key principle: The vault is the knowledge layer (shared across projects). Canvas files live in project directories alongside code. The extension bridges both.

Data Flow

┌──────────────────────────────────────────────────────┐
│  VS Code Extension                                   │
│                                                      │
│  ┌─────────────────────────────────────────────────┐ │
│  │  Webview Panel (React + React Flow)             │ │
│  │  - Renders .canvas as interactive graph         │ │
│  │  - Custom node components per type              │ │
│  │  - Drag, zoom, pan, connect                     │ │
│  │  - Context menus for CRUD                       │ │
│  └────────────────────┬────────────────────────────┘ │
│                       │ message passing              │
│  ┌────────────────────▼────────────────────────────┐ │
│  │  Extension Host (Node.js)                       │ │
│  │  - Vault indexer (scans .md frontmatter)        │ │
│  │  - Fuzzy search (fuse.js)                       │ │
│  │  - Canvas file read/write (JSON Canvas spec)    │ │
│  │  - File watcher (chokidar)                      │ │
│  │  - Frontmatter parser (gray-matter)             │ │
│  └────────────────────┬────────────────────────────┘ │
│                       │ filesystem                   │
│         ┌─────────────┴──────────────┐               │
│    ~/vault/ (.md)          project/ (.canvas,        │
│                             .ipynb, .py, .yaml)      │
└──────────────────────────────────────────────────────┘

How other tools access the same data

Vault Schema

Strategy entry (alpha/*.md)

---
id: storm
title: "STORM - SuperTrend Optimized Range Momentum"
type: momentum
status: in-progress    # idea | research | backtest | paper | live | paused | dead
tags: [i.supertrend, i.atr, trend-following]
score: null            # null | bad | not-sure | interesting | promising | perfect
market: [crypto]
instruments: [SOLUSDT, ETHUSDT]
timeframe: 15Min
project: xforge        # links to project directory
links: [gemini, kalman-atr, squeeze-momentum]
created: 2025-09-21
updated: 2026-02-12
---

## Overview
STORM (SuperTrend Optimized Range Momentum) — trend-following strategy based on
ATR-adaptive SuperTrend indicator...

## Implementation
- **V0** (pandas): `src/xcap/models/storm/m0.py`
- **V1** (streaming): `src/xcap/models/storm/m1.py`

## Parameters
| Parameter | Default | Description |
|---|---|---|
| atr_period | 24 | ATR lookback |
| atr_multiplier | 3.0 | SuperTrend band width |

## Latest Results
- storm.v0: Sharpe -0.85, MaxDD 55.4% (2021-2026, full cycle)
- Recent trending period (Jun-Sep 2025): Sharpe 2.73

## Next Steps
- Test longer timeframes (1h, 4h)
- Kalman ATR replacement
- Regime filter

Knowledge entry (knowledge/*.md)

---
id: kalman-atr
title: "Kalman Adjusted Average True Range"
type: indicator         # indicator | method | concept | model | reference
tags: [i.atr, i.kalmanfilter, volatility]
score: promising
market: [any]
url: https://example.com/article
created: 2025-08-31
---

## Summary
Uses Kalman filter to smooth ATR, producing less noisy trend lines...

## Notes
Tested as replacement for raw ATR in SuperTrend — reduces whipsaws.

Research log entry (logs/{strategy}/*.md)

---
id: storm-v0-backtest-20250921
strategy: storm
type: backtest          # backtest | experiment | observation | paper-trade | live-report
date: 2025-09-21
tags: [qubx, binance]
---

## storm.v0 backtest results

| Metric | Value |
|---|---|
| Gain | -$4,599 |
| Sharpe | -0.85 |
| MaxDD | 55.4% |
| Fees | $9,020 |

**Note**: Uses 0.5x VIP0 fees. Real fees would double the drag.
**Instruments**: SOLUSDT, ETHUSDT (Binance USDT-M futures)
**Period**: 2021-01-01 to 2025-09-21

Controlled vocabularies

type (strategy): momentum, mean-revert, stat-arb, portfolio, microstructure, seasonality, dips-buying, defi, infrastructure

type (knowledge): indicator, method, concept, model, pattern, reference, dataset

status: idea → research → backtest → paper → live → paused | dead

score: null, bad, not-sure, interesting, promising, perfect

tags: Use dot-notation prefix convention:

• i.* for indicators: i.atr, i.supertrend, i.rsi, i.kalmanfilter
• m.* for methods: m.kalman, m.hmm, m.pca
• No prefix for concepts: trend-following, momentum, volatility, regime

Canvas Format

Skena reads and writes standard JSON Canvas 1.0 files. No proprietary extensions — full Obsidian interop.

Node types used

File nodes — reference vault entries or project files:

{
  "id": "a1b2c3d4e5f67890",
  "type": "file",
  "file": "alpha/storm.md",
  "x": 100, "y": 200,
  "width": 400, "height": 300,
  "color": "4"
}

Path resolution — URI scheme:

Skena uses an explicit URI scheme to avoid ambiguity:

• Vault files: vault://<vault-name>/path/to/file.md
  • Example: vault://v1/alpha/storm.md, vault://work/knowledge/kalman-atr.md
  • Resolved against the matching entry in skena.vaults[]
• Notion pages: vault://notion/<page-id>
  • Fetched via Notion API, rendered as read-only markdown node
• Project files: relative path from the .canvas file location
  • Example: ../models/storm/m0.py, ../../configs/storm/storm.v0.yaml
• Absolute paths: supported as fallback

The file field in JSON Canvas uses these URIs directly.

Text nodes — inline notes, TODOs, annotations:

{
  "id": "b2c3d4e5f6789012",
  "type": "text",
  "text": "## Further Research\n- Test Kalman ATR\n- Add regime filter",
  "x": 600, "y": 200,
  "width": 300, "height": 150,
  "color": "4"
}

Group nodes — visual containers:

{
  "id": "c3d4e5f678901234",
  "type": "group",
  "x": 50, "y": 150,
  "width": 900, "height": 600,
  "label": "Storm Strategy",
  "color": "4"
}

Link nodes — external URLs:

{
  "id": "d4e5f6789012345a",
  "type": "link",
  "url": "https://medium.com/@article-about-supertrend",
  "x": 800, "y": 400,
  "width": 300, "height": 150
}

Cell nodes — standalone output cells (Skena extension):

{
  "id": "f6789012345678cd",
  "type": "cell",
  "format": "markdown",
  "content": "| Metric | Value |\n|---|---|\n| Sharpe | 1.8 |\n| MaxDD | -12% |",
  "x": 900, "y": 300,
  "width": 350, "height": 200
}

Chat nodes — AI conversation terminal (Skena extension):

{
  "id": "a7890123456789de",
  "type": "chat",
  "agent": "claude",
  "model": "claude-opus-4-5",
  "title": "Storm regime analysis",
  "x": 1100, "y": 200,
  "width": 400, "height": 500
}

Portal nodes — link to another .canvas file (Skena extension):

{
  "id": "b8901234567890ef",
  "type": "portal",
  "canvas": "./sub-research.canvas",
  "label": "Storm sub-research",
  "x": 500, "y": 700,
  "width": 300, "height": 180
}

Skena extension node types (cell, chat, portal) are transparent to Obsidian — it silently ignores unknown node types, so .canvas files remain fully interoperable.

Edges — connections between nodes:

{
  "id": "e5f67890123456ab",
  "fromNode": "a1b2c3d4e5f67890",
  "fromSide": "right",
  "toNode": "b2c3d4e5f6789012",
  "toSide": "left",
  "toEnd": "arrow",
  "label": "next steps"
}

Message Protocol (Extension Host ↔ Webview)

All communication between the Node.js extension host and the React webview uses VS Code's postMessage API. Messages are typed via shared/types.ts.

Host → Webview

// Webview is ready — send initial canvas + config
{ type: 'canvasLoaded', canvas: CanvasData, canvasPath: string }

// File content response (for file node rendering)
{ type: 'fileContent', requestId: string, path: string, content: string,
  fileType: FileType, html?: string }

// File content error (file not found, access denied, too large, etc.)
{ type: 'fileError', requestId: string, path: string, error: string }

// Vault index ready / updated (for fuzzy search)
{ type: 'vaultIndex', entries: VaultEntry[] }

// File changed on disk — re-render affected nodes
{ type: 'fileChanged', uri: string }

// Clipboard content response (for vim p paste)
{ type: 'clipboardContent', text: string }

// Trigger add-node flow from VS Code command (Ctrl+N)
{ type: 'addNodeTrigger' }

// Trigger add text node in direction from VS Code command
{ type: 'addTextNodeTrigger', direction: 'H' | 'J' | 'K' | 'L' }

// Add node result from QuickPick (host resolved vault search)
{ type: 'addNodeResult', node: CanvasNode, edge?: CanvasEdge, autoEdit?: boolean }

// Sub-canvas extraction completed
{ type: 'subCanvasCreated', portalNode: CanvasNode, movedNodeIds: string[] }

// Nodes resolved from Explorer drag-and-drop
{ type: 'nodesFromDrop', nodes: CanvasNode[] }

// Forward VS Code markdown preview settings
{ type: 'markdownConfig', config: MarkdownConfig }

// Search results response
{ type: 'searchResults', requestId: string, results: VaultEntry[] }

Webview → Host

// Webview React app is mounted and ready to receive data
{ type: 'webviewReady' }

// Request file content for rendering a node
{ type: 'requestFile', requestId: string, uri: string, hint?: string }

// Save canvas after user edit (drag, resize, new node, delete, etc.)
{ type: 'saveCanvas', canvas: CanvasData }

// Open a file in VS Code editor tab
{ type: 'openFile', uri: string, modal?: boolean }

// Fuzzy search query against vault index
{ type: 'searchVault', query: string, requestId: string }

// Request add node from vault (opens QuickPick in host)
{ type: 'addNodeRequest', position: { x: number; y: number },
  fromNodeId?: string, fromSide?: NodeSide, toSide?: NodeSide }

// Request vault index refresh
{ type: 'refreshVault' }

// Write text to system clipboard (vim y/yy)
{ type: 'writeClipboard', text: string }

// Request current system clipboard text (vim p paste)
{ type: 'requestClipboardRead' }

// Copy absolute filesystem path of a file node
{ type: 'copyAbsolutePath', uri: string }

// Move selected nodes to a new sub-canvas + replace with portal
{ type: 'moveToSubCanvas', nodes: CanvasNode[], edges: CanvasEdge[],
  position: { x: number; y: number } }

// Files dropped from VS Code Explorer
{ type: 'dropFiles', uris: string[], position: { x: number; y: number } }

// Chat message to AI agent
{ type: 'chatMessage', nodeId: string, message: string }

Key design rules

• Every request/response pair shares a requestId (UUID) for correlation — the webview can have multiple nodes loading in parallel
• saveCanvas is debounced 500 ms client-side before sending
• File content is sent as raw string or pre-rendered HTML; the webview owns display
• Large files (> MAX_FILE_FULL_BYTES): host sends truncated preview + isTruncated: true
• clipboardContent is also pushed proactively on webviewReady to warm the vim paste register

Extension Features

Phase 1: Canvas Viewer ✅

Command: Skena: Open Canvas — opens .canvas file as React Flow webview

Core principle: File nodes render inline content previews — not just metadata cards. The canvas feels like a spatial document viewer.

Canvas rendering:

• Parse JSON Canvas → map to React Flow nodes and edges
• Node dimensions come from the .canvas JSON (width, height)
• Empty .canvas files (newly created) open as a blank canvas without errors

Node rendering by type:

• Markdown files (.md): full markdown including frontmatter-parsed header bar (status badge + type + title), scrollable content, embedded images
• Jupyter Notebooks (.ipynb): cells in order — markdown rendered, code syntax-highlighted, base64 image outputs shown, interactive outputs show placeholder
• Python / YAML files: syntax-highlighted code preview
• Image files: scaled to fit node dimensions
• Notion pages (vault://notion/<page-id>): fetched via Notion MCP, rendered as markdown (planned)

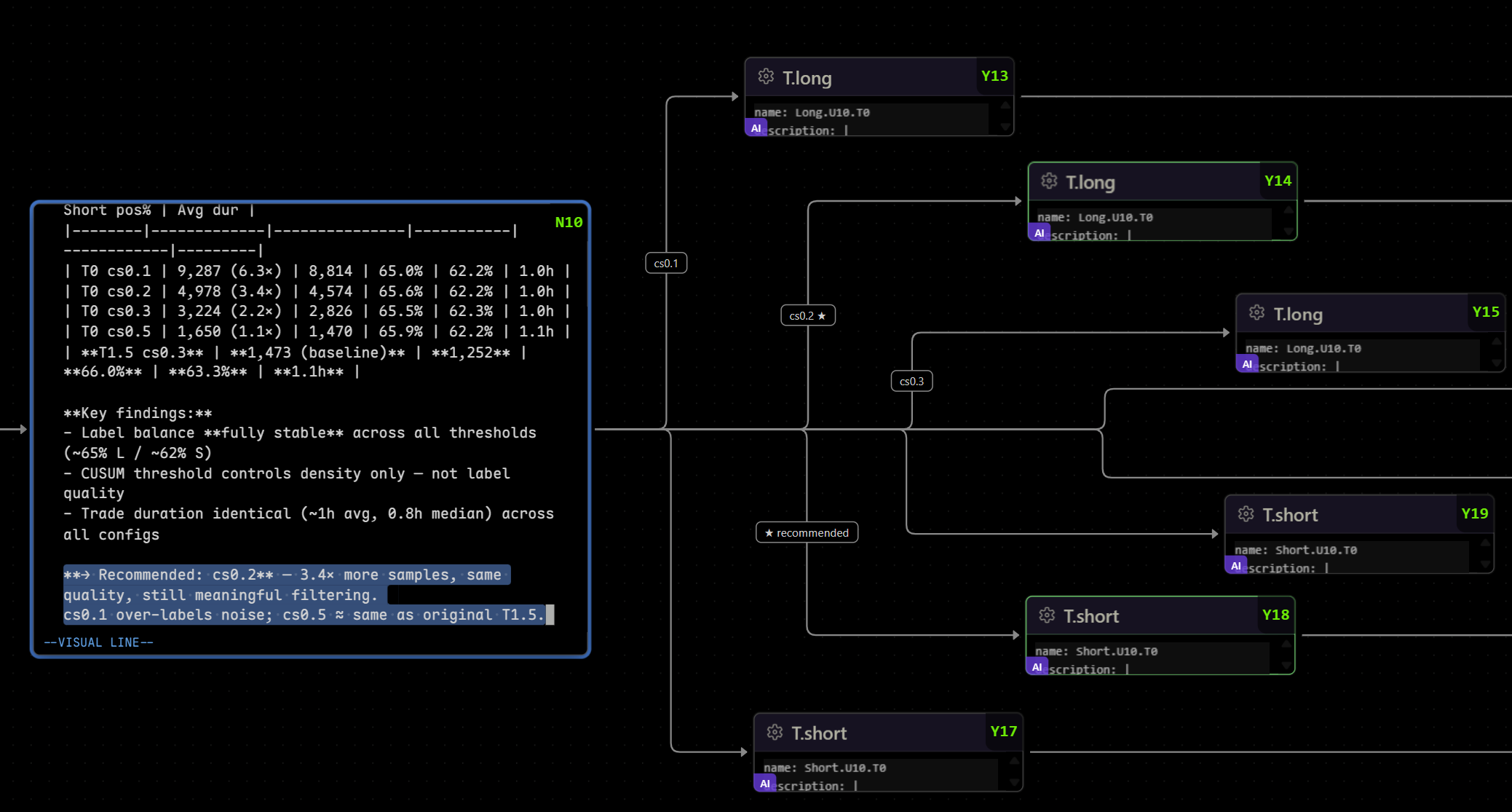

Text node editor:

• Double-click (or Enter while focused) → Monaco editor with full vim keybindings
• Monaco theme (skena-editor) synced to VS Code theme via --vscode-editor-background
• Markdown syntax highlighting: headings (blue), bold (yellow/bold), italic (orange/italic), links (mint), blockquotes (green/italic), code fences (orange), code body (tan)
• Vim clipboard relay: y/p route through vscode.env.clipboard (webview sandbox workaround)
• Vim o/O (open line below/above): works correctly via patched CMAdapter.commands.newlineAndIndent
• Ctrl/Cmd+Enter or Esc (from normal mode) → commit and close editor

Keyboard navigation (spatial mode — outside node editors):

Canvas interactions:

• Drag nodes → auto-saves with 500ms debounce
• Resize nodes → drag corner handles, grid-snapped (8px)
• Alignment guides during drag (snap to edges/centres of nearby nodes, threshold 16px)
• Box select + Shift+click for multi-select
• Delete key → delete selected nodes/edges
• Right-click → context menu (add text, add URL, search vault, copy, paste, move to sub-canvas)
• Double-click edge label → inline edit
• Drag from node handle → connect to another node or handle; drop on node body → auto-detects nearest side

File watching:

• Watch .canvas file for external changes (Obsidian edits) → reload
• Watch referenced .md / .ipynb files → re-render node content on change

VS Code integration:

• Custom editor for .canvas files
• Ctrl+Z / Ctrl+Shift+Z undo/redo (canvas structure via u/r in spatial mode)
• MCP server auto-deployed to .vscode/skena-mcp.js + .mcp.json on activation

Zoom-adaptive rendering (LOD):

Phase 2: Fuzzy Search + Add Node 🔶

Command: Skena: Add Node from Vaults — Ctrl+N in canvas

Vault indexer:

• Scans configured vault paths for .md files, parses YAML frontmatter with gray-matter
• Builds fuse.js index on: title, id, tags[], type, file path
• Watches vault with chokidar → incremental reindex on change

Search UX:

• VS Code QuickPick with fuzzy matching, results grouped by vault
• Select → creates file node at viewport centre or right-click position
• Writes node to .canvas JSON immediately

skena.quickSearch — same fuzzy search but opens file in VS Code editor

Still needed: end-to-end vault:// URI rendering test; notion-client.ts for vault://notion/ URIs.

Phase 3: CRUD Operations ⬜ (planned)

Create strategy/knowledge/log entries from canvas; edit frontmatter (status, score, tags) via right-click; delete file from canvas.

Phase 4: Notebook Integration ⬜ (planned)

Run notebooks from canvas context menu; parse outputs for key metrics.

Phase 5: Cell Nodes + Chat Nodes ✅ (rendering) / ⬜ (AI backend)

Cell nodes render inline (markdown/html/image), created via:

• Alt+P — pin hovered notebook output
• Ctrl+Shift+V — paste clipboard as cell

Chat nodes render as conversation UI; AI backend not yet wired.

Phase 6: Canvas Portals ✅

Select nodes → right-click → "Move to sub-canvas" → selected nodes move to a new .canvas file; a Portal node replaces them. Click portal → opens linked canvas in new VS Code tab.

Extension Configuration

// .vscode/settings.json (or settings.local.json — gitignored, for personal paths)
{
  // Named vaults — supports multiple. URI format: vault://<name>/path/to/file.md
  "skena.vaults": [
    { "name": "v1", "path": "~/vault" },
    { "name": "work", "path": "~/work-vault" }
  ],

  // Directories to scan in each vault (relative to vault root)
  "skena.vaultDirectories": ["alpha", "knowledge", "logs", "inbox"],

  // File patterns to index in workspace (for project files)
  "skena.workspacePatterns": ["**/*.ipynb", "**/*.py", "**/*.yaml", "**/*.md"],

  // Excluded patterns
  "skena.excludePatterns": ["**/node_modules/**", "**/.git/**", "**/__pycache__/**"],

  // Auto-save canvas changes (ms debounce)
  "skena.autoSaveDelay": 500,

  // Default node dimensions for newly created nodes
  "skena.nodeWidth": 400,
  "skena.nodeHeight": 250,

  // Notebook display options
  "skena.notebook": {
    "showSourceCells": false    // show code cells alongside outputs
  },

  // Color scheme (matches Obsidian canvas color codes 1-6)
  "skena.colors": {
    "1": "#fb464c",  // red
    "2": "#e9973f",  // orange
    "3": "#e0de71",  // yellow
    "4": "#44cf6e",  // green
    "5": "#53dfdd",  // cyan
    "6": "#a882ff"   // purple
  }
}

Tech Stack

Monaco / vim-mode notes

• Theme: skena-editor custom theme defined in beforeMount, reads --vscode-editor-background to match VS Code theme. Markdown token colours are set explicitly (Monaco's built-in vs-dark/vs themes have no dedicated markdown rules).
• Clipboard: navigator.clipboard is blocked in the webview sandbox. All vim y/p operations relay through vscode.env.clipboard via a custom relay register replacing ", +, * in the RegisterController.
• o/O fix: CMAdapter.commands.newlineAndIndent uses async editor.trigger() which doesn't fire during a vim key handler. Patched via patchVimNewlineAndIndent() to use synchronous editor.executeEdits('\n').

Project Structure

skena/
  package.json                    ← Extension manifest + contributes
  tsconfig.json
  esbuild.config.mjs              ← Build config for extension + webview
  src/
    extension/                    ← Extension host (Node.js only)
      extension.ts                ← Activation, commands, custom editor provider
      editor-provider.ts          ← SkenaEditorProvider + SkenaDocument
      vault-indexer.ts            ← Scan vault, parse frontmatter, build fuse.js index
      canvas-io.ts                ← Read/write JSON Canvas files (empty-file safe)
      file-watcher.ts             ← chokidar watchers for vault + workspace
      file-resolver.ts            ← Resolve vault:// URIs + project-relative paths
      notebook-parser.ts          ← Parse .ipynb JSON, extract cells + base64 images
      markdown-html.ts            ← Server-side markdown → HTML (for file nodes)
      settings.ts                 ← Read skena.vaults + settings.local.json merge
      mcp/
        server.ts                 ← MCP server (auto-deployed to .vscode/skena-mcp.js)
    webview/                      ← React app (runs in webview sandbox)
      App.tsx                     ← Root component + host message router
      canvas/
        CanvasView.tsx            ← React Flow setup, all keyboard handlers, save/undo
        CanvasSearch.tsx          ← In-canvas fuzzy search overlay
        ContextMenu.tsx           ← Right-click menu
        HelperLines.tsx           ← Alignment guide lines during drag
        nodes/
          FileNode.tsx            ← File node (header bar + content area + LOD)
          TextNode.tsx            ← Text node (Monaco editor + vim + clipboard relay)
          GroupNode.tsx           ← Group container component
          LinkNode.tsx            ← URL node component
          CellNode.tsx            ← Standalone output cell (table / chart / image)
          ChatNode.tsx            ← AI chat terminal node (UI only)
          PortalNode.tsx          ← Link to another .canvas file
        edges/
          LabeledEdge.tsx         ← Edge with inline-editable label
      renderers/
        MarkdownRenderer.tsx      ← .md content → react-markdown
        NotebookRenderer.tsx      ← .ipynb → rendered cells (md + code + outputs)
        CodeRenderer.tsx          ← .py / .yaml → Shiki syntax highlighting
        ImageRenderer.tsx         ← .png/.jpg/.svg → scaled image
      components/
        StatusBadge.tsx           ← Colored status indicator
        NodeLabelBadge.tsx        ← Short reference label (N1, M3…) top-left corner
        NodeHeader.tsx            ← Thin top bar (icon + title + badges)
        ScrollableContent.tsx     ← Scrollable container with zoom-aware scroll
      hooks/
        useCanvasData.ts          ← Canvas state (nodes/edges/vault) + reducer
        useFileContent.ts         ← Request + cache file content via postMessage
        useZoomLevel.ts           ← Track zoom level for LOD switching
      context/
        ZoomLevelContext.tsx      ← React context for zoom level (consumed by LOD)
        MarkdownConfigContext.tsx ← VS Code markdown preview settings forwarded from host
    shared/                       ← Types and constants only (no Node.js APIs)
      types.ts                    ← CanvasNode, VaultEntry, message protocol types
      constants.ts                ← Colors, file size limits, node type enum
      nodeLabels.ts               ← Reference label assignment logic (N1, M3…)

Planned but not yet created: notion-client.ts, chat-manager.ts, commands/create-entry.ts, commands/edit-properties.ts, commands/extract-to-canvas.ts, renderers/NotionRenderer.tsx, components/ChatMessages.tsx, hooks/useChat.ts

Development Setup

Remote development (VS Code Remote SSH)

Skena is developed on a remote machine via VS Code Remote SSH. Everything runs on the remote — Node.js, npm, esbuild, the extension host, and the webview sandbox. No local toolchain needed.

Local machine          Remote machine
──────────────         ───────────────────────────────────────
VS Code UI      ──→    Extension host (Node.js) + Webview
                       ~/devs/skena/   (source)
                       ~/vault/        (vault files)

extensionKind in package.json must be ["workspace"] (default for filesystem extensions) — this ensures VS Code runs the extension on the remote, not locally.

# Clone and install (on remote)
git clone https://github.com/dmarienko/skena.git
cd skena
npm install

# Development (watch mode — runs on remote)
npm run dev          # builds extension + webview, watches for changes

# Type check only (no emit)
npm run typecheck

# Debug in VS Code
# Press F5 → launches Extension Development Host as a second remote window

# Package
npm run package      # creates .vsix on remote, install via "Install from VSIX..."

Webview DevTools on remote

Ctrl+Shift+P → "Open Webview Developer Tools"

Works correctly over Remote SSH.

Webview resource URIs (important)

When serving local files (images, fonts) into the webview, never use raw filesystem paths. Convert them:

// - in extension host, before sending path to webview
const uri = panel.webview.asWebviewUri(vscode.Uri.file('/home/quant0/vault/img.png'));
// - result: vscode-resource://... (works both local and remote)

This is critical for image rendering inside file nodes — raw file:// paths are blocked by the webview sandbox.

Compatibility

• Obsidian interop: Full. Canvas files created/edited in Skena open in Obsidian and vice versa. Vault .md files are standard Obsidian notes with YAML frontmatter.
• Foam interop: Partial. Vault .md files work with Foam's graph view if wikilinks are used.
• Claude Code / AIX MCP: Full. All data is plain files — .md with frontmatter and .canvas as JSON.
• Git: Full. Everything is plain text, version-controlled, diffable.

Migration from Notion

Phase 0 involves exporting existing Notion databases to vault .md files:

1. Alpha DB → alpha/*.md (one file per strategy with frontmatter mapping Notion properties)
2. Quantitative Features Database → knowledge/*.md (one file per entry)
3. Research Log → logs/{strategy}/*.md (grouped by strategy)
4. Inbox → inbox/*.md (unprocessed clippings)

A migration script (scripts/notion-export.py) will use the Notion API to export and convert entries.

Interesting links

• https://github.com/RodZill4/material-maker — node connection + visual style reference
• https://github.com/lout33/infinite_canvas_vscode/ — Obsidian canvas plugin for VS Code

License

MIT
