Supercharged Elasticsearch Tools for VS Code

For engineers building with Elasticsearch; or looking for easier way to maintain Elasticsearch in production. DevTools in your IDE, snippets and intellisense, mock-data generator and more.

Fully supporting all modern Elasticsearch versions, running anywhere (Elastic Cloud and self-managed), with smart configuration management and Cloud ID support.

🚀 What's Inside?

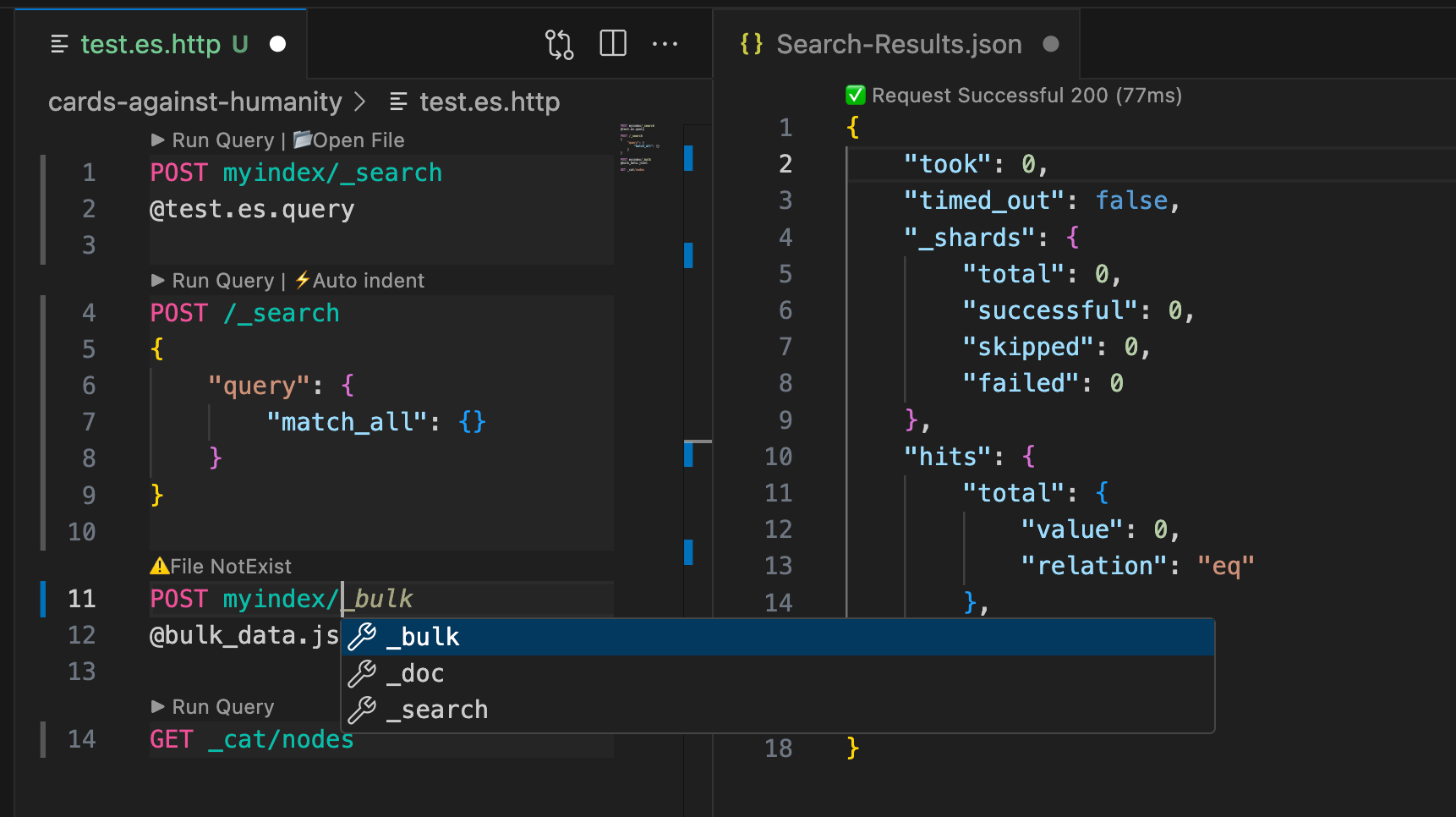

🛠️ DevTools in your IDE

• Query and commands execution for .es.http files. Click Run or ctrl+enter to execute the highlighted command.
• Stream files into requests in .es.http requests using the @ operator instead of copy-paste.
• Save the requests panel as .es.http files and commit them to your SCM if needed.
• Syntax highlighting and auto-completion.
• Wrap in boolean hacks and more.
• Tabular Data Viewer for _cat APIs.
• Copy as cURL option.

Example test.es.http file:

POST myindex/_bulk
@bulk_data.jsonl

POST _search
{
    "query": {
        "match_all": {}
    }
}

🔍 Advanced Query Editor

• Smart completion for *.es.query and *.es.query.json files with Elasticsearch queries
• IntelliSense for queries, aggregations, and field types
• Quick actions: Wrap selections in bool clauses (filter, should, must_not)

🗺️ Index Mapping Editor

• Comprehensive mapping validation for *.es.mapping.json and *.es.json files
• Best practices recommendations and warnings
• Field type validation
• Performance impact analysis

🎲 Mock Data Generator

• Generate realistic test data from index mappings
• Support for all Elasticsearch field types
• Configurable document count and data patterns
• Command Palette integration and context menu access

More Coming Soon

📦 Installation

From VS Code Marketplace

1. Open VS Code
2. Go to Extensions (Ctrl+Shift+X)
3. Search for "Elasticsearch DevTools"
4. Click Install

🎯 Quick Start

1. Configure Elasticsearch Connection (optional)

If you want to use DevTools, you'd need to set up a connection to a cluster. This extension supports only one connection at a time.

# Open Command Palette (Ctrl+Shift+P)
> Elasticsearch: Configure Connection

The configuration dialog will open with the following options:

• Hosts: Enter one or more Elasticsearch hosts with protocol (e.g., http://localhost:9200, https://es-node1:9200)
• Port: Default Elasticsearch port (optional if specified in hosts)
• Username: Username for authentication (optional)
• Password: Password for authentication (optional)
• Cloud ID: Elastic Cloud deployment ID (overrides hosts/port when specified)

Note: If no configuration is set, a warning banner will appear in .es.http files prompting you to configure your connection.

Alternatively, you can create a .es-config file in your project root for persistent, version-controlled configuration:

url: "https://localhost:9200"
authMethod: "basic"
username: "elastic"
allowSelfSignedCerts: true
compression: false

Security Note: Passwords, API keys, and Elastic Cloud API keys are never stored in the configuration file. The extension will prompt for these values when needed and store them securely in memory only.

2. Create Your First Query File

DevTools-style HTTP queries (.es.http)

GET /_cluster/health

POST /my-index/_search
{
  "query": {
    "match_all": {}
  },
  "size": 10
}

Elasticsearch query files (.es.query.json or .es.query)

{
  "query": {
    ...
  }
}

Index mappings (.es.mapping.json)

{
  "properties": {
    "title": {
      "type": "text",
      "analyzer": "standard"
    },
    "price": {
      "type": "scaled_float",
      "scaling_factor": 100
    }
  }
}

⌨️ Keyboard Shortcuts

🎛️ Commands

🎨 File Types & Features

.es.http - DevTools HTTP Files

• Purpose: Kibana DevTools-like interface for HTTP requests
• Features:
  • HTTP method support (GET, POST, PUT, DELETE)
  • Auto-completion for Elasticsearch API endpoints
  • Cluster management operations (health, stats, nodes)
  • Index operations (CRUD, mappings, settings)
  • Advanced features (ILM, snapshots, security, watchers)
• Snippets: 80+ snippets for all ES operations (es-get-health, es-put-ilm-policy)
• Usage: DevTools-style queries with request/response separation

.es.query.json - Elasticsearch Query Files

• Purpose: Valid JSON files for Elasticsearch queries and aggregations
• Features:
  • Full IntelliSense with query and aggregation completion
  • Query validation and JSON formatting
  • Bool query wrapping shortcuts (filter, should, must_not)
  • Real-time syntax validation
• Snippets: 50+ query and aggregation snippets (es-match, es-bool, es-agg-terms)
• Usage: Pure JSON query development with execution support

.es.mapping.json - Index Mapping Files

• Purpose: Valid JSON files for Elasticsearch index mappings
• Features:
  • Comprehensive mapping validation
  • Field type checking and recommendations
  • Best practices analysis
  • Mock data generation from mappings (Command Palette or right-click context menu)
• Snippets: 30+ field type and mapping snippets (es-field-text, es-mapping-complete)
• Usage: Index mapping design and validation

🎯 Use Cases

Development Workflow

1. Design mappings using .es.mapping.json files with validation
2. Generate mock data from mappings for testing
3. Develop queries using .es.query.json files with IntelliSense
4. Test APIs using .es.http files in DevTools style
5. Explore data using the tabular data viewer

Query Development

• Build complex bool queries with easy wrapping shortcuts
• Test aggregations with auto-completion
• Format and validate queries before deployment
• Export results for analysis

Data Exploration

• Browse index data in tabular format
• Search and filter documents
• Examine index mappings and settings
• Generate sample data for development

🐛 Troubleshooting

Common Issues

Connection Refused

• Verify Elasticsearch is running
• Check hosts configuration in settings
• Ensure SSL certificates are valid
• Verify authentication credentials if required

Configuration Warning Banner Appears

• Open Command Palette and run "Elasticsearch: Configure Connection"
• Add your Elasticsearch hosts or Cloud ID
• Ensure at least one non-default host is configured
• For file-based config: Check if .es-config exists in project root and has valid YAML syntax
• For multiple connections: Ensure the default connection is properly configured

Queries Not Executing

• Check Elasticsearch configuration in settings
• Verify hosts are accessible and authentication is correct
• Check query syntax and formatting
• Verify index names exist

IntelliSense Not Working

• Ensure file has correct extension (.es.query.json, .es.http)
• Reload VS Code window
• Check extension is enabled

Mock Data Generation Fails

• Validate mapping JSON syntax
• Check for unsupported field types
• Ensure reasonable document count (<10,000)

Debug Mode

Enable debug logging:

{
  "elasticsearch.debug": true
}

View logs in:

• Output Panel: "Elasticsearch Query Results"
• Developer Tools: Help > Toggle Developer Tools

🔗 Links

• Elasticsearch Documentation
• Elasticsearch Guides
• Elasticsearch Support

Happy searching! 🔍✨
