BRAID - Browser Real-time Artificial Intelligent Debugger

© 2025 Benjamin-RR. All Rights Reserved.

An AI-powered debugging tool for all local browser development. Speed up your debugging process with automated inline fixes in your IDE.

Architecture Overview

BRAID uses a proxy server architecture that keeps your development environment clean while providing powerful AI-powered error detection:

User's Browser (localhost:3000)
    ↓ (WebSocket/HTTP)
BRAID Proxy Server (localhost:3001)
    ↓ (HTTP API)
Benjamin-RR Server (AI Processing)
    ↓ (VS Code WebView)
VS Code Extension (BRAID)

Key Components

1. VS Code Extension - Provides the user interface and IDE integration
2. Local Proxy Server - Handles all communication and caching
3. Client Script - Minimal script added to user's project
4. Benjamin-RR Server - Manages AI models, authentication, and billing

Features

MVP Features

• ✅ Error Detection - Captures console errors, warnings, and unhandled rejections
• ✅ Smart Caching - Persistent cache that survives sessions and restarts

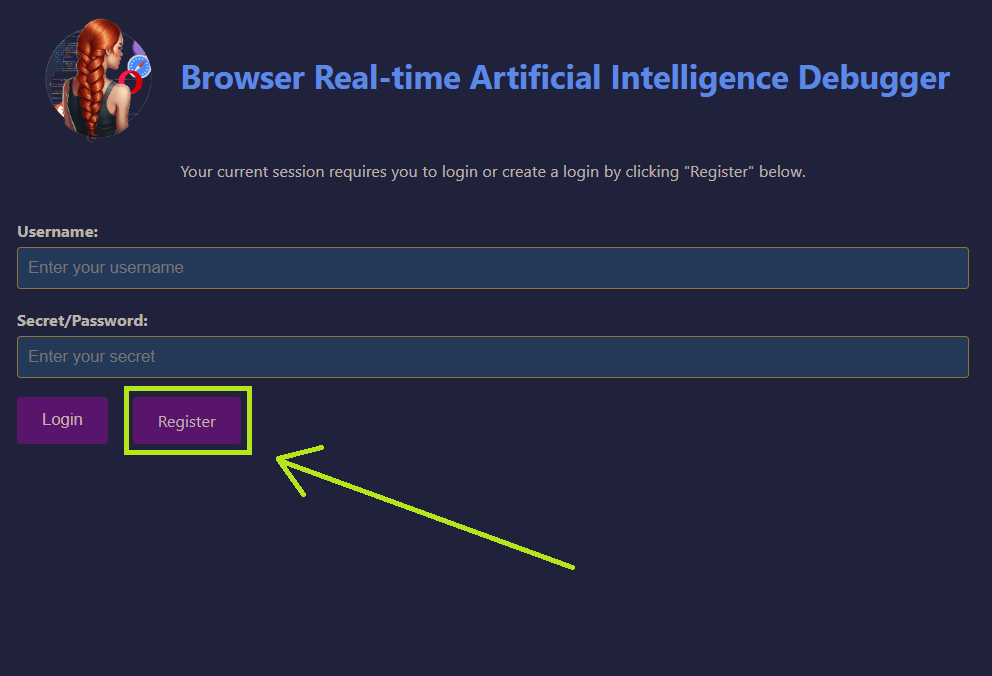

• ✅ User Authentication - Secure login/registration system

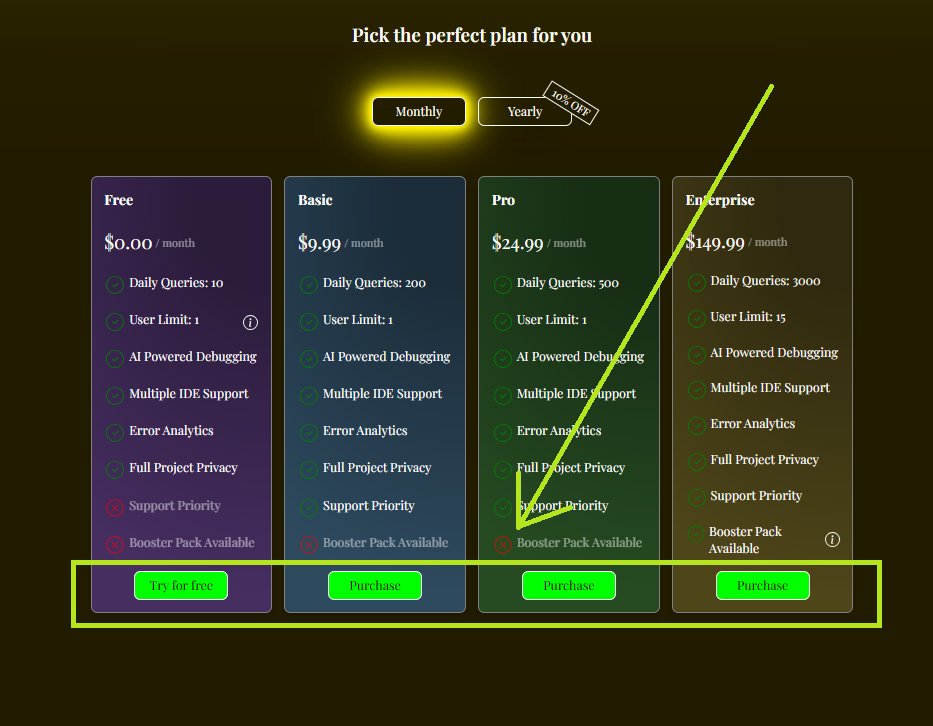

• ✅ Plan Management - Free, Basic, Pro, and Enterprise tiers
• ✅ Real-time Notifications - Instant error alerts with AI suggestions
• ✅ Non-intrusive - Uses namespace window.braid to avoid conflicts

Advanced Features (Planned)

• 🔄 Stack Trace Analysis - Enhanced error context for better AI responses
• 🔄 Inline Fixes - Apply AI suggestions directly in your code
• 🔄 Project Context - Include package.json, frameworks, etc. in analysis
• 🔄 VS Code Debugger Integration - Seamless debugging experience

Quick Setup

1. Install the Extension

For VS Code:

# Clone the repository
git clone <your-repo>
cd braid

# Install dependencies
npm install

# Build the extension
npm run compile

# Package for distribution
npm run package

# Install in VS Code
code --install-extension braid-0.0.1.vsix

For Cursor:

# Clone the repository
git clone <your-repo>
cd braid

# Install dependencies
npm install

# Build the extension
npm run compile

# Package for distribution
npm run package

# Install in Cursor
cursor --install-extension braid-0.0.1.vsix

Note: This extension is compatible with both VS Code and Cursor. Cursor-specific optimizations are automatically applied when detected.

2. Add BRAID to Your Project

Add this single script to your HTML:

<script src="http://localhost:3027/braid-client.js"></script>

Or download and include locally:

<script src="./braid-client.js"></script>

3. Start the Proxy Server

From VS Code:

1. Open Command Palette (Ctrl+Shift+P)
2. Run "BRAID: Start Proxy Server"

Or manually:

npm run start-proxy

4. Configure Your Project (Optional)

Customize BRAID behavior in your project:

// Configure BRAID (optional)
window.braid.setConfig({
    proxyUrl: 'http://localhost:3001',
    enableConsoleCapture: true,
    enableErrorCapture: true,
    enableUnhandledRejectionCapture: true
});

How It Works

1. Error Capture

The client script automatically captures:

• console.error() and console.warn() calls
• Unhandled JavaScript errors
• Unhandled Promise rejections
• Custom errors via window.braid.sendError()

2. Proxy Server Processing

• Receives errors via WebSocket (preferred) or HTTP
• Checks persistent cache for duplicate errors
• Sends new errors to Benjamin-RR for AI analysis
• Broadcasts results to all connected clients

3. VS Code Integration

• Real-time error notifications
• Error history and statistics
• AI-powered fix suggestions
• Settings management

API Reference

Client Script API

// Send a custom error
window.braid.sendError({
    message: 'Custom error message',
    stack: new Error().stack,
    url: window.location.href,
    timestamp: Date.now()
});

// Check connection status
if (window.braid.isConnected()) {
    console.log('Connected to BRAID proxy server');
}

// Get current configuration
const config = window.braid.getConfig();

Proxy Server API

// Submit error via HTTP
fetch('http://localhost:3001/api/errors', {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify(errorData)
});

// Get error history
fetch('http://localhost:3001/api/errors')
    .then(response => response.json())
    .then(data => console.log(data.errors));

// Get server status
fetch('http://localhost:3001/api/status')
    .then(response => response.json())
    .then(data => console.log(data));

Configuration

VS Code Extension Settings

{

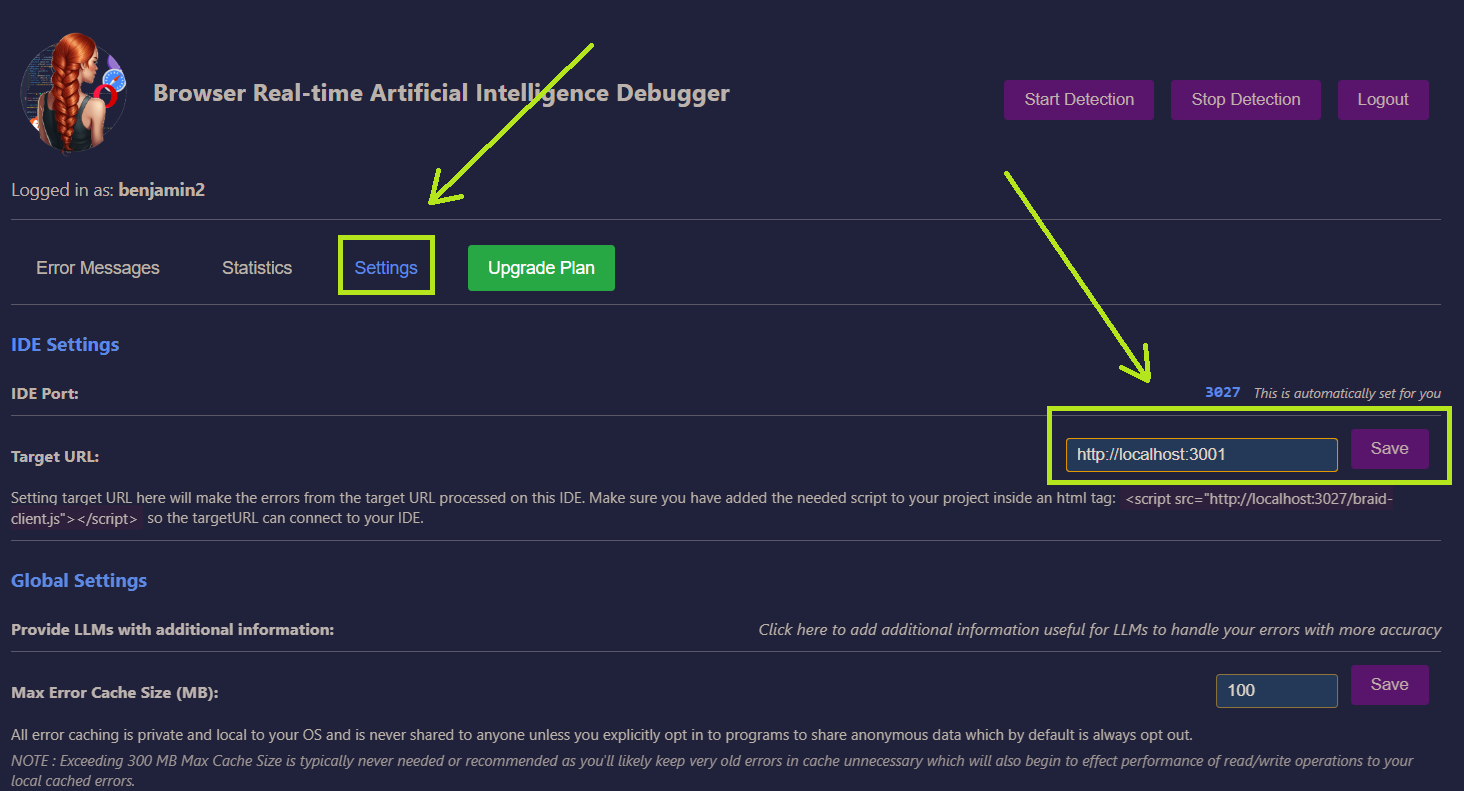

    "braid.targetUrl": "http://localhost:3000",
    "braid.proxyPort": 3001,
    "braid.enableAutoFix": true,
    "braid.debug": false
}

Client Script Configuration

window.braid.setConfig({
    proxyUrl: 'http://localhost:3001',
    enableConsoleCapture: true,
    enableErrorCapture: true,
    enableUnhandledRejectionCapture: true,
    namespace: 'braid'
});

Development

Project Structure

braid/
├── src/                    # VS Code extension source
│   ├── extension.js       # Main extension entry point
│   ├── auth-manager.js    # Authentication management
│   ├── error-detector.js  # Error detection logic
│   └── webview-provider.js # UI components
├── proxy-server/          # Local proxy server
│   ├── index.js          # Main server logic
│   └── proxy-manager.js  # Server management
├── client-script/         # Client-side script
│   └── braid-client.js   # Browser integration
└── scripts/              # Build scripts
    ├── build.js          # Build process
    └── watch.js          # Development watch

Building

npm run compile    # Build extension
npm run watch      # Watch mode for development
npm run package    # Package for distribution

Running Proxy Server

npm run start-proxy  # Start proxy server

Security Considerations

• Non-intrusive: Uses window.braid namespace to avoid conflicts
• Data Sanitization: Automatically removes sensitive information (passwords, tokens)
• Secure Storage: Credentials stored in VS Code's secure global state
• HTTPS Communication: All external API calls use HTTPS
• Local Processing: Proxy server runs locally, keeping data private

Troubleshooting

Common Issues

1. Proxy Server Not Starting

   • Check if port 3001 is available
   • Ensure all dependencies are installed
   • Check console for error messages

2. Client Script Not Connecting

   • Verify proxy server is running on correct port
   • Check browser console for connection errors
   • Ensure CORS is properly configured

3. No Errors Detected

   • Verify client script is loaded
   • Check browser console for BRAID initialization messages
   • Ensure error capture is enabled in configuration

Debug Mode

Enable debug logging:

{
    "braid.debug": true
}

Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Add tests if applicable
5. Submit a pull request

License

[Your License Here]

Support

For support, please contact [your contact information] or create an issue in the repository.
