API Hero

Git-first API development for VS Code

Author .api requests beside your code, organize them in Git-friendly collections, run with assertions, and reuse the same workflows from MCP or the apihero CLI.

Extension ID: ankitsemwal.api-hero · Version: 2.12.2 · License: MIT

Website · Marketplace · npm CLI · Documentation · Changelog · Support

Install from the Marketplace, open a folder workspace, create a .api request, and run it with Ctrl+Alt+R / Cmd+Alt+R.

2.12.2 includes HTTP / REST, GraphQL-over-HTTP, bounded WebSocket sessions, first-class GraphQL and WebSocket Request Editors, Environment & Variables UI, centralized Authentication UI (No Auth, Bearer Token, Basic Auth, API Key), Collection Run Setup, Collections, Variables, Environments, Assertions, Extraction, OpenAPI / Postman / Insomnia / cURL import (Postman GraphQL as native @protocol graphql), TypeScript generation, source-code integration (CodeLens plus Quick Run from fetch("https://...")), Collection Run Report export, portable .apihero project packages, MCP, and the apihero CLI.

Why API Hero

Most API clients pull you into a separate app and opaque storage. API Hero keeps requests as plain files in your repo and UI where you already work.

No context switching. No binary collections. Same workflow as the rest of your codebase.

API Requests as Code

.api files are the source of truth. The language id is api. The Request Editor reads and writes the same grammar — or switch to plain text anytime.

@name Get Products
@description List products with the default page size (30).

GET {{baseUrl}}/products
Accept: application/json

expect status == 200
expect body.products exists

Define baseUrl in collection variables, an environment, or settings.

Structure

### Optional separator (multiple requests in one file)
@name My Request
@description Optional description

METHOD https://example.com/path
Header-Name: value

optional body after a blank line

expect status == 200

• Methods: GET POST PUT PATCH DELETE HEAD OPTIONS
• Request line — method + URL (may use {{variables}})
• Headers — one per line until a blank line
• Body — anything after the blank line (before expect / next separator)
• expect lines — evaluated when you run with assertions

Directives

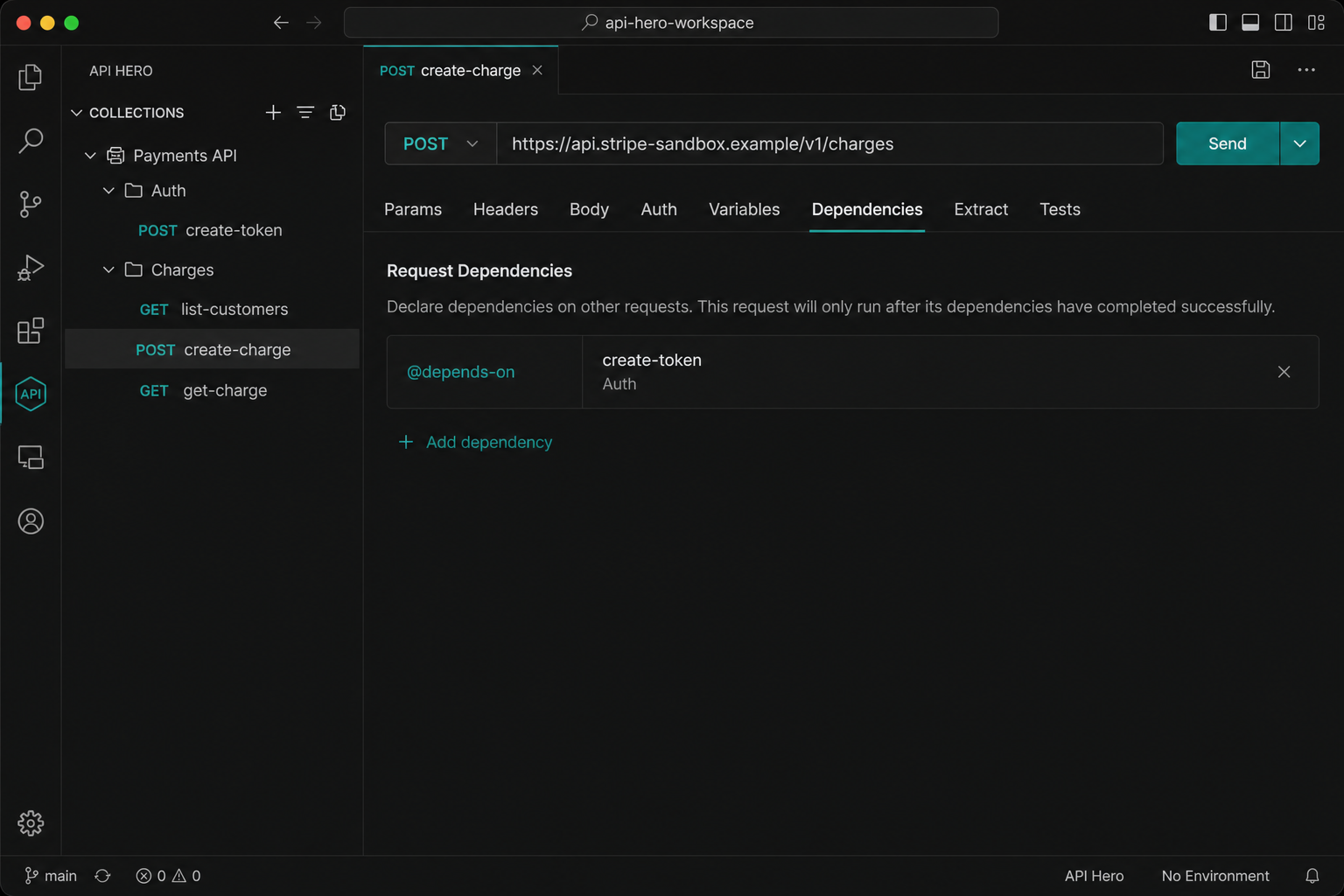

Request Editor

Custom editor view type: apiHero.requestEditor (default for *.api).

Open via API Hero: Open Request Editor when the text editor is active.

→ Creating requests · GraphQL · WebSocket

WebSocket Phase 1 is a bounded connect → optional text send → first text frame receive → close session. It is not a persistent WebSocket client.

Collections & Workflows

Layout:

Collections/<Name>/
  optional folders/
  *.api
  api-hero.variables.json      # collection variables
  api-hero.collection.json     # optional marker (OpenAPI import creates it)

• Discovery — folders under Collections/ appear in the Collections tree
• Run — Run Collection, Run Folder, or Run Selected Requests
• Import / Export — API Hero: Import Collection / Export Collection
• Loose .api files outside Collections may appear under Legacy until moved

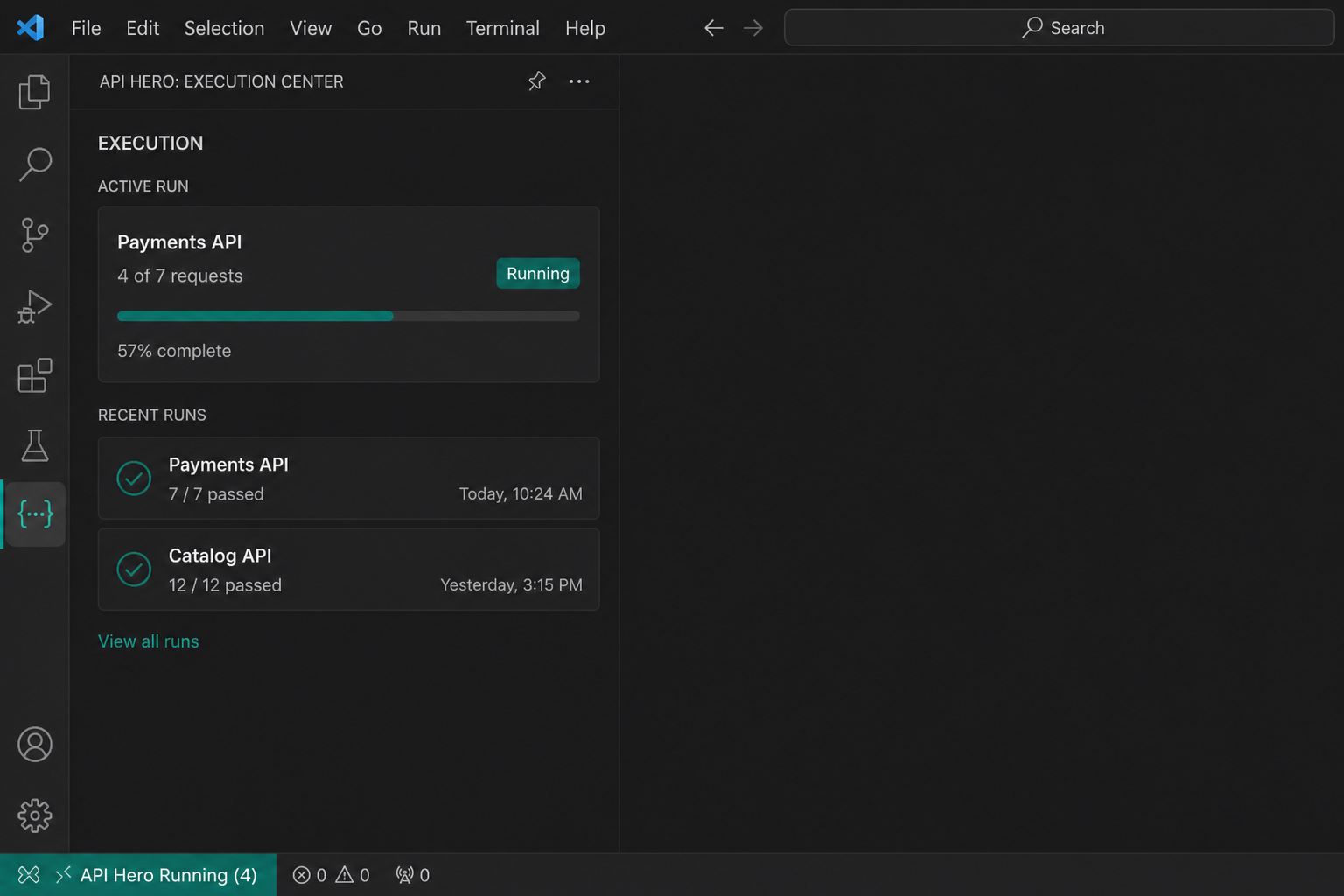

Collection Runner executes many requests in a collection, folder, or selection. Collection Run Setup opens first: environment selection, variable preview, authentication, request selection, and Continue on Error / Stop on First Failure. Live progress appears in the Execution view.

• Collection Run Setup — configure the run, then start; Run Again restores the previous setup
• Failure policies (apiHero.collectionRunner.failurePolicy): ask (default), stop-on-first-error, continue-on-error, skip-invalid-requests. Setup V1 exposes Continue / Stop; ask and skip-invalid-requests remain available to MCP/settings
• Run Options — optional retries for eligible transport failures and skip DELETE for the run (workspace settings)
• Outcomes: passed / failed / skipped / cancelled
• Open Live Report / Open Run Report when finished
• Export the Collection Run Report as redacted JSON or standalone HTML (snapshot of the report model; Run Again remains available)

Project package (.apihero)

API Hero: Export Project writes a portable My-API-Project.apihero file. API Hero: Import Project validates and restores it. This is a backup / move / share snapshot — it does not replace Git.

Packages include Collections, .api files, environments, variables, and project configuration. Secrets are redacted and not restored. Scenarios are not included. v1 is VS Code-only (no Desktop, CLI, or MCP package commands).

→ Collections · Collection Runner · Project package

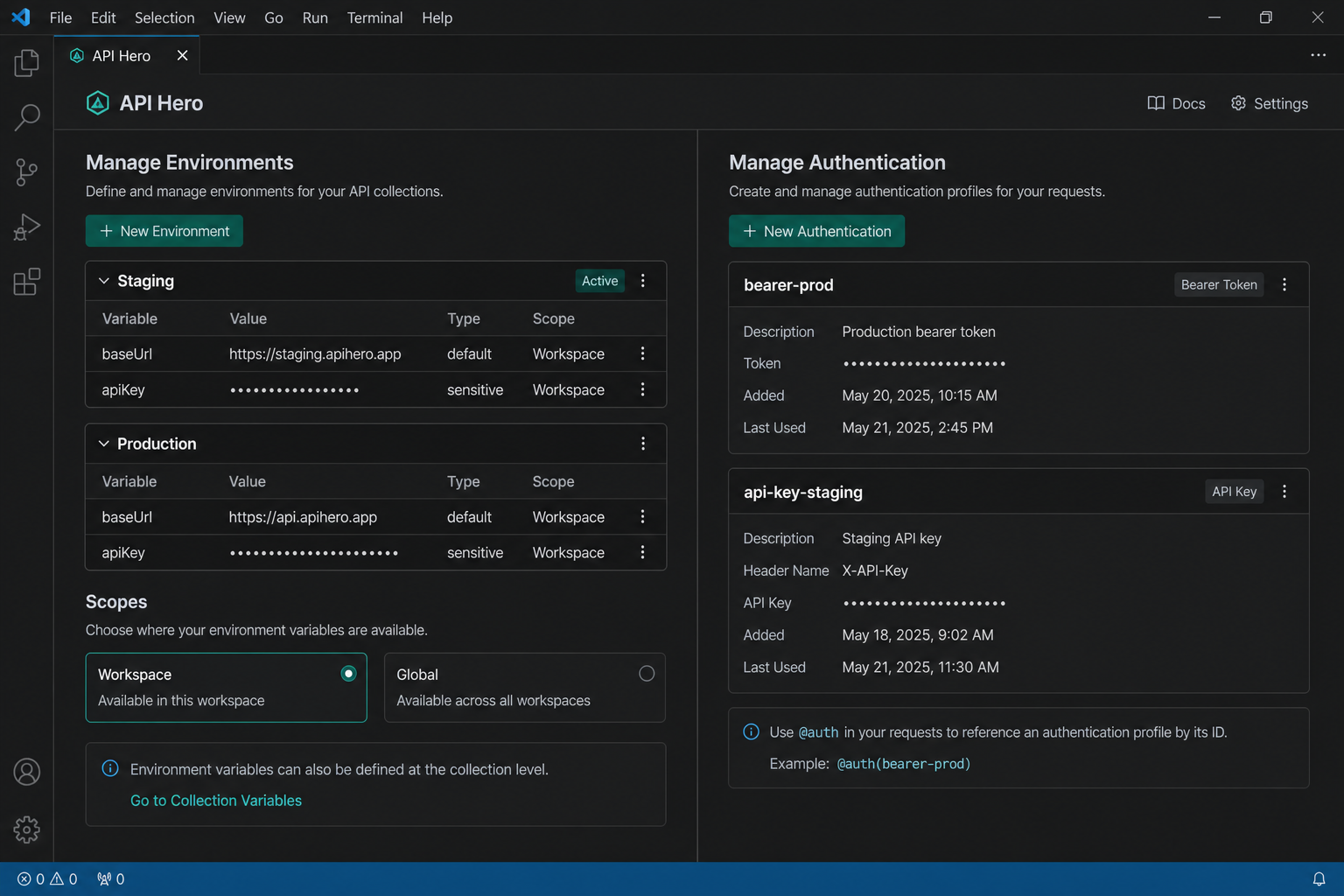

Variables & Environments

Use {{name}} where name matches [A-Za-z_][A-Za-z0-9_.-]*.

Scopes and precedence (highest → lowest)

1. run
2. document (Request in the UI — @variable in the .api file)
3. environment (the active named environment)
4. collection (Collections/<Name>/api-hero.variables.json)
5. workspace
6. global

Environments are workspace-level named variable sets — they are not bound to a collection. Collection variables apply only to requests in that collection.

OS process.env is not mapped automatically to {{variable}}.

Where values live

Auth secrets use VS Code Secret Storage via Manage Authentication — that is distinct from sensitive variables (masked in UI as ••••••••).

Authentication

Providers only: No Auth · Bearer Token · Basic Auth · API Key (none · bearer · basic · apiKey)

Profiles live in API Hero: Manage Authentication. The same centralized Authentication UI appears on the Request Editor Auth tab, Collection default auth, and Collection Run Setup. Attach with @auth <profile-id>, a collection default, or a one-shot Bearer in the Request Editor (not persisted to .api).

OAuth2 Account Login is not available. Authentication Login API (session login against your API) is included — that is separate from Account Login.

→ Variables · Environments · Authentication

Dependencies & Extraction

Chain requests so producers run before consumers. Collection Runner analyzes @depends-on and implicit produces/consumes (from @extract + {{var}} usage), then reorders the frozen membership plan.

Collection Runner honors dependencies. A single Run Request from the editor does not auto-run upstream producers — ensure required variables already exist in a persisted scope (e.g. scope=collection from an earlier run) or run via Collection Runner.

@extract grammar

@extract <name> from <source> [scope=…] [optional|required] [when=…]
@sensitive-extract <name> from <source> …

• Sources: body.<path>, header <Name>, status
• Scopes: run | document | collection | environment | workspace Default scope is run. scope=global is not valid for extract.

Example (placeholders only — never real secrets):

@name Login
@extract token from body.accessToken scope=collection

POST {{baseUrl}}/auth/login
Accept: application/json
Content-Type: application/json

{
  "username": "{{username}}",
  "password": "{{password}}"
}
expect status == 200

@name Current User
@depends-on Authentication/Login
@extract userId from body.id scope=run

GET {{baseUrl}}/auth/me
Authorization: Bearer {{token}}

expect status == 200

Sample collection: examples/collections/DummyJSON Complete API Collection.

→ Collection Runner

Testing & Assertions

Add expect lines after a request. Run with assertions via CodeLens or Run Request with Assertions.

Operators

== != > >= < <= in contains exists isEmpty isNull
(aliases such as eq, equals, gt, exist, empty, null are accepted by the parser)

Subjects

status · header <Name> · body / body.<path> · contentType · responseTime · responseSize

Outcomes

passed | failed | skipped | malformed

Expected/Actual appear in the Response Viewer and Run Report Details. In a collection run, assertion failure → request failed with category assertion.

→ Assertions

Import Existing APIs

Bring existing definitions into Git-first .api collections. Preview before write. Secrets are masked. Scripts are never executed.

• API Hero: Import OpenAPI Specification — wizard → Collections + .api files
• API Hero: Import Postman Collection — preserves folders, methods, URLs, {{variables}}, headers/query/body, and bearer/basic/apiKey auth; scripts are warnings only
• API Hero: Import Insomnia Export — preserves nested folders, methods, URLs, environments, and bearer/basic/apiKey auth; Insomnia-only resource types are not migrated
• API Hero: Import cURL — paste, editor selection, or text file → masked preview → save one .api file (round trip with Copy as cURL). @file bodies are not read from disk
• Imported environments are created and selectable; an existing active environment is preserved
• Size limit: apiHero.import.maxFileBytes (default 5 MiB) for OpenAPI/Postman/Insomnia; cURL paste capped at 256 KiB

Not supported: Swagger 2.0, Insomnia Document / YAML v5, HAR, GraphQL schema import, Insomnia GraphQL (stub only; Postman GraphQL imports as native @protocol graphql), remote $ref, OAuth2 as a live auth flow, authenticated specification URLs, Postman/Insomnia script execution, gRPC / WebSocket request resources from Insomnia.

→ OpenAPI Import

Debugging & Reports

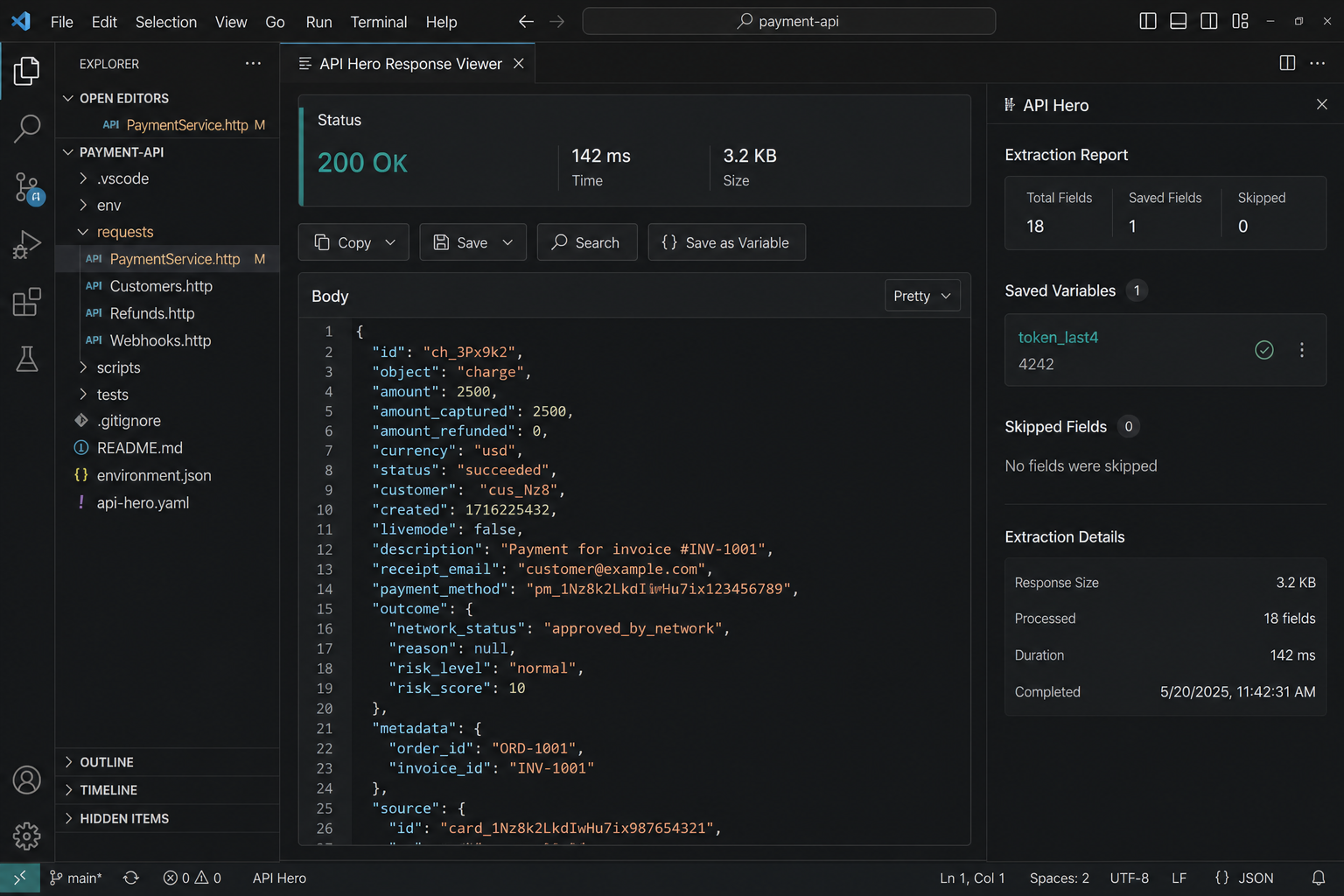

Response Viewer

Inspect status, timing, pretty/raw/JSON body, headers, and assertions. Copy or save the body, search within it, and create variables from the response (Extract Variable… / Save as Variable).

Failure Diagnostics

When a request fails, API Hero can show Possible causes next to recorded facts (status, URL, timing, transport error). Guidance covers common HTTP statuses and network/timeout failures. It is structured context to help you investigate — not a guaranteed root-cause diagnosis. Secrets stay redacted.

The same explanations appear in Run Report Details and in MCP diagnostic fields.

Request/Response Diff

Compare results within the current run/session:

• Compare with Previous Run — Previous vs Current for the same request in this session (status, headers, JSON paths, text lines) over already-redacted presentations
• Compare Runs — from Collection Run Manager / Report Details when a prior recent collection-run presentation exists for that request

This is not persistent History body comparison. History stores metadata only.

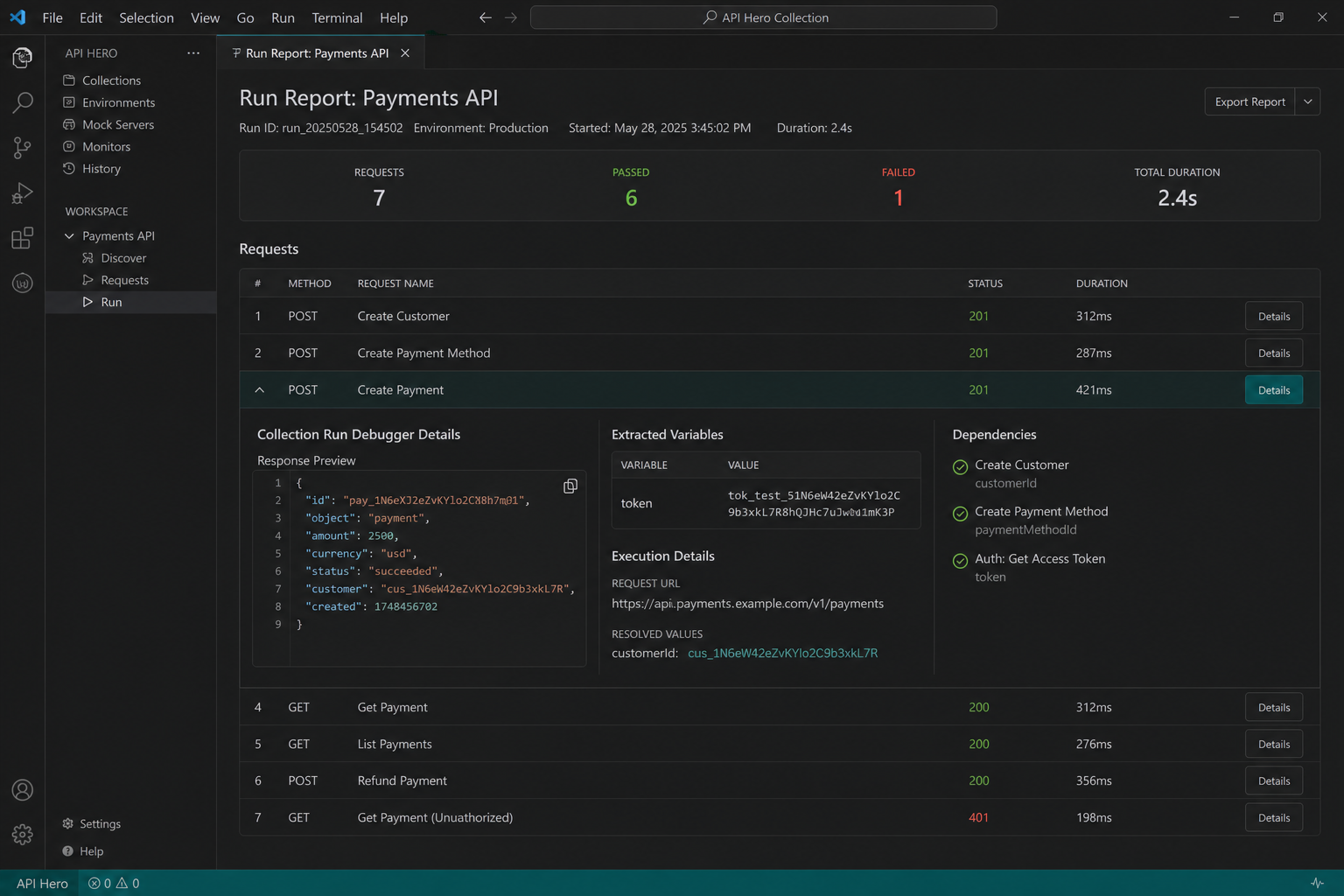

Run Reports & Variable Trace

After a collection/folder/selection run:

• Compact summary counts (total / passed / failed / skipped / cancelled)
• Per-request rows with outcome / method / search filters
• Variable Trace — produced and consumed names (expand for unresolved names)
• Details — Response, Headers, Assertions (Expected/Actual), Variables, Execution Details, Dependencies, and Possible causes when applicable
• Export — JSON or standalone HTML snapshot of the same redacted report model

The Collection Run Debugger holds the last run in memory — it is not Request History.

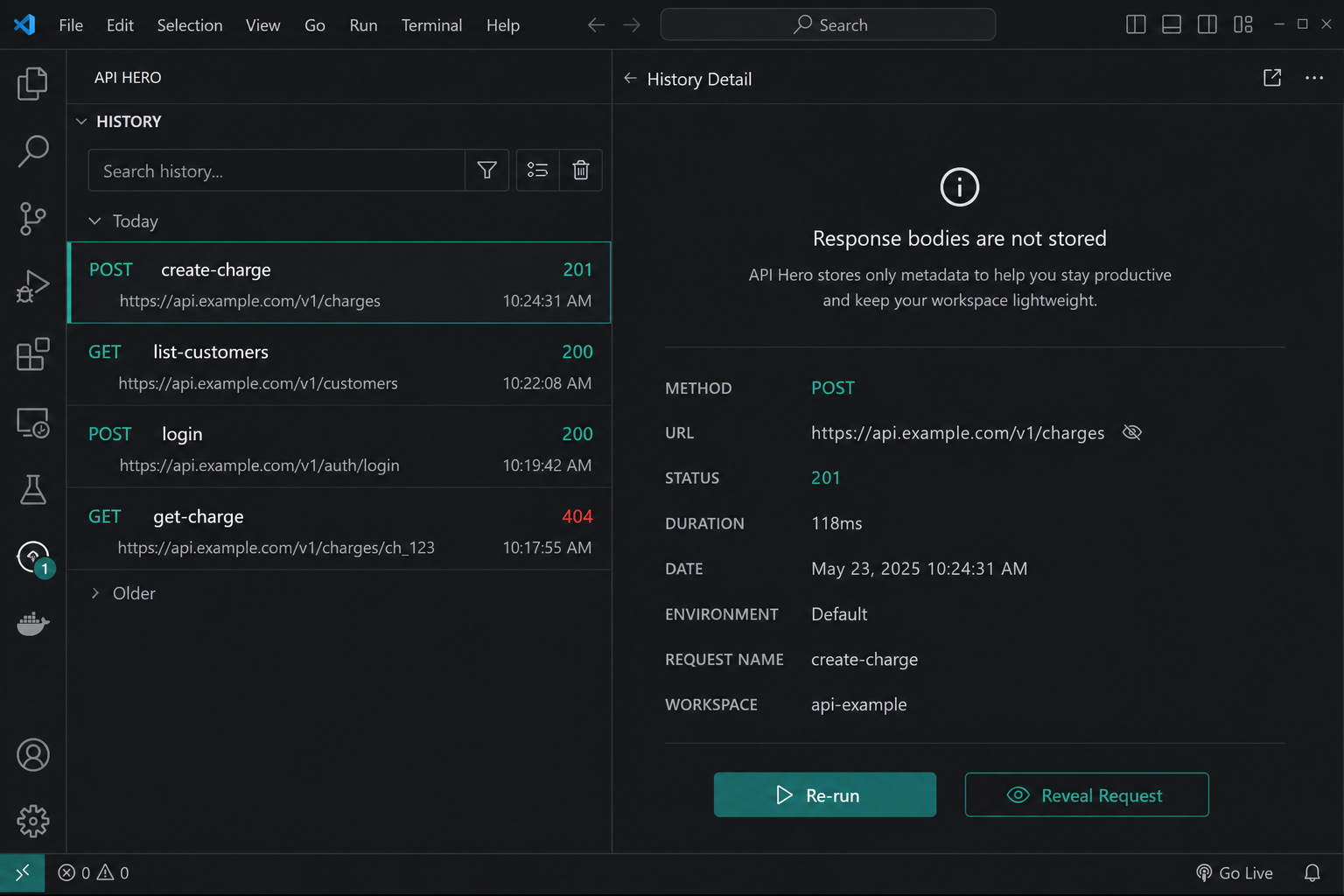

Request History

Storage: VS Code extension globalStorageUri file request-history.json.

• Metadata only — no response bodies
• Cap via apiHero.history.maxEntries (default 1000)
• Actions: re-run, reveal original request, filter, clear, copy summary

→ Response Viewer · History

Source-code integration

Map TypeScript / JavaScript / TSX / JSX to a .api request with an explicit // @api-hero comment. On .api files, @source points back to application code.

Quick Run — right-click a JS/TS fetch("https://...") and Run Request without @api-hero. Unique catalog matches reuse the existing .api file; otherwise a temporary request runs through the existing orchestrator (no untitled editor). @api-hero remains the persistent mapping for CodeLens.

CodeLens actions: Run Request, Open API Definition, Generate TypeScript. Hover and Open Related Source use the same mappings. Ambiguous, deleted, or renamed targets produce no CodeLens.

Execution still uses the existing orchestrator. Type generation still uses the existing TypeScript-from-JSON generator.

→ Source-code integration

TypeScript Generation

Generate TypeScript types/interfaces from a successful JSON response body (Response Viewer or API Hero: Generate TypeScript).

• Inference from this one observed body — not a complete API schema
• Copy to the clipboard or Create .ts
• Type names come from JSON keys only (never from sensitive string values)
• Mapped source files can generate types via CodeLens after an @api-hero annotation — see Source-code integration

This is type generation, not arbitrary application code generation.

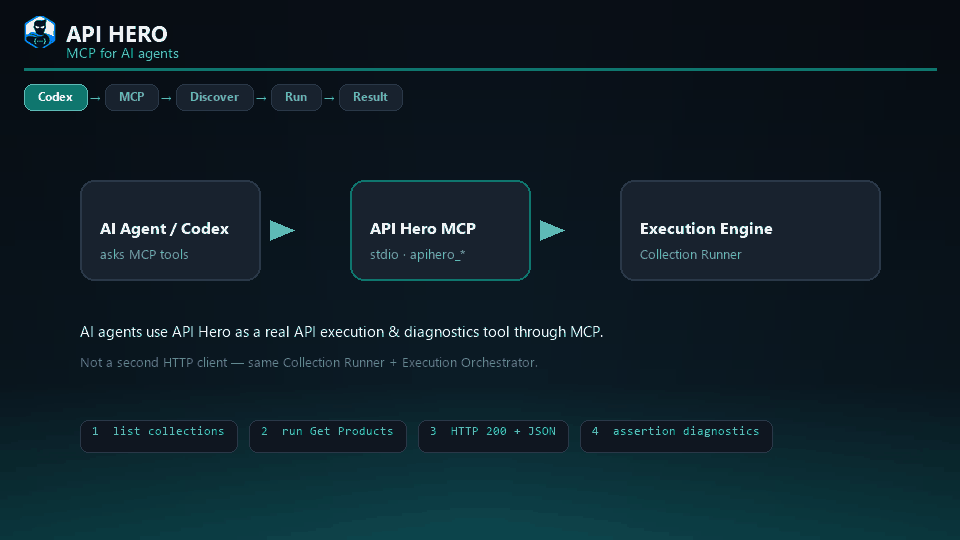

MCP

API Hero includes a Model Context Protocol server so AI clients can inspect and run the same API workflows you keep in Git.

AI Client
    ↓
API Hero MCP (standalone Node stdio)
    ↓
Collection Runner / Execution Orchestrator
    ↓
Existing execution pipeline

• MCP is not a second HTTP client — it reuses discovery, Collection Runner, and Execution Orchestrator
• Runs as an independent Node stdio process (not inside the VS Code extension host)
• Tools for listing collections/requests, running a request or collection, and reading redacted run results
• Headless hosts load filesystem collections and .apihero Project Store environments / auth profiles. VS Code settings globals and VS Code Secret Storage are not available — supply secrets via process environment (APIHERO_SECRET_* or exact Secret Storage keys)
• Installing the VS Code extension does not register MCP with Codex, Cursor, Claude, or any other client. Configuration is client-owned.

Bin: api-hero-mcp (also node ./dist/mcp/server.js). Workspace priority: --workspace → APIHERO_WORKSPACE → cwd. Requires Node.js 18+.

After installing @ankitsemwal007/api-hero from npm, clients can spawn api-hero-mcp. From a repo checkout, compile first (npm run compile).

→ Full guide: docs/user/mcp.md

CLI

The apihero CLI is public and shipped on npm. It runs the same Orchestrator / Collection Runner as the extension and MCP — without VS Code.

npm package: @ankitsemwal007/api-hero (binary: apihero). Marketplace extension id remains ankitsemwal.api-hero. Installing the VS Code extension does not put apihero on PATH.

npm install -g @ankitsemwal007/api-hero
apihero --help
apihero run request Login --workspace . --environment local
apihero run collection Demo --workspace . --json

Use --json in CI for a redacted machine-readable envelope on stdout.

Not included: --var, OS process.env → {{variable}}, parent-directory workspace discovery, Docker, watch mode, parallel execution, or project package commands.

→ CLI guide · npm package

Installation

VS Code

Install API Hero from the Visual Studio Marketplace (ankitsemwal.api-hero). Requires VS Code 1.90+.

1. Open a folder workspace (Collections need a folder root).
2. Activity Bar → API Hero → Collections → New Collection / New Request, or create a .api file.
3. Run — Ctrl+Alt+R / Cmd+Alt+R, the editor Run button, or CodeLens Run Request.
4. Inspect the Response Viewer.
5. Optional: add // @api-hero name: … above a TypeScript call to get Run Request / Open API Definition / Generate TypeScript CodeLens. See Source-code integration.

From a local build:

npm install
npm run package
code --install-extension release/api-hero-2.12.2.vsix

Open API Hero: Open Overview anytime for quick actions.

CLI

npm install -g @ankitsemwal007/api-hero
apihero --version
apihero --help

Requires Node.js 18+. See CLI.

Documentation

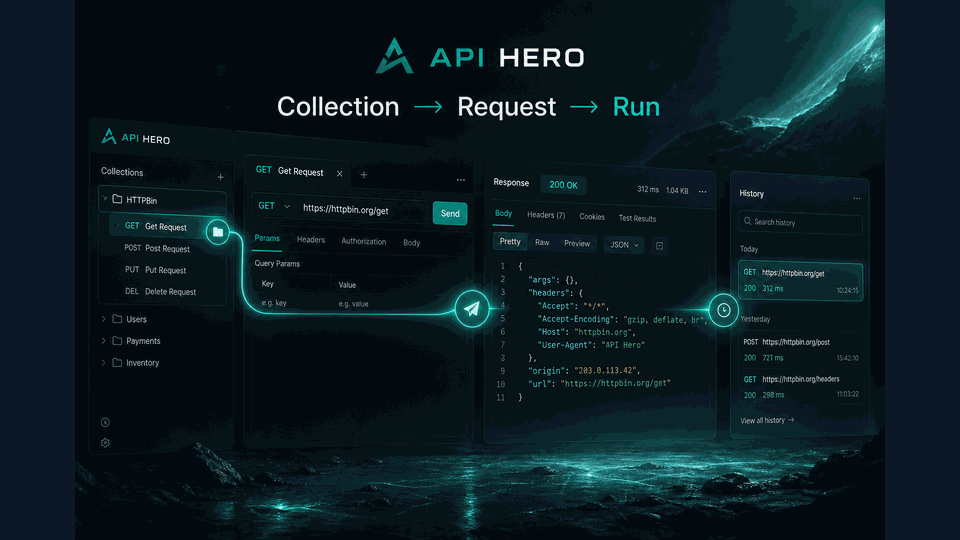

Listing media (hero, screenshots, banner, social preview, workflow GIF) is hosted on Cloudinary so the VSIX stays small. Extension icons still ship in-package.

Also used for listing / social: banner, social preview.

Development

npm install
npm run check
npm run lint
npm test
npm run compile
npm run package

• npm run mcp — compile and start the MCP server on stdio
• See CONTRIBUTING.md and development docs

License

MIT

Support

SUPPORT.md · GitHub Issues
