Pipeline Tasks for Terraform

Install Terraform and run Terraform commands in Azure Pipelines. Supports Azure (AzureRM), AWS, GCP, and OCI providers with Workload Identity Federation (OIDC) authentication.

This is a fork of Microsoft's ms-devlabs.custom-terraform-tasks extension, published under a distinct extension ID and service connection types so it can be installed side by side with the original — no need to remove the Microsoft DevLabs extension to try this one. Beyond the original's feature set, it adds new commands, backend/provider decoupling, Workload Identity Federation for Azure, AWS, GCP, and OCI, flexible installer download sources, a structured Terraform results tab (Plan/Apply/State pivots, redacted), SARIF output for policy-check and drift-report, and security hardening. Teams migrating fully from the Microsoft DevLabs extension can follow the step-by-step migration guide.

This extension provides:

• PipelineTerraformInstaller -- Install a specific version of Terraform on the pipeline agent
• PipelineTerraformProviderMirror -- Configure Terraform to download providers from a network mirror instead of the public registry
• PipelineTerraformTask -- Execute Terraform commands with provider authentication and backend state management
• PipelineTerraformModulePublish -- Publish a module version to HCP Terraform or a private Terraform registry
• PipelinePolicyAgentInstaller -- Install a policy engine (OPA or Sentinel) on the pipeline agent
• PipelineTerraformPolicyCheck -- Evaluate OPA or Sentinel policies against Terraform plan JSON
• PipelineTerraformDriftReport -- Summarise plan-detected drift and optionally report it to Terraform State Manager
• PipelineTerraformDocsInstaller -- Install a specific version of terraform-docs on the pipeline agent
• PipelineTerraformDocs -- Generate Terraform module documentation with terraform-docs
• Markdown2Html -- Convert Markdown files to HTML for publishing as ServiceNow knowledge base articles
• PublishKbArticle -- Publish or update a knowledge base article in ServiceNow

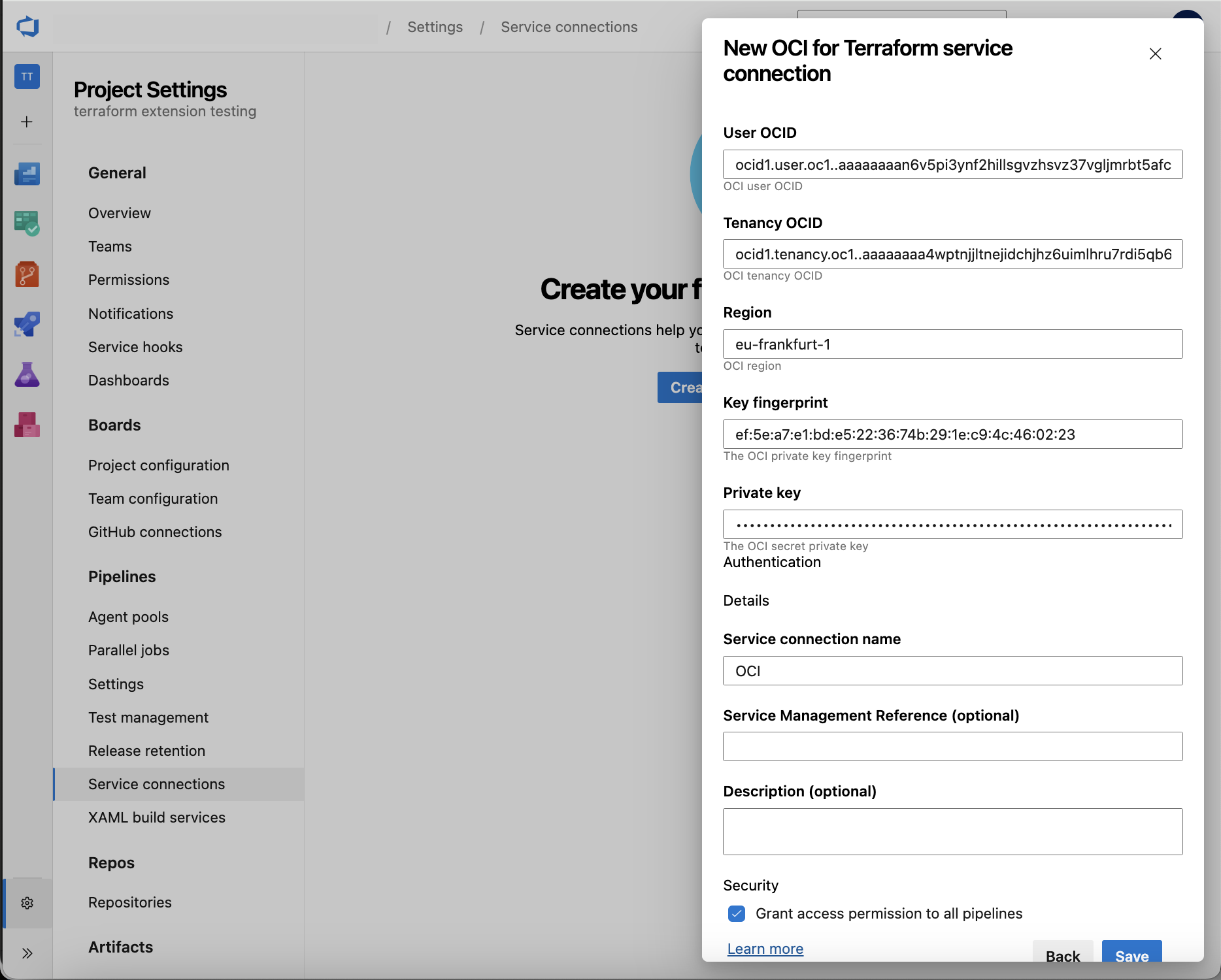

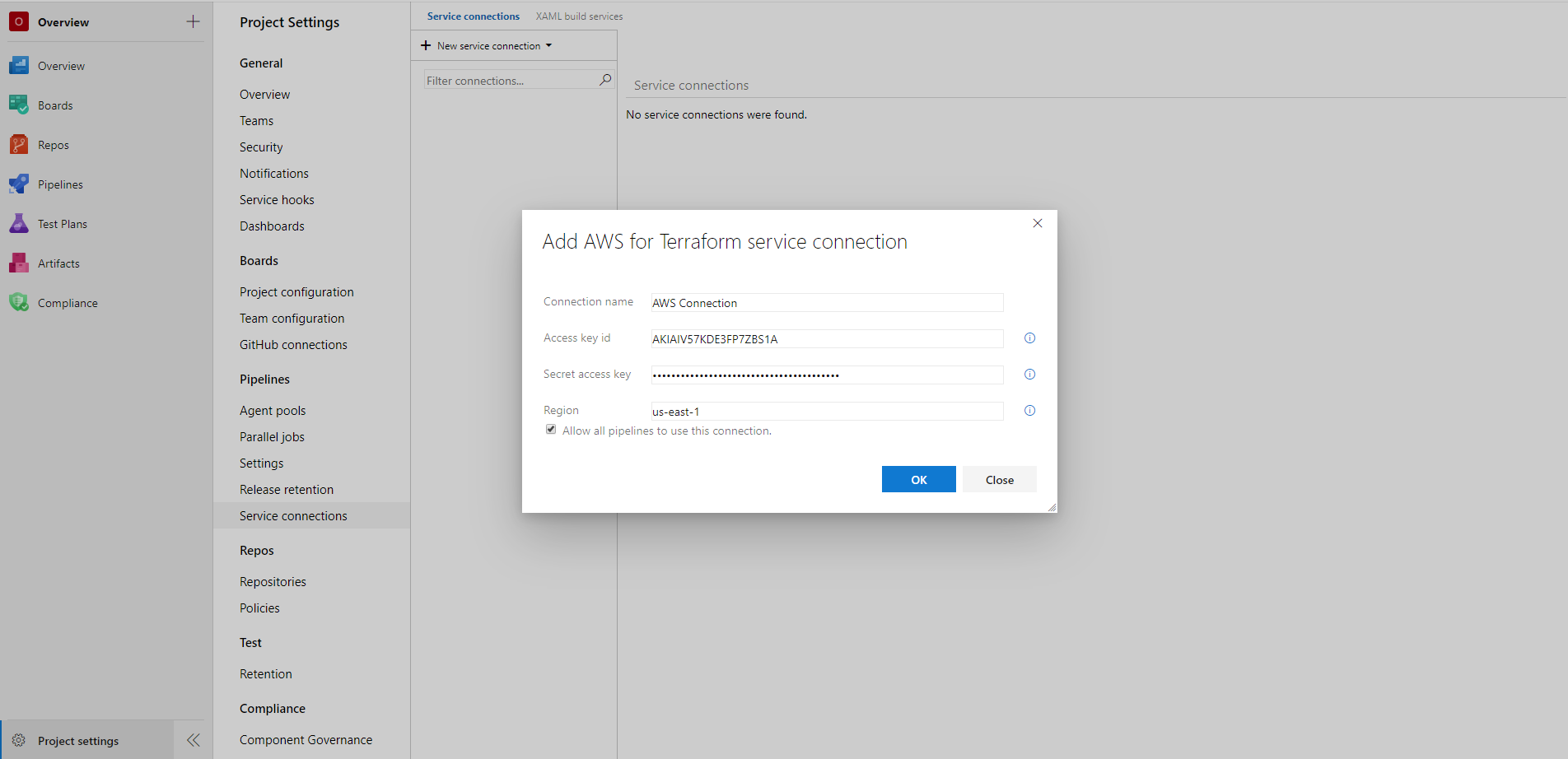

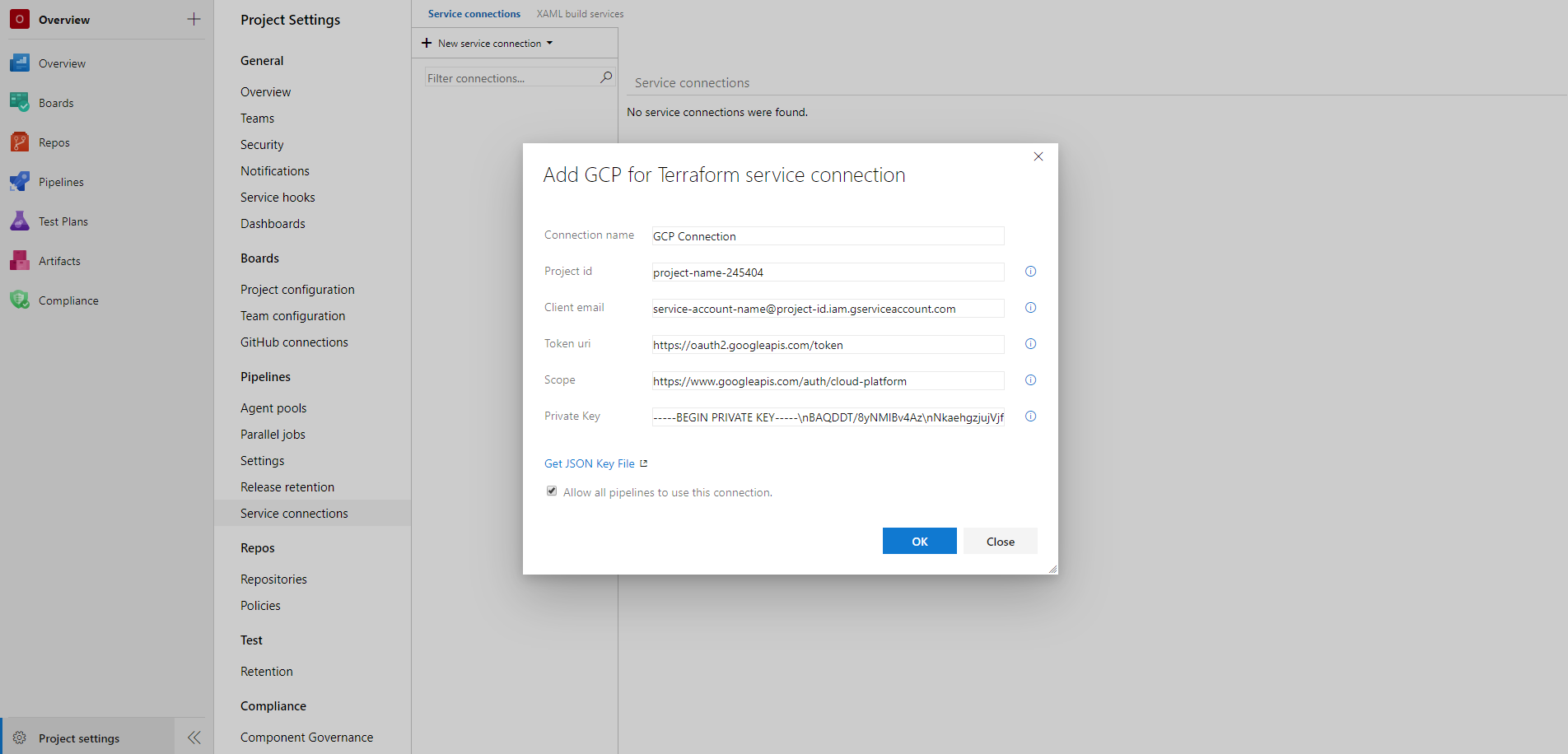

• Service connections for AWS, GCP, and OCI accounts

Runs on Windows, Linux, and macOS agents.

Key Features

• Providers: Azure (AzureRM), AWS, GCP, OCI
• Commands: init, validate, plan, apply, destroy, show, output, workspace, state, fmt, test, get, import, forceunlock, refresh, and custom (any Terraform CLI command)
• Backend types: azurerm, s3, gcs, oci, HCP Terraform Cloud, generic (any backend via config file), local
• Workload Identity Federation (OIDC) for Azure, AWS, GCP, and OCI
• Flexible installer: Download Terraform from HashiCorp releases, a private registry, or a custom mirror with SHA256 verification
• Provider network mirroring: Route provider downloads through a private mirror for air-gapped environments, caching, or compliance
• Module publishing: Publish module versions to HCP Terraform or a private registry (terraform-registry-backend) from a release pipeline
• Documentation generation: Install terraform-docs and generate — or --output-check-gate — Terraform module documentation in a pipeline
• Documentation publishing: Convert Markdown docs to HTML and publish them as ServiceNow knowledge base articles (idempotent create/update, image attachments) directly from a pipeline
• -replace flag support on plan and apply (modern replacement for the deprecated taint command)
• Detailed exit code on plan with changesPresent output variable for conditional apply
• Terraform results tab: a build-results tab with Plan/Apply/State pivots renders structured, redacted plan/apply/state summaries — sensitive values render as (sensitive) — alongside the legacy raw ANSI plan view
• SARIF output: PolicyCheck and DriftReport can emit a SARIF report for code-scanning / security dashboards
• Optional service connection for test: run unit tests without provider auth, or provide a service connection for integration tests that provision real resources

Download verification trust model: Terraform and Sentinel downloads are verified against a GPG-signed SHA256SUMS (HashiCorp's pinned key); OpenTofu uses cosign keyless verification. OPA and terraform-docs publish no signature, so they are verified by their GitHub-release SHA256 checksum (same-origin — transport integrity, not independent authenticity), enforced fail-closed by default. See SECURITY.md.

Quick Start

Install Terraform

Pin an explicit version for reproducible, supply-chain-hardened builds (recommended):

- task: PipelineTerraformInstaller@1
  displayName: 'Install Terraform 1.11.3'
  inputs:
    terraformVersion: '1.11.3'

Or use latest to resolve the newest release at run time (convenient, but the resolved version number is only as trustworthy as the release oracle it comes from):

- task: PipelineTerraformInstaller@1
  displayName: 'Install Terraform'
  inputs:
    terraformVersion: 'latest'

Init, Plan, and Apply with AzureRM (Workload Identity Federation)

- task: PipelineTerraformInstaller@1
  displayName: 'Install Terraform 1.11.3'
  inputs:
    terraformVersion: '1.11.3'

- task: PipelineTerraformTask@5
  displayName: 'Terraform Init'
  inputs:
    provider: 'azurerm'
    command: 'init'
    backendServiceArm: 'your-service-connection'
    backendAzureRmStorageAccountName: 'yourstorageaccount'
    backendAzureRmContainerName: 'tfstate'
    backendAzureRmKey: 'terraform.tfstate'

- task: PipelineTerraformTask@5
  name: terraformPlan
  displayName: 'Terraform Plan'
  inputs:
    provider: 'azurerm'
    command: 'plan'
    commandOptions: '-out tfplan'
    environmentServiceNameAzureRM: 'your-service-connection'

- task: PipelineTerraformTask@5
  displayName: 'Terraform Apply'
  condition: and(succeeded(), eq(variables['terraformPlan.changesPresent'], 'true'))
  inputs:
    provider: 'azurerm'
    command: 'apply'
    commandOptions: 'tfplan'
    environmentServiceNameAzureRM: 'your-service-connection'

Authentication Methods

Backend Types

The backendType input on init selects the state backend independently of the deployment provider.

If backendType is not set, it defaults to the value of the provider input, preserving the original behaviour where the state backend matched the deployment provider.

Output Variables

Reference output variables using the task name prefix: $(taskName.changesPresent).

Links

• Source code: github.com/sethbacon/azure-pipelines-terraform
• Examples: See docs/yaml-examples.md
• Contributing: See CONTRIBUTING.md
• Changelog: See CHANGELOG.md
