Microsoft Foundry Evaluation Azure DevOps Extension

This Azure DevOps extension enables offline evaluation of Microsoft Foundry Agents within your CI/CD pipelines. It is designed to streamline the offline evaluation process, allowing you to identify potential issues and make improvements before releasing an update to production.

To use this extension, all you need to provide is a data set with test queries and a list of evaluators. This task will invoke your agent(s) with the queries, collect the performance data including latency and token counts, run the evaluations, and generate a summary report.

Features

Agent Evaluation: Automate pre-production assessment of Microsoft Foundry agents in your CI/CD workflow.
Evaluators: Leverage any evaluators from the Foundry evaluator catalog.
Statistical Analysis: Evaluation results include confidence intervals and test for statistical significance to determine if changes are meaningful and not due to random variation.

Evaluator categories

Agent evaluators: Process and system-level evaluators for agent workflows
RAG evaluators: Evaluate end-to-end and retrieval processes in RAG systems
Risk and safety evaluators: Assess risks and safety concerns in responses
General purpose evaluators: Quality evaluation such as coherence and fluency
OpenAI-based graders: Leverage OpenAI graders including string check, text simularity, score/label model
Custom evaluators: Define your own custom evaluators using Python code or LLM-as-a-judge patterns

Inputs

Parameters

Name	Required?	Description
azure-ai-project-endpoint	Yes	Endpoint of your Microsoft Foundry Project
deployment-name	Yes	The name of the Azure AI model deployment to use for evaluation
data-path	Yes	Path to the data file that contains the evaluators and input queries for evaluations
agent-ids	Yes	ID of the agent(s) to evaluate in format `agent-name:version` (e.g., `my-agent:1` or `my-agent:1,my-agent:2`). Multiple agents are comma-separated and compared with statistical test results
baseline-agent-id	No	ID of the baseline agent to compare against when evaluating multiple agents. If not provided, the first agent is used

Data file

The input data file should be a JSON file with the following structure:

Field	Type	Required?	Description
name	string	Yes	Name of the evaluation dataset
evaluators	string[]	Yes	List of evaluator names to use. Check out the list of available evaluators in your project's evaluator catalog in Foundry portal: Build > Evaluations > Evaluator catalog
data	object[]	Yes	Array of input objects with `query` and optional evaluator fields like `ground_truth`, `context`. Auto-mapped to evaluators; use `data_mapping` to override
openai_graders	object	No	Configuration for OpenAI-based evaluators (label_model, score_model, string_check, etc)
evaluator_parameters	object	No	Evaluator-specific initialization parameters (e.g., thresholds, custom settings)
data_mapping	object	No	Custom data field mappings (auto-generated from data if not provided)

Basic sample data file

{
  "name": "test-data",
  "evaluators": [
    "builtin.fluency",
    "builtin.task_adherence",
    "builtin.violence",
  ],
  "data": [
    {
      "query": "Tell me about Tokyo disneyland"
    },
    {
      "query": "How do I install Python?"
    }
  ]
}

Additional sample data files

Filename	Description
samples/data/dataset-tiny.json	Dataset with small number of test queries and evaluators
samples/data/dataset.json	Dataset with all supported evaluator types and enough queries for confidence interval calculation and statistical test.
samples/data/dataset-builtin-evaluators.json	Built-in Foundry evaluators example (e.g., coherence, fluency, relevance, groundedness, metrics)
samples/data/dataset-openai-graders.json	OpenAI-based graders example (label models, score models, text similarity, string checks)
samples/data/dataset-custom-evaluators.json	Custom evaluators example with evaluator parameters
samples/data/dataset-data-mapping.json	Data mapping example showing how to override automatic field mappings with custom data column names

Sample Pipeline

To use this Azure DevOps extension, add the task to your Azure Pipeline and configure authentication to access your Microsoft Foundry project.

steps:
  - task: AIAgentEvaluation@2
    displayName: "Evaluate AI Agents"
    inputs:
      azure-ai-project-endpoint: "$(AzureAIProjectEndpoint)"
      deployment-name: "$(DeploymentName)"
      data-path: "$(System.DefaultWorkingDirectory)/path/to/your/dataset.json"
      agent-ids: "$(AgentIds)"

Evaluation Results

Evaluation results will appear in the Azure DevOps pipeline summary with detailed metrics and comparisons between agents when multiple are evaluated.

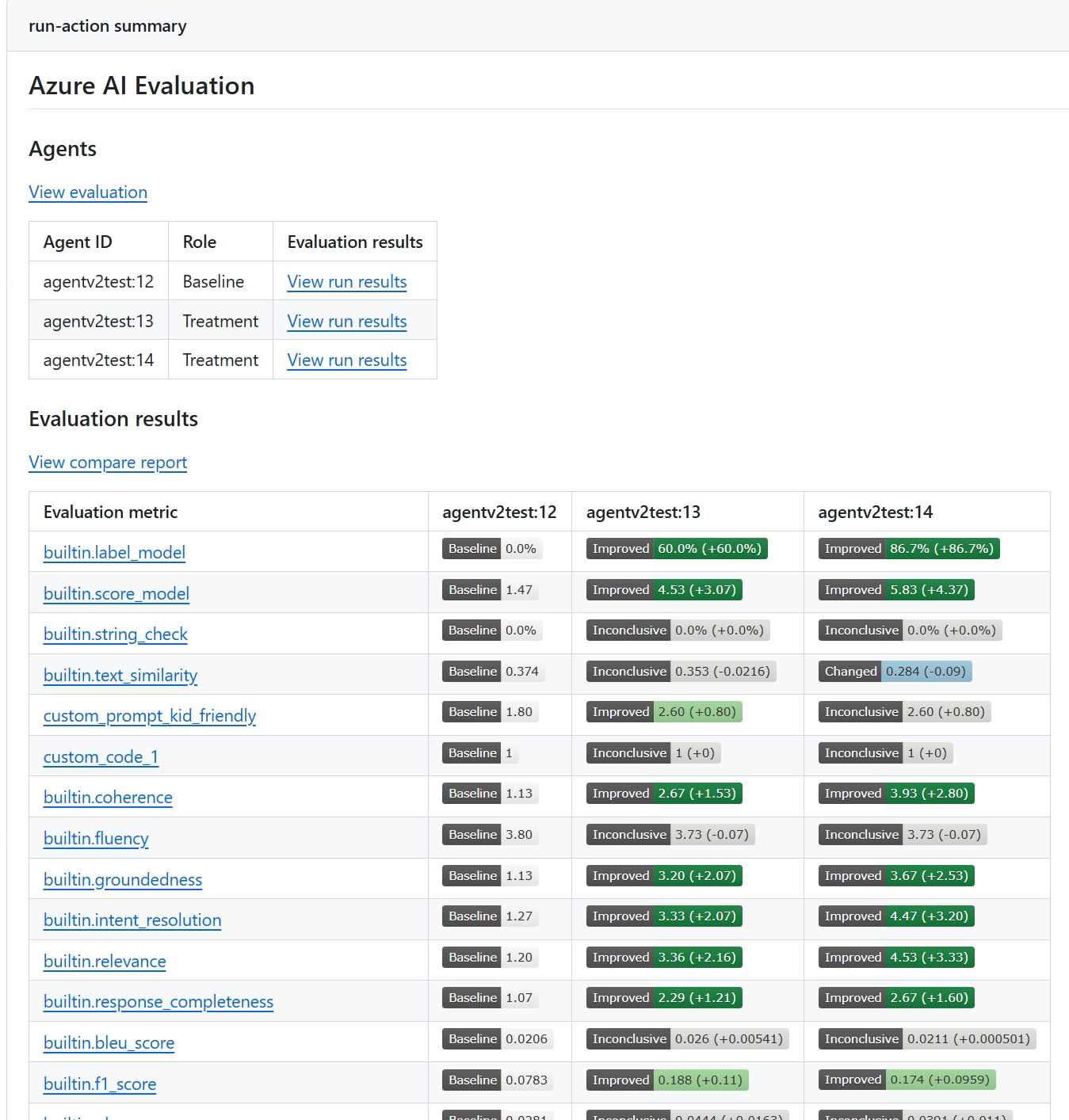

Sample evaluation results showing agent comparisons

Evaluation Outputs

Evaluation results will be output to the summary section for each AI Evaluation task run in your Azure DevOps pipeline.

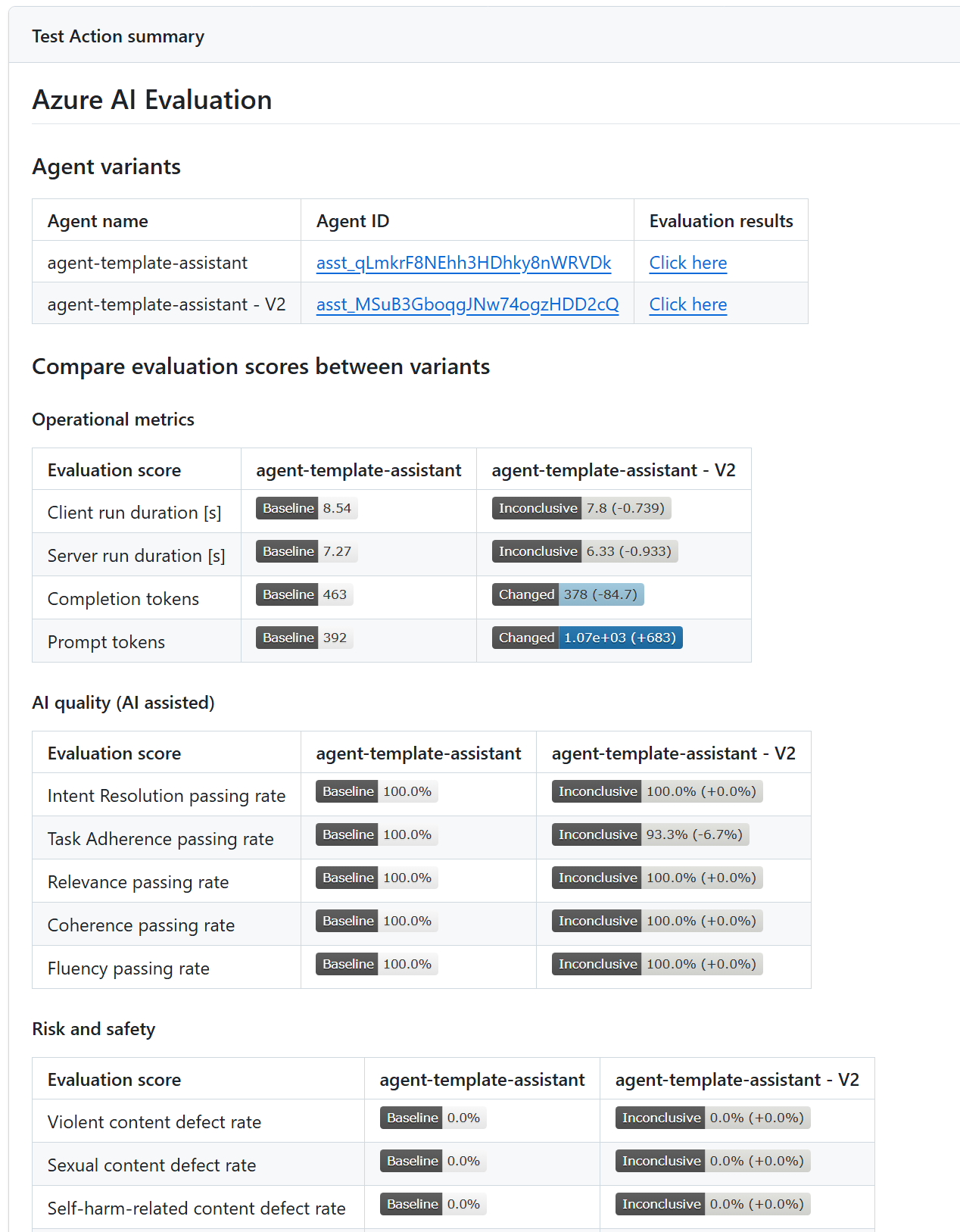

Below is a sample report for comparing two agents.

Sample output to compare multiple agent evaluations

Learn More

For more information about Foundry agent service and observability, see:
