XAML Resource Preview
Hover over {StaticResource ...} or {DynamicResource ...} in a XAML file and see what the resource looks like, right in the Quick Info tooltip. Icons, brushes and images appear as a picture. Styles appear as a table with a live sample. Templates, fonts, margins, effects and plain values each get a view that fits them.
Click the preview or the file name to jump to the definition.
Works in Visual Studio 2022 (17.14 and later) and Visual Studio 2026.
Icons, brushes and images
Geometries, drawings, DrawingImage, BitmapImage and brushes are drawn on a light and a dark tile, so a white icon stays visible in a light theme and a black one in a dark theme. Below the tiles you see the type and size.
Resources that depend on other resources work too. Report is a DrawingImage that uses a DrawingGroup, which uses a Geometry from another file. The preview finds the whole chain.

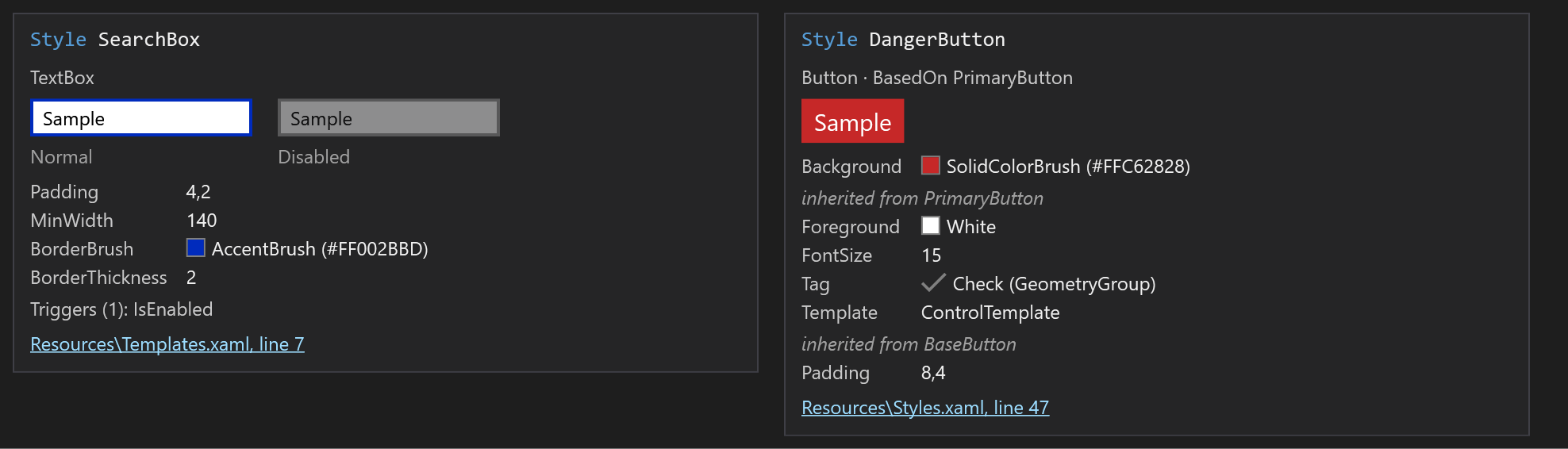

Styles
A style is shown as a table of its setters, including the setters it inherits through BasedOn. Colors get a swatch, icons a small picture, and the triggers are listed by name.
Above the table you see a real control with the style applied. When the style reacts to IsEnabled, a disabled sample appears next to it.

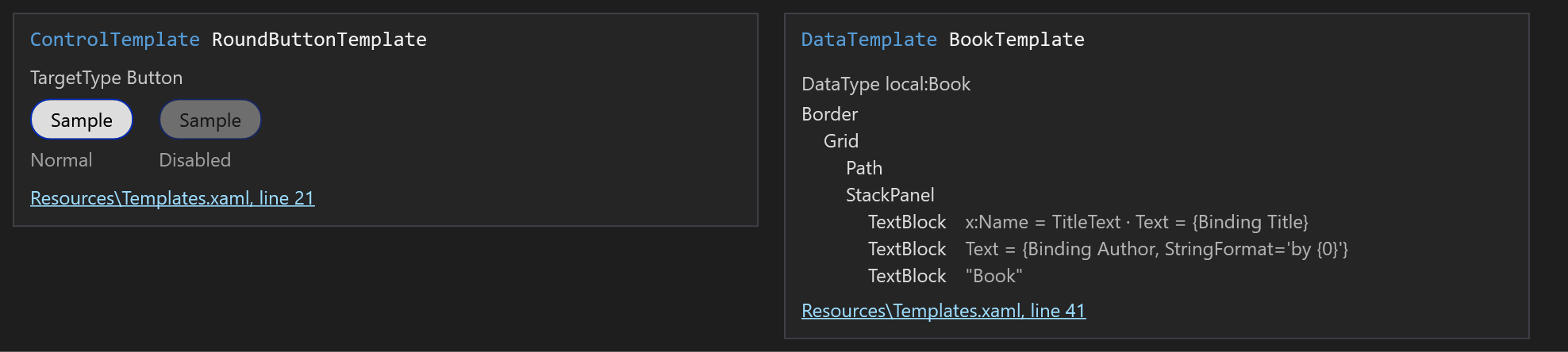

Templates
A ControlTemplate for a standard control is shown as a real control. A DataTemplate needs data to show anything, so it is shown as an element tree with its bindings instead.

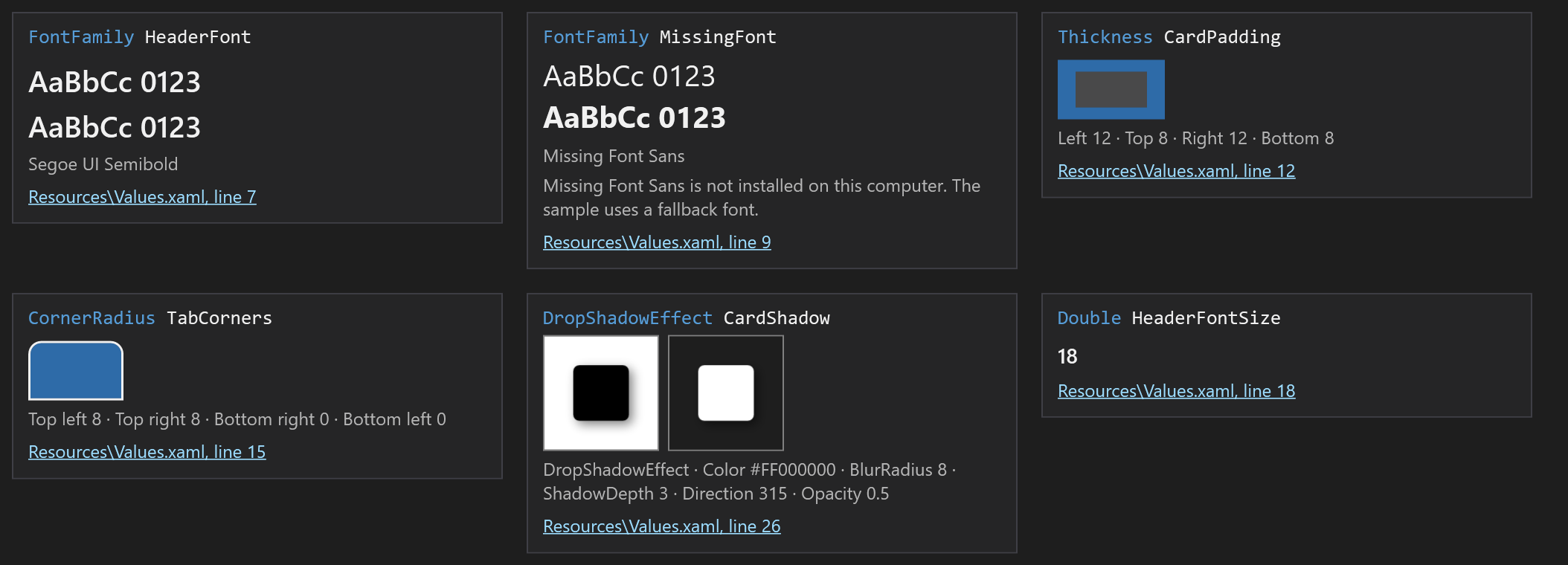

Fonts, margins and values
| Resource |
Preview |
FontFamily |
Sample text in that font, regular and bold, with a warning when the font is not installed |
Thickness |
A sketch of the four edges, with the values |
CornerRadius |
A rectangle with those corners, with the values |
DropShadowEffect, BlurEffect |
A square with the effect applied |
sys:Double, sys:String, sys:Boolean, enums and structs |
The value, as you would write it in XAML |
Finding the definition
The extension reads every .xaml file in the solution folder, so it finds resources in other files and in other projects of the solution. Image paths such as pack://application:,,,/Images/save.png and /MyLib;component/Fonts/#Inter are resolved to the file on disk. Unsaved changes in the open editor count too.
When a key is defined more than once, the tooltip lists the other definitions as links.
Settings
Tools > Options > XAML Resource Preview, in both the new and the legacy Options dialog.
| Setting |
Default |
|
| Language |
Automatic |
Follows the Visual Studio language. English, Chinese (Simplified and Traditional), Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish and Turkish are available. |
| Maximum number of other definitions |
5 |
How many other definitions are listed as links. 0 hides the list. |
| Tile size |
64 |
Size of a preview tile in pixels, 16 to 256. |
| Tiles |
Light and dark |
Both tiles, or only one of them. |
| Tile colors |
|
Foreground and background of each tile. The foreground is used for geometries, which have no color of their own. |
| Show live sample |
On |
The real control above a style table or instead of a template tree. |
Limitations
- Types from your own project. Visual Studio runs on .NET Framework and cannot load the assemblies of your project or of NuGet packages. A resource that uses such a type (
local:MyControl, {x:Static local:Icons.Save}) gets no picture. Styles and templates still show their table or tree, with a short note.
- Resources outside the solution folder, such as themes that come only as a compiled DLL, are not found.
- Several definitions of one key. The definition in the current file wins, then the others in alphabetical order. The extension does not follow the order of
MergedDictionaries.
- References that span several lines are not recognized.
Building from source
Requirements: Visual Studio 2022 17.14 or later, or Visual Studio 2026, with the Visual Studio extension development workload.
- Open
ResourcePreview.sln and press F5. A second Visual Studio instance (the Experimental Instance) starts with the extension loaded.
- In that instance, open
samples/SampleApp/SampleApp.sln and hover over the resource names in MainWindow.xaml.
| Folder |
Contents |
src/ResourcePreview |
The extension |
tests/ResourcePreview.Tests |
Unit tests (MSTest), run from Test Explorer |
samples/SampleApp |
A WPF app with a resource of every supported kind |
tools |
build-and-test.ps1 builds and runs all tests from the command line. render-previews.ps1 renders the images in this README. |
Builds |
Build output of every project (not in Git). The VSIX is in Builds/ResourcePreview/Release/. |
art |
Icon sources |
docs/images |
The images in this README |
publishManifest.json describes the Marketplace listing for VsixPublisher.exe. Fill in your publisher ID before the first upload.
License
MIT
