Vaisala VTX2 Sequencer browser

Extension is used to move between TestSequence <-> TestStep <-> TestStep Class.

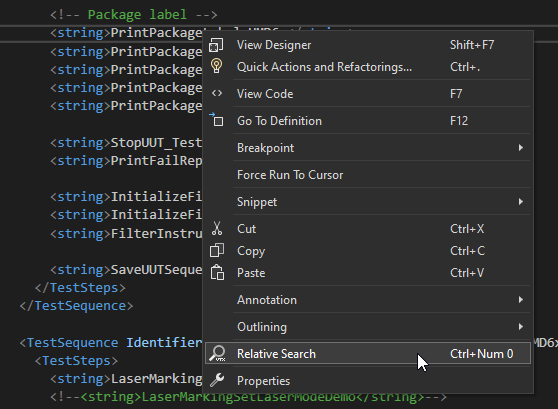

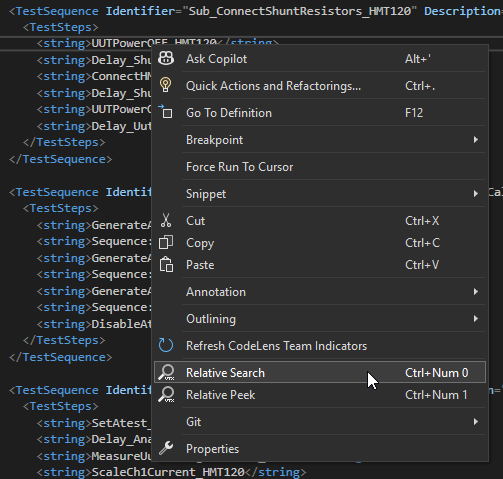

Extension adds buttons under right-click context menu: "VTX - Relative Search" and "VTX - Relative Peek"

"Relative Search" from TestSequence:

→ TestStep selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ Jumps to TestStep-settings

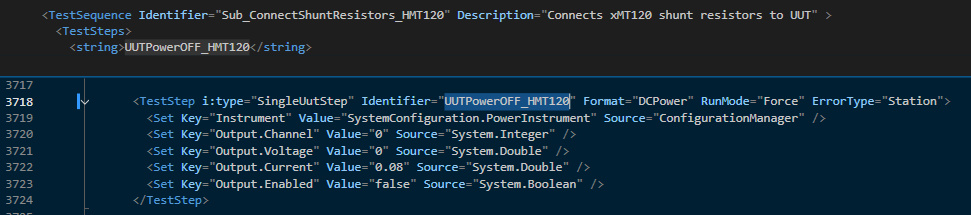

"Relative Peek" from TestSequence

→ TestStep selection or place cursor on the text to be searched
→ Right-Click; Relative Peek
→ Peek window shows TestStep-settings

"Relative Search" from TestStep "Format":

→ "Format"-name selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ Jumps to Executing Class

"Relative Peek" from TestStep "Format":

→ "Format"-name selection or place cursor on the text to be searched
→ Right-Click; Relative Peek
→ Peek window shows TestStep Class

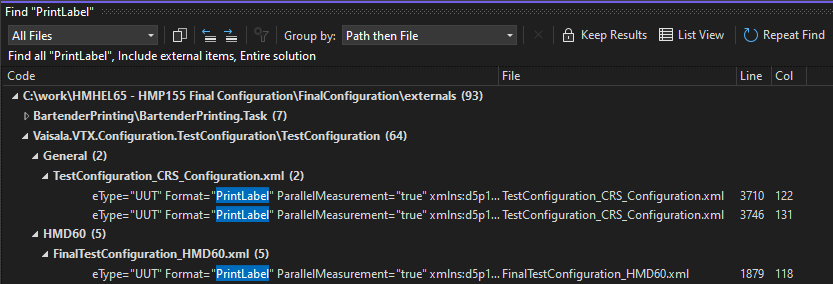

"Relative Search" from TestStep Class:

→ Class name selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ "Find"-window lists all calling TestSteps

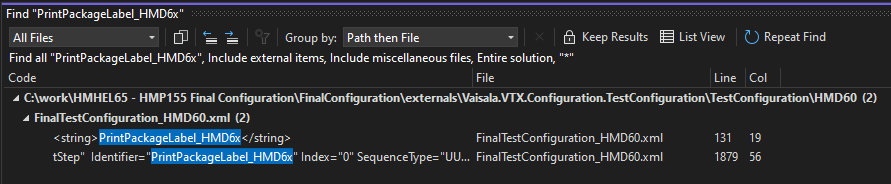

"Relative Search" from TestStep "Identifier":

→ "Identifier" name selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ "Find Results"-window lists all calling TestSequences

"Relative Search" from TestSequence SubSequence:

→ SubSequence selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ Jumps to called TestSequence

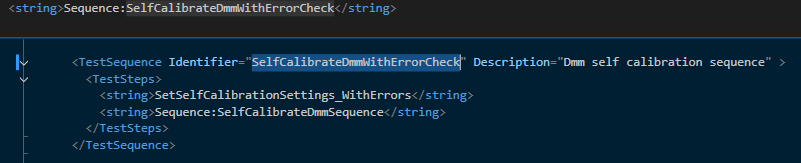

"Relative Peek" from TestSequence SubSequence:

→ SubSequence selection or place cursor on the text to be searched
→ Right-Click; Relative Peek
→ Peek window shows SubSequence

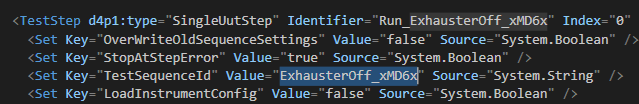

"Relative Search" from TestStep TestSequenceId, PreTestSteps or PostTestSteps:

→ TestSequenceId selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ Jumps to called TestSequence
Note! TestSequenceId Relative Search works only when Source is "System.String"-type

→ PreTestSteps or PostTestSteps selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ Jumps to called TestSequence

OR

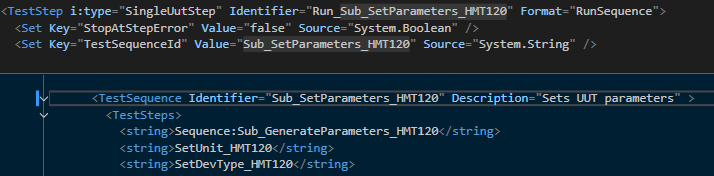

"Relative Peek" from TestStep TestSequenceId, PreTestSteps or PostTestSteps:

→ TestSequenceId selection or place cursor on the text to be searched
→ Right-Click; Relative Peek
→ Peek window shows TestSequence
Note! TestSequenceId Relative Search works only when Source is "System.String"-type

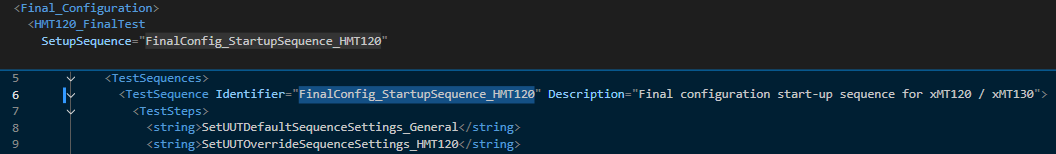

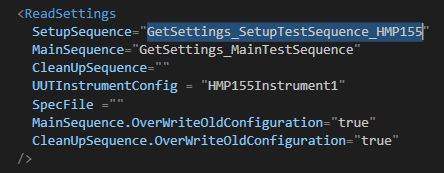

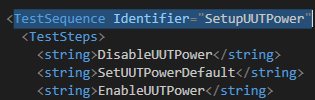

"Relative Search" from Products.xml SequenceType-selection to TestSequence:

→ SequenceType-name selection or place cursor on the text to be searched
→ Right-Click; Relative Search
→ Jumps to called TestSequence

→ SequenceType-name selection or place cursor on the text to be searched
→ Right-Click; Relative Peek
→ Peek window shows TestSequence

"Relative Search" from Executing Class or from TestStep Identifier settings:

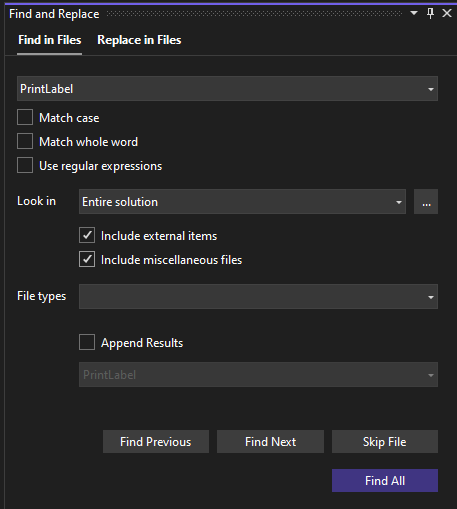

"Relative Search" will use Find and Replace window settings when backwards search is initiated.
Recommended settings:\

• Look in: Entire Solution
• Include external items: Checked
• Include miscellaneous files: Checked
• File types: Empty or *


Shortcuts:

"Relative Search"-shortcut key: CTRL+Num0. "Relative Peek"-shortcut key: CTRL+Num1.
