Web API + MVC UI Template (.NET 10)

A production-ready Visual Studio solution template for .NET 10 that scaffolds a full-stack application with JWT-authenticated Web API, ASP.NET Core MVC admin portal, SQL Server database project, and all common authentication flows — so you never write the same boilerplate twice.

What's Included

Technology Stack

• .NET 10 — API and UI
• ASP.NET Core Web API — REST endpoints, JWT Bearer authentication
• ASP.NET Core MVC — Razor-based admin portal with Bootstrap 5.3 + Font Awesome 6
• JWT — short-lived access tokens (10 min) + refresh tokens
• Dapper 2.1.79 — lightweight data access with repository pattern
• SQL Server — via Microsoft.Data.SqlClient
• SSDT — .sqlproj database project with dacpac publish, schema, and post-deploy seed scripts
• SMTP email — account verification and password reset
• PBKDF2-SHA256 — password hashing (100,000 iterations)

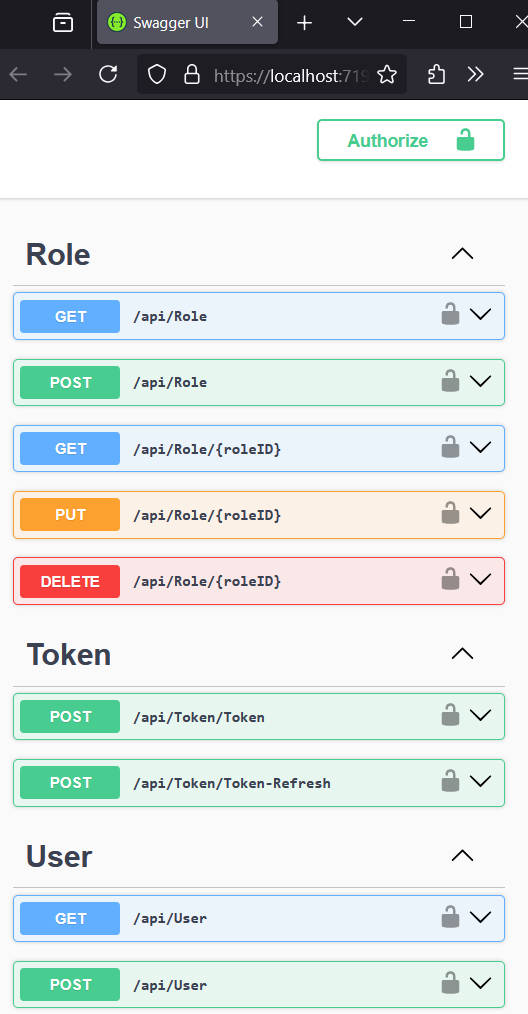

• Swashbuckle / Swagger — API documentation with JWT auth support
• NUnit 4 — unit tests for Services and Repository layers

Projects

Prerequisites

• Visual Studio 2022 (v17.0+) or Visual Studio 2026
• .NET 10 SDK
• SQL Server (LocalDB, Express, Developer, or full edition)
• SQL Server Data Tools (SSDT) — for the .sqlproj database project

Getting Started

1. Install the extension

Install from the Visual Studio Marketplace or directly from Visual Studio: Extensions → Manage Extensions → Search "Web API + MVC UI Template".

Restart Visual Studio after installation.

2. Create a new project

File → New → Project → search for "Web API + MVC UI" → select Web API + MVC UI Template (.NET 10) → click OK.

3. Publish the database

Open WebAPIJWTTemplate.DB → right-click → Publish.

Set your target server and database name, then click Publish. The post-deploy script will:

• Create Admin and User roles
• Create a default admin account: admin@gmail.com / Admin@123

Change the default admin password immediately after first login in production.

4. Configure connection strings

Update appsettings.Development.json in both WebAPIJWTTemplate.API and WebAPIJWTTemplate.UI:

{
  "ConnectionStrings": {
    "DefaultConnection": "Server=YOUR_SERVER;Database=WebAPIJWTTemplate.DB;Trusted_Connection=True;TrustServerCertificate=True;"
  },
  "Jwt": {
    "Key": "YOUR_LONG_RANDOM_SECRET_KEY_MIN_32_CHARS",
    "Issuer": "WebAPIJWTTemplate",
    "Audience": "WebAPIJWTTemplate"
  },
  "Email": {
    "SmtpHost": "your-smtp-host.com",
    "SmtpPort": 587,
    "EnableSsl": true,
    "UserName": "your-smtp-user",
    "Password": "your-smtp-password",
    "FromAddress": "noreply@yourdomain.com"
  }
}

5. Run the projects

Configure multiple startup projects in solution properties to run both simultaneously.

Architecture

Browser / API Client
       │
       ├── WebAPIJWTTemplate.UI  (MVC + Cookie Auth)
       └── WebAPIJWTTemplate.API (Web API + JWT Bearer)
               │
               └── WebAPIJWTTemplate.Services
                       │
                       └── WebAPIJWTTemplate.Repository (Dapper)
                               │
                               └── SQL Server (WebAPIJWTTemplate.DB)

Both the UI and API share the same Services and Repository layers directly — the UI does not call the API over HTTP.

Default Credentials

New users who register via the Sign Up page receive the User role and must verify their email before signing in.

Maintenance Mode

Set MaintenanceMode:Enabled to true in WebAPIJWTTemplate.UI\appsettings.json to redirect all non-admin users to a maintenance page (HTTP 503).

License

MIT

-----------------------------------------------OLD--------------------------------------------------------------------

Usings

• NET Core 8.0
• JWT Token authentication to protect your API
• DI - built in DI capabilities.
• AutoMapper for models mappings
• Swagger for API documentation
• Dapper with Repository pattern for MSSQL
• Dacpac for database script and database objects

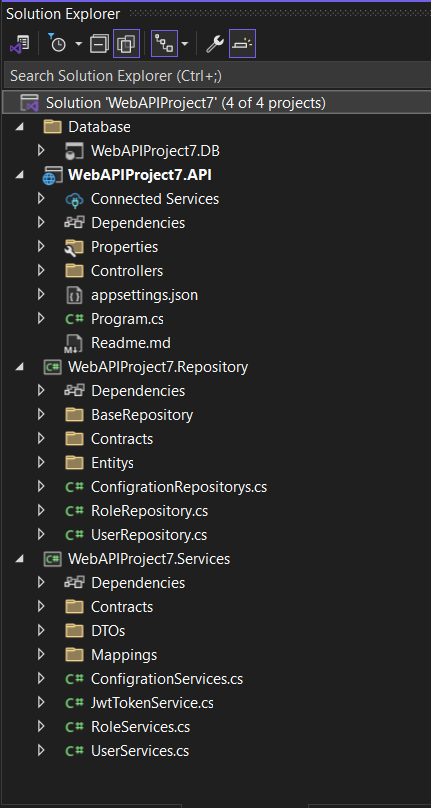

Projects template

• WebAPIJWTTemplate.DB - database project for publishing database
• WebAPIJWTTemplate.Repository - repository project to connect with database
• WebAPIJWTTemplate.Services - business layer or service project for business logic, etc.
• WebAPIJWTTemplate.API - api project for managing the end points.

Project requires Visual studio 2019/2022 with Dot Net core 8.0

Getting Started

1. Install the extension from the Visual Studio Marketplace. Also, you can install it from Visual Studio.To do so click on "Extensions" menu item, then select "Browse" , search for "Web API + JWT Token Template" select it and click "Download" button.

2. Restart Visual Studio

3. Click on "Create a New Project..." menu item Type "Web API + JWT Token" on the search pane Select "APS.Net WebAPI Application With OWIN" and click OK button.

4. Run .DB Project for creating the database.

5. Open a API project and open the appsettings.js

6. Edit the database connection string and the jwt token values
