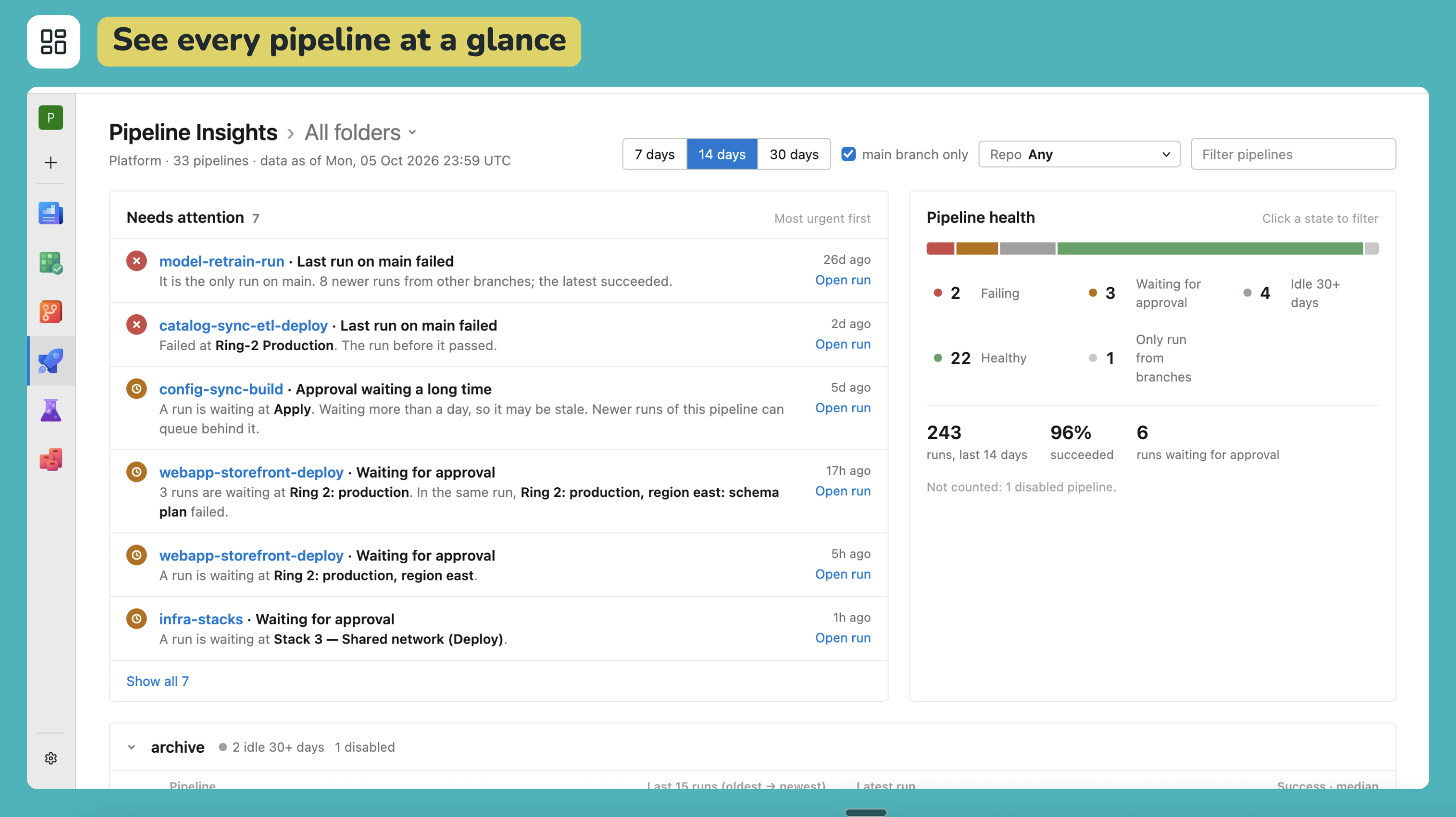

One page in the Pipelines menu that shows a project's pipelines at a glance.
Needs attention: failing pipelines, runs waiting at an approval, and pipelines that have
gone quiet, most urgent first.
Pipeline health: every pipeline by state, with run counts and success rates for the last 7,
14 or 30 days.

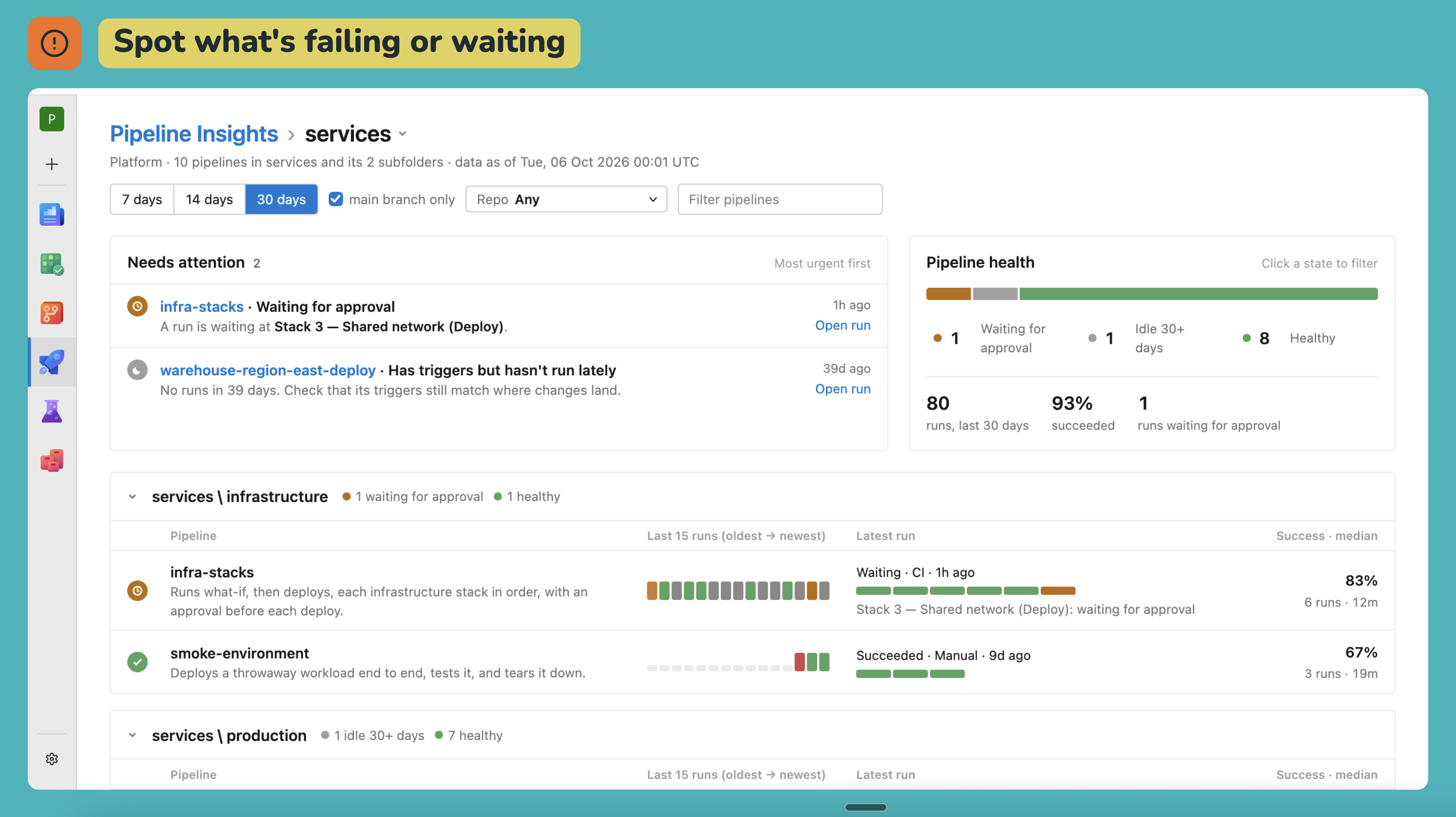

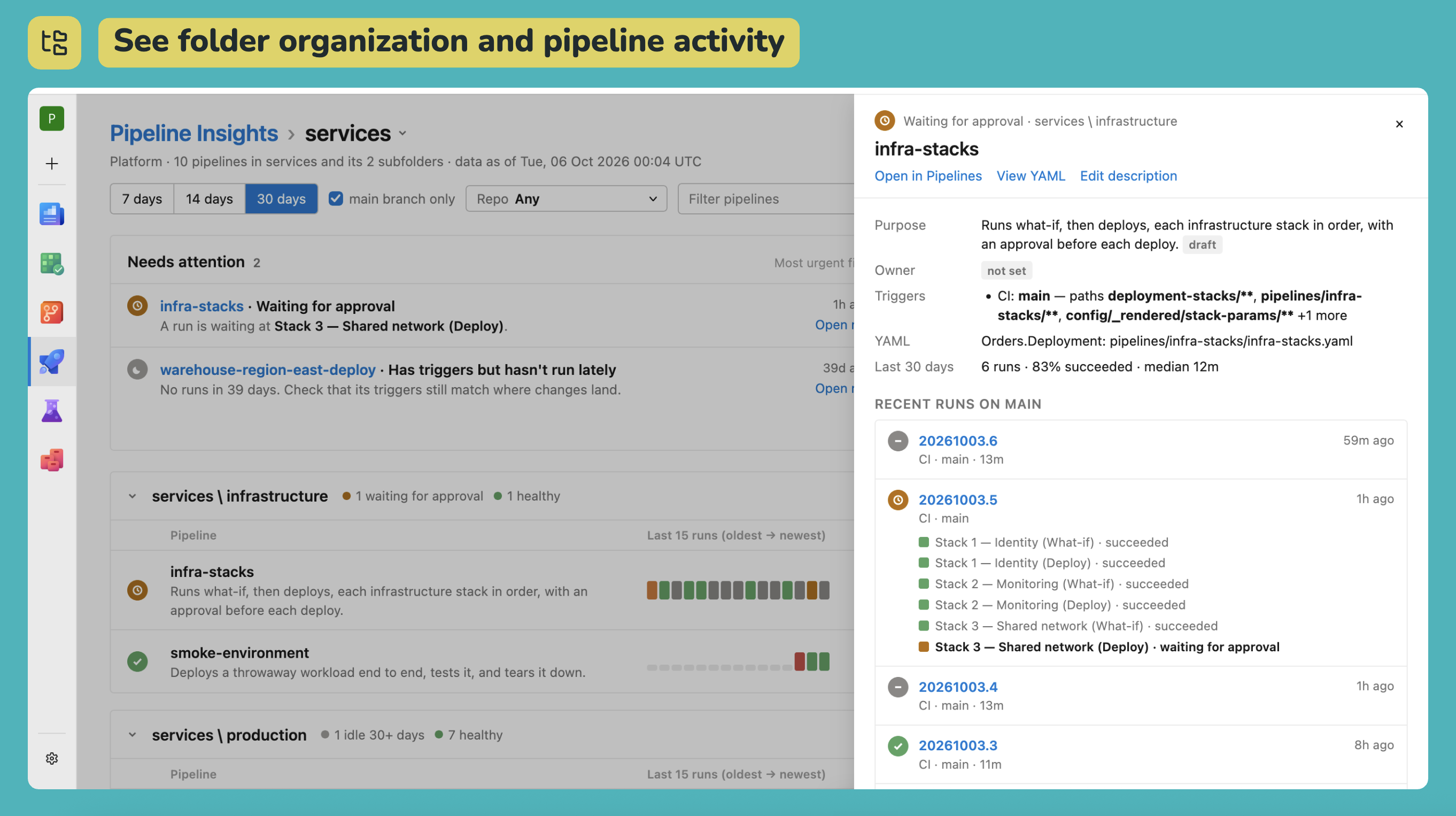

Folders: one block per pipeline folder, with each pipeline's recent runs, and a side panel
with its stages and history. Pick a folder from the heading to see only that folder and its
subfolders.

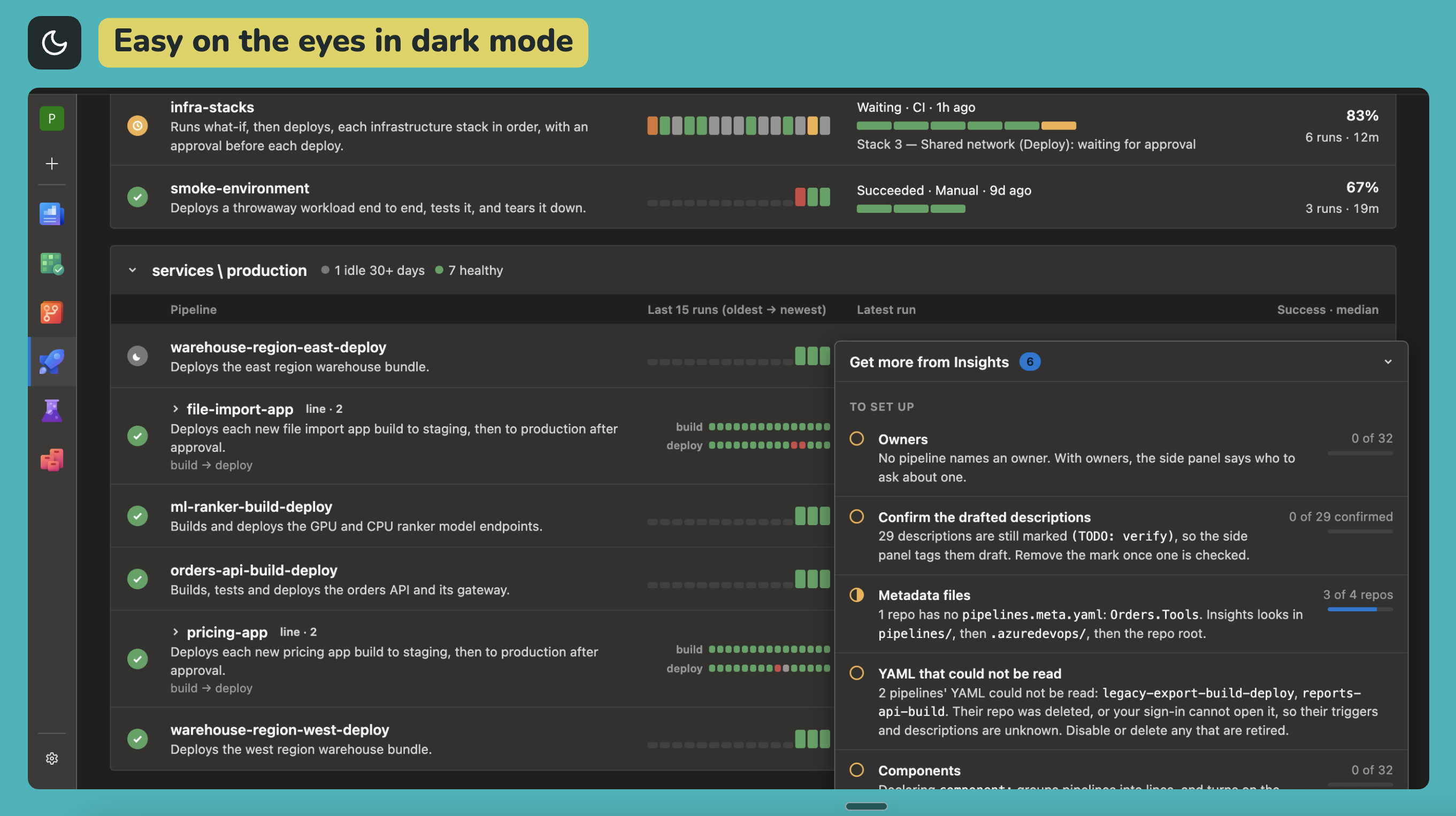

Get more from Insights: a panel at the bottom of the page that says what your pipelines'
descriptions are still missing and what each would unlock.
The page follows your Azure DevOps theme, light or dark, and switches with it without a reload.
The page reads Azure DevOps with your own sign-in, so you see only the pipelines you can already
open. Nothing is stored outside Azure DevOps; your browser only remembers whether you left the
setup panel open, and whether you asked it to search whole repos.
Describing a pipeline
Insights reads each pipeline's purpose, owner, category and component from one file per repo,
pipelines.meta.yaml, on the default branch. Each entry is keyed by the pipeline's YAML path
from the repo root.
pipelines:
pipelines/app-build.yaml:
owner: Platform Team
category: production
component: web-app
purpose: >-
Builds and pushes the web app image. Its completion triggers
app-deploy.
details: |
## When it fails
Re-run it once; a second failure is real.
Insights looks for the file in pipelines/, then .azuredevops/, then the repo root, and
uses the first it finds. The setup panel has a box to search a whole repo instead; it is off
by default, because it lists every file in the repo.
purpose and owner are expected. A purpose ending (TODO: verify) is shown as a draft.
Write the purpose as a folded block (>-), as above: a plain YAML value cannot contain : ,
and the draft mark does.
category is a short slug. Once any pipeline declares one, a Category filter appears.
component names the thing a pipeline ships. Pipelines that declare the same component are
shown together as one line; set it where triggers and names cannot show the link.
details is Markdown, such as a runbook, shown in the side panel.
The setup panel lists repos with no file, problems in a file, and entries whose YAML path no
pipeline uses. Rename an entry in the same pull request as its YAML.
