Bicep What-If for Deployment Stacks

Azure Deployment Stacks report more than a deployment what-if can: alongside Create and Modify they name the resources a deploy will Detach or Delete because they dropped out of the template, and they report each resource's management and deny status. That output is the most valuable thing a pre-deploy review has, and it currently arrives as one HTML blob per stack, per stage.

This extension puts every stack in a run on one screen.

What it adds

A build results tab. It opens on one sentence: how many stacks will delete or stop protecting resources, how many more might, how many were not evaluated, and whether Azure warned that a result may be incomplete. Below it is one line per stack, worst first, with its resource counts by severity. Open a stack for its resources, and a resource for its property changes, before and after side by side. A stack nobody evaluated opens on why: Azure's error, the stage's result, and a link to the stage's log. "All resources" lists every changed resource across the run, ranked by how much it can hurt you. Choose which changes and which stacks to show from the toolbar, or search; what you open and filter lives in the URL, so a link picks out the resource you were looking at.

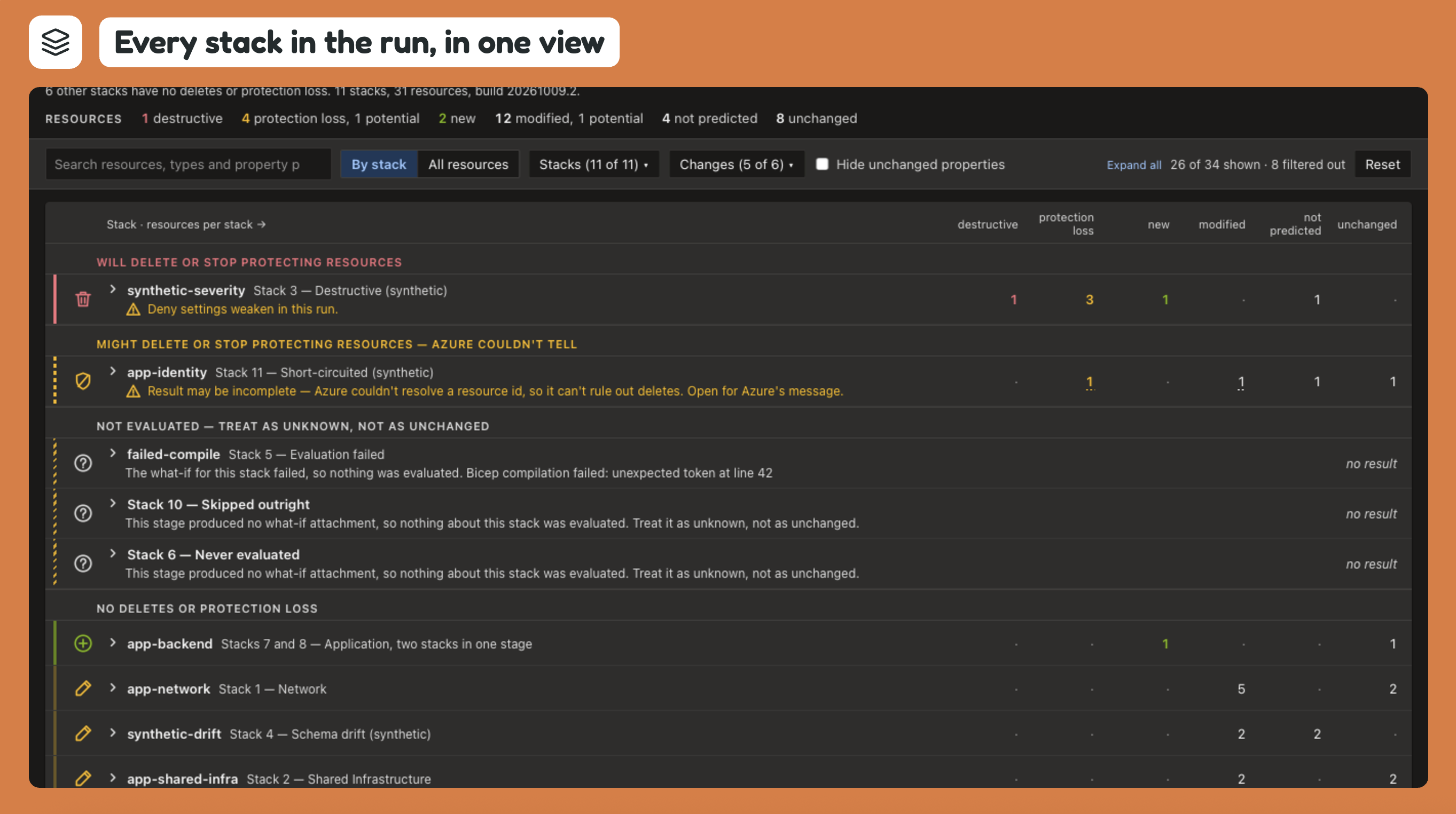

Every stack in the run, in one view

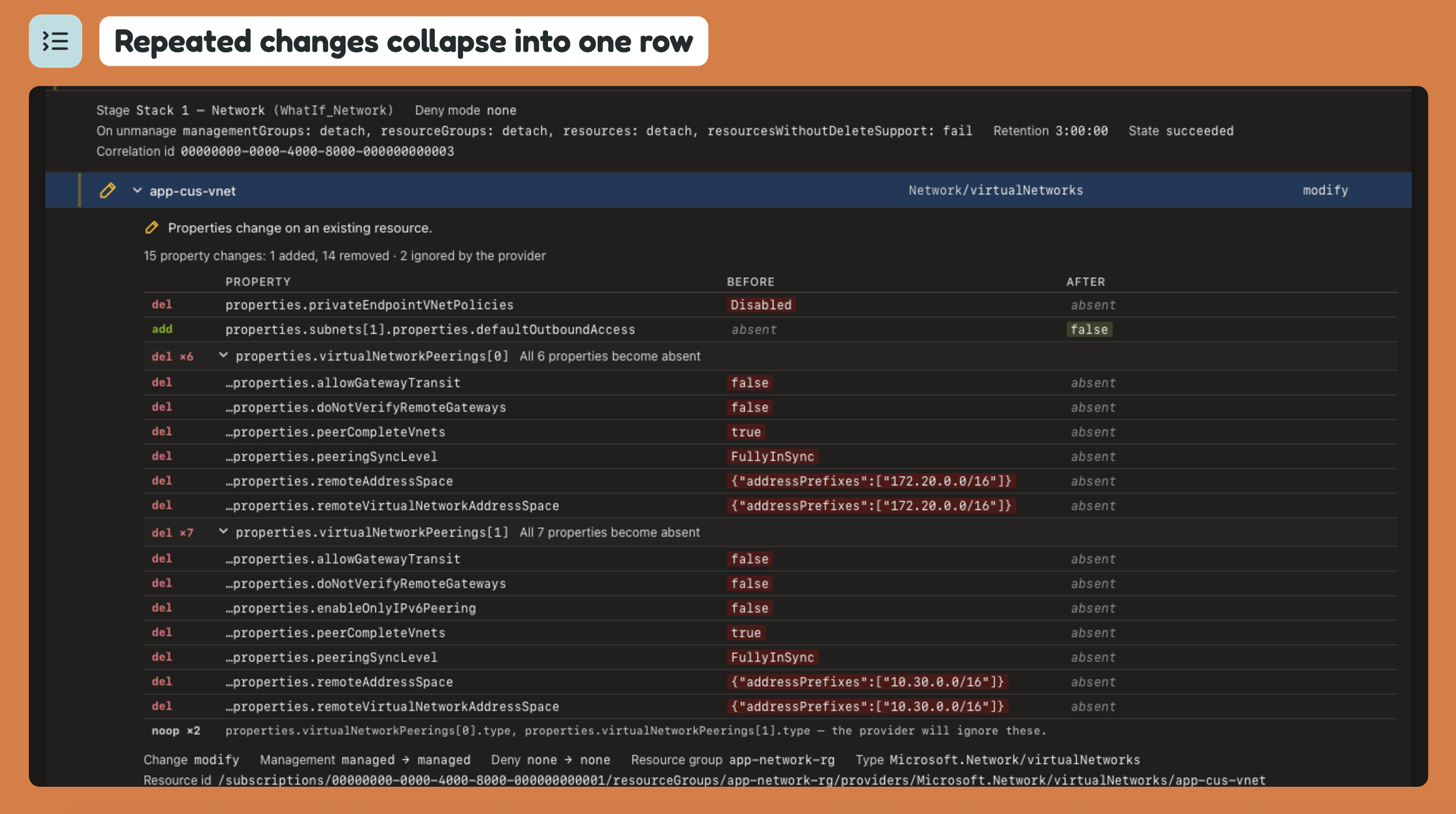

Repeated changes collapse into one row

Azure's own warnings stay with the stack they are about. When a resource's name cannot be worked out before the deploy, Azure short-circuits it, says the result is non-deterministic, and marks the changes it is unsure of as potential. A stack whose only deletes are potential is listed as one that might delete, apart from the stacks that will.

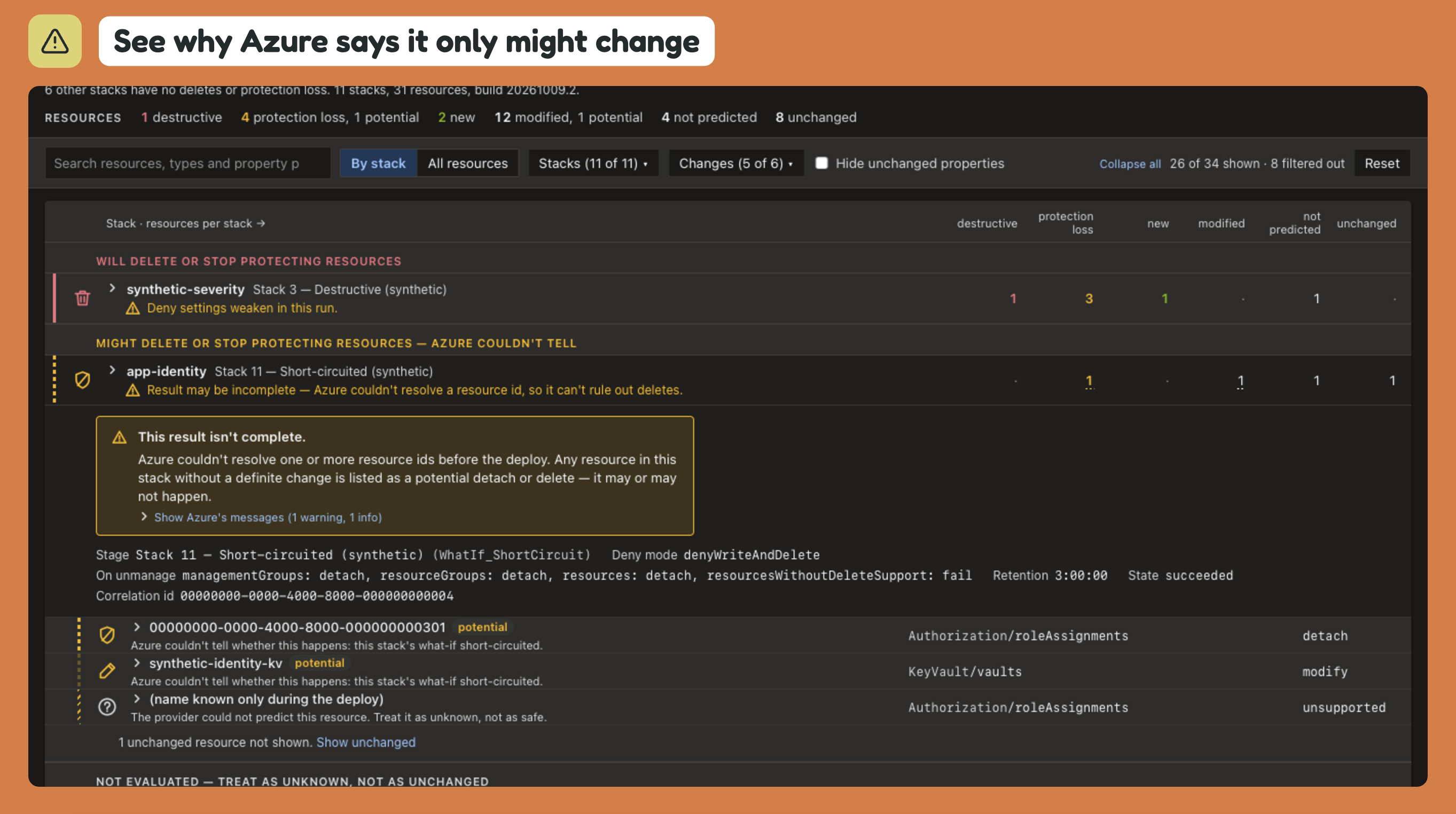

See why Azure says it only might change

A pipeline task. One task, with BicepDeploy@0's operations and input names. whatIf previews a stack against what it currently manages and attaches the result; create applies it, validate checks it, and delete removes it. What-if, create and validate read the same inputs and take the same code path, so a preview cannot disagree with the deploy it previews about the unmanage actions or deny settings — a difference there makes the preview a lie, most obviously about whether a dropped resource is reported as Detach or as Delete.

When Microsoft's Bicep Deploy task is enough

Azure Pipelines has a built-in task, Bicep Deploy (BicepDeploy@0), that deploys Bicep templates, deployment stacks included. It needs no extension and Microsoft maintains it. If it covers what you need, use it.

Compared with BicepDeploy@0 as Microsoft documented it on 23 September 2026, and with its source on 6 October 2026. That task changes, so check its current page before relying on this section.

Use BicepDeploy@0 if you:

deploy ordinary deployments rather than stacks. It can preview those with what-if too.
deploy stacks and do not need to preview the change first.
deploy at tenant scope. Deployment stacks do not exist there, so this extension's task covers resource group, subscription and management group scope only.
run classic release pipelines. This extension's tab is a build results tab, so a release has nowhere to show it.

What this extension adds:

A page to read the result on. One tab for every stack in a run: filterable and ranked by severity, with any stage that produced nothing shown as not evaluated rather than as unchanged. BicepDeploy@0 reports to the build log only, and a built-in task cannot add a page to the build results.
What-if for deployment stacks. BicepDeploy@0 can create, validate and delete a stack, but not preview one. A stack what-if is what reports the resources a deploy would Detach or Delete because they dropped out of the template. Microsoft has this in progress: an open pull request to the library BicepDeploy@0 is built on, Azure/bicep-deploy#327, adds stack what-if as text in the build log. Expect this difference to close.
Preview and deploy from one set of inputs. This is an alternative to deploying with BicepDeploy@0, not something to add on top of it: previewing here and deploying there means keeping two tasks' inputs in step by hand.

The thing it refuses to do

Absence of data never renders as absence of change.

What-if stages usually run with continueOnError, so a stage that fails attaches nothing at all. A tab that rendered only the attachments it received would show eight clean stacks as a safe deploy while the ninth was never evaluated. So the tab reconciles against the build timeline rather than the attachment list: every what-if stage in the run gets a row, and a stage that produced nothing is ranked unevaluated — above noChange, so no filter can hide it. The headline says how many stacks were not evaluated, and they get their own group, above every stack that only modifies. Neither dismisses.

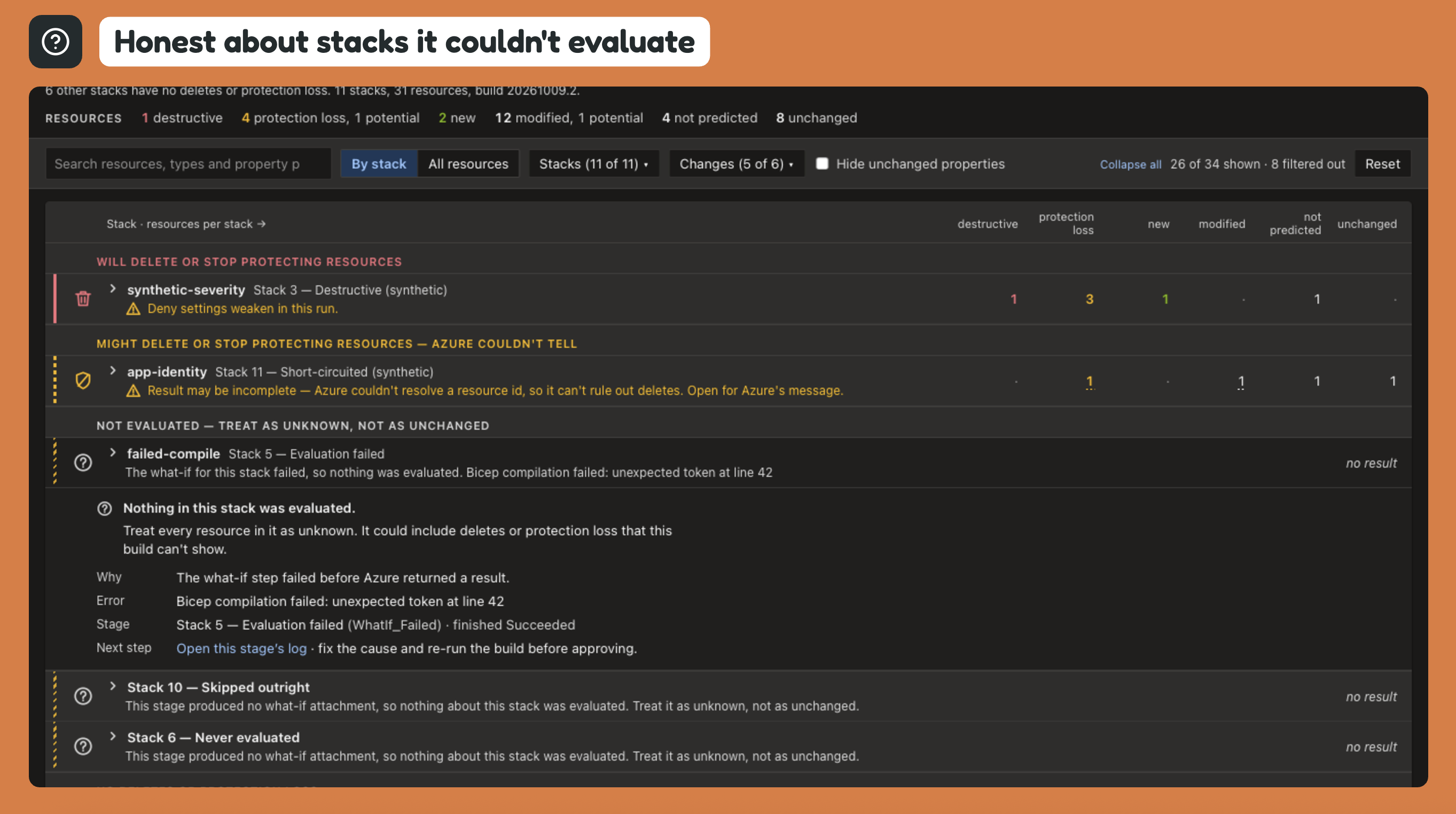

Honest about stacks it couldn't evaluate

The task holds up its end: it writes its sidecar manifest on failure as well as on success, because "evaluated, found nothing" and "never evaluated" have to be different on the wire.

Severity is the maximum across four axes

A resource can lose protection with no property change and no interesting change type. A noChange resource whose management status moves from managed to notManaged is the stack quietly stopping to govern a key vault, and sorting on change type puts it at the bottom of the table next to two hundred benign no-ops.

The tab draws each rung as an icon; the build log and its summary print the glyph.

Log	Rung	Reached by
`-`	destructive	`delete`
`/`	protectionLoss	`detach`, management lost, deny settings weakened
`+`	create	`create`
`~`	modify	`modify`
`?`	unevaluated	`unsupported`, an unrecognised change type, or a stage that attached nothing
`*`	noChange	`noChange`

Permissions

vso.build — build read — and nothing else. No build_execute, no code, no serviceendpoint. The tab is a static page: everything it shows comes from build attachments produced by the task, and it makes no request to any host outside Azure DevOps. No CDN, no font host, no telemetry.

The task talks to Azure Resource Manager using the service connection you give it, and downloads a version-pinned Bicep compiler from github.com/Azure/bicep at run time. Pinning is deliberate: compiler output changes across versions, and every consumer's what-if should compile identically. The pinned version may move in a minor release, always with a release note; set bicepVersion to stay on one.

Tested on Azure public cloud. The task takes its sign-in authority and Resource Manager URL from the service connection, so other clouds should work the same way, but none has been tried.

Getting started

- task: StackWhatIf@1
  displayName: What-If — network
  continueOnError: true
  inputs:
    operation: whatIf
    azureResourceManagerConnection: 'My ARM Connection'
    stackId: network
    stackName: app-network
    templateFile: stacks/01-network-stack.bicep
    parametersFile: params/network.bicepparam
    location: CentralUS
    actionOnUnmanageResources: detach
    actionOnUnmanageResourceGroups: detach
    denySettingsMode: none

Repeat the step per stack, in one stage or several. Name a stage WhatIf_<Something> and the tab shows it even when it never ran, as not evaluated; a stage named otherwise appears once a what-if attaches to it. Full documentation, including why the fan-out belongs in your YAML rather than inside the task, is in the repository.

What-if is a prediction, not a promise

It carries documented accuracy limits and stack what-if inherits every one of them. The Detach and Delete rows are simultaneously the most valuable output here and the ones to check hardest. This tool exists to make them easier to read — it is not a reason to trust them without looking.

One limit found while testing: a stack what-if compares the parameter values it is given, not the template's defaults. A change that comes only from a parameter default, such as a utcNow() stamp, was reported as no change. Pass values that the preview must see.

Michael Clayton
