Visualize and Navigate Your Code as a Mind Map

Link nodes to functions, files, or classes - Ctrl+Click to jump straight to your code. Ctrl+2, Ctrl+2 - to add selected code as a mind map node.

Extension website: https://CodeMindMap.com

Key Features

• Code-Linked Nodes - Nodes tied directly to your source files, creating a visual representation of your codebase.
• One-Click Navigation - Ctrl+Click any node to instantly open the linked code file and jump to the exact position.
• IDE Integration - No app switching required - mind maps live inside Visual Studio, right alongside your code.
• Project Clarity - Map architectures, document tasks, or untangle legacy code with visual, connected maps.

Quick Start Guide

1. Open the Mind Map Window

Go to View → Other Windows → Code Mind Map to open the extension panel.

2. Add Code as a Node

• Select any code in the editor (or place the caret on a line)
• Press Ctrl+2, Ctrl+2 to add it as a new node in the mind map, linked to that code

3. Navigate to Linked Code

Ctrl+Click any node in the mind map to jump directly to the linked code.

4. Organize & Connect Nodes

• Drag and drop nodes to rearrange
• Right-click to edit, delete, or add connections

That's it! Start visualizing and navigating your code faster with Code Mind Map.

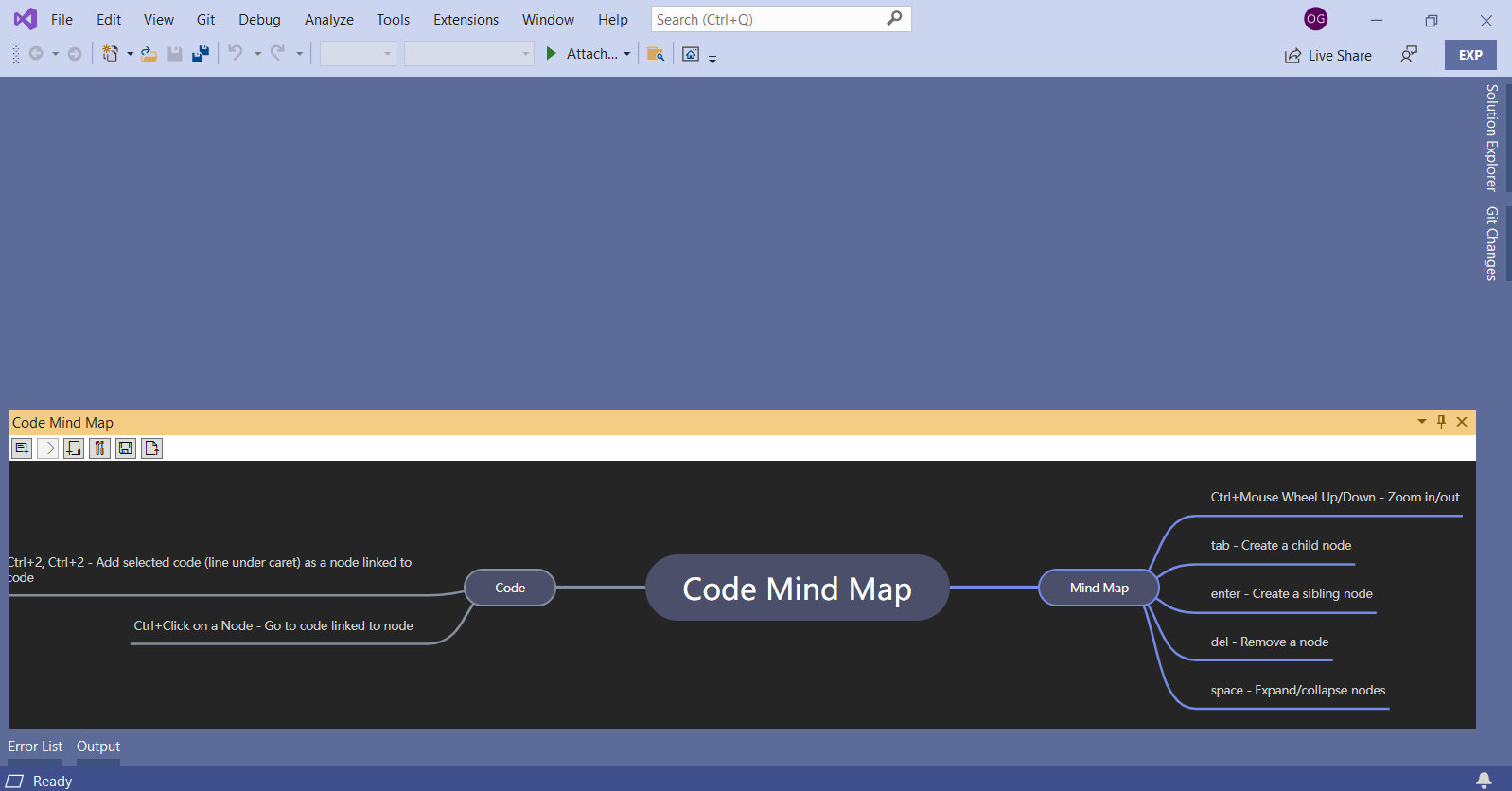

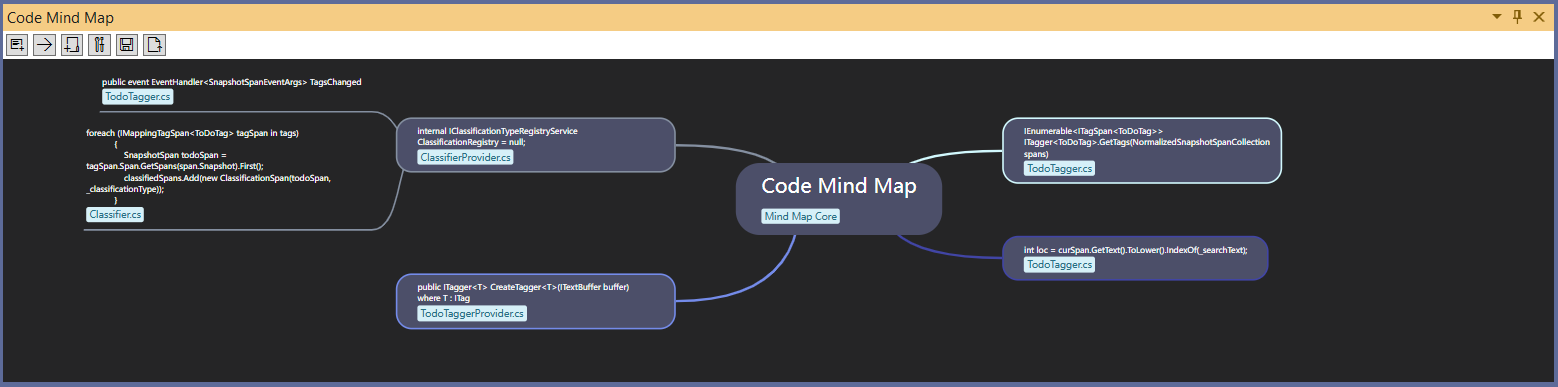

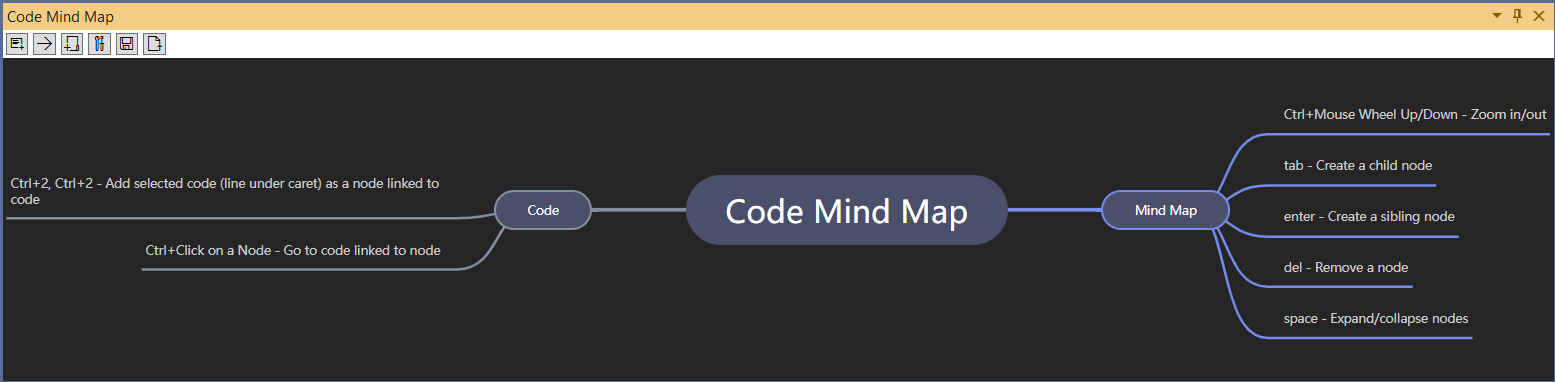

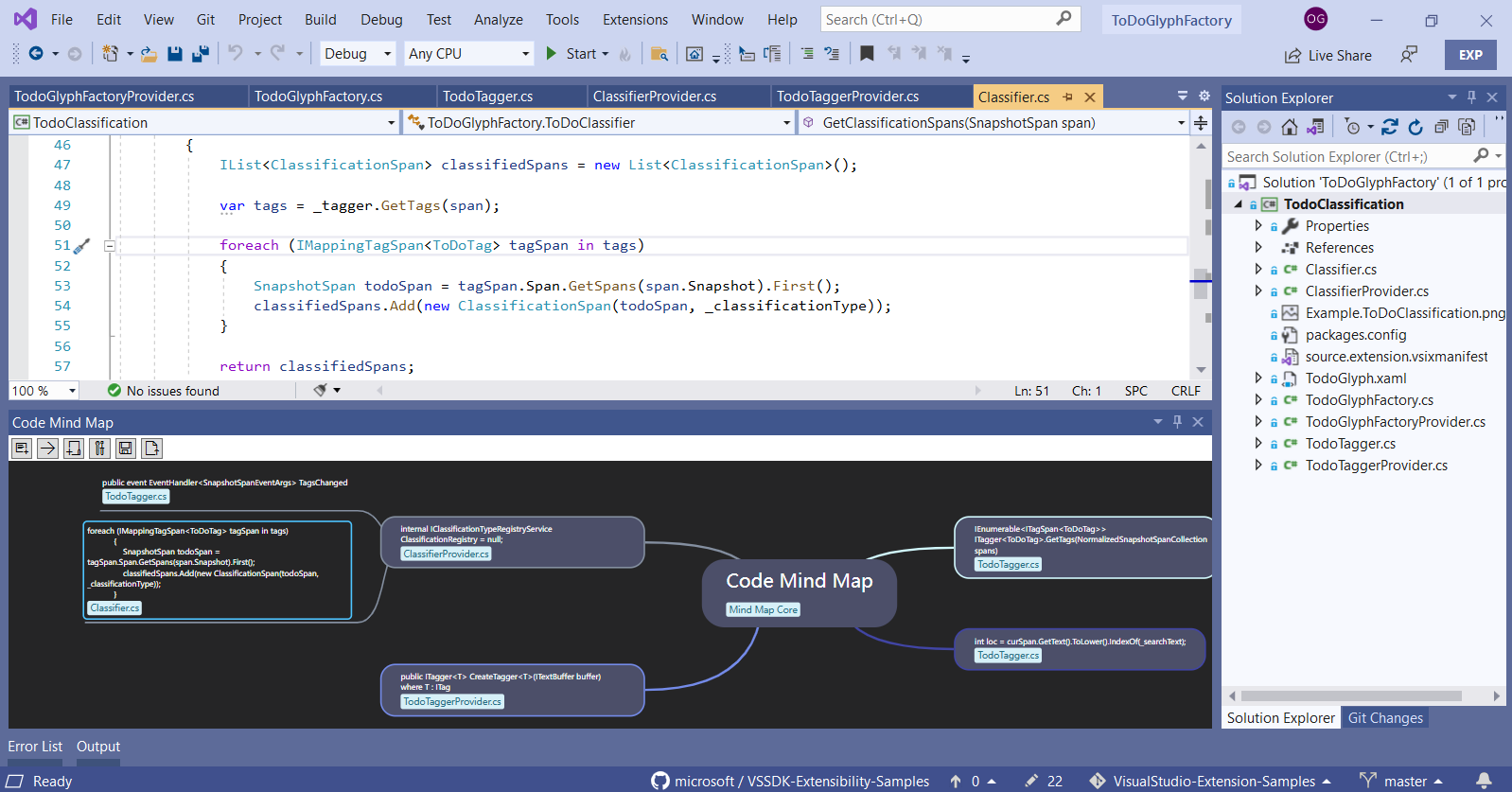

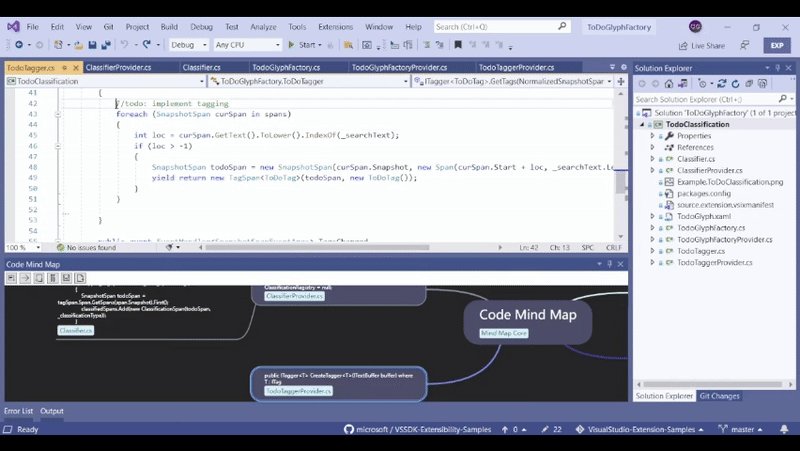

Screenshots
