HeatWave for VS2022

HeatWave is FireGiant's Visual Studio extension for the WiX Toolset. HeatWave Community Edition is available free of charge and provides:

• Conversion of WiX v3 projects and authoring
• Building of modern WiX SDK-style projects
• Project and item templates
• Property pages to control how the project builds

HeatWave peacefully coexists with the WiX v3 Visual Studio extension, which allows you to mix and match old and new versions of WiX projects in a solution. That way, you can gradually convert old WiX v3 projects to the latest version of WiX.

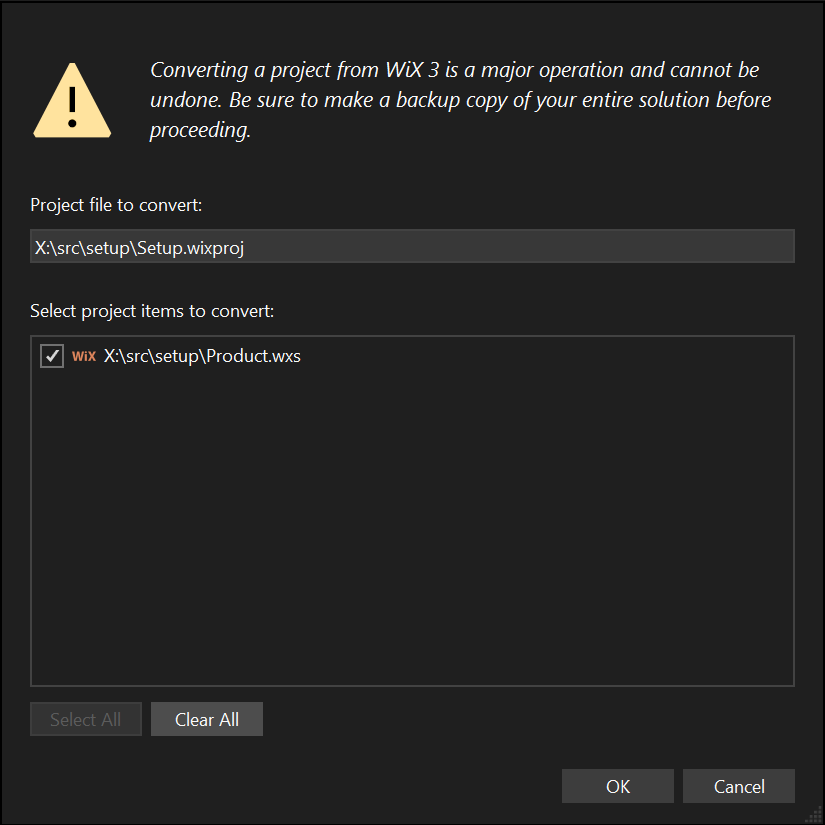

Converting WiX v3 projects and authoring

With HeatWave, you can convert WiX v3 .wixproj projects to the latest version of WiX using the Upgrade to latest WiX version... command on the Project menu or context menu in Solution Explorer.

When you confirm, HeatWave converts the WiX v3 .wixproj to the modern SDK-style MSBuild project. It also converts the WiX source files you selected. If HeatWave encounters any errors during the automated conversion, it shows them in a .log file so you can rectify the problem using human-brain-style conversion.

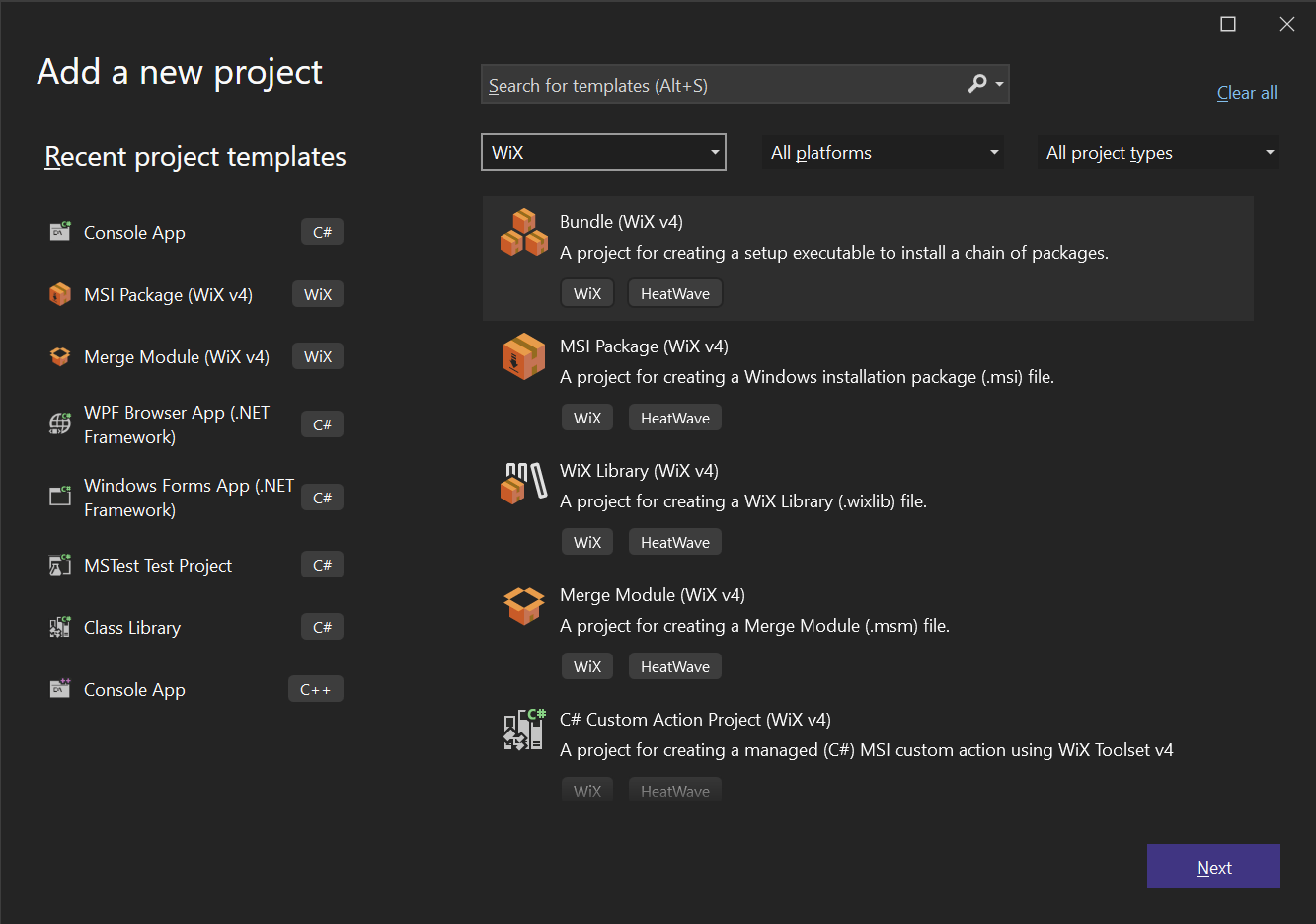

Create a new project

HeatWave includes templates for common WiX project types, like MSI packages, bundles, and WiX libraries. The quickest way to see those templates on the Visual Studio Create a new project window is to filter by WiX under language.

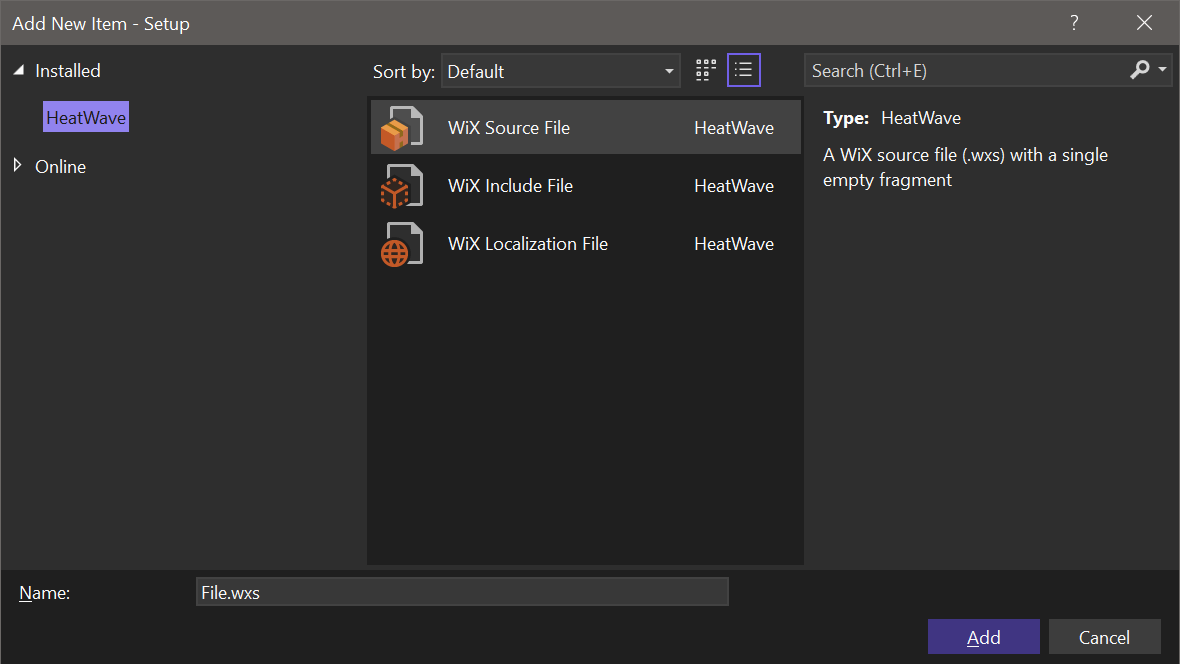

Create a new file

HeatWave also includes templates for common WiX project items, like source files, include files, and localization string files.

Add WiX extensions

WiX extensions are available as NuGet packages, and HeatWave lets you choose them using the NuGet Package Manager in Visual Studio. Open NuGet Package Manager (among other methods) from the .wixproj context menu in Solution Explorer by choosing Manage NuGet Packages. One trick to finding all the extensions published by the WiX team is to search for wixext -- all the WiX extensions end in that name.

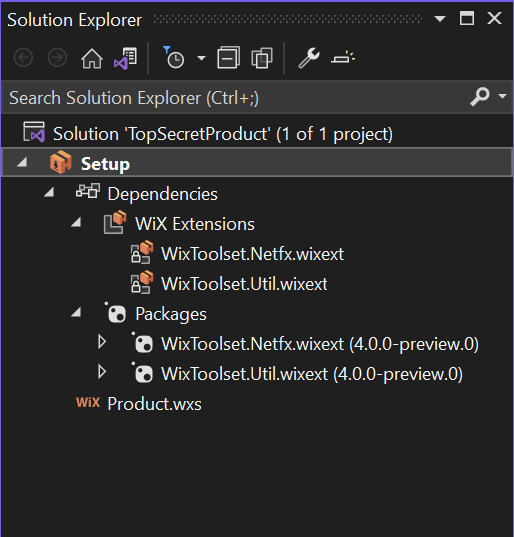

Select the extension you want to add, like WixToolset.Util.wixext, and choose Install. HeatWave, Visual Studio, and NuGet will work together to get the WiX extension and add it as a dependency in your project. You can expand Dependencies to show that the extension is loaded and the NuGet package it came from.

Add project references

If your WiX project consumes the output of another project—like a .wixproj that packages the .exe from a .csproj into an .msi—you can add a project reference to ensure that Visual Studio (and MSBuild for command line and CI/CD builds) builds the projects in the right order.

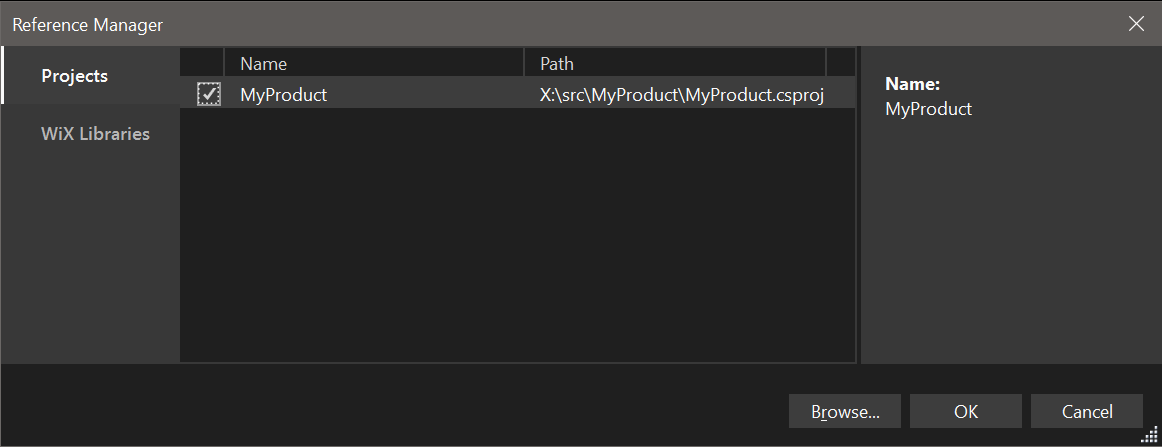

To add a project reference, right-click Dependencies in the WiX project in Solution Explorer and choose Add Project Reference.

In Reference Manager, select the projects to reference and choose OK.

Now when you build, the referenced projects will build before your WiX project.

Build

HeatWave supports all the typical build-related commands you'd expect for WiX projects: Build, Rebuild, Clean. WiX projects build along with any other project inside Visual Studio solutions.

From the command line and on CI/CD build systems, you can build projects you created with HeatWave with MSBuild and dotnet build.

Issues

If you experience any bugs or other odd, unexpected, or otherwise mysterious behavior in FireGiant HeatWave, join the community discussion to share what you are seeing.
