BMC AMI DevX Source Code Download
Overview
The Source Code Download extension allows users to download Code Pipeline(ISPW) members from the mainframe to the PC. Source can then be accessed on the PC, for example, for SonarQube analysis and reporting.
Prerequisites
The following are required to use this plugin:
Installing extensions in a Azure Devops Server Instance
- Install the BMC AMI DevX Common Configuration extension and BMC AMI DevX Source Code Download extension according to the Azure Devops instructions for installing extensions.
- Install the Workbench CLI on the machine in which Azure Devops Server is running that will execute the extension. The Workbench CLI is available in the Workbench installation package. If you do not have the installation package, please visit support.bmc.com.

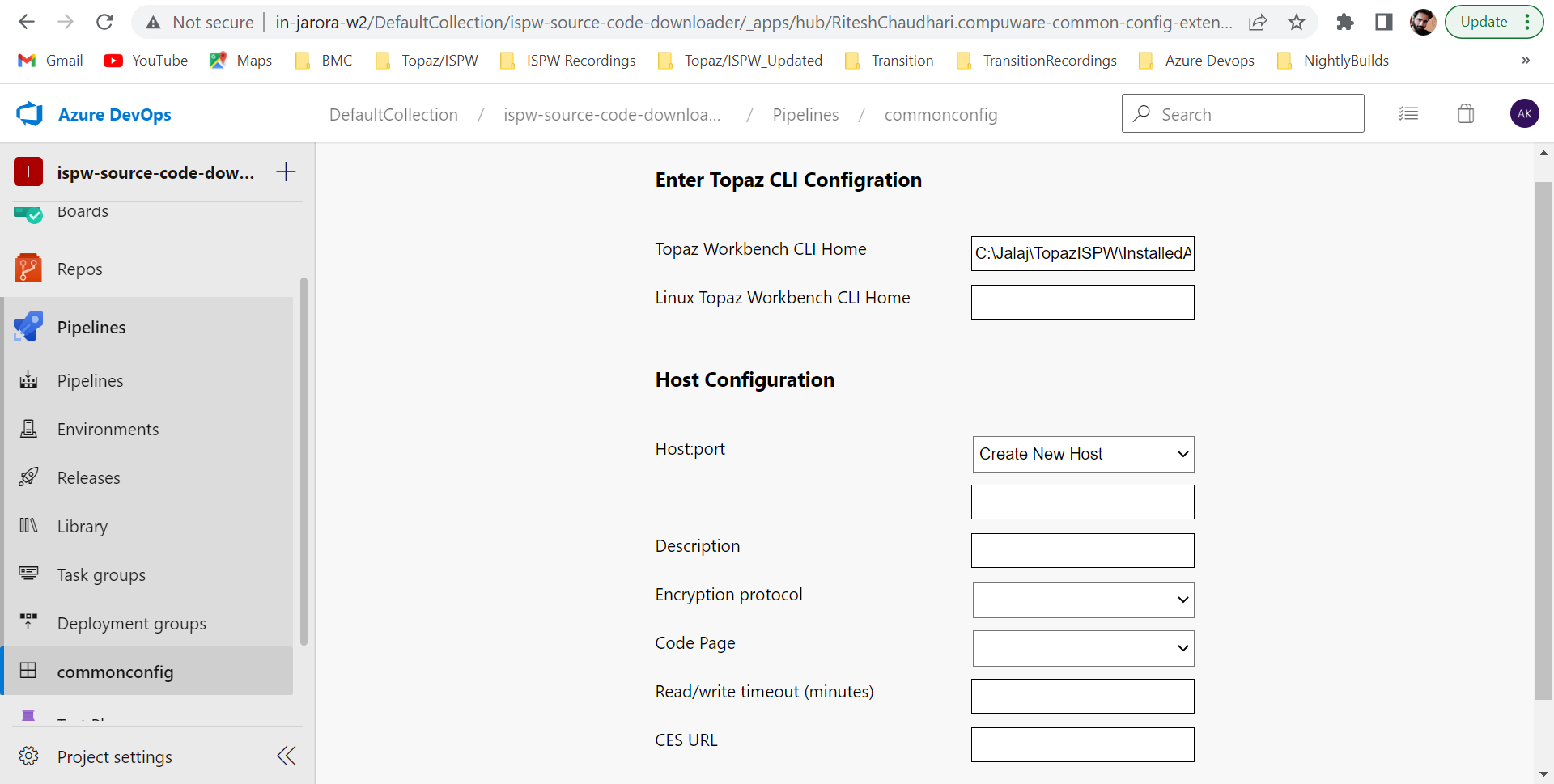

Configuring for Workbench CLI & Host Connections
In order to download Code Pipeline members you will need to point to an installed Workbench Command Line Interface (CLI). The Workbench CLI will work with host connection(s) you also need to configure to download Code Pipeline members.

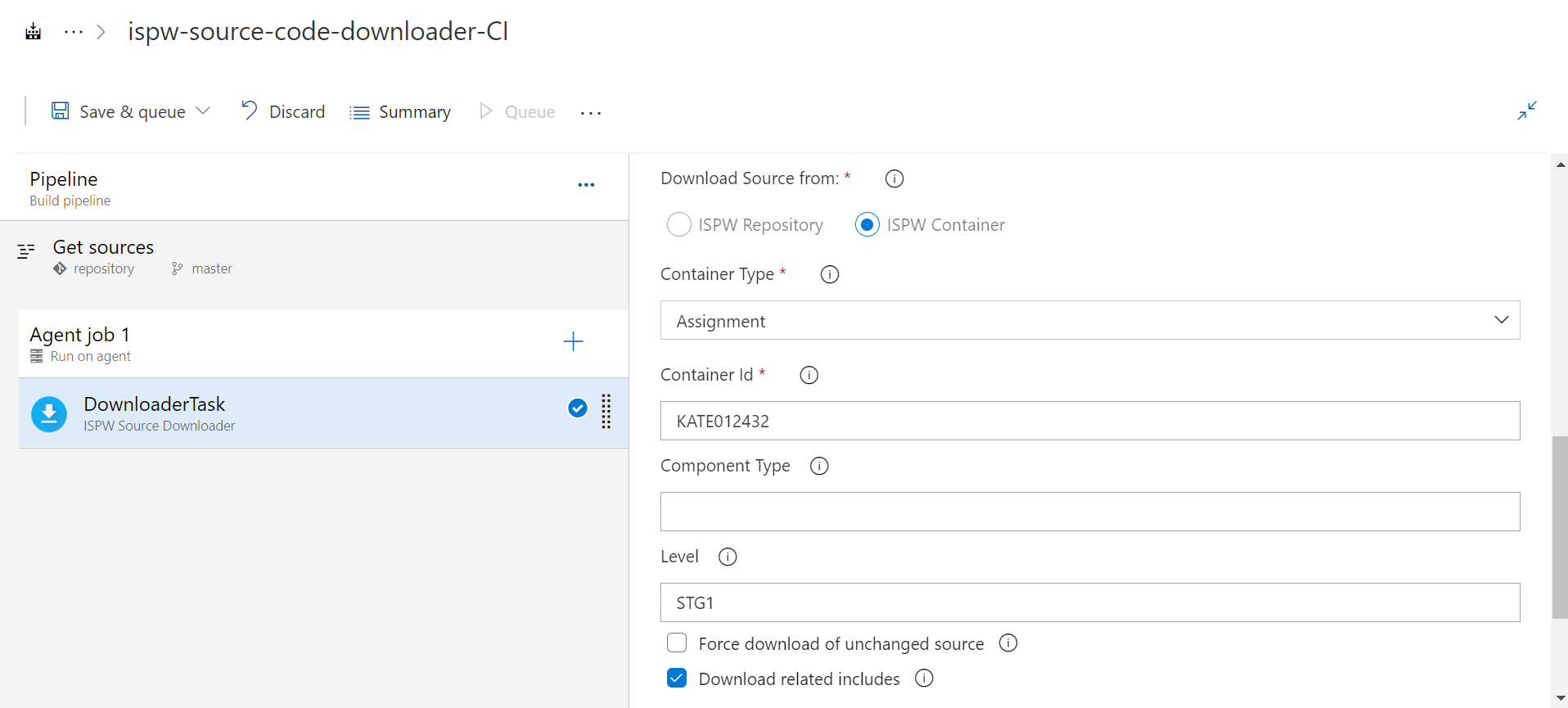

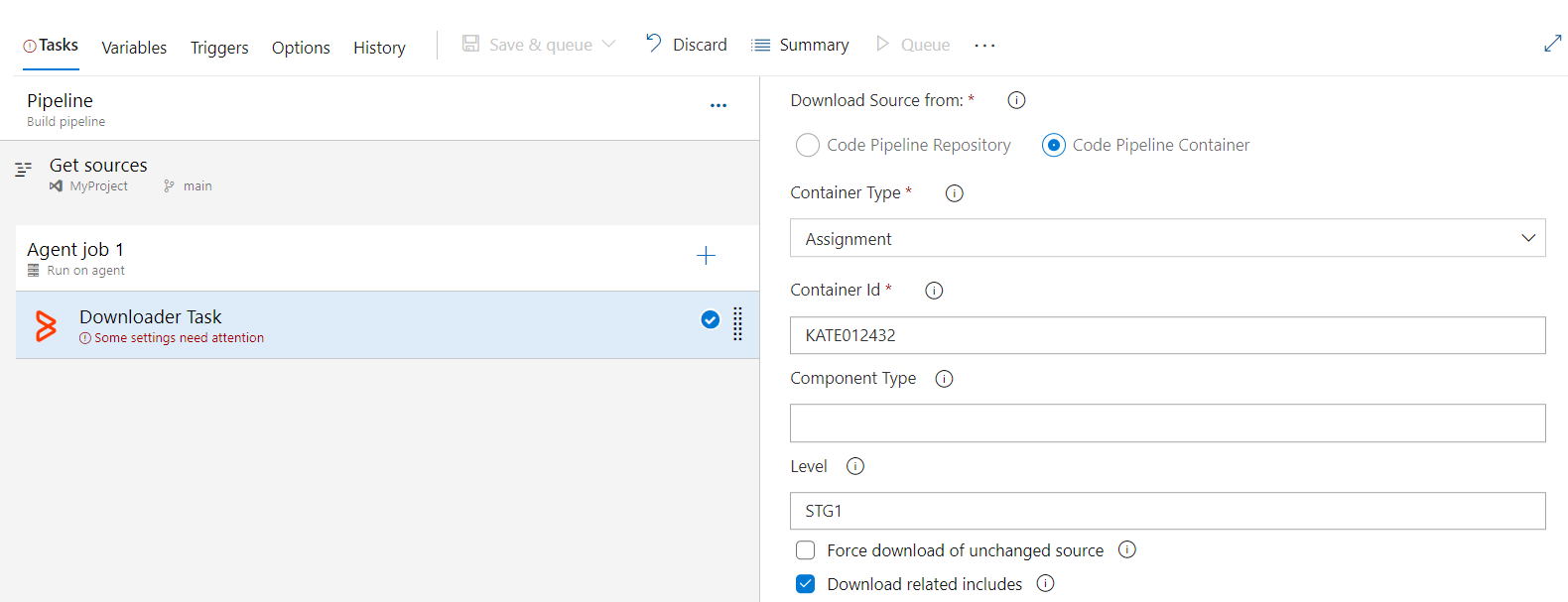

Downloading Code Pipeline Container members
This integration allows downloading of Code Pipeline Container members from the mainframe to the PC.
While creating the new Azure pipeline, we can add a new task "BMC AMI DevX Source Code Download" by clicking + sign on Agent Job.
This BMC AMI DevX Source Code Download task has following parameters:
Host connection : Select the host connection to be used to connect to the z/OS host.
Alternatively, to add a new connection, click on + New. The Host connections section of the Common configuration tab appears so a connection can be added.
Runtime configuration : Enter the host runtime configuration. To use the default configuration, leave the field blank.
Authentication : Mode of authentication i.e. either Username/Password or Certificate based.
Code Pipeline User Id : Select the Code Pipeline user id to use for logging onto the z/OS host.
Password : Instead of enteriend password directly in this field, In Azure we have azure vault for storing secrets. We can store password as Azure pipeline variable as a secret and use that variable in this field. Example $(variablename)
Azure Subscription : The Azure Subscription under which Key Vault is created.
Key Vault : Name of Key Vault that holds the Certificate for authentication.
Certificate Name : Name of the certificate as uploaded in Key Vault. (PFX format is supported)
Do the following in the Filter section to identify Code Pipeline members to be downloaded:
Container name : Enter the name of the container to target for the download.
Container type list (do one of the following):
- Assignment : Select if the specified Container name is an assignment.
- Release : Select if the specified Container name is a release.
- Set : Select if the specified Container name is a set.
Level : Optionally use to identify components at a specific level in the life cycle to download (such as DEV1, STG1, or PRD).
Component type : Optionally use to identify components of a specific type to download (such as COB, COPY, or JOB).
Force download of unchanged source : Optionally use to indicate that all source matching the current filter should be downloaded, regardless of whether it has been changed recently or not. If this box is left unchecked, it will delete any files in the workspace that no longer match the filter specified above. Leaving it unchecked will also only download source that has been changed since the last time the job was run.
Click Save.
Run the job, which by default the following occurs:
Mainframe source is downloaded to the project's or job's workspace into a $(Code_Pipeline_Application)/MF_Source folder.
Folder components are downloaded into a $(Code_Pipeline_Application) folder.
Optionally, to perform SonarQube analysis, install the SonarQube extension and refer to the documentation for the SonarQube extenion.

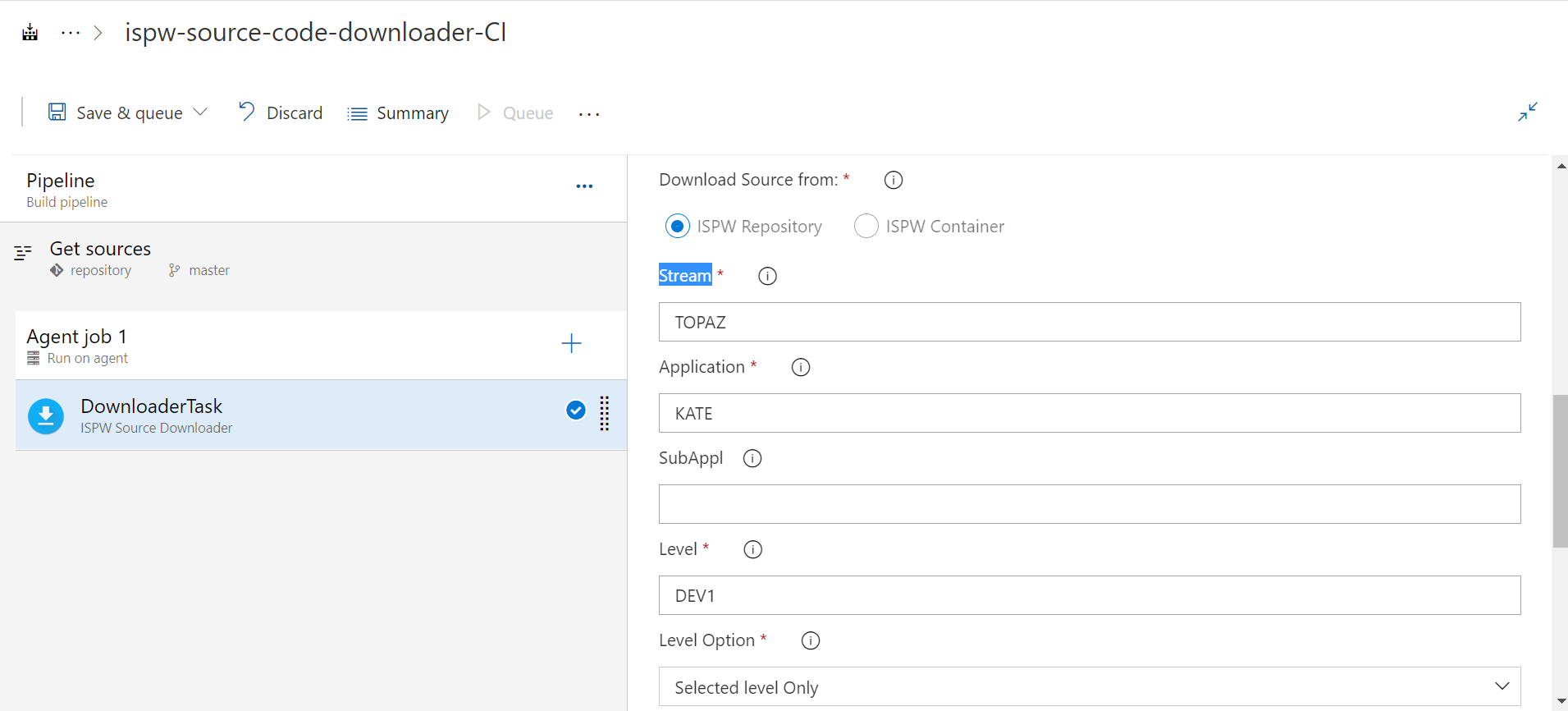

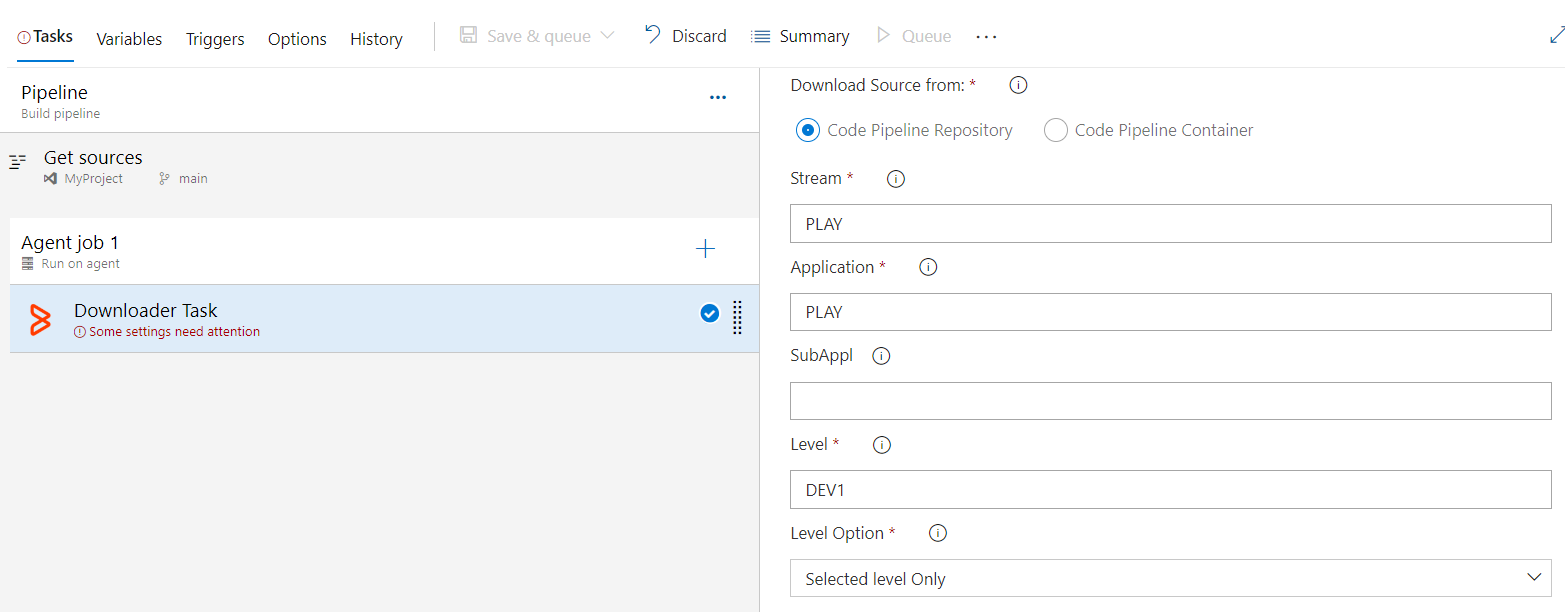

Downloading Code Pipeline Repository members
This integration allows downloading of Code Pipeline Repository members from the mainframe to the PC.
While creating the new Azure pipeline, we can add a new task "BMC AMI DevX Source Code Download" by clicking + sign on Agent Job.
This BMC AMI DevX Source Code Download task has following parameters:
- Host connection : Select the host connection to be used to connect to the z/OS host.
Alternatively, to add a new connection, click on + New. The Host connections section of the Topaz Common configuration tab appears so a connection can be added.
Runtime configuration : Enter the host runtime configuration. To use the default configuration, leave the field blank.
Authentication : Mode of authentication i.e. either Username/Password or Certificate based.
Code Pipeline User Id : Select the Code Pipeline user id to use for logging onto the z/OS host.
Password : Instead of enteriend password directly in this field, In Azure we have azure vault for storing secrets. We can store password as Azure pipeline variable as a secret and use that variable in this field. Example $(variablename)
Azure Subscription : The Azure Subscription under which Key Vault is created.
Key Vault : Name of Key Vault that holds the Certificate for authentication.
Certificate Name : Name of the certificate as uploaded in Key Vault. (PFX format is supported)
Do the following in the Filter section to identify Code Pipeline members to be downloaded:
- Stream : Enter the two- to eight-character code that defines the application structure with which the application is associated.
- Application : Enter the container's primary application code. Containers may include components from multiple applications.
- Subapplication : Enter the container's primary subapplication code. Containers may include components from multiple subapplications.
- Level : Enter the life cycle level.
- Level option list (do one of the following):
- Selected level only : Select to display only components at the selected life cycle level in the view.
- First found in level and above : Select to display the first version found of each component at the selected level and above. In other words, if there are multiple versions in the life cycle, display one version of the component that is the first one found at the selected level and any levels in the path above it.
- Component types and/or Application root folder names : Optionally use to identify components and application root folders to download.
- To download a folder that matches the name specified (and all of its contents) and download all components outside of a folder that match the specified type, enter values in both the Component types and Application root folder names fields. Enter in the Component types field the component type (such as COB, COPY, or JOB) on which to filter. Enter in the Application root folder names field the name of the folder on which to filter. For example, entering COB in the Component types field and FolderX in the Application root folder names field will download FolderX and all of its contents, as well as all of the COB files that exist outside of folders.
- To download all components of a specified type regardless of whether they are within folders, use only the Component types field by entering the component type (such as COB, COPY, or JOB) on which to filter.
- To download a folder that matches the name specified (and all of its contents), as well as all components that are not within a folder, use only the Application root folder names field by entering the name of the folder on which to filter.
- To download all components and folders in the application and level selected, leave both fields empty.
- To download multiple folders or types, comma-separate the values.
- Force download of unchanged source : Optionally use to indicate that all source matching the current filter should be downloaded, regardless of whether it has been changed recently or not. If this box is left unchecked, it will delete any files in the workspace that no longer match the filter specified above. Leaving it unchecked will also only download source that has been changed since the last time the job was run.
Click Save.
Run the job, which by default the following occurs:
Mainframe source is downloaded to the project's or job's workspace into a $(Code_Pipeline_Application)/MF_Source folder.
Folder components are downloaded into a $(Code_Pipeline_Application) folder.
Optionally, to perform SonarQube analysis, install the SonarQube extnesion and refer to the documentation for the SonarQube extension.
